Summary of Contents for DR ZABER SENTRY
- Page 1 User manual...

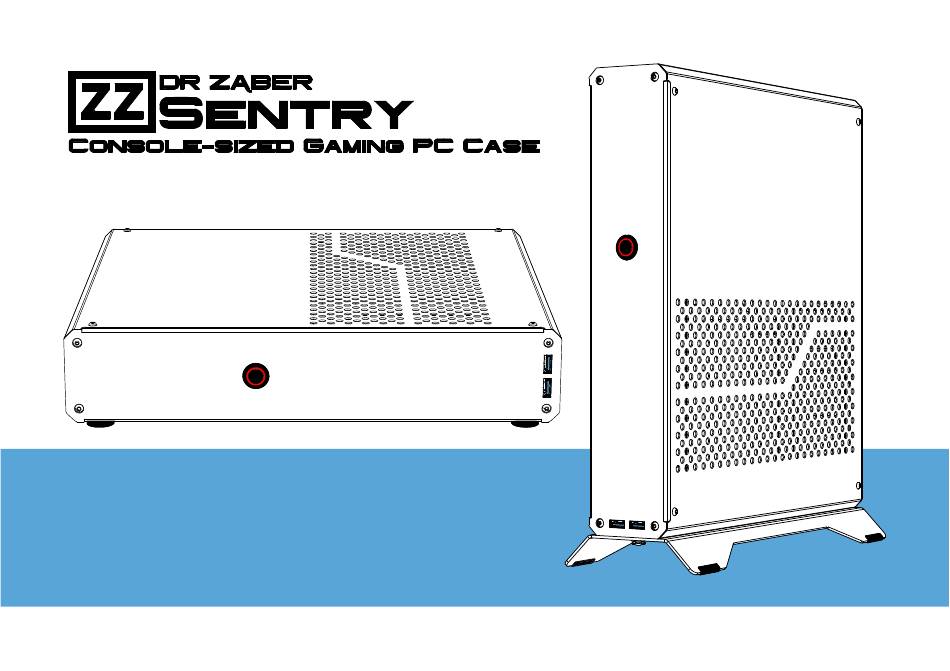

- Page 2 User Manual Dear User Thank You for your interest in Sentry PC case. We hope you will enjoy using our product. Sentry is a product directed to the tech-savvy customers and as such requires prior knowledge and understanding of its principles, even before ordering parts for a computer assembled in it.
-
Page 3: Safety Warnings
User Manual Package contains small elements that are not safe for small children and pets. Package contains bags that pose risk of choking for small children and pets. Assemble the product and keep the leftover accessories away from small children and pets Assembled device including internal computer components has significant weight reaching 7KG. - Page 4 User Manual Package Contents...
- Page 5 User Manual M3x6 M3x6 M3x12 M3x6 M3x5 M3x4 20 X 18 X 18 X Package Contents...
- Page 6 User Manual M3x6 Case disassembly...
- Page 7 User Manual Case disassembly...
- Page 8 User Manual M3x6 Case disassembly...
-
Page 9: Rubber Feet Installation
User Manual Feet Plug Install plugs instead of rubber feet for use with vertical stand Rubber feet installation... -
Page 10: Motherboard Installation
User Manual M3x6 Connect Power SW/LED cables after motherboard installation Motherboard installation... -
Page 11: Power Supply Preparation
User Manual If your sfx-l power supply has a grill sticking outside the body outline this violating the sfx form factor reference, please rotate the grill facing inward. Make sure that grill logo plate doesn’t touch the fan, otherwise remove it or replace with generic grill. DO NOT OPEN THE POWER SUPPLY BODY! DOING SO WILL VOID YOUR PSU WARRANTY! Power supply preparation... -
Page 12: Power Supply Installation
User Manual Connect modular cables before mounting the power supply Dedicated screws should be bundled with SFX power supply (M3 or M3.5) Power supply installation... - Page 13 User Manual SCREWS ARE NOT SUPPOSED TO GO THROUGH Riser is held tightly by its plastic slot HOLES IN THE RISER’S PCB, BUT IN FRONT OF IT body rather than screwing the PCB to the chassis. This way delicate connection between the slot and the pcb is safe even when mounting big and heavy open air cooled cards.
- Page 14 User Manual M3x12 Slide the pci-e riser into prepared slot in the central wall PCI-E Riser installation...
- Page 15 User Manual M3x6 Drive support installation...
-
Page 16: Drives Installation
User Manual M3x6 Plug in and route SATA Cables before installing 2.5" Drive Use SATA data cable with flat (non-angled) connectors 2.5" Drives installation... - Page 17 User Manual M3x6 Secondary drive slot is available for use with 100mm SFX 2.5" Drives installation...
- Page 18 User Manual M3x5 Single 2.5" drive may be installed under reference blower cooler styled GPU Use SATA cables with flat (non-angled) connectors 2.5" Drives installation...
- Page 19 User Manual M3x4 2.5" can be stacked with quad drive brackets and installed in VGA compartment for NAS configurations or with short 200mm card Running high-end, open-air cooler style graphics card may expose stacked hard disk drives to excessive heat 2.5"...
- Page 20 User Manual M3x5 Use SATA cables with flat (non-angled) connectors 2.5" Drive Package Installation...
- Page 21 User Manual M3x6 USB 3.0 front panel installation...
- Page 22 User Manual Connector Possible oversize area space Pci-e reference card area GPU Compatibility...
-
Page 23: Case Assembly
User Manual Arrange the routed power cables between the gpu and center wall Install gpu into pci-e riser slot Case assembly... - Page 24 User Manual M3x6 Adjust gpu bracket position before completely fastening the screws of the side wall Case assembly...
- Page 25 User Manual M3x6 Fasten the screws on the sides first before completely fastening screws on the top to evenly utilize screw clearance Case assembly...
-
Page 26: Vertical Stand Installation
User Manual Align the vertical stand with side of the case – small holes in the stand have to be aligned with screws on this side of case below locking holes. Those screws need to go inside the holes for both surfaces to adjoin. Slide locking screws to the right to align them with corresponding holes Put vertical stand against the case pushing locking screws through holes Slide locking screws to the left to fasten the vertical stand. -
Page 27: Desk And Wall-Mounting
User Manual Case may be wall mounted or installed under the desk in a fixed position BEFORE assembling the computer. You will need to use proper distances and screws appropriate for the material of your wall or desk. Make sure to insulate head of the screw under the motherboard to prevent short circuiting the board pin underneath. - Page 28 User Manual Final notes...
