INSTRUCTIONS FOR THE INSTALLER: these are intended for the qualified technician who must install the appliance, set it functioning and carry out an inspection test. Further information about the products can be found at www.smeg.com Contents...
Instructions for proper use 1. INSTRUCTIONS FOR PROPER USE ELECTRICAL CONNECTION: PLEASE REFER TO INSTALLATION INSTRUCTION FOR THE GAS & ELECTRICAL SAFETY REGULATIONS AND THE VENTILATION REQUIREMENTS. IN YOUR OWN INTEREST, AND THAT OF SAFETY, IT IS THE LAW THAT ALL GAS AND ELCTRICAL APPLIANCES BE INSTALLED AND SERVICE BY COMPETENT PERSONS, WHO WILL COMPLY WITH THE RELEVANT STANDARDS AND REGULATIONS.
Safety instruction 2. SAFETY INSTRUCTION INSTRUCTIONS FOR THE INSTALLER: THESE ARE INTENDED FOR THE QUALIFIED TECHNICIAN WHO MUST INSTALL THE APPLIANCE, SET IT FUNCTIONING AND CARRY OUT AN INSPECTION TEST. IT IS OBLIGATORY FOR THE ELECTRICAL SYSTEM TO BE GROUNDED ACCORDING TO THE METHODS REQUIRED BY SAFETY RULES.
Instructions for the user 3. KNOW YOUR HOB NOT ALL COMPONENTS DESCRIBED ARE PRESENT ON ALL MODELS 4. BEFORE FIRST USE Do not leave the packing in the home environment. Separate the various waste materials and take them to the nearest special garbage collection centre. Before cooking for the first time, the hob has to be cleaned.

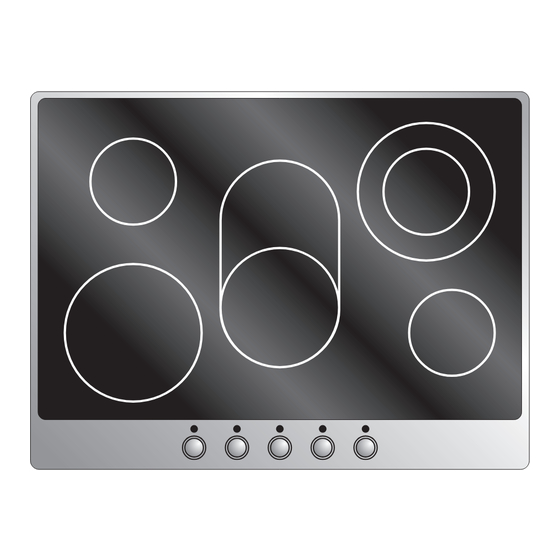

5. COOKING ZONES The appliance features 4/5 cooking zones of different diameter and power. Their position is clearly indicated by circles and the heat given off is defined by the markings on the glass surface.. The 5 cooking zones are of the HIGH-LIGHT type and come on after a few seconds of being activated. Heating intensity can be adjusted by means of the knobs located on the front panel from a minimum setting of 1 to a maximum setting of 6/9 (Depending on models).
Instructions for the user 6. DESCRIPTION OF CONTROL ON THE FRONT CONTROL PANEL FRONT LEFT-HAND PLATE CONTROL ZONE REAR RIGHT-HAND PLATE CONTROL ZONE TIMER ZONE REAR LEFT-HAND PLATE CONTROL ZONE FRONT RIGHT-HAND PLATE CONTROL ZONE CENTRAL PLATE CONTROL ZONE...
7. USE OF THE COOKING HOB 7.1 Hobs with knobs 7.1.1 Single plates Each knob shows the plate it is for. To heat, turn the knob to the desired position (1 to 6). Adjustment is continuous so that the appliance also operates at any intermediate value. 7.1.2 Dual plates Each knob shows the plate it is for.
Page 8
Instructions for the user 7.2 Hobs with push-buttons On first connection to the electrical mains, an operating check will be carried out automatically and all the indicator lights will come on for a few seconds. 7.2.1 Single plates When not in use, all hob components will be switched off. If the symbol of any push-button is pressed for a few seconds, the hob will switch on and the circular sectors on the buttons indicating the plate controlled by each button will illuminate.
Page 9
7.2.3 Plate lock-out 20 seconds after the last power adjustment, the plate switches to "lock-out" status and no more adjustments to the power levels set will be possible. This function, indicated by a dot which appears alongside the power level (see side), is provided to ensure greater safety in use of the hob. The "lock-out"...
Instructions for the user 7.2.10 Switching off The hob switches off when all the displays read 0. About 30 seconds after the last plate is set on 0, the hob will switch off automatically. If the plates are hot, 5 seconds after the switch-off the "H" appears, warning of the residual heat. 7.2.11 “DEMO”...
8. CLEANING AND MAINTENANCE Before any intervention, disconnect the power supply of the device. 8.1 Cleaning the glazed ceramic hob The cooking hob should be regularly cleaned; best after every use, once the residual heat signal lamps have gone off. Smudges from aluminium-bottom pans can be easily cleaned off with a cloth dampened in vinegar.
Instructions for the installer 10. INSTALLATION 10.1 Technical information Hob type Electrical connections HOB RATING Maximum electrical power DIMENSION OF THE HOB Width (mm) Depth (mm) 10.2 The rating plate Make sure that the voltage and capacity of the power line conform to the data shown on the plate located under the casing.
For operation on 380-415 V 3N core cable (5 x 1,5 mm This type of connection cannot be used for models with 5 plates. For operation on 380-415 V 2N four-core cable (4 x 2,5 mm For operation on 220-240 V 3 core cable (4 x 2,5 mm For operation on 220-240 V core cable.
Page 14
10.4 Positioning of the hob The following operation requires building and/or carpentry work so must be carried out by a competent tradesman. Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood as long as they are heat resistant (T 90°C). Create an opening with the dimensions shown in the figure in the top surface of the counter, keeping a minimum distance of 50 mm from the rear border.
Page 15
Instructions for the installer When fixing the hob to the cabinet, use only the holes provided, illustrated here. This appliance must not be built-in above a dishwasher. Installation of an oven without cooling fan underneath the hob is forbidden. Pass the power supply cable through the back of the unit, taking care that it does not touch the bottom casing of the hob or the oven (if any) installed underneath it.
