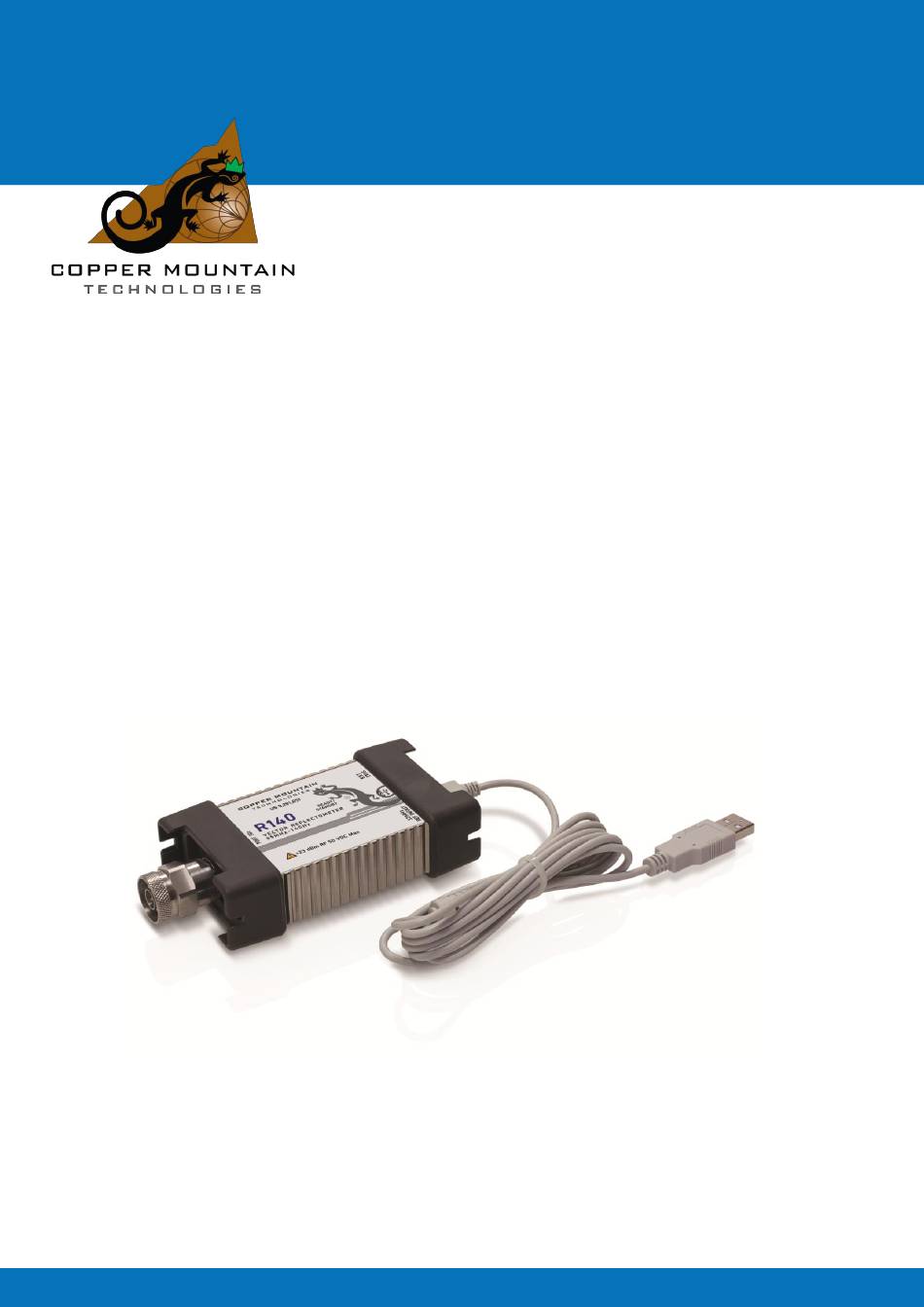

- Page 1 1-Port VNA Series R140 R180/RP180 Programming Manual SCPI Software version 18.3.2 December 2018...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1 Introduction ...................... 10 1.1 Programming Manual Scope ................... 10 1.2 Related Documents..................... 10 1.3 References ........................10 2 Analyzer Interfaces ..................11 2.1 Ethernet Interface ....................... 11 3 SCPI Overview....................12 3.1 Command Tree ......................12 3.2 Subsystems ........................ - Page 3 *WAI ..........................27 4.3 Vector Analyzer Commands ..................28 ABOR ..........................28 CALC:CONV ........................28 CALC:CONV:FUNC ......................29 CALC:CORR:EDEL:TIME ....................30 CALC:CORR:OFFS:PHAS ....................31 CALC:DATA:FDAT?......................32 CALC:DATA:FMEM? ......................33 CALC:DATA:SDAT? ......................34 CALC:DATA:SMEM? ......................35 CALC:FILT:TIME ........................ 36 CALC:FILT:TIME:CENT ....................37 CALC:FILT:TIME:SHAP ....................
- Page 4 CALC:LIM:REP:POIN? ...................... 66 CALC:LIM:REP? ......................... 67 CALC:MARK ........................68 CALC:MARK:ACT....................... 68 CALC:MARK:BWID ......................69 CALC:MARK:BWID:DATA? ..................... 69 CALC:MARK:BWID:REF....................70 CALC:MARK:BWID:THR ....................71 CALC:MARK:BWID:TYPE ....................72 CALC:MARK:COUN ......................72 CALC:MARK:COUP ......................73 CALC:MARK:FUNC:DOM ....................73 CALC:MARK:FUNC:DOM:STAR ..................74 CALC:MARK:FUNC:DOM:STOP ..................75 CALC:MARK:FUNC:EXEC ....................
- Page 5 CALC:TRAC:DATA:FMEM? ..................... 98 CALC:TRAC:DATA:SDAT? ....................99 CALC:TRAC:DATA:SMEM? ..................100 CALC:TRAN:TIME ......................101 CALC:TRAN:TIME:CENT ....................102 CALC:TRAN:TIME:IMP:WIDT ..................103 CALC:TRAN:TIME:KBES ....................104 CALC:TRAN:TIME:LPFR ....................104 CALC:TRAN:TIME:SPAN ....................105 CALC:TRAN:TIME:STAR ....................106 CALC:TRAN:TIME:STAT ....................107 CALC:TRAN:TIME:STEP:RTIM ................... 108 CALC:TRAN:TIME:STIM ....................109 CALC:TRAN:TIME:STOP ....................110 CALC:TRAN:TIME:UNIT ....................
- Page 6 DISP:WIND:TITL ......................127 DISP:WIND:TITL:DATA ....................127 DISP:WIND:TRAC:ANN:MARK:MEM ................ 128 DISP:WIND:TRAC:ANN:MARK:POS:X ..............129 DISP:WIND:TRAC:ANN:MARK:POS:Y ..............130 DISP:WIND:TRAC:Y:AUTO ..................130 DISP:WIND:TRAC:Y:PDIV .................... 131 DISP:WIND:TRAC:Y:RLEV ................... 132 DISP:WIND:TRAC:Y:RPOS ..................133 DISP:WIND:Y:DIV ......................134 FORM:BORD ........................135 FORM:DATA ........................136 HCOP ..........................137 HCOP:DATE:STAM ......................137 HCOP:IMAG ........................
- Page 7 SENS:AVER:CLE ......................152 SENS:AVER:COUN ......................153 SENS:BAND ........................153 SENS:BWID ........................154 SENS:CORR:CLE ......................154 SENS:CORR:COEF ......................155 SENS:CORR:COEF:METH:OPEN ................156 SENS:CORR:COEF:METH:SHOR ................157 SENS:CORR:COEF:METH:SOLT1 ................158 SENS:CORR:COEF:SAVE ....................159 SENS:CORR:COLL:CKIT ....................160 SENS:CORR:COLL:CKIT:LAB ..................161 SENS:CORR:COLL:CKIT:RES ..................162 SENS:CORR:COLL:CKIT:STAN:C0 ................162 SENS:CORR:COLL:CKIT:STAN:C1 ................
- Page 8 SENS:CORR:EXT ......................188 SENS:CORR:EXT:PORT:FREQ ................... 189 SENS:CORR:EXT:PORT:INCL ..................190 SENS:CORR:EXT:PORT:LDC ..................190 SENS:CORR:EXT:PORT:LOSS ..................191 SENS:CORR:EXT:PORT:TIME ..................192 SENS:CORR:IMP ......................193 SENS:CORR:STAT ......................194 SENS:CORR:TRAN:TIME:FREQ ................. 195 SENS:CORR:TRAN:TIME:LOSS.................. 196 SENS:CORR:TRAN:TIME:RVEL .................. 197 SENS:CORR:TRAN:TIME:STAT .................. 198 SENS:CORR:TYPE? ......................198 SENS:FREQ:DATA? ....................... 199 SENS:FREQ:CENT ......................
- Page 9 STAT:QUES:LIM:CHAN:PTR ..................221 STAT:QUES:LIM:CHAN? ....................221 STAT:QUES:LIM:COND? ....................222 STAT:QUES:LIM:ENAB ....................222 STAT:QUES:LIM:NTR ....................223 STAT:QUES:LIM:PTR ....................224 STAT:QUES:LIM? ......................224 STAT:QUES:NTR ......................225 STAT:QUES:PTR ......................226 STAT:QUES:RLIM:CHAN:COND? ................226 STAT:QUES:RLIM:CHAN:ENAB ................. 227 STAT:QUES:RLIM:CHAN:NTR ................... 228 STAT:QUES:RLIM:CHAN:PTR ..................229 STAT:QUES:RLIM:CHAN? ................... 229 STAT:QUES:RLIM:COND? ...................
-
Page 10: Introduction
1 Introduction This Manual contains information about the CMT Network Analyzer remote control and its data communication, carried out by means of user program through a computer network. This manual describes the analyzer command system and the network protocols used to deliver commands. The commands sent to the analyzer and the responses from it are text messages conforming to the SCPI (Standard Commands for Programmable Instruments) specification. -
Page 11: Analyzer Interfaces
2 Analyzer Interfaces 2.1 Ethernet Interface Ethernet interface is part of the equipment of a personal computer that connects to the device “R54”, “R140”, “R60” or “R180”. Data transfer between the PC user and the computer that is connected to the device, is performed via Socket protocol (TCP, port 5025). -
Page 12: Scpi Overview
3 SCPI Overview The Ethernet interface implement the set of commands based on 1999 SCPI standard (Standard Commands for Programmable Instruments). This command set allows the exchange of character messages. SCPI is developed by SCPI Consortium (http:\\www.scpiconsortium.org).The main features of SCPI standard are described below. For a more detailed information on SCPI standard, see the website of SCPI Consortium. -
Page 13: Subsystems
SCPI Overview This SOURce branch has several levels, where CENTer, STARt, SPAN, STOP, DATA, STATe are the leaves, which represent the following six commands: :SOURce:POWer:CENTer :SOURce:POWer:STARt :SOURce:POWer:SPAN :SOURce:POWer:STOP :SOURce:POWer[:LEVel]:SLOPe[:DATA] :SOURce:POWer[:LEVel]:SLOPe:STATe The tree can contain subsystems and leaves with the same names if they belong to different branches, e.g. -
Page 14: Long And Short Formats
SCPI Overview 3.4 Long and Short Formats Each keyword in a command specification has a long format and a short format. The short format of a command is indicated by capital letters. For example, a command specification: SENSe:FREQuency:CENTer can be written as: SENS:FREQ:CENT SENS:FREQ:CENTer Only long or short form of each keyword is acceptable. -
Page 15: Multiplier Prefixes
SCPI Overview 3.6.1.1 Multiplier Prefixes The SCPI standard allows specification of the numeric values with multiplier prefix to the measurement units. Prefix Multiplier 1e–18 1e–15 1e–12 1e–9 18–6 1e–3 1e12 1e15 1e18 There are two exceptions to the above designation: prefix M in combination with HZ or OHM means 1e6 (Mega), and not 1e–3 (milli), i.e. -
Page 16: Notations
SCPI Overview 3.6.1.2 Notations The SCPI standard allows numeric value specification in different notations. Decimal notation is used by default. To use other notations, specify the numeric values in the following way: Notation Prefix Example Binary #B11001010 = 202 Octal #Q107 = 71 Hexadecimal #H10FF = 4351... -
Page 17: String Parameters
SCPI Overview The following specifications are acceptable: SENSe:FREQuency:STARt MIN SENSe:FREQuency:STARt maximum SENSe:FREQuency:STARt 1000000 3.6.4 String Parameters In some cases, the instrument can accept parameters made of character strings. Such strings are enclosed with single quotes (') or double quotes ("). For example, the file name in the state saving command: MMEMory:STORe "state01.sta"... -
Page 18: Query Commands
SCPI Overview 3.7 Query Commands The query commands read out the parameter values from the instrument. After a query command has been sent, the response should return via remote control interface. The query commands has a question mark ('?') in the end of the command. Many of the commands have two forms. -
Page 19: Ieee488.2 Common Commands Overview
SCPI Overview 3.10 IEEE488.2 Common Commands Overview A SCPI compatible instrument must support a set of common commands of IEEE488.2 standard. These commands start with an asterix ('*'). The list of such commands see below: *CLS *ESE *ESE? *ESR? *IDN? *OPC *OPC? *RST... -
Page 20: Remote Control Commands
4 Remote Control Commands 4.1 Conventions The following conventions are used throughout the Manual. 4.1.1 Syntax The following symbols are used in command syntax: <> identifiers enclosed in angular brackets indicate that a particular type of data must be specified part enclosed in square brackets can be omitted part enclosed in curly brackets indicates that you must select one of the items in this part. -
Page 21: Identifiers
Remote Control Commands 4.1.2 Identifiers Identifier Parameter Description <numeric> Number {<integer>|<real>} <frequency> Frequency <numeric>{[HZ]|KHZ|MHZ|GHZ} <power> <numeric>{[DBM]|DBMW|DBW|KW|W|MW|UW| Power <time> Time <numeric>{[S]|MS|US|NS|PS|FS} <logmag> <numeric>[DB] Amplitude <phase> <numeric>{[DEG]|MADEG|KDEG|MDEG| Phase UDEG} <stimulus> Stimulus {<frequency>|<power>|<time>} <response> Response {<logmag>|<phase>|<time>} <numeric <numeric 1>,<numeric 2>,...<numeric Numeric List list> N>... -
Page 22: Ieee488.2 Common Commands
Remote Control Commands 4.2 IEEE488.2 Common Commands *CLS *CLS Clears the following (no query) • Error Queue • Status Byte Register • Standard Event Status Register Description • Operation Status Event Register • Questionable Status Event Register • Questionable Limit Status Event Register •... -
Page 23: Ese
Remote Control Commands *ESE *ESE <numeric> *ESE? Sets or reads out the value of the Standard Event Status Enable Description Register (command/query). Target Status Reporting System Parameter <numeric> 0 to 255 Out of Range Bitwise AND with 255 number Query Response <numeric>... -
Page 24: Idn
*IDN? *IDN? Reads out the instrument information string. The string format: <manufacturer>, <model>, <serial number>, <software Description version/firmware version> (query only). For example: Copper Mountain Technologies, Planar – TR1300/1, 00000101, 0.8.12/1.0 Target Instrument Query Response String up to 40 characters... -
Page 25: Opc
Remote Control Commands *OPC? *OPC? 1 is read out at the completion of all pending operations (query Description only). Target Status Reporting System Query Response Equivalent None Softkeys *RST *RST Restores the default settings of the instrument (no query). Description There is difference from presetting the instrument with :SYST:PRES command –... -
Page 26: Sre
Remote Control Commands *SRE *SRE <numeric> *SRE? Sets or reads out the value of the Service Request Enable Register Description (command/query) Target Status Reporting System Parameter <numeric> 0 to 255. Out of Range Bitwise AND with 255 number Query Response <numeric>... -
Page 27: Trg
Remote Control Commands *TRG *TRG If the trigger source is set to LAN (set to BUS with the :TRIG:SOUR command), triggers a sweep. If the trigger source is not set to the bus or the instrument is not Description waiting for a trigger, the command is ignored. The command is completed before the end of the sweep. -
Page 28: Vector Analyzer Commands
Remote Control Commands 4.3 Vector Analyzer Commands ABOR ABORt Aborts the sweep and switches the triggers of all the channels to Hold. The channels in Continuous trigger mode switch to waiting Description for a trigger. If the trigger source is set to Internal, the channel from waiting for a trigger turns to a new sweep. -
Page 29: Calc:conv:func
Remote Control Commands CALC:CONV:FUNC CALCulate<Ch>[:SELected]:CONVersion:FUNCtion { IMPedance| ADMittance|INVersion|CONJugation } CALCulate<Ch>[:SELected]:CONVersion:FUNCtion? Sets or reads out the S–parameter conversion function type Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "IMPedance" Equivalent transmission or reflection impedance, depending on the parameter S11 or "ADMittance"... -
Page 30: Calc:corr:edel:time
Remote Control Commands CALC:CORR:EDEL:TIME CALCulate<Ch>[:SELected]:CORRection:EDELay:TIME <time> CALCulate<Ch>[:SELected]:CORRection:EDELay:TIME? Sets or reads out the value of the electrical delay Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <time> the electrical delay value from –10 to 10 Unit s (second) Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 31: Calc:corr:offs:phas
Remote Control Commands CALC:CORR:OFFS:PHAS CALCulate<Ch>[:SELected]:CORRection:OFFSet:PHASe <phase> CALCulate<Ch>[:SELected]:CORRection:OFFSet:PHASe? Description Sets or reads out the value of the phase offset (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <phase> the phase offset value from –360 to 360 Unit ° (degree) Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 32: Calc:data:fdat
Remote Control Commands CALC:DATA:FDAT? CALCulate<Ch>[:SELected]:DATA:FDATa? Reads out the formatted data array (query only). The formatted data array is the data, whose processing is completed including the formatting as the last step. Such data represent the data trace values as they are shown on the screen. The array size is 2N, where N is the number of measurement points. -
Page 33: Calc:data:fmem
Remote Control Commands CALC:DATA:FMEM? CALCulate<Ch>[:SELected]:DATA:FMEMory? Reads out the formatted memory array (query only). The formatted memory array is the data, whose processing is completed including the formatting as the last step. Such data represent the memory trace values as they are shown on the screen. -
Page 34: Calc:data:sdat
Remote Control Commands CALC:DATA:SDAT? CALCulate<Ch>[:SELected]:DATA:SDATa? Reads out the corrected data array (query only). The corrected data array is the data, whose processing is completed excluding the formatting as the last step. Such data represent S–parameter complex values. The array size is 2N, where N is the number of measurement points. For the n–th point, where n from 1 to N: Description <numeric 2n–1>... -
Page 35: Calc:data:smem
Remote Control Commands CALC:DATA:SMEM? CALCulate<Ch>[:SELected]:DATA:SMEMory? Reads out the corrected memory array (query only). The corrected memory array is the data, whose processing is completed excluding the formatting as the last step. Such data represent S–parameter complex values. The array size is 2N, where N is the number of measurement points. For the n–th point, where n from 1 to N: Description <numeric 2n–1>... -
Page 36: Calc:filt:time
Remote Control Commands CALC:FILT:TIME CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME[:TYPE] {BPASs|NOTCh} CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME[:TYPE]? Sets or reads out the gate type of the gating function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "BPASs" Bandpass type Parameter "NOTCh" Notch type Out of Range Error occurs. The command is ignored. Error code: 219 Query Response {BPAS|NOTC} Preset Value... -
Page 37: Calc:filt:time:cent
Remote Control Commands CALC:FILT:TIME:CENT CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:CENTer <time> CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:CENTer? Sets or reads out the gate center value of the gating function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the center value of the gate, the range varies depending Parameter on the frequency span and the number of points Unit... -
Page 38: Calc:filt:time:shap
Remote Control Commands CALC:FILT:TIME:SHAP CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:SHAPe {MAXimum|WIDE| NORMal|MINimum} CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:SHAPe? Sets or reads out the gate shape of the gating function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "MAXimum" Maximum shape "WIDE" Wide shape Parameter "NORMal" Normal shape "MINimum" Minimum shape Out of Range Error occurs. -
Page 39: Calc:filt:time:span
Remote Control Commands CALC:FILT:TIME:SPAN CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:SPAN <time> CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:SPAN? Sets or reads out the gate span value of the gating function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the span value of the gate, the range varies depending Parameter on the frequency span and the number of points Unit... -
Page 40: Calc:filt:time:star
Remote Control Commands CALC:FILT:TIME:STAR CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:STARt <time> CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:STARt? Sets or reads out the gate start value of the gating function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the start value of the gate, the range varies depending on Parameter the frequency span and the number of points Unit... -
Page 41: Calc:filt:time:stat
Remote Control Commands CALC:FILT:TIME:STAT CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:STATe {ON|OFF|1|0} CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:STATe? Sets or reads out the ON/OFF state of the gating function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Gating function ON Parameter {OFF|0} Gating function OFF {0|1} Query Response Preset Value Equivalent Softkeys Analysis >... -
Page 42: Calc:filt:time:stop
Remote Control Commands CALC:FILT:TIME:STOP CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:STOP <time> CALCulate<Ch>[:SELected]:FILTer[:GATE]:TIME:STOP? Sets or reads out the gate stop value of the gating function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the stop value of the gate, the range varies depending on Parameter the frequency span and the number of points Unit... -
Page 43: Calc:form
Remote Control Commands CALC:FORM CALCulate<Ch>[:SELected]:FORMat{MLOGarithmic|PHASe|UPHase| GDELay|SWR|REAL|IMAGinary|MLINear|SLINear|SLOGarithmic| SCOMplex|SMITh|SADMittance|PLINear|PLOGarithmic|POLar|CLOS} CALCulate<Ch>[:SELected]:FORMat? Description Sets or reads out the trace format (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter "MLOGarithmic" Logarithmic magnitude "PHASe" Phase "UPHase" Expanded phase "GDELay" Group delay time "SWR" Voltage standing wave ratio "REAL"... -
Page 44: Calc:fsim:send:deem:port:stat
Remote Control Commands CALC:FSIM:SEND:DEEM:PORT:STAT CALCulate<Ch>:FSIMulator:SENDed:DEEMbed:PORT<Pt>:STATe {ON|OFF|1|0} CALCulate<Ch>:FSIMulator:SENDed:DEEMbed:PORT<Pt>:STATe? Sets or reads out the ON/OFF state of the de–embedding function Description (command/query). Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]} {ON|1} De–embedding function ON Parameter {OFF|0} De–embedding function OFF Query Response {0|1} Preset Value Equivalent Softkeys Analysis >... -
Page 45: Calc:fsim:send:deem:port:user:fil
Remote Control Commands CALC:FSIM:SEND:DEEM:PORT:USER:FIL CALCulate<Ch>:FSIMulator:SENDed:DEEMbed:PORT<Pt>:USER:FILename <string> CALCulate<Ch>:FSIMulator:SENDed:DEEMbed:PORT<Pt>:USER:FILename Sets or reads out the name of *.s2p file of the de–embedded Description circuit of the de–embedding function (command/query). The file contains the circuit S–parameters in Touchstone format. Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]}... -
Page 46: Calc:fsim:send:pmc:port:stat
Remote Control Commands CALC:FSIM:SEND:PMC:PORT:STAT CALCulate<Ch>:FSIMulator:SENDed:DEEMbed:PORT<Pt>:STATe {ON|OFF|1|0} CALCulate<Ch>:FSIMulator:SENDed:PMCircuit:PORT<Pt>:STATe? Sets or reads out the ON/OFF state of the embedding function Description (command/query). Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]} {ON|1} Embedding function ON Parameter {OFF|0} Embedding function OFF Query Response {0|1} Preset Value Equivalent Softkeys Analysis >... -
Page 47: Calc:fsim:send:pmc:port:user:fil
Remote Control Commands CALC:FSIM:SEND:PMC:PORT:USER:FIL CALCulate<Ch>:FSIMulator:SENDed:PMCircuit:PORT<Pt>:USER: FILename <string> CALCulate<Ch>:FSIMulator:SENDed:PMCircuit:PORT<Pt>:USER: FILename? Sets or reads out the name of *.s2p file of the embedded circuit of Description the embedding function (command/query). The file contains the circuit S–parameters in Touchstone format. Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]}... -
Page 48: Calc:fsim:send:zcon:port:z0
Remote Control Commands CALC:FSIM:SEND:ZCON:PORT:Z0 CALCulate<Ch>:FSIMulator:SENDed:ZCONversion:PORT<Pt>:Z0[:R] <impedance> CALCulate<Ch>:FSIMulator:SENDed:ZCONversion:PORT<Pt>:Z0[:R]? Sets or reads out the value of the impedance for port impedance Description conversion function (command/query). Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]} Parameter <impedance> the impedance value from 1e–6 to 1e6 Unit Ω... -
Page 49: Calc:fsim:send:zcon:stat
Remote Control Commands CALC:FSIM:SEND:ZCON:STAT CALCulate<Ch>:FSIMulator:SENDed:ZCONversion:STATe {ON|OFF|1|0} CALCulate<Ch>:FSIMulator:SENDed:ZCONversion:STATe? Sets or reads out the ON/OFF state of the port impedance Description conversion function (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Port Z conversion function ON Parameter {OFF|0} Port Z conversion function OFF {0|1} Query Response Preset Value Equivalent Softkeys Analysis >... -
Page 50: Calc:func:dom
Remote Control Commands CALC:FUNC:DOM CALCulate<Ch>[:SELected]:FUNCtion:DOMain[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:FUNCtion:DOMain[:STATe]? Sets or reads out the ON/OFF state of an arbitrary range use in Description CALC:FUNC:EXEC command (command/query). All traces of channel <Ch> (if the coupling is set to ON by the CALC:FUNC:DOM:COUP command), the active trace of channel Target <Ch>... -
Page 51: Calc:func:dom:star
Remote Control Commands CALC:FUNC:DOM:STAR CALCulate<Ch>[:SELected]:FUNCtion:DOMain:STARt <stimulus> CALCulate<Ch>[:SELected]:FUNCtion:DOMain:STARt? Sets the start value of the analysis range of the Description CALC:FUNC:EXEC command (command/query). All traces of channel <Ch> (if the coupling is set to ON by the CALC:FUNC:DOM:COUP command), the active trace of channel Target <Ch>... -
Page 52: Calc:func:dom:stop
Remote Control Commands CALC:FUNC:DOM:STOP CALCulate<Ch>[:SELected]:FUNCtion:DOMain:STOP <stimulus> CALCulate<Ch>[:SELected]:FUNCtion:DOMain:STOP? Sets the stop value of the analysis range of the Description CALC:FUNC:EXEC command (command/query). All traces of channel <Ch> (if the coupling is set to ON by the CALC:FUNC:DOM:COUP command), the active trace of channel Target <Ch>... -
Page 53: Calc:func:exec
Remote Control Commands CALC:FUNC:EXEC CALCulate<Ch>[:SELected]:FUNCtion:EXECute Executes the analysis specified by the CALC:FUNC:TYPE command. Description The analysis result can be read out by the CALC:FUNC:DATA? command. (no query) The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Related CALC:FUNC:TYPE CALC:FUNC:DATA? Commands Equivalent None Softkeys... -
Page 54: Calc:func:pexc
Remote Control Commands CALC:FUNC:PEXC CALCulate<Ch>[:SELected]:FUNCtion:PEXCursion <response> CALCulate<Ch>[:SELected]:FUNCtion:PEXCursion? Sets the lower limit for the peak excursion value when executing Description the peak search with the CALC:FUNC:EXEC command (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <response> the lower limit of the peak excursion value, varies Parameter depending on the data format Unit... -
Page 55: Calc:func:poin
Remote Control Commands CALC:FUNC:POIN? CALCulate<Ch>[:SELected]:FUNCtion:POINts? Reads out the number of points (data pairs) of the analysis result by the CALC:FUNC:EXEC command (query only). Always reads out 1, when the search is executed for the Description maximum, minimum, mean, standard deviation, peak, and peak– to–peak values. -
Page 56: Calc:func:ppol
Remote Control Commands CALC:FUNC:PPOL CALCulate<Ch>[:SELected]:FUNCtion:PPOLarity {POSitive|NEGative|BOTH} CALCulate<Ch>[:SELected]:FUNCtion:PPOLarity? Selects the polarity when performing the peak search with the Description CALC:FUNC:EXEC command (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "POSitive" Positive peaks Parameter "NEGative" Negative peaks "BOTH" Both positive peaks and negative peaks Out of Range The command is ignored. -
Page 57: Calc:func:targ
Remote Control Commands CALC:FUNC:TARG CALCulate<Ch>[:SELected]:FUNCtion:TARGet <response> CALCulate<Ch>[:SELected]:FUNCtion:TARGet? Selects the target level when performing the search for the trace Description and the target level crosspoints with the CALC:FUNC:EXEC command (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <response> the target value, varies depending on the data Parameter format Unit... -
Page 58: Calc:func:ttr
Remote Control Commands CALC:FUNC:TTR CALCulate<Ch>[:SELected]:FUNCtion:TTRansition {POSitive|NEGative|BOTH} CALCulate<Ch>[:SELected]:FUNCtion:TTRansition? Selects the transition type when performing the search for the Description trace and the target level crosspoints with the CALC:FUNC:EXEC command (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "POSitive" Positive peaks Parameter "NEGative"... -
Page 59: Calc:func:type
Remote Control Commands CALC:FUNC:TYPE CALCulate<Ch>[:SELected]:FUNCtion:TYPE {PTPeak|STDEV|MEAN|MAXimum| MINimum|PEAK|APEak|ATARget} CALCulate<Ch>[:SELected]:FUNCtion:TYPE? Selects the type of analysis executed with the CALC:FUNC:EXEC Description command (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "PTPeak" Peak–to–peak (difference between the maximum value and the minimum value) "STDEV" Standard deviation "MEAN"... -
Page 60: Calc:lim
Remote Control Commands CALC:LIM CALCulate<Ch>[:SELected]:LIMit[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:LIMit[:STATe]? Sets or reads out the ON/OFF state of the limit test function Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Limit test function ON Parameter {OFF|0} Limit test function OFF {0|1} Query Response Preset Value... -
Page 61: Calc:lim:data
Remote Control Commands CALC:LIM:DATA CALCulate<Ch>[:SELected]:LIMit:DATA <numeric list> CALCulate<Ch>[:SELected]:LIMit:DATA? Sets the data array, which is the limit line in the limit test function (command/query). The array size is 1 + 5N, where N is the number of limit line segments. For the n–th point, where n from 1 to N: <numeric 1>... -
Page 62: Calc:lim:disp
Remote Control Commands CALC:LIM:DISP CALCulate<Ch>[:SELected]:LIMit:DISPlay[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:LIMit:DISPlay[:STATe]? Sets or reads out the ON/OFF state of the limit line display of the Description limit test function (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Limit line display ON Parameter {OFF|0} Limit line display OFF Query Response... -
Page 63: Calc:lim:offs:ampl
Remote Control Commands CALC:LIM:OFFS:AMPL CALCulate<Ch>[:SELected]:LIMit:OFFSet:AMPLitude <response> CALCulate<Ch>[:SELected]:LIMit:OFFSet:AMPLitude? Sets the value of the limit line offset along Y–axis Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <response> the value of the limit line offset along Y–axis, Parameter varies depending on the data format Unit { dB (decibel) | °... -
Page 64: Calc:lim:offs:stim
Remote Control Commands CALC:LIM:OFFS:STIM CALCulate<Ch>[:SELected]:LIMit:OFFSet:STIMulus <stimulus> CALCulate<Ch>[:SELected]:LIMit:OFFSet:STIMulus? Sets the value of the limit line offset along X–axis Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <stimulus> the value of the limit line offset along X–axis Unit { Hz (Hertz) | s (second) | dBm (decibels above 1 milliwatt) } Query Response <numeric>... -
Page 65: Calc:lim:rep:all
Remote Control Commands CALC:LIM:REP:ALL? CALCulate<Ch>[:SELected]:LIMit:REPort:ALL? Reads out the data array, which is the limit test results (query only). The array size is 4N, where N is the number of measurement points. For the n–th point, where n from 1 to N: <numeric 4n–3>... -
Page 66: Calc:lim:rep:poin
Remote Control Commands CALC:LIM:REP:POIN? CALCulate<Ch>[:SELected]:LIMit:REPort:POINts? Reads out the number of the measurement points that failed the limit test (query only). Description The stimulus data array of these points can be read out by the CALC:LIM:REP? command. The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Query Response... -
Page 67: Calc:lim:rep
Remote Control Commands CALC:LIM:REP? CALCulate<Ch>[:SELected]:LIMit:REPort[:DATA]? Reads out the data array, which is the stimulus values of the Description measurement points that failed the limit test (query only). The array size is set by the CALC:LIM:REP:POIN? command. The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <numeric 1>, <numeric 2>,…<numeric N>... -
Page 68: Calc:mark
Remote Control Commands CALC:MARK CALCulate<Ch>[:SELected]:MARKer<Mk>[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:MARKer<Mk>[:STATe]? Sets or reads out the ON/OFF state of a marker (command/query). Turning ON a marker with the number from 1 to 15 will turn ON all the markers of smaller numbers. Turning OFF a marker with the number from 1 to 15 will turn OFF all the markers of greater Description numbers (except of the reference marker). -
Page 69: Calc:mark:bwid
Remote Control Commands CALC:MARK:BWID CALCulate<Ch>[:SELected]:MARKer:BWIDth[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:MARKer:BWIDth[:STATe]? Sets or reads out the ON/OFF state of the bandwidth search Description function (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Bandwidth search function ON Parameter {OFF|0} Bandwidth search function OFF Query Response {0|1} Preset Value... -
Page 70: Calc:mark:bwid:ref
Remote Control Commands CALC:MARK:BWID:REF CALCulate<Ch>[:SELected]:MARKer:BWIDth:REFerence {MAXimum|MARKer|MINimum} CALCulate<Ch>[:SELected]:MARKer:BWIDth:REFerence? Selects the reference point for the bandwidth search function: Description reference marker or absolute maximum value of the trace (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "MARKer" Bandwidth search relative to the reference marker "MAXimum"... -
Page 71: Calc:mark:bwid:thr
Remote Control Commands CALC:MARK:BWID:THR CALCulate<Ch>[:SELected]:MARKer<Mk>:BWIDth:THReshold <response> CALCulate<Ch>[:SELected]:MARKer<Mk>:BWIDth:THReshold? Description Sets the bandwidth definition value. (command/query). Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} <response> the bandwidth definition value, the range varies Parameter depending on the data format Unit { dB (decibel) | °... -
Page 72: Calc:mark:bwid:type
Remote Control Commands CALC:MARK:BWID:TYPE CALCulate<Ch>[:SELected]:MARKer:BWIDth:TYPE {BPASs|NOTCh} CALCulate<Ch>[:SELected]:MARKer:BWIDth:TYPE? Description Sets the type of the bandwidth search function (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "BPASs" Bandpass Parameter "NOTCh" Notch Out of Range The command is ignored. Query Response {BPAS|NOTC} Preset Value BPAS Equivalent Softkeys Marker >... -
Page 73: Calc:mark:coup
Remote Control Commands CALC:MARK:COUP CALCulate<Ch>[:SELected]:MARKer:COUPle {ON|OFF|1|0} CALCulate<Ch>[:SELected]:MARKer:COUPle? Sets or reads out the ON/OFF state of the marker coupling function Description (command/query). All the traces of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Marker coupling ON Parameter {OFF|0} Marker coupling OFF Query Response {0|1} Preset Value Equivalent Softkeys Marker >... -
Page 74: Calc:mark:func:dom:star
Remote Control Commands CALC:MARK:FUNC:DOM:STAR CALCulate<Ch>[:SELected]:MARKer:FUNCtion:DOMain:STARt <stimulus> CALCulate<Ch>[:SELected]:MARKer:FUNCtion:DOMain:STARt? Sets or reads out the start value of the marker search range Description (command/query). All traces of channel <Ch> (if the marker search range coupling is set to ON by the CALC:MARK:FUNC:DOM:COUP command), Target The active trace of channel <Ch>... -
Page 75: Calc:mark:func:dom:stop
Remote Control Commands CALC:MARK:FUNC:DOM:STOP CALCulate<Ch>[:SELected]:MARKer:FUNCtion:DOMain:STOP <stimulus> CALCulate<Ch>[:SELected]:MARKer:FUNCtion:DOMain:STOP? Sets or reads out the stop value of the marker search range Description (command/query). All traces of channel <Ch> (if the marker search range coupling is set to ON by the CALC:MARK:FUNC:DOM:COUP command), Target The active trace of channel <Ch>... -
Page 76: Calc:mark:func:exec
Remote Control Commands CALC:MARK:FUNC:EXEC CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:EXECute Executes the marker search according to the specified criterion. The type of the marker search is set by the Description CALC:MARK:FUNC:TYPE command. (no query) Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} Related CALC:MARK:FUNC:TYPE... -
Page 77: Calc:mark:func:pexc
Remote Control Commands CALC:MARK:FUNC:PEXC CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:PEXCursion <response> CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:PEXCursion? Sets or reads out the peak excursion value, when the marker Description search for peak is performed by the CALC:MARK:FUNC:EXEC command (command/query). Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} <response>... -
Page 78: Calc:mark:func:ppol
Remote Control Commands CALC:MARK:FUNC:PPOL CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:PPOLarity {POSitive| NEGative|BOTH} CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:PPOLarity? Selects the peak polarity, when the marker search for peak is Description performed by the CALC:MARK:FUNC:EXEC command (command/query). Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} "POSitive" Positive polarity Parameter "NEGative"... -
Page 79: Calc:mark:func:targ
Remote Control Commands CALC:MARK:FUNC:TARG CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TARGet <response> CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TARGet? Sets or reads out the target value, when the marker search for Description target is performed by the CALC:MARK:FUNC:EXEC command (command/query). Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} <response>... -
Page 80: Calc:mark:func:trac
Remote Control Commands CALC:MARK:FUNC:TRAC CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TRACking {ON|OFF|1|0} CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TRACking? Sets or reads out the ON/OFF state of the marker search tracking Description function (command/query). Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} {ON|1} Marker search tracking ON Parameter {OFF|0} Marker search tracking OFF Query Response... -
Page 81: Calc:mark:func:ttr
Remote Control Commands CALC:MARK:FUNC:TTR CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TTRansition {POSitive| NEGative|BOTH} CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TTRansition? Selects the type of the target transition, when the marker search Description for transition is performed by the CALC:MARK:FUNC:EXEC command (command/query). Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} "POSitive"... -
Page 82: Calc:mark:func:type
Remote Control Commands CALC:MARK:FUNC:TYPE CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TYPE {MAXimum|MINimum| PEAK|LPEak|RPEak|TARGet|LTARget|RTARget} CALCulate<Ch>[:SELected]:MARKer<Mk>:FUNCtion:TYPE? Selects the type of the marker search, which is performed by the Description CALC:MARK:FUNC:EXEC command (command/query). Marker <Mk> the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} "MAXimum" Maximum value search "MINimum" Minimum value search "PEAK"... -
Page 83: Calc:mark:ref
Remote Control Commands CALC:MARK:REF CALCulate<Ch>[:SELected]:MARKer:REFerence[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:MARKer:REFerence[:STATe]? Sets or reads out the ON/OFF state of the reference marker (command/query). Description When the reference marker is turned ON, all the values of the other markers turn to relative values. The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1}... -
Page 84: Calc:mark:x
Remote Control Commands CALC:MARK:X CALCulate<Ch>[:SELected]:MARKer<Mk>:X <stimulus> CALCulate<Ch>[:SELected]:MARKer<Mk>:X? Sets or reads out the stimulus value of the marker Description (command/query). Marker <Mk> of the active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <Mk>={[1]|2|3|4|5|6|7|8|9|10|11|12|13|14|15|16} <stimulus> the stimulus value of the marker, the range is from Parameter the stimulus start value to the stimulus stop value currently set Unit... -
Page 85: Calc:mark:y
Remote Control Commands CALC:MARK:Y? CALCulate<Ch>[:SELected]:MARKer<Mk>:Y? Reads out the response value of the marker (query only). If the reference marker is turned ON, the values of the markers from 1 to 15 are read out as relative values to the reference marker. -
Page 86: Calc:math:func
Remote Control Commands CALC:MATH:FUNC CALCulate<Ch>[:SELected]:MATH:FUNCtion {NORMal|SUBTract|DIVide|ADD| MULTiply} CALCulate<Ch>[:SELected]:MATH:FUNCtion? Selects the math operation between the measurement data and the Description memory trace data. The math result replaces the data trace. If the data trace is not saved, the command is ignored (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4}... -
Page 87: Calc:mst
Remote Control Commands CALC:MST CALCulate<Ch>[:SELected]:MSTatistics[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:MSTatistics[:STATe]? Sets or reads out the ON/OFF state of the math statistics display Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Statistics display ON Parameter {OFF|0} Statistics display OFF {0|1} Query Response Preset Value Equivalent Softkeys Marker >... -
Page 88: Calc:mst:dom
Remote Control Commands CALC:MST:DOM CALCulate<Ch>[:SELected]:MSTatistics:DOMain[:STATe] {ON|OFF|1|0} CALCulate<Ch>[:SELected]:MSTatistics:DOMain[:STATe]? Sets or reads out the ON/OFF state of the math statistics range Description (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Statistics range ON Parameter {OFF|0} Statistics range OFF Query Response {0|1} Preset Value Equivalent Softkeys Marker >... -
Page 89: Calc:mst:dom:stop
Remote Control Commands CALC:MST:DOM:STOP CALCulate<Ch>[:SELected]:MSTatistics:DOMain[:MARKer]:STOP <numeric> CALCulate<Ch>[:SELected]:MSTatistics:DOMain[:MARKer]:STOP? Sets or reads out the number of the marker, which specifies the Description stop frequency of the math statistics range (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> marker number from 1 to 16 Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 90: Calc:par:coun
Remote Control Commands CALC:PAR:COUN CALCulate<Ch>:PARameter:COUNt <numeric> CALCulate<Ch>:PARameter:COUNt? Sets or reads out the number of traces in the channel Description (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> the number of the trace in the channel from 1 to 16 Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 91: Calc:par:def
Remote Control Commands CALC:PAR:DEF CALCulate<Ch>:PARameter<Tr>:DEFine <string> CALCulate<Ch>:PARameter<Tr>:DEFine? Sets the measurement parameter of the trace (command/query) Description (in multiport mode only). Trace <Tr> of channel <Ch>, <Tr>={[1]|2|3|4} <Ch>={[1]|2|3|4} Target <Tr>={[1]…|16}(in multiport mode only). <Ch>={[1]…|16}(in multiport mode only). { S11|S21|...|S16.1|...|S1.16|... |S16.16 } Parameter Out of Range Error occurs. -
Page 92: Calc:par:sel
Remote Control Commands CALC:PAR:SEL CALCulate<Ch>:PARameter<Tr>:SELect Description Sets the active trace in channel <Ch> (no query). Trace <Tr> of channel <Ch>, Target <Tr>={[1]|2|3|4} <Ch>={[1]|2|3|4} If the trace number is greater than the number of the traces Notes displayed in the channel, an error occurs and the command is ignored. -
Page 93: Calc:rlim:data
Remote Control Commands CALC:RLIM:DATA CALCulate<Ch>[:SELected]:RLIMit:DATA <numeric list> CALCulate<Ch>[:SELected]:RLIMit:DATA? Sets the data array, which is the limit line for the ripple limit function (command/query). The array size is 1 + 4N, where N is the number of limit line segments. For the n–th point, where n from 1 to N: <numeric 1>... -
Page 94: Calc:rlim:disp:line
Remote Control Commands CALC:RLIM:DISP:LINE CALCulate<Ch>[:SELected]:RLIMit:DISPlay:LINE {ON|OFF|1|0} CALCulate<Ch>[:SELected]:RLIMit:DISPlay:LINE? Sets or reads out the ON/OFF state of the ripple limit line display Description (command/query). Active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Ripple limit line ON Parameter {OFF|0} Ripple limit line OFF Query Response {0|1} Preset Value... -
Page 95: Calc:rlim:rep
Remote Control Commands CALC:RLIM:REP? CALCulate<Ch>[:SELected]:RLIMit:REPort[:DATA]? Reads out the data array, which is the ripple limit test results (query only). The array size is 1+3N, where N is the number of ripple limit bands. For the n–th point, where n from 1 to N: <numeric 1>... -
Page 96: Calc:smo:aper
Remote Control Commands CALC:SMO:APER CALCulate<Ch>[:SELected]:SMOothing:APERture <numeric> CALCulate<Ch>[:SELected]:SMOothing:APERture? Sets or reads out the smoothing aperture, when performing Description smoothing function (command/query). Active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> the smoothing aperture from 0.01 to 20 Unit % (percent) Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 97: Calc:trac:data:fdat
Remote Control Commands CALC:TRAC:DATA:FDAT? CALCulate<Ch>:TRACe<Tr>:DATA:FDATa? Reads out the formatted data array (query only). The formatted data array is the data, whose processing is completed including the formatting as the last step. Such data represent the data trace values as they are shown on the screen. The array size is 2N, where N is the number of measurement points. -
Page 98: Calc:trac:data:fmem
Remote Control Commands CALC:TRAC:DATA:FMEM? CALCulate<Ch>:TRACe<Tr>:DATA:FMEMory? Reads out the formatted memory array (query only). The formatted memory array is the data, whose processing is completed including the formatting as the last step. Such data represent the memory trace values as they are shown on the screen. -
Page 99: Calc:trac:data:sdat
Remote Control Commands CALC:TRAC:DATA:SDAT? CALCulate<Ch>:TRACe<Tr>:DATA:SDATa? Reads out the corrected data array (query only). The corrected data array is the data, whose processing is completed excluding the formatting as the last step. Such data represent S–parameter complex values. The array size is 2N, where N is the number of measurement points. Description For the n–th point, where n from 1 to N: <numeric 2n–1>... -
Page 100: Calc:trac:data:smem
Remote Control Commands CALC:TRAC:DATA:SMEM? CALCulate<Ch>:TRACe<Tr>:DATA:SMEMory? Reads out the corrected memory array (query only). The corrected memory array is the data, whose processing is completed excluding the formatting as the last step. Such data represent S–parameter complex values. The array size is 2N, where N is the number of measurement points. For the n–th point, where n from 1 to N: Description <numeric 2n–1>... -
Page 101: Calc:tran:time
Remote Control Commands CALC:TRAN:TIME CALCulate<Ch>[:SELected]:TRANsform:TIME[:TYPE] {BPASs|LPASs} CALCulate<Ch>[:SELected]:TRANsform:TIME[:TYPE]? Selects the transformation type for the time domain transformation Description function: bandpass response or direct current circuit (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "BPASs" Bandpass Parameter "LPASs" Lowpass Out of Range The command is ignored. -
Page 102: Calc:tran:time:cent
Remote Control Commands CALC:TRAN:TIME:CENT CALCulate<Ch>[:SELected]:TRANsform:TIME:CENTer <time> CALCulate<Ch>[:SELected]:TRANsform:TIME:CENTer? Sets or reads out the time domain center value, when the time Description domain transformation function is turned ON (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the time domain center value, the range varies Parameter depending on the specified frequency range and the number of points... -
Page 103: Calc:tran:time:imp:widt
Remote Control Commands CALC:TRAN:TIME:IMP:WIDT CALCulate<Ch>[:SELected]:TRANsform:TIME:IMPulse:WIDTh <time> CALCulate<Ch>[:SELected]:TRANsform:TIME:IMPulse:WIDTh? Sets or reads out the impulse width (time domain transformation resolution), coupled with the Kaiser–Bessel window shape β Description parameter. The impulse width setting changes the β parameter, and setting of β parameter changes the impulse width (command/query). -
Page 104: Calc:tran:time:kbes
Remote Control Commands CALC:TRAN:TIME:KBES CALCulate<Ch>[:SELected]:TRANsform:TIME:KBESsel <numeric> CALCulate<Ch>[:SELected]:TRANsform:TIME:KBESsel? Sets or reads out the β parameter, which controls the Kaiser– Description Bessel window shape, when performing time domain transformation (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> β parameter from 0 to 13 Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 105: Calc:tran:time:span
Remote Control Commands CALC:TRAN:TIME:SPAN CALCulate<Ch>[:SELected]:TRANsform:TIME:SPAN <time> CALCulate<Ch>[:SELected]:TRANsform:TIME:SPAN? Sets or reads out the time domain span value, when the time Description domain transformation function is turned ON (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the time domain span value, the range varies depending Parameter on the specified frequency range and the number of points Unit... -
Page 106: Calc:tran:time:star
Remote Control Commands CALC:TRAN:TIME:STAR CALCulate<Ch>[:SELected]:TRANsform:TIME:STARt <time> CALCulate<Ch>[:SELected]:TRANsform:TIME:STARt? Sets or reads out the time domain start value, when the time Description domain transformation function is turned ON (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the time domain start value, the range varies depending Parameter on the specified frequency range and the number of points Unit... -
Page 107: Calc:tran:time:stat
Remote Control Commands CALC:TRAN:TIME:STAT CALCulate<Ch>[:SELected]:TRANsform:TIME:STATe {ON|OFF|1|0} CALCulate<Ch>[:SELected]:TRANsform:TIME:STATe? Sets or reads out the ON/OFF state of the time domain Description transformation function (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Time domain transformation ON Parameter {OFF|0} Time domain transformation OFF {0|1} Query Response Preset Value... -
Page 108: Calc:tran:time:step:rtim
Remote Control Commands CALC:TRAN:TIME:STEP:RTIM CALCulate<Ch>[:SELected]:TRANsform:TIME:STEP:RTIMe <time> CALCulate<Ch>[:SELected]:TRANsform:TIME:STEP:RTIMe? Sets or reads out the rise time of the step signal (time domain transformation resolution), coupled with the Kaiser–Bessel window Description shape β parameter. The impulse width setting changes the β parameter, and setting of β parameter changes the impulse width (command/query). -
Page 109: Calc:tran:time:stim
Remote Control Commands CALC:TRAN:TIME:STIM CALCulate<Ch>[:SELected]:TRANsform:TIME:STIMulus {IMPulse|STEP} CALCulate<Ch>[:SELected]:TRANsform:TIME:STIMulus? Selects the stimulus type for the time domain transformation Description function: impulse or step (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} "IMPulse" Impulse Parameter "STEP" Step Out of Range The command is ignored. Query Response {IMP|STEP} Preset Value... -
Page 110: Calc:tran:time:stop
Remote Control Commands CALC:TRAN:TIME:STOP CALCulate<Ch>[:SELected]:TRANsform:TIME:STOP <time> CALCulate<Ch>[:SELected]:TRANsform:TIME:STOP? Sets or reads out the time domain stop value, when the time Description domain transformation function is turned ON (command/query). The active trace of channel <Ch>, Target <Ch>={[1]|2|3|4} <time> the time domain stop value, the range varies depending Parameter on the specified frequency range and the number of points Unit... -
Page 111: Calc:tran:time:unit
Remote Control Commands CALC:TRAN:TIME:UNIT CALCulate <Ch> [:SELected]:TRANsform:TIME:UNIT {SEC|MET|FEET} CALCulate <Ch> [:SELected]:TRANsform:TIME:UNIT? Selects the the transformation unit for the time domain Description transformation function: seconds, meters, feet. (command/query) The active trace of channel <Ch>, <Ch>={[1]|2|3|4} Target (in multiport mode only). <Ch>={[1]…|16} "SEC"... -
Page 112: Dev:addn
Remote Control Commands DEV:ADDN DEVices:ADDNext Additing one more device to configuration Description (in multiport mode only) Equivalent Devices > Add Next Softkeys DEV:COUN? DEVices:COUNt Number of connected devices in the configuration (query only) Description (in multiport mode only) Equivalent None Softkeys DEV:MOVD DEVices:MOVDown... -
Page 113: Dev:movu
Remote Control Commands DEV:MOVU DEVices:MOVUp <numeric> Moving the device from the position Port into position Port-1 Description (in multiport mode only) <numeric> Port Number {[1]|2|3|4... 16} Parameter Equivalent Devices > Move Up Softkeys DEV:READ? DEVices:READy? <numeric> Readiness of the device associated with port Port (query only) Description (in multiport mode only) Parameter... -
Page 114: Dev:adj:per
Remote Control Commands DEV:ADJ:PER DEVices[:REFerence]:ADJust:PERiod <numeric> Frequency automatic adjustment period (command/query) Description (in multiport mode only) Parameter <numeric> Value of Frequency automatic adjustment period Unit Equivalent Devices > Frequency Adjust Period { OFF | 3 | 10 | 30 | 100 | 300 } Softkeys DEV:PORT#:OFF DEVices[:REFerence]:PORT<Pt>:OFFset... -
Page 115: Dev:reml
Remote Control Commands DEV:REML DEVices:REMLast Removing one more device to configuration Description (in multiport mode only) Equivalent Devices > Remove Last Softkeys DEV:SER? DEVices:SERial? <numeric> Serial number of the device associated with Port (query only) Description (in multiport mode only) Parameter <numeric>... -
Page 116: Dev:meth
Remote Control Commands DEV:METH? DEVices[:SYNChronization]:METHod {FREE|USB|TRIG} DEVices[:SYNChronization]:METHod? Device synchronization method (command/query) Description (in multiport mode only) "FREE" Independent operation of devices. No synchronization. Parameter "USB" Device Synchronization via USB Bus "TRIG" Device Synchronization via Trigger Bus Out of Range The command is ignored. Query Response {FREE|USB|TRIG} Preset Value... -
Page 117: Disp:col:back
Remote Control Commands DISP:COL:BACK DISPlay:COLor:BACK <numeric 1>,<numeric 2>,<numeric 3> DISPlay:COLor:BACK? Sets or reads out the background color for trace display Description (command/query). <numeric 1> Red value R from 0 to 255; Parameter <numeric 2> Green value G from 0 to 255; <numeric 3>... -
Page 118: Disp:col:res
Remote Control Commands DISP:COL:RES DISPlay:COLor:RESet Description Restores the display settings to the default values (no query). Equivalent Display > Preset Softkeys DISP:COL:TRAC:DATA DISPlay:COLor:TRACe<Tr>:DATA <numeric 1>,<numeric 2>, <numeric 3> DISPlay:COLor:TRACe<Tr>:DATA? Description Sets or reads out the data trace color (command/query). Trace <Tr>, Target <Tr>={[1]|2|3|4} <numeric 1>... -
Page 119: Disp:col:trac:mem
Remote Control Commands DISP:COL:TRAC:MEM DISPlay:COLor:TRACe<Tr>:MEMory <numeric 1>,<numeric 2>, <numeric 3> DISPlay:COLor:TRACe<Tr>:MEMory? Description Sets or reads out the memory trace color (command/query). Trace <Tr>, Target <Tr>={[1]|2|3|4} <numeric 1> Red value R from 0 to 255; Parameter <numeric 2> Green value G from 0 to 255; <numeric 3>... -
Page 120: Disp:fsig
Remote Control Commands DISP:FSIG DISPlay:FSIGn {ON|OFF|1|0} DISPlay:FSIGn? Sets or reads out the ON/OFF state of the Fail sign display, when Description performing limit test or ripple limit test (command/query). {ON|1} Fail sign display ON Parameter {OFF|0} Fail sign display OFF Query Response {0|1} Preset Value... -
Page 121: Disp:imag
Remote Control Commands DISP:IMAG DISPlay:IMAGe {NORMal|INVert} DISPlay:IMAGe? Sets or reads out the inverted color display of the data traces Description (command/query). "NORMal" Normal display Parameter "INVert" Inverted color display Out of Range The command is ignored. {NORM|INV} Query Response Preset Value NORM Equivalent Softkeys Display >... -
Page 122: Disp:max
Remote Control Commands DISP:MAX DISPlay:MAXimize {ON|OFF|1|0} DISPlay:MAXimize? Sets or reads out the ON/OFF state of the window maximization of Description the active channel (command/query). {ON|1} Maximization ON Parameter {OFF|0} Maximization OFF Query Response {0|1} Preset Value Equivalent Softkeys Channels > Maximize Сhannel SYSTem:SHOW SYSTem:SHOW Shows the instrument GUI hidden by the SYST:HIDE command... -
Page 123: Disp:spl
Remote Control Commands DISP:SPL DISPlay:SPLit <numeric> DISPlay:SPLit? Sets or reads out the layout of the channel windows on the screen Description (command/query). The channel window layout on the screen see below. <numeric> the number of the channel window layout from 1 to Parameter Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 124: Disp:wind:act
Remote Control Commands DISP:WIND:ACT DISPlay:WINDow<Ch>:ACTivate Description Sets the active channel (no query). Channel <Ch>, Target <Ch>={[1]|2|3|4} At attempt to set to the active channel the channel, which is not Notes displayed by the DISP:SPL command, an error occurs. Related Commands DISP:SPL Equivalent Softkeys Channels >... -
Page 125: Disp:wind:ann:mark:sing
Remote Control Commands DISP:WIND:ANN:MARK:SING DISPlay:WINDow<Ch>:ANNotation:MARKer:SINGle[:STATe] {ON|OFF|1|0} DISPlay:WINDow<Ch>:ANNotation:MARKer:SINGle[:STATe]? Sets or reads out the ON/OFF state of the marker display for the Description active trace only (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Only active trace markers display ON Parameter {OFF|0} Only active trace markers display OFF {0|1} Query Response Preset Value... -
Page 126: Disp:wind:spl
Remote Control Commands DISP:WIND:SPL DISPlay:WINDow<Ch>:SPLit <numeric> DISPlay:WINDow<Ch>:SPLit? Sets or reads out the layout of the graph in the channel window (command/query). Description The graph layout in the channel window see below. Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> the number of the graph layout from 1 to 9 Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 127: Disp:wind:titl
Remote Control Commands DISP:WIND:TITL DISPlay:WINDow<Ch>:TITLe[:STATe] {ON|OFF|1|0} DISPlay:WINDow<Ch>:TITLe[:STATe]? Sets or reads out the ON/OFF state of the channel title display Description (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Channel title display ON Parameter {OFF|0} Channel title display OFF Query Response {0|1} Preset Value Equivalent Display >... -
Page 128: Disp:wind:trac:ann:mark:mem
Remote Control Commands DISP:WIND:TRAC:ANN:MARK:MEM DISPlay:WINDow<Ch>:TRACe<Tr>:ANNotation:MARKer:MEMory <bool> DISPlay:WINDow<Ch>:TRACe<Tr>:ANNotation:MARKer:MEMory? Turns ON/OFF the state of the memory value display on the Description marker. Trace <Tr> of channel <Ch>, Target <Tr>={[1]|2|3|4} <Ch>={[1]|2|3|4} <bool> Specifies the memory value display: Parameter {ON|1} {OFF|0} Query Response {0|1} Preset Value Equivalent Markers >... -
Page 129: Disp:wind:trac:ann:mark:pos:x
Remote Control Commands DISP:WIND:TRAC:ANN:MARK:POS:X DISPlay:WINDow<Ch>:TRACe<Tr>:ANNotation:MARKer:POSition:X <numeric> DISPlay:WINDow<Ch>:TRACe<Tr>:ANNotation:MARKer:POSition:X? Sets or reads out the display position of the marker value on the Description X–axis by a percentage of the display width (command/query). Trace <Tr> of channel <Ch>, Target <Tr>={[1]|2|3|4} <Ch>={[1]|2|3|4} <numeric> the display position of the marker value on the X– Parameter axis from 0 to 100 Unit... -
Page 130: Disp:wind:trac:ann:mark:pos:y
Remote Control Commands DISP:WIND:TRAC:ANN:MARK:POS:Y DISPlay:WINDow<Ch>:TRACe<Tr>:ANNotation:MARKer:POSition:Y <numeric> DISPlay:WINDow<Ch>:TRACe<Tr>:ANNotation:MARKer:POSition:Y? Sets or reads out the display position of the marker value on the Description Y–axis by a percentage of the display height (command/query). Trace <Tr> of channel <Ch>, Target <Tr>={[1]|2|3|4} <Ch>={[1]|2|3|4} <numeric> the display position of the marker value on the Y– Parameter axis from 0 to 100 Unit... -
Page 131: Disp:wind:trac:y:pdiv
Remote Control Commands DISP:WIND:TRAC:Y:PDIV DISPlay:WINDow<Ch>:TRACe<Tr>:Y[:SCALe]:PDIVision <response> DISPlay:WINDow<Ch>:TRACe<Tr>:Y[:SCALe]:PDIVision? Sets or reads out the trace scale. Sets the scale per division, when Description the data format is the rectangular format. Sets the full scale value, when the data format is the Smith chart format or the polar format. Trace <Tr>... -
Page 132: Disp:wind:trac:y:rlev
Remote Control Commands DISP:WIND:TRAC:Y:RLEV DISPlay:WINDow<Ch>:TRACe<Tr>:Y[:SCALe]:RLEVel <response> DISPlay:WINDow<Ch>:TRACe<Tr>:Y[:SCALe]:RLEVel? Sets the value of the reference line (response value on the Description reference line). For the rectangular format only (command/query). Trace <Tr> of channel <Ch>, Target <Tr>={[1]|2|3|4} <Ch>={[1]|2|3|4} Parameter <response> the reference value from 10E–18 to 1E18 Unit { dB (decibel) | °... -
Page 133: Disp:wind:trac:y:rpos
Remote Control Commands DISP:WIND:TRAC:Y:RPOS DISPlay:WINDow<Ch>:TRACe<Tr>:Y[:SCALe]:RPOSition <numeric> DISPlay:WINDow<Ch>:TRACe<Tr>:Y[:SCALe]:RPOSition? Sets the position of the reference line. For the rectangular format Description only (command/query). Trace <Tr> of channel <Ch>, Target <Tr>={[1]|2|3|4} <Ch>={[1]|2|3|4} <numeric> the reference line position from 0 to the number of Parameter the scale divisions (set by the DISP:WIND:Y:DIV command, 10 by default) -
Page 134: Disp:wind:y:div
Remote Control Commands DISP:WIND:Y:DIV DISPlay:WINDow<Ch>:Y[:SCALe]:DIVisions <numeric> DISPlay:WINDow<Ch>:Y[:SCALe]:DIVisions? Sets the number of the vertical scale divisions. For the rectangular Description format only (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} <numeric> the number of the vertical scale divisions from 4 to Parameter Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 135: Form:bord
Remote Control Commands FORM:BORD FORMat:BORDer {NORMal|SWAPped} FORMat:BORDer? Sets or reads out the transfer order of each byte in data, when the Description binary data transfer format is set by the FORM:DATA command (command/query). "NORMal" Normal (from the most significant byte) Parameter "SWAPped"... -
Page 136: Form:data
Remote Control Commands FORM:DATA FORMat:DATA {ASCii|REAL|REAL32} FORMat:DATA? Sets or reads out the data transfer format, when responding to the following queries: CALC:DATA:FDAT? CALC:DATA:FMEM? CALC:DATA:SDAT? CALC:DATA:SMEM? CALC:FUNC:DATA? CALC:LIM:DATA? Description CALC:LIM:REP? CALC:LIM:REP:ALL? CALC:RLIM:DATA? CALC:RLIM:REP? SENS:FREQ:DATA? SENS:SEGM:DATA? (command/query) "ASCii" Character format Parameter "REAL" Binary format (IEEE–64 floating point) "REAL32"... -
Page 137: Hcop
Remote Control Commands HCOP HCOPy[:IMMediate] Prints out the image displayed on the screen without previewing Description (no query). Equivalent None Softkeys HCOP:DATE:STAM HCOPy:DATE:STAMp {ON|OFF|1|0} HCOPy:DATE:STAMp? Sets or reads out the ON/OFF state of the current date and time Description printout in the upper right corner (command/query). {ON|1} Date &... -
Page 138: Hcop:pain
Remote Control Commands HCOP:PAIN HCOPy:PAINt {COLor|GRAY|BW} HCOPy:PAINt? Sets or reads out the color chart for the image printout Description (command/query). "COLor" Color printout "GRAY" Grayscale printout Parameter "BW" Black&white printout Out of Range The command is ignored. Query Response {COL|GRAY|BW} Preset Value Equivalent Softkeys Print >... -
Page 139: Init:cont
Remote Control Commands INIT:CONT INITiate<Ch>:CONTinuous {ON|OFF|1|0} INITiate<Ch>:CONTinuous? Sets or reads out the ON/OFF state of the continuous trigger Description initiation mode. If the continuous trigger initiation mode is set to OFF, the channel tuns to the hold state (command /query). Channel <Ch>, Target <Ch>={[1]|2|3|4}... -
Page 140: Mmem:del
Remote Control Commands MMEM:DEL MMEMory:DELete <string> Description Deletes a file (no query). Parameter File name <string> Equivalent None Softkeys MMEM:LOAD MMEMory:LOAD[:STATe] <string> Recalls the specified instrument state file. The file must be saved Description by the MMEM:STOR command (no query). Parameter File name <string>... -
Page 141: Mmem:load:chan
Remote Control Commands MMEM:LOAD:CHAN MMEMory:LOAD:CHANnel[:STATe] {A|B|C|D} Recalls the instrument state for the active channel. The file must Description be saved in one of the four memory registers by the MMEM:STOR:CHAN command (no query). Target Active channel set by the DISP:WIND:ACT command "A"... -
Page 142: Mmem:load:lim
Remote Control Commands MMEM:LOAD:LIM MMEMory:LOAD:LIMit <string> Recalls the limit table file. The file must be saved by the Description MMEM:STOR:LIM command (no query). Active trace of the active channel, set by the CALC:PAR:SEL Target command Parameter File name <string> If the full path of the file is not specified, the \Limit subdirectory Notes of the main directory will be searched for the file. -
Page 143: Mmem:load:segm
Remote Control Commands MMEM:LOAD:SEGM MMEMory:LOAD:SEGMent <string> Recalls the segment table file. The file must be saved by the Description MMEM:STOR:SEGM command (no query). Target Active channel, set by the DISP:WIND:ACT command Parameter File name <string> If the full path of the file is not specified, the \Segment Notes subdirectory of the main directory will be searched for the file. -
Page 144: Mmem:stor
Remote Control Commands MMEM:STOR MMEMory:STORe[:STATe] <string> Description Saves the instrument state into a file (no query). Parameter File name <string> If the full path of the file is not specified, the \State subdirectory Notes of the main directory will be searched for the file. The state file has *.sta extension by default. -
Page 145: Mmem:stor:chan:cle
Remote Control Commands MMEM:STOR:CHAN:CLE MMEMory:STORe:CHANnel:CLEar Clears the memory of the channel state saved by the Description MMEM:STOR:CHAN command (no query). Equivalent Channels > Save Channel > Clear States Softkeys MMEM:STOR:CKIT MMEMory:STORe:CKIT<Ck> <string> Description Saves the definition file for the calibration kit (no query). Calibration kit <Ck>, Target <Ck>={[1]|2|3|4|5|6|7|8|9|10|11}... -
Page 146: Mmem:stor:fdat
Remote Control Commands MMEM:STOR:FDAT MMEMory:STORe:FDATa <string> Description Saves the CSV formatted data into a file (no query). Active trace of the active channel, set by the CALC:PAR:SEL Target command Parameter File name <string> If the full path of the file is not specified, the \CSV subdirectory of Notes the main directory will be searched for the file. -
Page 147: Mmem:stor:lim
Remote Control Commands MMEM:STOR:LIM MMEMory:STORe:LIMit <string> Description Saves the limit table into a file (no query). Active trace of the active channel, set by the CALC:PAR:SEL Target command Parameter File name <string> If the full path of the file is not specified, the \Limit subdirectory Notes of the main directory will be searched for the file. -
Page 148: Mmem:stor:segm
Remote Control Commands MMEM:STOR:SEGM MMEMory:STORe:SEGMent <string> Description Save the segment table in a file (no query). Target Active channel, set by the DISP:WIND:ACT command Parameter File name <string> If the full path of the file is not specified, the \Segment Notes subdirectory of the main directory will be searched for the file. -
Page 149: Mmem:stor:snp:form
Remote Control Commands MMEM:STOR:SNP:FORM MMEMory:STORe:SNP:FORMat {RI|DB|MA} MMEMory:STORe:SNP:FORMat? Sets the data format for the S–parameter saving by the Description MMEM:STOR:SNP command (command/query). Target Active channel, set by the DISP:WIND:ACT command " MA" Logarithmic Magnitude / Angle format Parameter " DB" Linear Magnitude / Angle format "... -
Page 150: Mmem:stor:snp:type:s2P
Remote Control Commands MMEM:STOR:SNP:TYPE:S2P MMEMory:STORe:SNP:TYPE:S2P <rcvport>, <srcport> MMEMory:STORe:SNP:TYPE:S2P? Sets the 2-port Touchstone file type (*.s2p) and the port numbers, Description when saving S–parameters by the MMEM:STOR:SNP command. (command/query) <rcvport> the number of the receiver port from 1 to 2 Parameter <srcport>... -
Page 151: Mmem:tran
Remote Control Commands MMEM:TRAN? MMEMory:TRANsfer? <string> Transfers the contents of a specified file from the instrument to the Description external computer (command/query). Parameter the file name with the full path <string> Block data transfer format. For example: #6001000 <binary block with length of 1000 bytes> Query Response Symbol # introduces the data block. -
Page 152: Sens:aver
Remote Control Commands SENS:AVER SENSe<Ch>:AVERage[:STATe] {ON|OFF|1|0} SENSe<Ch>:AVERage[:STATe]? Sets or reads out the ON/OFF state of the averaging function Description (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Averaging ON Parameter {OFF|0} Averaging OFF Query Response {0|1} Preset Value Equivalent Softkeys Average > Averaging SENS:AVER:CLE SENSe<Ch>:AVERage:CLEar Restarts the averaging process, when averaging function is set to... -
Page 153: Sens:aver:coun
Remote Control Commands SENS:AVER:COUN SENSe<Ch>:AVERage:COUNt <numeric> SENSe<Ch>:AVERage:COUNt? Sets or reads out the averaging factor, when the averaging Description function is set to ON (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> the averaging factor from 1 to 999 Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 154: Sens:bwid
Remote Control Commands SENS:BWID SENSe<Ch>:BWIDth[:RESolution] <frequency> SENSe<Ch>:BWIDth[:RESolution]? Description Sets or reads out the IF bandwidth (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <frequency> the IF bandwidth value from 1 to 30000 Unit Hz (Hertz) Out of Range Sets the value of the limit, which is closer to the specified value. <numeric>... -
Page 155: Sens:corr:coef
Remote Control Commands SENS:CORR:COEF SENSe<Ch>:CORRection:COEFficient[:DATA]? {ER|ED|ES}, <rcvport>,<srcport>,<numeric list> SENSe<Ch>:CORRection:COEFficient[:DATA]? {ER|ED|ES}, <rcvport>,<srcport> Writes or reads out the calibration coefficient data array (command/query). The array size is 2N, where N is the number of measurement points. For the n–th point, where n from 1 to N: Description <numeric 2n–1>... -
Page 156: Sens:corr:coef:meth:open
Remote Control Commands SENS:CORR:COEF:METH:OPEN SENSe<Ch>:CORRection:COEFficient:METHod[:RESPonse]:OPEN <port> Selects the port and sets the response calibration (Open) type, Description when the written calibration coefficients are made effective by the SENS:CORR:COEF:SAVE command (no query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <port> the number of the port = 1 Out of Range An error occurs. -
Page 157: Sens:corr:coef:meth:shor
Remote Control Commands SENS:CORR:COEF:METH:SHOR SENSe<Ch>:CORRection:COEFficient:METHod[:RESPonse]:SHORt <port> Selects the port and sets the response calibration (Short) type, Description when the written calibration coefficients are made effective by the SENS:CORR:COEF:SAVE command (no query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <port> the number of the port = 1 Out of Range An error occurs. -
Page 158: Sens:corr:coef:meth:solt1
Remote Control Commands SENS:CORR:COEF:METH:SOLT1 SENSe<Ch>:CORRection:COEFficient:METHod:SOLT1 <port> Selects the port and sets the full 1–port calibration type, when Description the written calibration coefficients are made effective by the SENS:CORR:COEF:SAVE command (no query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <port> the number of the port = 1 Out of Range An error occurs. -
Page 159: Sens:corr:coef:save
Remote Control Commands SENS:CORR:COEF:SAVE SENSe<Ch>:CORRection:COEFficient:SAVE Enables the written calibration coefficients depending on the selected calibration type. On completion of the command the error correction automatically turns ON. Description At the attempt to execute this command before all the needed calibration coefficients are written, an error occurs and the command is ignored (no query). -
Page 160: Sens:corr:coll:ckit
Remote Control Commands SENS:CORR:COLL:CKIT SENSe<Ch>:CORRection:COLLect:CKIT[:SELect] <numeric> SENSe<Ch>:CORRection:COLLect:CKIT[:SELect]? Sets or reads out the number of the selected calibration kit Description (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> the number of the calibration kit from 1 to 11 Out of Range Error occurs. The command is ignored. Error code: 222. Query Response <numeric>... -
Page 161: Sens:corr:coll:ckit:lab
Remote Control Commands SENS:CORR:COLL:CKIT:LAB SENSe<Ch>:CORRection:COLLect:CKIT:LABel <string> SENSe<Ch>:CORRection:COLLect:CKIT:LABel? Description Sets or reads out the calibration kit label (command/query). Calibration kit, selected for channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <string>, up to 254 characters Query Response <string> Preset Value Varies depending on the number of the calibration kit. Equivalent Calibration >... -
Page 162: Sens:corr:coll:ckit:res
Remote Control Commands SENS:CORR:COLL:CKIT:RES SENSe<Ch>:CORRection:COLLect:CKIT:RESet Description Resets the calibration kit to the factory settings (no query). Calibration kit, selected for channel <Ch>, Target <Ch>={[1]|2|3|4} Equivalent Calibration > Calibration Kit > Edit Cal Kit > Restore Softkeys SENS:CORR:COLL:CKIT:STAN:C0 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C0 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C0? Sets or reads out the C0 value for the open calibration standard Description (command/query). -
Page 163: Sens:corr:coll:ckit:stan:c1
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:C1 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C1 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C1? Sets or reads out the C1 value for the open calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 164: Sens:corr:coll:ckit:stan:c2
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:C2 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C2 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C2? Sets or reads out the C2 value for the open calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 165: Sens:corr:coll:ckit:stan:c3
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:C3 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C3 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:C3? Sets or reads out the C3 value for the open calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 166: Sens:corr:coll:ckit:stan:del
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:DEL SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:DELay <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:Delay? Sets or reads out the offset delay value for the calibration Description standard (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 167: Sens:corr:coll:ckit:stan:l0
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:L0 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L0 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L0? Sets or reads out the L0 value for the short calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 168: Sens:corr:coll:ckit:stan:l1
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:L1 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L1 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L1? Sets or reads out the L1 value for the short calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 169: Sens:corr:coll:ckit:stan:l2
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:L2 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L2 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L2? Sets or reads out the L2 value for the short calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 170: Sens:corr:coll:ckit:stan:l3
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:L3 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L3 <numeric> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:L3? Sets or reads out the L3 value for the short calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <numeric>... -
Page 171: Sens:corr:coll:ckit:stan:lab
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:LAB? SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:LABel? Sets or reads out the label for the calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <string>, up to 254 characters Query Response... -
Page 172: Sens:corr:coll:ckit:stan:loss
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:LOSS SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:LOSS <loss> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:LOSS? Sets or reads out the offset loss value for the calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <loss>... -
Page 173: Sens:corr:coll:ckit:stan:type
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:TYPE? SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:TYPE? Description Sets or reads out the type of calibration standard (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit "OPEN"... -
Page 174: Sens:corr:coll:ckit:stan:z0
Remote Control Commands SENS:CORR:COLL:CKIT:STAN:Z0 SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:Z0 <impedance> SENSe<Ch>:CORRection:COLLect:CKIT:STAN<Std>:Z0? Sets or reads out the offset Z0 value for the calibration standard Description (command/query). Standard <Std> of the calibration kit specified for channel <Ch>, <Ch>={[1]|2|3|4} Target <Std>={[1]|2|...N}, where N – the number of the standards in the calibration kit Parameter <impedance>... -
Page 175: Sens:corr:coll:ecal:check:exec
Remote Control Commands SENS:CORR:COLL:ECAL:CHECK:EXEC SENSe<Ch>:CORRection:COLLect:ECAL:CHECK:EXECute Description Executing confidence check AutoCal module Target (Ch – arbitrary number 1 to 4) Equivalent Calibration > Autocalibration > Confidence Check Softkeys SENS:CORR:COLL:ECAL:ORI:EXEC SENSe:CORRection:COLLect:ECAL:ORIentation:EXECute Description Executing AutoCal orientation Target AutoCal module Equivalent Calibration > Autocalibration > Perform Auto-Orientation Softkeys SENS:CORR:COLL:ECAL:ORI:STAT SENSe:CORRection:COLLect:ECAL:ORIentation:STATe {ON|OFF|1|0}... -
Page 176: Sens:corr:coll:ecal:solt1
Remote Control Commands SENS:CORR:COLL:ECAL:SOLT1 SENSe<Ch>:CORRection:COLLect:ECAL:SOLT1 <numeric> Executes 1-port calibration of the specified port of specified Description channel (Ch) using the Autocalibration module (command only). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> : Port Number = 1 Equivalent Calibration > Autocalibration > Calibrate Softkeys SENS:CORR:COLL:ECAL:SOLT2 SENSe<Ch>:CORRection:COLLect:ECAL:SOLT2 <numeric1>,<numeric2>... -
Page 177: Sens:corr:coll:ecal:uch
Remote Control Commands SENS:CORR:COLL:ECAL:UCH SENSe:CORRection:COLLect:ECAL:UCHar {CHAR0|CHAR1|CHAR2|CHAR3} SENSe:CORRection:COLLect:ECAL:UCHar? Sets or reads out the Characteristic used when executing Description Autocalibration (factory or user characterization). (command/query). Target Autocalibration "CHAR0" factory characterization "CHAR1" user characterization 1 Parameter "CHAR2" user characterization 2 "CHAR3" user characterization 3 Query Response {CHAR0|CHAR1|CHAR2|CHAR3} Preset Value... -
Page 178: Sens:corr:coll:load
Remote Control Commands SENS:CORR:COLL:LOAD SENSe<Ch>:CORRection:COLLect[:ACQuire]:LOAD <numeric> Measures the calibration data of the load standard for the Description specified port (no query). Channel <Ch>, <Ch>={[1]|2|3|4} Target (in multiport mode only). <Ch>={[1]…|16} Port number is 1, Parameter 1-16 (in multiport mode only). Out of Range Error occurs. -
Page 179: Sens:corr:coll:meth:eres
Remote Control Commands SENS:CORR:COLL:METH:ERES SENSe<Ch>:CORRection:COLLect:METHod:ERESponse <numeric1>, <numeric2> Selects the ports and sets the one path 2–port calibration type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SENS(Ch):CORR:COLL:SAVE command. (in multiport mode only) Channel <Ch>, Target <Ch>={[1]…|16}(in multiport mode... -
Page 180: Sens:corr:coll:meth:open
Remote Control Commands SENS:CORR:COLL:METH:OPEN SENSe<Ch>:CORRection:COLLect:METHod[:RESPonse]:OPEN <numeric> Selects the port and sets the response calibration (Open) type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SENS:CORR:COLL:SAVE command (no query). Channel <Ch>, <Ch>={[1]|2|3|4} Target (in multiport mode only). -
Page 181: Sens:corr:coll:meth: Shor
Remote Control Commands SENS:CORR:COLL:METH: SHOR SENSe<Ch>:CORRection:COLLect:METHod[:RESPonse]:SHORt <numeric> Selects the port and sets the response calibration (Short) type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SENS:CORR:COLL:SAVE command (no query). Channel <Ch>, <Ch>={[1]|2|3|4} Target (in multiport mode only). -
Page 182: Sens:corr:coll:meth:solt1
Remote Control Commands SENS:CORR:COLL:METH:SOLT1 SENSe<Ch>:CORRection:COLLect:METHod:SOLT1 <port> Selects the port and sets the full 1–port calibration type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SENS:CORR:COLL:SAVE command (no query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <port>... -
Page 183: Sens:corr:coll:meth: Thru
Remote Control Commands SENS:CORR:COLL:METH: THRU SENSe<Ch>:CORRection:COLLect:METHod[:RESPonse]:THRU <numeric1>, <numeric2> Selects the ports and sets the response calibration (Thru) type for the calculation of the calibration coefficients on completion of the Description calibration executed by the SENS:CORR:COLL:SAVE command (no query). Channel <Ch>, <Ch>={[1]|2|3|4} Target (in multiport mode... -
Page 184: Sens:corr:coll:meth:type
Remote Control Commands SENS:CORR:COLL:METH:TYPE? SENSe<Ch>:CORRection:COLLect:METHod:TYPE? Reads out the calibration type selected for the calculation of the calibration coefficients on completion of the calibration executed Description by the SENS:CORR:COLL:SAVE command (query only). Channel <Ch>, Target <Ch>={[1]|2|3|4} "RESPO" Response (Open) "RESPS" Response (Short) Query Response "SOLT1"... -
Page 185: Sens:corr:coll:save
Remote Control Commands SENS:CORR:COLL:SAVE SENSe<Ch>:CORRection:COLLect:SAVE Calculates the calibration coefficients from the calibration standards measurements depending on the selected calibration type. On completion of the command, all the calibration standards measurements are cleared and the error correction automatically turns ON. Description Before executing this command it is neccessery to select calibration type by one of commands SENS:CORR:COLL:METH:XXXX. -
Page 186: Sens:corr:coll:shor
Remote Control Commands SENS:CORR:COLL:SHOR SENSe<Ch>:CORRection:COLLect[:ACQuire]:SHORt <numeric> Measures the calibration data of the short standard for the Description specified port (no query). Channel <Ch>, <Ch>={[1]|2|3|4} Target (in multiport mode only). <Ch>={[1]…|16} Port number is 1, Parameter 1-16 (in multiport mode only). Out of Range Error occurs. -
Page 187: Sens:corr:coll:thru
Remote Control Commands SENS:CORR:COLL:THRU SENSe<Ch>:CORRection:COLLect[:ACQuire]:THRU <numeric1>, <numeric2> Measures the calibration data of the thru standard between the Description source port and the receiver port. (in multiport mode only) Channel <Ch>, Target (in multiport mode only). <Ch>={[1]…|16} Range Port number is 1-16 The property writing starts the measurement for the channel independently of the trigger initiation and trigger source settings. -
Page 188: Sens:corr:ext
Remote Control Commands SENS:CORR:EXT SENSe<Ch>:CORRection:EXTension[:STATe] {ON|OFF|1|0} SENSe<Ch>:CORRection:EXTension[:STATe]? Sets or reads out the ON/OFF state of the port extension function Description (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Port extension function ON Parameter {OFF|0} Port extension function OFF {0|1} Query Response Preset Value Equivalent Calibration >... -
Page 189: Sens:corr:ext:port:freq
Remote Control Commands SENS:CORR:EXT:PORT:FREQ SENSe<Ch>:CORRection:EXTension:PORT<Pt>:FREQuency{[1]|2} <frequency> SENSe<Ch>:CORRection:EXTension:PORT<Pt>:FREQuency{[1]|2}? Sets or reads out the values of the frequency 1 and frequency 2 to Description calculate the loss for the port extension function (command/query). Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]} <frequency> the frequency value from 85E6 to 5.4E9 (R54), Parameter from 85E6 to 14E9 (R140),... -
Page 190: Sens:corr:ext:port:incl
Remote Control Commands SENS:CORR:EXT:PORT:INCL SENSe<Ch>:CORRection:EXTension:PORT<Pt>:INCLude{[1]|2}[:STATe] {ON|OFF|1|0} SENSe<Ch>:CORRection:EXTension:PORT<Pt>:INCLude{[1]|2}[:STATe] Sets or reads out the ON/OFF state of the compensation of the loss Description 1 and loss 2 for the port extension function (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} {ON|1} Loss compensation ON Parameter {OFF|0} Loss compensation OFF Query Response {0|1}... -
Page 191: Sens:corr:ext:port:loss
Remote Control Commands SENS:CORR:EXT:PORT:LOSS SENSe<Ch>:CORRection:EXTension:PORT<Pt>:LOSS{[1]|2} <loss> SENSe<Ch>:CORRection:EXTension:PORT<Pt>:LOSS{[1]|2}? Sets or reads out the values of the loss 1 and loss 2 for the port Description extension function (command/query). Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]} Parameter <loss> the loss value from –200 to 200 Unit dB (decibel) Out of Range... -
Page 192: Sens:corr:ext:port:time
Remote Control Commands SENS:CORR:EXT:PORT:TIME SENSe<Ch>:CORRection:EXTension:PORT<Pt>:TIME <time> SENSe<Ch>:CORRection:EXTension:PORT<Pt>:TIME? Sets or reads out the electrical delay value for the port extension Description function (command/query). Port <Pt> of channel <Ch>, Target <Ch>={[1]|2|3|4} <Pt>={[1]} Parameter <time> the electrical delay value from –10 to 10 Unit s (second) Out of Range... -
Page 193: Sens:corr:imp
Remote Control Commands SENS:CORR:IMP SENSe:CORRection:IMPedance[:INPut][:MAGNitude] <impedance> SENSe:CORRection:IMPedance[:INPut][:MAGNitude]? Description Sets or reads out the system impedance Z0 (command/query) Parameter <impedance> the Z0 value from 0.001 to 1000 Unit Ω (Ohm) Out of Range Sets the value of the limit, which is closer to the specified value. Query Response <numeric>... -
Page 194: Sens:corr:stat
Remote Control Commands SENS:CORR:STAT SENSe<Ch>:CORRection:STATe {ON|OFF|1|0} SENSe<Ch>:CORRection:STATe? Sets or reads out the ON/OFF state of the error correction Description (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} : Error correction ON {ON|1} Parameter : Error correction OFF {OFF|0} {0|1} Query Response Preset Value Equivalent Calibration >... -
Page 195: Sens:corr:tran:time:freq
Remote Control Commands SENS:CORR:TRAN:TIME:FREQ SENSe<Ch>:CORRection:TRANsform:TIME:FREQuency <frequency> SENSe<Ch>:CORRection:TRANsform:TIME:FREQuency? Sets or reads out the frequency value at which the cable loss specified for the cable correction function, when the time domain Description transformation function is turned ON. (command/query) Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <frequency>... -
Page 196: Sens:corr:tran:time:loss
Remote Control Commands SENS:CORR:TRAN:TIME:LOSS SENSe<Ch>:CORRection:TRANsform:TIME:LOSS <numeric> SENSe<Ch>:CORRection:TRANsform:TIME:LOSS? Sets or reads out the cable loss value for the cable correction Description function, when the time domain transformation function is turned ON. (command/query) Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> the cable loss value. Unit dB/m (decibell / meter) Query Response... -
Page 197: Sens:corr:tran:time:rvel
Remote Control Commands SENS:CORR:TRAN:TIME:RVEL SENSe<Ch>:CORRection:TRANsform:TIME:RVELocity <numeric> SENSe<Ch>:CORRection:TRANsform:TIME:RVELocity? Sets or reads out the cable relative wave speed velocity for the cable correction function, when the time domain transformation Description function is turned ON. (command/query) Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> the cable velocity factor. Query Response <numeric>... -
Page 198: Sens:corr:tran:time:stat
Remote Control Commands SENS:CORR:TRAN:TIME:STAT SENSe<Ch>:CORRection:TRANsform:TIME:STATe <bool> SENSe<Ch>:CORRection:TRANsform:TIME:STATe? Turns ON/OFF the cable correction when the time domain Description transformation function is turned ON. (command/query) Channel <Ch>, Target <Ch>={[1]|2|3|4} Specifies state of the cable correction: Parameter {ON|1} {OFF|0} Query Response {0|1} Preset Value Equivalent Analysis >... -
Page 199: Sens:freq:data
Remote Control Commands SENS:FREQ:DATA? SENSe<Ch>:FREQuency:DATA? Reads out the array of the measurement points frequency (query only). The array size is N, where N is the number of measurement points. Description For the n–th point, where n from 1 to N: the frequency value at the n–th measurement <numeric n>... -
Page 200: Sens:freq:cent
Remote Control Commands SENS:FREQ:CENT SENSe<Ch>:FREQuency:CENTer <frequency> SENSe<Ch>:FREQuency:CENTer? Sets or reads out the stimulus center value of the sweep range for Description linear or logarithmic sweep type (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} <frequency> the stimulus center value from 85E6 to 5.4E9 ( R54), Parameter from 85E6 to 14E9 (R140), from 1e6 to 6e9 (R60),... -
Page 201: Sens:freq:span
Remote Control Commands SENS:FREQ:SPAN SENSe<Ch>:FREQuency:SPAN <frequency> SENSe<Ch>:FREQuency:SPAN? Sets or reads out the stimulus span value of the sweep range for Description linear or logarithmic sweep type (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} <frequency> the stimulus span value from 0 to 5.315E9 (R54), Parameter from 0 to 13.915E9 (R140), from 0 to 5.999e9 (R60),... -
Page 202: Sens:freq:star
Remote Control Commands SENS:FREQ:STAR SENSe<Ch>:FREQuency:STARt <frequency> SENSe<Ch>:FREQuency:STARt? Sets or reads out the stimulus start value of the sweep range for Description linear or logarithmic sweep type (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} <frequency> the stimulus start value from 85E6 to 5.4E9 (R54), Parameter from 85E6 to 14E9 (R140), from 1e6 to 6e9 (R60),... -
Page 203: Sens:freq: Stop
Remote Control Commands SENS:FREQ: STOP SENSe<Ch>:FREQuency:STOP <frequency> SENSe<Ch>:FREQuency:STOP? Sets or reads out the stimulus stop value of the sweep range for Description linear or logarithmic sweep type (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} <frequency> the stimulus start value from 85E6 to 5.4E9 (R54), Parameter from 85E6 to 14E9 (R140), from 1e6 to 6e9 (R60),... -
Page 204: Sens:rosc:sour
Remote Control Commands SENS:ROSC:SOUR SENSe<Ch>:ROSCillator:SOURce {INTernal|EXTernal} SENSe<Ch>:ROSCillator:SOURce? Sets or reads out the internal or external source of the reference Description frequency of 10 MHz (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} "INTernal" : Internal source of the reference frequency Parameter "EXTernal" : External source of the reference frequency Out of Range Error occurs. -
Page 205: Sens:segm:data
Remote Control Commands SENS:SEGM:DATA SENSe<Ch>:SEGMent:DATA <numeric list > SENSe<Ch>:SEGMent:DATA? Sets or reads out the array of the segment sweep table (command/query). The array has the following format: { <Buf>, <Flag1>, <Flag2>, <Flag3>, <Flag4>, <Flag5>, <N>, <Start 1>, <Stop 1>, <NOP 1> [,<IFBW 1>] [,<Pow 1>] [,<Del 1>] [,<Time 1>], <Start 2>, <Stop 2>, <NOP 2>... -
Page 206: Sens:swe:poin
Remote Control Commands SENS:SWE:POIN SENSe<Ch>:SWEep:POINts <numeric> SENSe<Ch>:SWEep:POINts? Sets or reads out the number of measurement points Description (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} <numeric> the number of measurement points Parameter from 2 to 100001. Out of Range Sets the value of the limit, which is closer to the specified value. Query Response <numeric>... -
Page 207: Sens:swe:poin:time
Remote Control Commands SENS:SWE:POIN:TIME SENSe<Ch>:SWEep:POINt:TIME <time> SENSe<Ch>:SWEep:POINt:TIME? Sets or reads out the delay before measurement in each Description measurement point (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <time> the measurement delay value from 0 to 0.3 5E–6 Resolution Unit s (second) Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 208: Sens:swe:type
Remote Control Commands SENS:SWE:TYPE SENSe<Ch>:SWEep:TYPE {LINear|LOGarithmic|SEGMent} SENSe<Ch>:SWEep:TYPE? Description Sets or reads out the sweep type (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} "LINear" Linear frequency sweep Parameter "LOGarithmic" Logarithmic frequency sweep "SEGMent" Segment frequency sweep Out of Range Error occurs. The command is ignored. Error code: 206. Query Response {LIN|LOG|SEGM} Preset Value... -
Page 209: Serv:chan:trac:act
Remote Control Commands SERV:CHAN:TRAC:ACT? SERVice:CHANnel<Ch>:TRACe:ACTive? Description Read out the active trace number of the channel (query only). Channel <Ch>, Target <Ch>={[1]|2|3|4} Query Response <numeric> from 1 to 4 Equivalent None Softkeys SERV:CHAN:TRAC:COUN? SERVice:CHANnel:TRACe:COUNt? Reads out the maximum number of the traces in the channel Description (query only). -
Page 210: Serv:swe:freq:max
Remote Control Commands SERV:SWE:FREQ:MAX? SERVice:SWEep:FREQuency:MAXimum? Reads out the upper limit of the measurement frequency (query Description only). Query Response <numeric> Unit Hz (Hertz) Equivalent None Softkeys SERV:SWE:FREQ:MIN? SERVice:SWEep:FREQuency:MINimum? Reads out the lower frequency of the measurement frequency Description (query only). Query Response <numeric>... -
Page 211: Serv:swe:poin
Remote Control Commands SERV:SWE:POIN? SERVice:SWEep:POINts? Reads out the maximum number of the measurement points Description (query only). Query Response <numeric> Equivalent None Softkeys... -
Page 212: Sour:pow
Remote Control Commands SOUR:POW SOURce<Ch>:POWer[:LEVel][:IMMediate][:AMPLitude] {MIN|MAX|<power>} SOURce<Ch>:POWer[:LEVel][:IMMediate][:AMPLitude]? Sets or reads out the power level for the frequency sweep Description (command/query). (only for R60, R180) Channel <Ch>, Target <Ch>={[1]|2|3|4|5|6|7|8|9} Parameter <power> level power Resolution 0.05 Unit dBm (decibels above 1 milliwatt) Out of Range Sets the value of the limit, which is closer to the specified value. -
Page 213: Sour:pow:stat
Remote Control Commands SOUR:POW:STAT SOURce<Ch>:POWer[:LEVel]:STATe{HIGH|LOW|ROFF} Sets or reads out the power level for the frequency sweep. Description (only for R54/R140). Channel <Ch>, Target <Ch>={[1]|2|3|4} “HIGH” high output power; Parameter “LOW” low output power: “ROFF” RF Out is Off. Out of Range Error occurs. -
Page 214: Stat:oper
Remote Control Commands STAT:OPER? STATus:OPERation[:EVENt]? Reads out the value of the Operation Status Event Register (query Description only). Target Status Reporting System Query Response <numeric> Equivalent None Softkeys STAT:OPER:COND? STATus:OPERation:CONDition? Reads out the value of the Operation Status Condition Register Description (query only). -
Page 215: Stat:oper:enab
Remote Control Commands STAT:OPER:ENAB STATus:OPERation:ENABle <numeric> STATus:OPERation:ENABle? Sets or reads out the value of the Operation Status Enable Description Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 216: Stat:oper:ntr
Remote Control Commands STAT:OPER:NTR STATus:OPERation:NTRansition <numeric> STATus:OPERation:NTRansition? Sets or reads out the value of the Negative transition filter of the Description Operation Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 217: Stat:oper:ptr
Remote Control Commands STAT:OPER:PTR STATus:OPERation:PTRansition <numeric> STATus:OPERation:PTRansition? Sets or reads out the value of the Positive transition filter of the Description Operation Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 218: Stat:ques:cond
Remote Control Commands STAT:QUES:COND? STATus:QUEStionable:CONDition? Reads out the value of the Questionable Status Condition Register Description (query only). Target Status Reporting System Query Response <numeric> Equivalent None Softkeys STAT:QUES:ENAB STATus:QUEStionable:ENABle <numeric> STATus:QUEStionable:ENABle? Sets or reads out the value of the Questionable Status Enable Description Register (command/query). -
Page 219: Stat:ques:lim:chan:cond
Remote Control Commands STAT:QUES:LIM:CHAN:COND? STATus:QUEStionable:LIMit:CHANnel<Ch>:CONDition? Reads out the value of the Questionable Limit Channel Status Description Condition Register (query only). Channel <Ch>, Target <Ch>={[1]|2|3|4} Query Response <numeric> Equivalent None Softkeys STAT:QUES:LIM:CHAN:ENAB STATus:QUEStionable:LIMit:CHANnel<Ch>:ENABle <numeric> STATus:QUEStionable:LIMit:CHANnel<Ch>:ENABle? Sets or reads out the value of the Questionable Limit Channel Description Status Enable Register (command/query). -
Page 220: Stat:ques:lim:chan:ntr
Remote Control Commands STAT:QUES:LIM:CHAN:NTR STATus:QUEStionable:LIMit:CHANnel<Ch>:NTRansition <numeric> STATus:QUEStionable:LIMit:CHANnel<Ch>:NTRansition? Sets or reads out the value of the Negative transition filter of the Description Questionable Limit Channel Status Register (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 221: Stat:ques:lim:chan:ptr
Remote Control Commands STAT:QUES:LIM:CHAN:PTR STATus:QUEStionable:LIMit:CHANnel<Ch>:PTRansition <numeric> STATus:QUEStionable:LIMit:CHANnel<Ch>:PTRansition? Sets or reads out the value of the Positive transition filter of the Description Questionable Limit Channel Status Register (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 222: Stat:ques:lim:cond
Remote Control Commands STAT:QUES:LIM:COND? STATus:QUEStionable:LIMit:CONDition? Reads out the value of the Questionable Limit Status Condition Description Register (query only). Target Status Reporting System Query Response <numeric> Equivalent None Softkeys STAT:QUES:LIM:ENAB STATus:QUEStionable:LIMit:ENABle <numeric> STATus:QUEStionable:LIMit:ENABle? Sets or reads out the value of the Questionable Limit Status Description Enable Register (command/query). -
Page 223: Stat:ques:lim:ntr
Remote Control Commands STAT:QUES:LIM:NTR STATus:QUEStionable:LIMit:NTRansition <numeric> STATus:QUEStionable:LIMit:NTRansition? Sets or reads out the value of the Negative transition filter of the Description Questionable Limit Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 224: Stat:ques:lim:ptr
Remote Control Commands STAT:QUES:LIM:PTR STATus:QUEStionable:LIMit:PTRansition <numeric> STATus:QUEStionable:LIMit:PTRansition? Sets or reads out the value of the Positive transition filter of the Description Questionable Limit Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 225: Stat:ques:ntr
Remote Control Commands STAT:QUES:NTR STATus:QUEStionable:NTRansition <numeric> STATus:QUEStionable:NTRansition? Sets or reads out the value of the Negative transition filter of the Description Questionable Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 226: Stat:ques:ptr
Remote Control Commands STAT:QUES:PTR STATus:QUEStionable:PTRansition <numeric> STATus:QUEStionable:PTRansition? Sets or reads out the value of the Positive transition filter of the Description Questionable Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 227: Stat:ques:rlim:chan:enab
Remote Control Commands STAT:QUES:RLIM:CHAN:ENAB STATus:QUEStionable:RLIMit:CHANnel<Ch>:ENABle <numeric> STATus:QUEStionable:RLIMit:CHANnel<Ch>:ENABle? Sets or reads out the value of the Questionable Ripple Limit Description Channel Status Enable Register (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 228: Stat:ques:rlim:chan:ntr
Remote Control Commands STAT:QUES:RLIM:CHAN:NTR STATus:QUEStionable:RLIMit:CHANnel<Ch>:NTRansition <numeric> STATus:QUEStionable:RLIMit:CHANnel<Ch>:NTRansition? Sets or reads out the value of the Negative transition filter of the Description Questionable Ripple Limit Channel Status Register (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 229: Stat:ques:rlim:chan:ptr
Remote Control Commands STAT:QUES:RLIM:CHAN:PTR STATus:QUEStionable:RLIMit:CHANnel<Ch>:PTRansition <numeric> STATus:QUEStionable:RLIMit:CHANnel<Ch>:PTRansition? Sets or reads out the value of the Positive transition filter of the Description Questionable Ripple Limit Channel Status Register (command/query). Channel <Ch>, Target <Ch>={[1]|2|3|4} Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 230: Stat:ques:rlim:cond
Remote Control Commands STAT:QUES:RLIM:COND? STATus:QUEStionable:RLIMit:CONDition? Reads out the value of the Questionable Ripple Limit Status Description Condition Register (query only). Target Status Reporting System Query Response <numeric> Equivalent None Softkeys STAT:QUES:RLIM:ENAB STATus:QUEStionable:RLIMit:ENABle <numeric> STATus:QUEStionable:RLIMit:ENABle? Sets or reads out the value of the Questionable Ripple Limit Description Status Enable Register (command/query). -
Page 231: Stat:ques:rlim:ntr
Remote Control Commands STAT:QUES:RLIM:NTR STATus:QUEStionable:RLIMit:NTRansition <numeric> STATus:QUEStionable:RLIMit:NTRansition? Sets or reads out the value of the Negative transition filter of the Description Questionable Ripple Limit Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 232: Stat:ques:rlim:ptr
Remote Control Commands STAT:QUES:RLIM:PTR STATus:QUEStionable:RLIMit:PTRansition <numeric> STATus:QUEStionable:RLIMit:PTRansition? Sets or reads out the value of the Positive transition filter of the Description Questionable Ripple Limit Status Register (command/query). Target Status Reporting System Parameter <numeric> from 0 to 65535 Out of Range Bit–to–bit AND with numeric 65535 Query Response <numeric>... -
Page 233: Stat:ques
Remote Control Commands STAT:QUES? STATus:QUEStionable[:EVENt]? Reads out the value of the Questionable Status Event Register Description (query only). Target Status Reporting System Query Response <numeric> Equivalent None Softkeys SYST:COMM:ECAL:TEMP:SENS? SYSTem:COMMunicate:ECAL:TEMPerature:SENSor? Reads out the temperature of the AutoCal module connected to Description the Analyzer. -
Page 234: Syst:corr
Remote Control Commands SYST:CORR SYSTem:CORRection[:STATe] {ON|OFF|1|0} SYSTem:CORRection[:STATe]? Sets or reads out the ON/OFF state of the system error correction Description (command/query). {ON|1} : System error correction ON Parameter {OFF|0}: System error correction OFF Query Response {0|1} Preset Value Equivalent System > System Correction Softkeys SYST:DATE SYSTem:DATE <numeric 1>,<numeric 2>,<numeric 3>... -
Page 235: Syst:err
Remote Control Commands SYST:ERR? SYSTem:ERRor[:NEXT]? Reads out the error message of the error occurred when executing the SCPI commands, from the FIFO (First In First Out) error queue Description stored in the instrument. The read out error is deleted from the error queue. -
Page 236: Syst:pres
Remote Control Commands SYST:PRES SYSTem:PRESet Description Resets the instrument to the factory settings (no query). The difference from the*RST: command is that the trigger is set Notes to the Continuous trigger mode. Related *RST Commands Equivalent System > Preset > OK Softkeys SYST: READy? SYSTem:READy[:STATe]? -
Page 237: Syst:rem
Remote Control Commands SYST:REM SYSTem:REMote Sets the instrument to the remote operation mode, when all the keys on the front panel, mouse and the touch screen are not Description active, except for one key labeled Return to Local. Pushing this button will reset the instrument to the local operation mode (no query). -
Page 238: Syst:temp:sens
Remote Control Commands SYST:TEMP:SENS? SYSTem:TEMPerature:SENSor? <numeric> Reads out the specified sensor temperature inside the Analyzer. Description (query only) Target Analyzer Parameter <numeric> : Sensor number Unit °C <numeric> Query Response Equivalent None Softkeys... -
Page 239: Syst:time
Remote Control Commands SYST:TIME SYSTem:TIME <numeric 1>,<numeric 2>,<numeric 3> SYSTem:TIME? Description Sets or reads out the current time (command/query). hours from 0 to 23; <numeric 1> Parameter minutes from 0 to 59; <numeric 2> seconds from 0 to 59. <numeric 3> Query Response <numeric 1>, <numeric 2>, <numeric 3>... -
Page 240: Trig:sing
Remote Control Commands TRIG:SING TRIGger[:SEQuence]:SINGle Generates a trigger, independently of the trigger source setting (except for the External). If the trigger source is set to External, an error occurs (error code 221) and the command is ignored. If the instrument is not in the waiting for a trigger state (sweep is Description in progress or all the channels are set to Hold), an error occurs (error code 211) and the command is ignored. -
Page 241: Trig:sour
Remote Control Commands TRIG:SOUR TRIGger[:SEQuence]:SOURce {INTernal|EXTernal|MANual|BUS} TRIGger[:SEQuence]:SOURce? Description Sets or reads out the sweep trigger source (command/query). "INTernal" : Internal Parameter "EXTernal" : External "BUS" : Bus Out of Range Error occurs. The command is ignored. Error code: 205 Query Response {INT|EXT|MAN|BUS} Preset Value TRIG... -
Page 242: Trig:wait
Remote Control Commands TRIG:WAIT TRIGger[:SEQuence]:WAIT {HOLD|MEASure|WAIT} Delays the execution by the analyzer of the next command till the specified state of the analyzer has been reached (see options below). A query that follows the TRIG:WAIT command blocks the execution of the user program till the specified state of the analyzer has been reached. -
Page 243: Appendix 1. Iee488.2 Status Reporting System
Appendix 1. IEE488.2 Status Reporting System Σ . . . Service Request Enable Register *SRE Service Status Byte Register OPER QUES Request *STB? Generation Σ . . . Standard Event Status Enable Register *ESE Standard Event Status Register Command Execution Device Query Operation... - Page 244 Appendix 1. IEE488.2 Status Reporting System Σ . . . Questionable Status Enable Register STAT:QUES:ENAB Questionable Status Event Register STAT:QUES? Positive Transition Filter STAT:QUES:PTR Negative Transition Filter STAT:QUES:NTR Limit Ripple Questionable Status Condition Register Test Test FAIL STAT:QUES:COND? FAIL 1024...
- Page 245 Appendix 1. IEE488.2 Status Reporting System Σ . . . Questionable Limit Status Enable Register STAT:QUES:LIM:ENAB Questionable Limit Status Event Register STAT:QUES:LIM? Positive Transition Filter STAT:QUES:LIM:PTR Negative Transition Filter STAT:QUES:LIM:NTR Questionable Limit Status Condition Chan 4 Chan 3 Chan 2 Chan 1 Limit Test Limit Test...
- Page 246 Appendix 1. IEE488.2 Status Reporting System Σ . . . Questionable Limit Channel 1 Status Enable Register STAT:QUES:LIM:CHAN1:ENAB Questionable Limit Channel 1 Status Event Register STAT:QUES:CHAN1:LIM? Positive Transition Filter STAT:QUES:LIM:CHAN1:PTR Negative Transition Filter STAT:QUES:LIM:CHAN1:NTR Questionable Limit Channel 1 Status Trace 4 Trace 3 Trace 2 Trace 1...
- Page 247 Appendix 1. IEE488.2 Status Reporting System Σ . . . Questionable Ripple Limit Status Enable Register STAT:QUES:RLIM:ENAB Questionable Ripple Limit Status Event Register STAT:QUES:RLIM? Positive Transition Filter STAT:QUES:RLIM:PTR Negative Transition Filter STAT:QUES:RLIM:NTR Questionable Ripple Limit Status Chan 9 Chan 8 Chan 7 Chan 6 Chan 5...
- Page 248 Appendix 1. IEE488.2 Status Reporting System Σ . . . Questionable Ripple Limit Channel 1 Status Enable Register STAT:QUES:RLIM:CHAN1:ENAB Questionable Ripple Limit Channel 1 Status Event Register STAT:QUES:CHAN1:RLIM? Positive Transition Filter STAT:QUES:RLIM:CHAN1:PTR Negative Transition Filter STAT:QUES:RLIM:CHAN1:NTR Questionable Ripple Limit Channel 1 Trace 4 Trace 3 Trace 2...
-
Page 249: Appendix 2. Error Codes
Appendix 2. Error Codes "Header suffix out of range" "Execution error" "Trigger ignored" "Init ignored" "Parameter Error" "Data out of range" "Illegal parameter value" "Invalid channel index" "Invalid trace index" "Invalid marker index" "Marker is not active" "Invalid save type specifier" "Invalid sweep type specifier"... -
Page 250: Appendix 3. Programming Examples
Appendix 3. Programming Examples Example 1. Program Written in C The following program shows the control over the instrument using the C language with the VISA library. The instrument address is assigned in VISA Resource Name format in the command line at the start of the program. - Page 251 Appendix 3. Programming Examples printf("Can't initialize VISA\n"); return –1; status = viOpen(defaultRM, argv[1], VI_NULL, VI_NULL, &instr); (status < VI_SUCCESS) printf("Can't open VISA address: %s\n", argv[1]); return –1; // Set the timeout for message–based communication viSetAttribute(instr, VI_ATTR_TMO_VALUE, 5000); // Read ID string from Analyzer viPrintf(instr, "*IDN?\n");...
- Page 252 Appendix 3. Programming Examples Example 2. Program Written in LabView The following program shows the control over the instrument using the LabView language with the VISA library. Below see the block diagram of the program and front panel of the program with the program execution result.
- Page 253 Appendix 3. Programming Examples...
