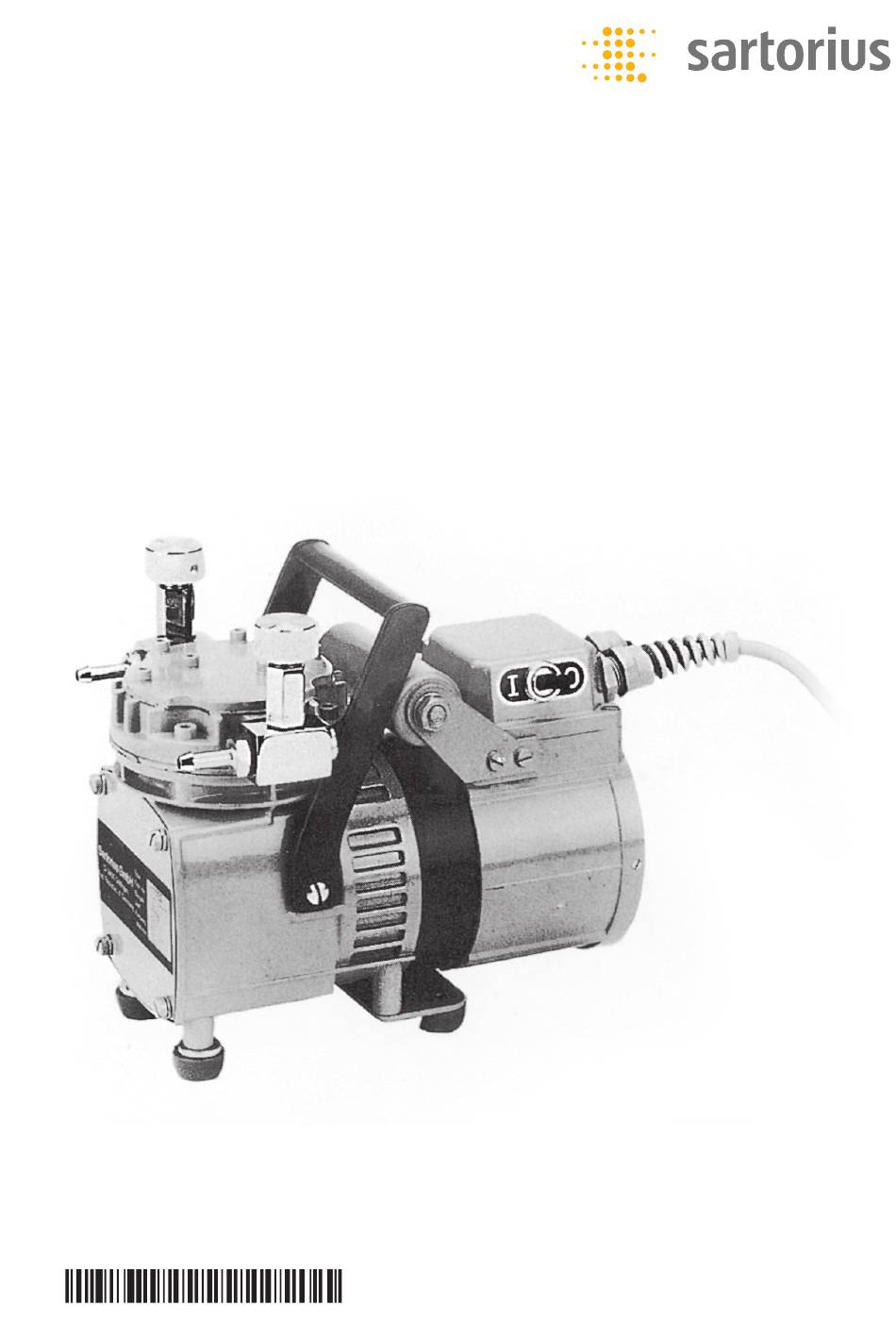

  • Page 1 Betriebsanleitung | Operating Instructions 16692|16695 Membran-Vakuumpumpen | Diaphragm Vacuum Pumps 89066-000-50 89066-000-50...

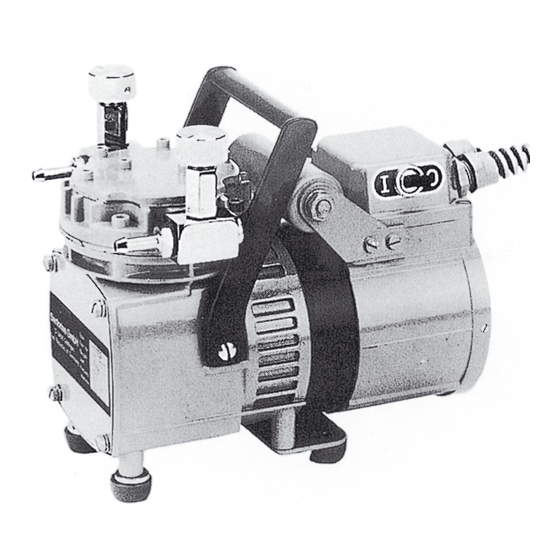

  • Page 2 Teilebenennung List of Parts Bezeichnung in dem Foto Designation Shown in photo as Reduzierventile Nr. 1 Reducing valves No. 1 Tragegriff Nr. 2 Carrying handle No. 2 Netzschalter Nr. 3 Power switch No. 3 Lüfterhaube Nr. 4 End cover plate (for fan) No.

  • Page 3: Table Of Contents

    FCC Supplier’s Declaration of Conformity. . 9 FCC Supplier’s Declaration of Conformity. . 9 Die einköpfige, elektrisch betriebene The Sartorius Single-Headed Electric Membran-Vakuumpumpe bietet hohe Dauer- Diaphragm Vacuum Pump is built to last, leistung bei leisem Lauf. Sie ist mit einem runs quietly and provides a high output.

  • Page 4: Technische Daten

    1 Technische Daten 1 Specifications 16692: 220 V, 50 Hz 16692: 220 V, 50 Hz 16695: 110 V, 60 Hz 16695: 110 V, 60 Hz Membran: Neopren Diaphragm: neoprene Max. Förderleistung (bei atm. Druck): Max. pumping rate (at atmospheric 20 l/min pressure): 20 I/min.

  • Page 5: Wartung

    3 Wartung 3 Maintenance Die Membran-Vakuumpumpe bedarf keiner The Sartorius Diaphragm Vacuum Pump regelmäßigen Wartung. Die Kugel lager sind does not require regular maintenance. The überdimensioniert und die Füllung mit ball bearings are oversized and sufficiently einem Spezialfett reicht aus für die Gesamt- lubricated with a special grease to last for lebensdauer des Gerätes.

  • Page 6: Auswechseln Der Ventilfedern

    3.2 Auswechseln der Ventilfedern. 3.2 Changing the Reed Valves I. Untere Ventilfeder I. Lower Valve 3.2.1 Führen Sie die Demontage des 3.2.1 Remove the diaphragm head as Membran kopfes wie unter 3.1.1 und 3.1.2 described in steps 3.1.1 and 3.1.2. beschrieben durch.

  • Page 7: Empfehlenswertes Zubehör

    4 Empfehlenswertes Zubehör 4 Recommended Accessories 16610 Woulff’sche Flasche, 500 ml 16610 Woulff’s bottle, 500 ml 16623 Gummivakuumschlauch (1 m) 16623 Rubber vacuum hose (1 m) 5 Ersatzteile 5 Spare Parts 6986105 6986105 Ersatzteilkit, bestehend aus: Spare parts kit consisting of: –...

  • Page 8: Ec / Eu Declaration Of Conformity

    EC / EU Declaration of Conformity...

  • Page 9: Fcc Supplier's Declaration Of Conformity

    Connections between the device and peripherals must be made using shielded cables in order to maintain compliance with FCC radio frequency emission limits. Any modifications made to this device that are not approved by Sartorius may void the authority granted to the user by the FCC to operate this equipment.
  • Page 10 Sartorius Lab Instruments GmbH & Co. KG Otto-Brenner-Strasse 20 37079 Goettingen, Germany Phone: +49.551.308.0 www.sartorius.com The information and figures contained in these instructions correspond to the version date specified below. Sartorius reserves the right to make changes to the technology, features, specifications and design of the equipment without notice.
