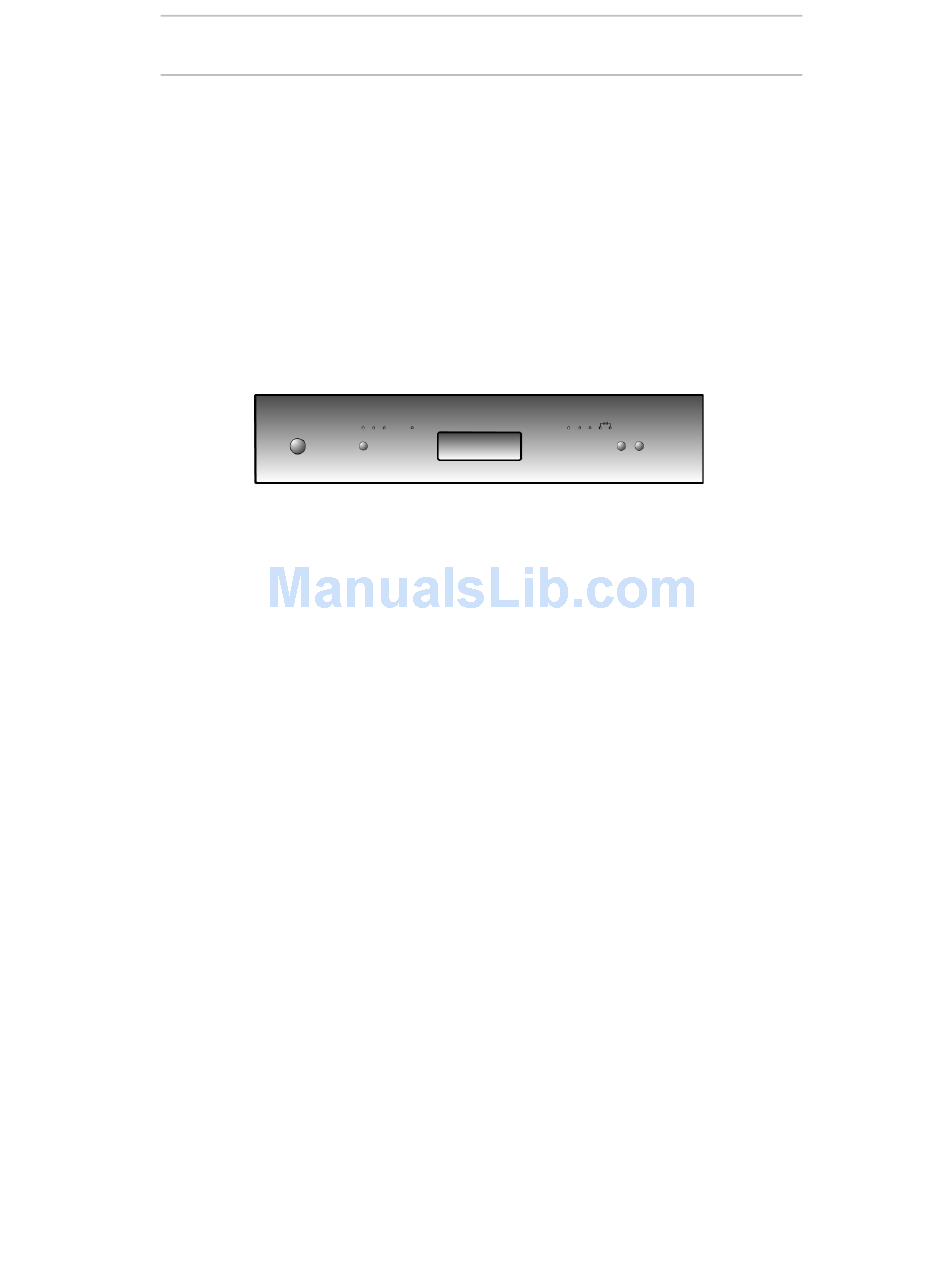

- Page 1 INSTRUCTION MANUAL DISHWASHER...
-
Page 2: Table Of Contents
Thank you for choosing this product. We advise you to carefully read all the instructions contained in this manual, in order to understand how to operate your dishwasher safely and correctly. The manual is divided into paragraphs, which provide a step by step description of the dishwasher functions, with clear instructions accompanied by detailed illustrations. -
Page 3: Safety And Operating Instructions
THAT OPENINGS UNDERSIDE OBSTRUCTED. ALWAYS SWITCH OFF THE DISHWASHER AFTER EACH USE TO AVOID WASTING ELECTRICITY. OBSOLETE APPLIANCES MUST BE RENDERED UNUSABLE. CUT OFF THE MAINS POWER CORD AFTER UNPLUGGING IT FROM THE WALL OUTLET, AND MAKE SAFE ANY COMPONENTS WHICH MIGHT BE DANGEROUS FOR... -
Page 4: Safety Instructions
OFFICE, YOUR HOUSEHOLD WASTE DISPOSAL SERVICE OR THE SHOP WHERE YOU PURCHASED THE PRODUCT. IN THE EVENT OF A FAULT, DISCONNECT THE DISHWASHER FROM THE ELECTRICAL POWER SUPPLY AND SHUT OFF THE WATER TAP. DO NOT USE APPLIANCES WHICH HAVE BEEN DAMAGED DURING TRANSIT! IF IN DOUBT, CONSULT YOUR DEALER. - Page 5 Safety instructions DO NOT DRINK THE WATER RESIDUES WHICH MAY BE PRESENT INSIDE THE DISHES OR DISHWASHER AT THE END OF THE WASHING PROGRAM AND BEFORE THE DRYING CYCLE. KNIVES OR OTHER SHARP-ENDED COOKING UTENSILS MUST BE PLACED IN THE CUTLERY BASKET BLADE-DOWN, OR LAID HORIZONTAL IN THE TOP BASKET.
-
Page 6: Installation Instructions
Position the appliance in the desired place of installation. The back or sides of the dishwasher may be placed up against walls or other furniture units. If the dishwasher is installed near a heat source, fit the special insulating panel to prevent overheating and malfunction of the appliance. -
Page 7: Connecting To Water Supply
The dishwasher can also be connected to a hot water supply not exceeding 60°C. Supplying the appliance with hot water cuts down the washing time by approximately 20 minutes, but slightly reduces its effectiveness. - Page 8 Installation instructions 2.2 Electrical connection and precautions CHECK THAT THE VOLTAGE AND THE FREQUENCY OF THE MAINS MATCH THE RATINGS ON THE NAME PLATE OF THE APPLIANCE POSITIONED ON THE INNER EDGE OF THE DOOR. THE PLUG ON THE SUPPLY CORD AND THE CORRESPONDING SOCKET OUTLET MUST BE OF THE SAME TYPE AND MEET THE REGULATIONS IN FORCE.
-
Page 9: Description Of The Controls
User instructions 3. Description of the controls 3.1 Front panel All the dishwasher control are grouped on the front panel. Programming and option selection are only possible with the door closed. ON/OFF BUTTON START/PAUSE BUTTON SELECTION PROGRAMS BUTTON PROGRAMS LIGHTS ½... -
Page 10: Setting The Washing Program
(2) The cycle duration and power consumption may vary according to the water and room temperatures, and the type and amount of dishes. The washing cycle will not take place if the dishwasher door is left open or not properly closed. -
Page 11: Washing Programs
Amount of detergent Rinse aid setting 3.2 Washing programs The dishwasher is equipped with a control panel, described in chapter "3. Description of the controls", from which it is possible to carry out all the power switch-on, switch-off and programming operations. -
Page 12: Starting The Program
(3) several times until the light of the program required comes on. STARTING THE PROGRAM To start the dishwasher, press the START/PAUSE button (2) for a few seconds, until the light of the selected program starts to flash (confirmation beep). -
Page 13: Changing A Program
User instructions INTERRUPTION A PROGRAM To interrupt a program in progress: • press the START/PAUSE button (2); the light of the program in progress remains on (confirmation beep); • you may now restart the program by pressing button (2) again until it restarts, or change or annul the program (see "C ", or "A PROGRAM... -
Page 14: Removing The Dishes
• Do not carry out any preliminary rinsing. • If available, connect the dishwasher to a hot water supply up to 60°C. TO CUT DOWN ON DETERGENT CONSUMPTION! … AND PROTECT THE ENVIRONMENT The phosphates contained in dishwasher detergents are harmful to the environment. -
Page 15: Using The Water Softening System
Before replacing the cap, remove any salt residues from around the opening. • When using the dishwasher for the first time, in addition to the salt it is also necessary to add one litre of water to the container. •... -
Page 16: Adjusting The Water Softening System
ADJUSTING THE WATER SOFTENING SYSTEM The dishwasher is equipped with an device for the user to adjust the water softening system according to the hardness of the water supply. -
Page 17: Water Hardness Table
User instructions WATER HARDNESS TABLE WATER HARDNESS German Degrees (°dH) 0 - 4 5 - 15 16 - 23 24 - 31 32 - 47 48 - 58 Contact your local water board for information on the hardness of your water supply. -
Page 18: Adding The Rinse Aid
ADJUSTING THE RINSE AID DISPENSER SETTING The dishwasher is factory set for medium water hardness. However it possible to change the setting by turning the dispenser’s selector to the desired position: the amount of rinse aid dispensed is proportional to the selector position. -
Page 19: Adding The Detergent
• Do not use detergents formulated for washing dishes by hand, because they produce a great deal of foam and may negatively affect the operation of the dishwasher. • Add the correct amount of detergent. An insufficient amount of detergent will result in a partial removal of dirt from the dishes, whereas an excessive amount is wasteful and does not improve the washing results. - Page 20 - not enough detergent released during the cycle, with poor washing results; - the detergent forms a solid block in the distributor and is released during the final rinse cycle. The introduction of detergent into the rinse aid dispenser, even in liquid form, will damage the dishwasher.
-
Page 21: General Warnings And Recommendations
User instructions 4.3 General warnings and recommendations Before using the dishwasher for the first time, it is advisable to read the following recommendations concerning dish types to be washed and their loading. There are generally no constraints on the washing of domestic dishes, but in certain cases it is necessary to take their characteristics into account. - Page 22 • Glass and crystal: in general, glass and crystal objects can be washed in the dishwasher. However, certain types of glass and crystal may become dull and lose their clearness after many washings. Therefore, for these items we recommend using the least aggressive program available.
-
Page 23: Lower Basket
User instructions 4.4 Using the baskets The dishwasher has a capacity of 14 place-settings, including serving dishes. EN 50242 STANDARD LOADS FOR CERTIFICATION BODIES LOWER BASKET UPPER BASKET EN 50242 cycle test conditions: Lower basket: the grid "A" ("lower basket" section) must not be raised. -
Page 24: Loading The Lower Basket
In the front there are one or two supports (depending on the models) for small plates (B). To use them, they have to be turned towards the front of the dishwasher. LOADING THE LOWER BASKET Carefully load flat plates, soup plates, dessert and serving dishes, positioning them vertically. -
Page 25: Cutlery Basket
User instructions CUTLERY BASKET Cutlery must be placed with the tips facing downward. Long items of cutlery (ladles, wooden spoons, kitchen knives, etc.), which might interfere with the upper spray arm must be placed in the upper basket, ensuring that knife tips do not project from the basket. The cutlery basket features an exclusive system of independent sliding tip-up supports, offering a series of combinations to allow optimum use of the space available. -
Page 26: Loading The Upper Basket
User instructions UPPER BASKET It is recommended to load the upper basket with small- or medium-sized items such as glasses, small plates, tea or coffee cups, shallow bowls and light objects made from heat resistant plastic. If the upper basket is used in the lowermost position, it can also be loaded with serving dishes, provided they are only slightly soiled. -
Page 27: Adjusting The Upper Basket
User instructions ADJUSTING THE UPPER BASKET The upper basket can be adjusted in two positions, according to the user’s needs and according to the height of the dishes in the lower basket. Proceed as follows: • pull out the right-hand basket guide •... -
Page 28: Cleaning And Maintenance
5.1 General warnings and recommendations Avoid the use of acidic or abrasive detergents. Clean the outer surfaces and door-lining of the dishwasher regularly using a soft cloth moistened with water or with a normal detergent suitable for painted surfaces. Clean the door gaskets with a damp sponge. -
Page 29: Cleaning The Filter Unit
The filters should be cleaned under running water using a stiff brush. • It is essential to thoroughly clean the filters according to the above instructions: the dishwasher cannot function if the filters are clogged. • Carefully replace the filters in their seats, to avoid damaging the wash pump. -
Page 30: Before Starting
In some cases it is possible to remedy minor problems by referring to the following instructions: If the program fails to start, check that: • the dishwasher is connected to the electrical power supply; • there is no power failure; •... - Page 31 User instructions If the dishes fail to dry or remain dull, check that: • there is rinse aid inside the special container; • the rinse aid dispenser setting is correct; • the detergent used is of good quality and has not lost its effectiveness (for example, through incorrect storage, with the box left open).
-
Page 32: Troubleshooting
User instructions 6. Troubleshooting The dishwasher is capable of signalling a number of faults through the simultaneous illumination of several indicator lights, with the following meanings: FAULT DESCRIPTION Acquastop failure The anti-flooding system has been activated. The system is tripped in case of water leaks. Contact the after-sales service. -
Page 33: Technical Data
• The alarm E7 is visualized at the end of the cycle that comes, however, brought to the end since the operation of the dishwasher is not harmed. To “reset” an alarm is necessary: •... - Page 34 Misurarel’altezzadelpannellocomandi;farecoinciderel’indicerelativo a talevaloreconilprofilosuperiored ellaporta inlegno;tracciare ilposizionamentodegliagganciporta. Measurerlahauteurdupanneaudecommandes;fairecoïnciderl’index relatifàcettevaleuravecleprofilsupérieur delaporteenbois;tracerlepositionnementdescrochetsdelaporte. DieHöhedesBedienfeldsmessen;DiediesemWertentsprechendeMarkierungmitdemoberenProfilderHolztürzurDeckungbringen;DiePositionderTüraufhängungenanzeichen. Meetdehoogtevanhetbedieningspaneel;laatdemarkeringdiebijdiewaardehoortovereenstemmenmethetbovensteprofielvandehoutendeur;tekendepositievandedeurhengselsaf. Medir laalturadelpaneldemandos;hacercoincidirelíndicecorrespondienteadichovalorconelperfilsuperiorde lapuertademadera;trazarelposicionamientodelasbisagrasdelapuerta. Meçaaalturadopaineldecomandos;façacomqueoindicadorrelativoaestevalorcoincida comoperfilsuperiordaportademadeira;marqueaposiçãodosganchosparaporta. ATTENZIONE: Montare la porta e regolarelatensione delle mollelaterali primadell’installazione. IMPORTANT: Doortemplate, donotdestroy. Fit door and adjust hinge tension before installation. ATTENTION: Apres montàgedelaporte,reglerlatension des ressortslateraux avant l’installation. NOTA: Solamentealcuni modellisonodotati diuno dei dispositivisotto illustrati.
