1. INSTRUCTIONS FOR USE ........................................................ 23
CARE .......................................................................................... 24
3. SAFETY INSTRUCTIONS .......................................................... 25
4. KNOW YOUR APPLIANCE ........................................................ 26
5. USING THE HOB........................................................................ 27
6. CLEANING AND MAINTENANCE.............................................. 29
7. INSTALLING THE APPLIANCE.................................................. 30
8. GAS CONNECTION ................................................................... 36
9. ADAPTATION TO DIFFERENT TYPES OF GAS ......................38
10. FINAL OPERATIONS FOR GAS APPLIANCES ........................ 40
INSTRUCTIONS FOR THE USER: these contain user advice, description
of the commands and the correct procedures for cleaning and maintenance
of the appliance.
INSTRUCTIONS FOR THE INSTALLER: these instructions are intended
for the qualified technician who must perform the installation, put it into
operation and test the appliance.
22
Contents
Advertisement
Table of Contents
Related Manuals for Smeg HB96CSS-3
Summary of Contents for Smeg HB96CSS-3
-
Page 1: Table Of Contents
1. INSTRUCTIONS FOR USE ... 23 2. INSTRUCTIONS FOR DISPOSAL – OUR ENVIRONMENTAL CARE ... 24 3. SAFETY INSTRUCTIONS ... 25 4. KNOW YOUR APPLIANCE ... 26 5. USING THE HOB... 27 6. CLEANING AND MAINTENANCE... 29 7. INSTALLING THE APPLIANCE... 30 8. -
Page 2: Instructions For Use
Precautions for use 1. INSTRUCTIONS FOR USE THIS MANUAL IS AN INTEGRAL PART OF THE APPLIANCE. IT MUST BE KEPT IN ITS ENTIRETY AND IN AN ACCESSIBLE PLACE FOR THE WHOLE WORKING LIFE OF THE HOB. WE URGE YOU TO READ THIS MANUAL AND ALL THE INFORMATION IT CONTAINS CAREFULLY BEFORE USING THE APPLIANCE. -
Page 3: Instructions For Disposal - Our Environmental Care
Instructions for disposal 2. INSTRUCTIONS DISPOSAL – ENVIRONMENTAL CARE Our product's packing is made of non-polluting materials, therefore compatible with the environment and recyclable. Please help by disposing of the packing correctly. Find the addresses of collection, recycling and disposal centres from your retailer or from the competent local organisations. -
Page 4: Safety Instructions
Safety instructions 3. SAFETY INSTRUCTIONS REFER INSTALLATION INSTRUCTIONS SAFETY REGULATIONS FOR ELECTRIC OR GAS APPLIANCES AND VENTILATION FUNCTIONS. IN YOUR INTERESTS AND FOR YOUR SAFETY IT HAS BEEN ESTABLISHED BY LAW THAT THE INSTALLATION AND SERVICING OF ALL ELECTRICAL APPLIANCES IS TO BE CARRIED OUT BY QUALIFIED PERSONNEL IN ACCORDANCE WITH THE REGULATIONS IN FORCE. -
Page 5: Know Your Appliance

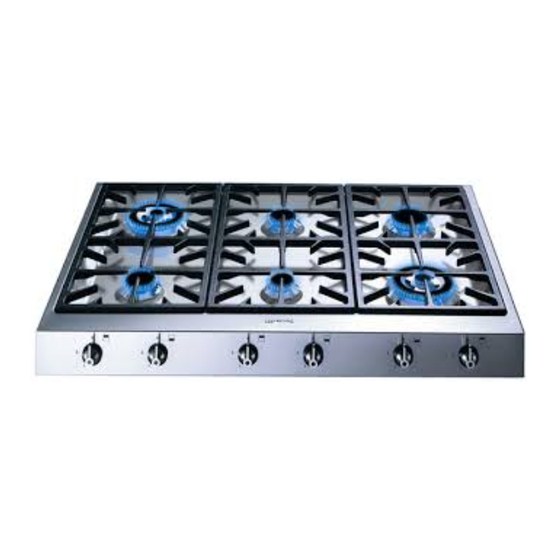

Instructions for the User 4. KNOW YOUR APPLIANCE Auxiliary Burner (AUX) Semi-rapid Burner (SR) Rapid Burner (R) Ultra-rapid Burner (URP) -
Page 6: Using The Hob
Instructions for the User 5. USING THE HOB Gas hob Before lighting the hob burners, check that the flame-spreader crowns are correctly in place with their respective burner caps, making sure that the holes A in the flame-spreaders are aligned with the plugs and thermocouples. - Page 7 Instructions for the User Practical tips for using the burners For better burner efficiency and to minimise gas consumption, use pans with a flat, smooth base and a lid that have a suitable size for the burner, thus avoiding that the flames reach the sides of the pan (see point "5.3 Pan diameters").
-
Page 8: Cleaning And Maintenance
Instructions for the User 6. CLEANING AND MAINTENANCE NEVER USE A JET OF STEAM FOR CLEANING THE APPLIANCE. Before performing any operations requiring access to powered parts, switch off the power supply to the appliance. Cleaning stainless steel To keep stainless steel in good condition it should be cleaned regularly after use. -
Page 9: Installing The Appliance
Instructions for the installer 7. INSTALLING THE APPLIANCE Positioning This is a class 1 (B2) and 3 (A, B1)appliance. The following operation requires building and/or carpentry work, therefore it must be carried out by a skilled technician. Installation can be carried out on various materials such as masonry, metal, solid wood or plastic laminated wood as long as they are heat resistant (T 90°C). - Page 10 Instructions for the installer Heights for type B installation (full base) DISTANCES MINIMUM MAXIMUM 630 mm 50 mm 650 mm 904 mm 750 mm...
- Page 11 Instructions for the installer 7.3.1 Supporting base Make two openings in the rear part of the base as described in the figure below. The left opening must be used for gas connections, and the right one for electrical connections. Before securing the hob to the supporting base, make 4 holes 8mm in diameter at the indicated points through which the screws will pass that are to be secured into the rivets in the bottom part of the product.
- Page 12 Instructions for the installer Mounting for type A installations Once the hob is correctly positioned in its support, place the brackets (A) over the bottom part of the product (B). Attachment requires 2 brackets for each side of the hob. Secure the brackets to the walls of the base by screwing the supplied screws through the appropriate holes...
- Page 13 Instructions for the installer Mounting for type B installations Once the hob is correctly positioned on the supporting base, complete the mounting by tightening the product using the 4 supplied metric screws, by screwing them through the 8mm Ø holes made before installation.
- Page 14 Instructions for the installer Electrical connection Make sure that the voltage and capacity of the power line conform to the data shown on the plate located under the casing. Do not remove this plate for any reason. The appliance must be connected to earth in compliance with electrical system safety regulations.
-
Page 15: Gas Connection
Instructions for the installer 8. GAS CONNECTION Before installation, make sure that the local distribution conditions (nature and pressure of the gas) and the state of regulation of the appliance are compatible. To connect the hob to the gas supply a flexible connection B is required which will enable connection to the gas inlet of the top A. -
Page 16: Room Ventilation
Instructions for the installer Installation with the flexible hose must be carried out so that the length of the piping does not exceed 2 metres fully extended; make sure that the hoses do not come into contact with moving parts and that they are not crushed in any way. -
Page 17: Adaptation To Different Types Of Gas
Instructions for the installer 9. ADAPTATION TO DIFFERENT TYPES OF GAS Before carrying out the following operations, disconnect the appliance from the electricity supply. The appliance is preset for natural gas G20 (2H) at a pressure of 20 mbar. In the case of operation with other types of gas the burner nozzles must be changed and the minimum flame adjusted on the gas taps. -
Page 18: Burner And Nozzle Characteristics Table
Instructions for the installer Burner and nozzle characteristics table ATED HEATING Rapid CAPACITY Auxiliary (1) 1.05 Semi-rapid (2) Rapid (3) Ultra-rapid (4) ATED HEATING Burner CAPACITY Auxiliary (1) 1.05 Semi-rapid (2) Rapid (3) Ultra-rapid (4) To identify the burners on your hob, refer to the drawings in point “4. KNOW YOUR APPLIANCE“. -
Page 19: Final Operations For Gas Appliances
Instructions for the installer 10. FINAL OPERATIONS FOR GAS APPLIANCES After making the adjustments described above, reassemble the appliance by following the instructions in point "9.1 Replacement of nozzles on the hob" in reverse order. After adjustment with a gas other than the preset one, replace the label on the casing of the appliance with the label corresponding to the new gas.
