Summary of Contents for Fortress Technologies Safeguard KR-D2

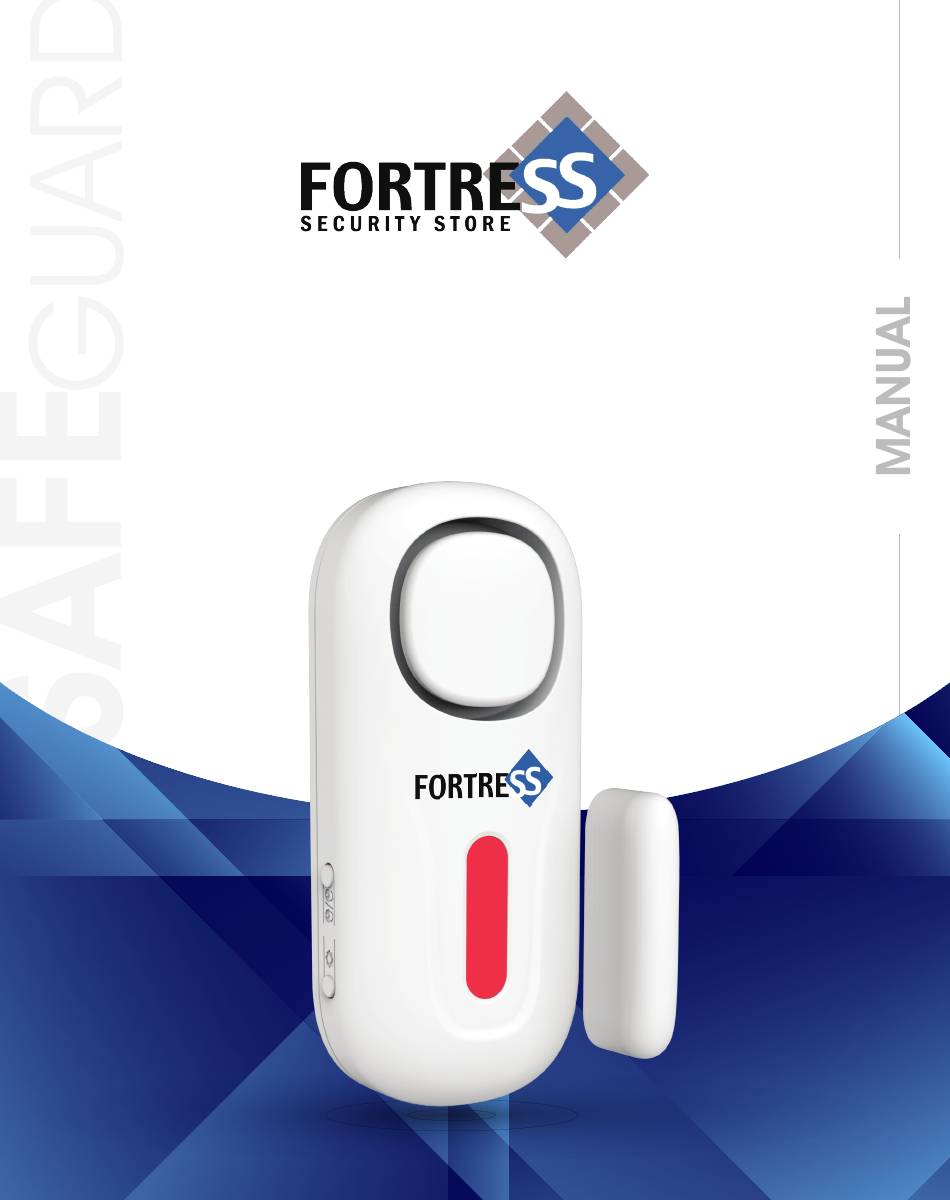

- Page 1 SAFEGUARD...
- Page 2 The Fortress Safeguard Is An All-in-one Entry Alarm Host. It Will Detect And Alarm Immediately When Programmed Accessories Are Triggered. There Are Many Accessory Options Available To Add Including: • PIR Motion Detectors • Gas Leakage Detectors, • Smoke Detectors, •...
- Page 3 CONTACT MAGNET Arm/Disarm...
-
Page 4: Changing The Alarm Mode
Turning On/off The Device: • Press and hold the button for 2 seconds. When the device is turning on, the red indicator will scroll from the top down. When the device is turning off, the red indicator will scroll from the bottom up. - Page 5 Door Sensor Alarm Host Using Method: Press and hold the button for 2 seconds to enter programming mode. When all 4 LED lights are lit, the device is ready for remote controls to be added. Press any button on a remote control. Lights will flash and host will beep twice.
- Page 6 DISARM VOICE EMERGENCY SWITCH...
-
Page 7: Remote Control Function
REMOTE CONTROL FUNCTION: • Delete remote control. Press and hold the button until all lights come on. Press and hold the button again until the host flashes and beeps five times. CHANGING ZONE MODES: The Fortress SafeGuard is set to “Normal Defense Zone”... -
Page 8: Installation Introduction
INSTALLATION GUIDE: Please note the following warnings so you can be sure your device doesn’t break on you. Don’t install where it can be broken easily. Don’t install in an unstable location. Don’t install near other magnetic devices. INSTALLATION INTRODUCTION: Once you have planned where to mount your sensors, be sure the surface is cleaned before placing tape. -
Page 9: Replacing Battery
REPLACING BATTERY: There is a sliding cover on the back of the transmitter (A). Press and slide towards the bottom of the device. Remove the old battery Put in the two new AAA 1.5V batteries. Test the sensor (Arm the device, then use a magnet to trigger the sensor) Fasten the sensor where it was installed previously. - Page 10 Model No.: KR-D2 Siren: 80db Working Conditions: -20 to 50 degrees Celsius Humidity: <90% Working Voltage: 3.0V Transmission Current: <80mA Static Current: <10uA...
- Page 11 SAFEGUARD FortressSecurityStore.com PO Box 991 Walla Walla WA, 99362...
