Summary of Contents for Bego Eltropol 300

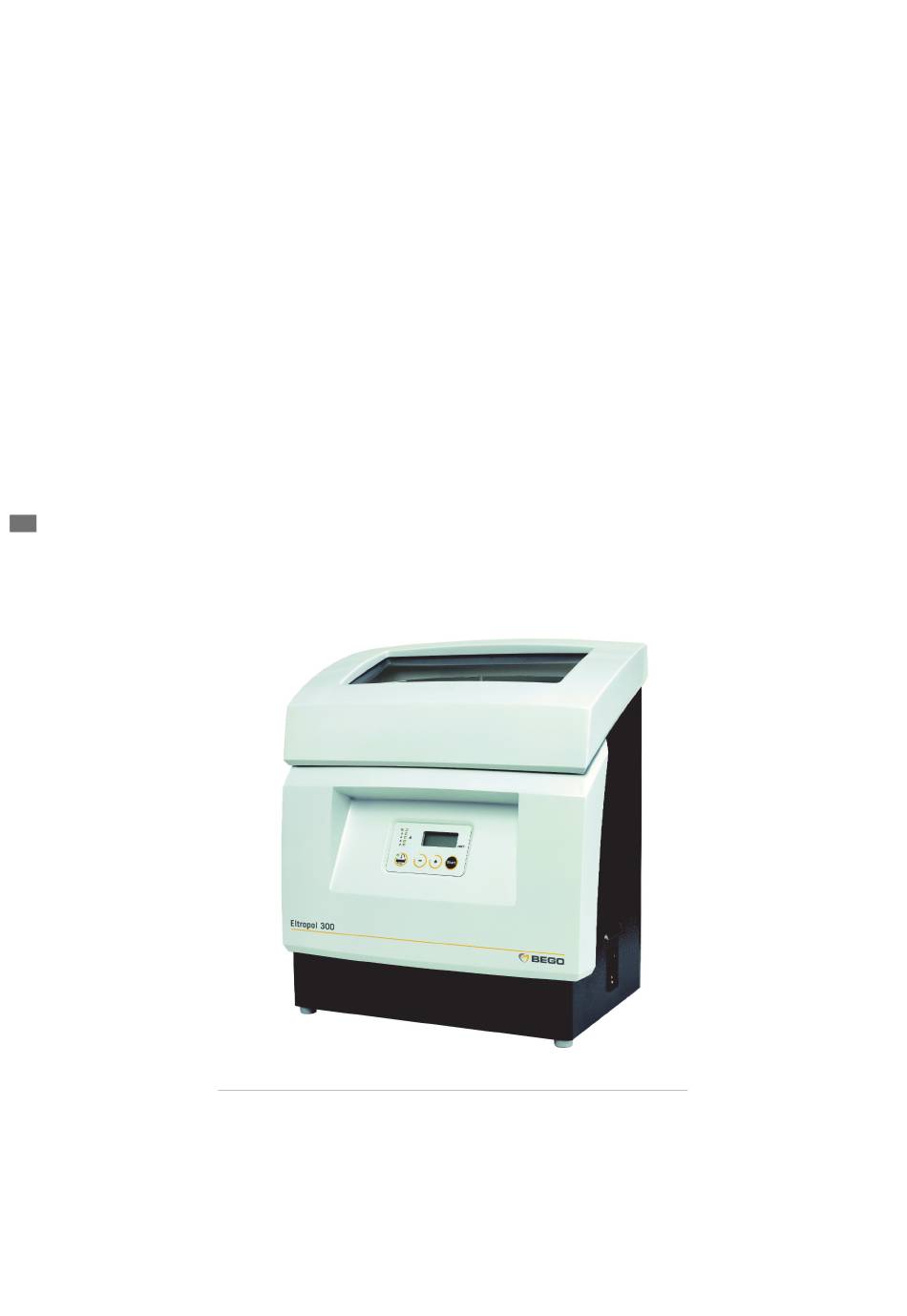

- Page 1 Translation of the original instructions Eltropol 300 85955/11 English en en Eltropol 300...
-
Page 2: Table Of Contents
English ⋅ Eltropol 300 This unit documentation is part of the unit and must be enclosed when selling or passing on the unit. • The unit has been designed solely for use in dental laboratories and comparable establish- ments for research, commercial and training purposes. -
Page 3: General Instructions
Copyright by BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG This user guide is protected by copyright. All rights reserved. No part of this document may be reproduced without the express written permission of BEGO Bremer Goldschlägerei Wilh. Herbst GmbH & Co. KG! - Page 4 English ⋅ Eltropol 300 Conventions These operating instructions contain references to DANGER residual hazards, important user tips and handling This reference identifies hazards that instructions that are identified with the following can cause serious bodily injury or symbols and words.
-
Page 5: Safety Instructions
English ⋅ Eltropol 300 Safety instructions Eltropol 300 is exclusively designed for the electro- One example of improper use is the heating of lytic polishing of Co-Cr partial denture bases using water, other liquids, or foodstuffs! Wirolyt polishing solution. Any other use is The safety instructions must be followed in order to considered to be improper. - Page 6 English ⋅ Eltropol 300 Special safety instructions regarding this machine Hazard warnings (R phrases) WARNING R 22 Harmful if swallowed. The unit is designed to be used with R 35 Causes severe burns. Wirolyt polishing solution. ATTENTION! Wirolyt contains glycol and sulphuric acid! Safety instructions (S phrases) •...
-
Page 7: Unit Description
English ⋅ Eltropol 300 Unit description Eltropol 300 Eltropol 300 is designed for the electrolytic polishing of Co-Cr partial denture bases. One or two objects may be polished simultaneously. 1 Main switch / fuse / mains connection 2 Power cable (EU / USA / ZA) -
Page 8: Scope Of Delivery, Wearing Parts And Extras
English ⋅ Eltropol 300 Scope of delivery, accessories and consumables NOTE The spare parts list is appended. When ordering spare parts please quote the REF, quantity and equipment serial no. (SN). Scope of delivery Accessories Eltropol 300 Straight cathode for the supplementary 100 …... -
Page 9: Installation
English ⋅ Eltropol 300 Installation The unit may only be installed on an adequately stable surface. The unit may only be used in an enclosed space. The machine is subject to the provisions of class of protection I and may only be connected to properly grounded power sources. -
Page 10: Filling
English ⋅ Eltropol 300 Filling NOTE The drainage tube must be closed and securely clamped! Open the unit cover and position the magnetic stirrer in the centre of the polishing bath - only then can the stirrer function properly. (Magnetic stirring only takes place during heat- ing or polishing.) -
Page 11: Securing Objects
English ⋅ Eltropol 300 Securing objects NOTE WARNING • Polishing only works on clean, oxide-free met- • Avoid contact with skin and eyes! al objects. If necessary, blast objects prior to Risk of blinding! polishing. • Wear safety glasses and safety •... - Page 12 English ⋅ Eltropol 300 The electrolytic polishing current cannot reach deep palates due to screening effects. These spots generally remain matt. The supplemen- tary cathode (REF 17000) provides the solu- tion. It is mounted as shown, so that the point...
-
Page 13: Polishing
English ⋅ Eltropol 300 Polishing WARNING Only operate the unit when it is closed. The fumes are a health hazard. Switch on the unit using the main switch: • 1 alarm tone; • display briefly shows the software version, then 0:00;... - Page 14 English ⋅ Eltropol 300 As a general rule, polishing must be effected in WARNING two stages. The polishing object must be posi- tioned anew in the bath each time (rotate If the object is to be polished a second 180°).
-
Page 15: Changing The Polishing Solution
English ⋅ Eltropol 300 Changing the polishing solution The more it is used, the less effective the polishing solution becomes. The unit calculates and displays the optimum point at which to renew the solution. • LED blinks: change solution soon. - Page 16 English ⋅ Eltropol 300 WARNING Do not tilt the device to empty it! • Injuries are possible. The device will be damaged. WARNING Do not unscrew the polishing bath! • The device will be damaged. Having drained the tube, replace the stopper and fasten securely with the clamp.
-
Page 17: Care And Maintenance
English ⋅ Eltropol 300 Care and maintenance DANGER WARNING Warning of electric shock! Risk of injury! Danger to life! • Avoid contact with skin and eyes! Risk of blinding! Switch off the machine and pull out the mains plug before performing any •... - Page 18 English ⋅ Eltropol 300 Malfunction Cause Elimination Unit switched on but no display No current * Connect power lead (p. 29). * Switch on main switch (p. 33). * Electricity supply intact? Set voltage selector switch (p. 29). Check unit fuse (p. 29).
-
Page 19: Signs, Labels And Stickers
English ⋅ Eltropol 300 Signs, labels and stickers... -
Page 20: Disposal
Instructions for disposing of the device (Applicable only within the European Union) The adjacent symbol on the ID plate of the BEGO device indicates that the device, in accordance with the European directive on waste electrical and electronic equipment, may not be disposed of as normal domestic waste.
