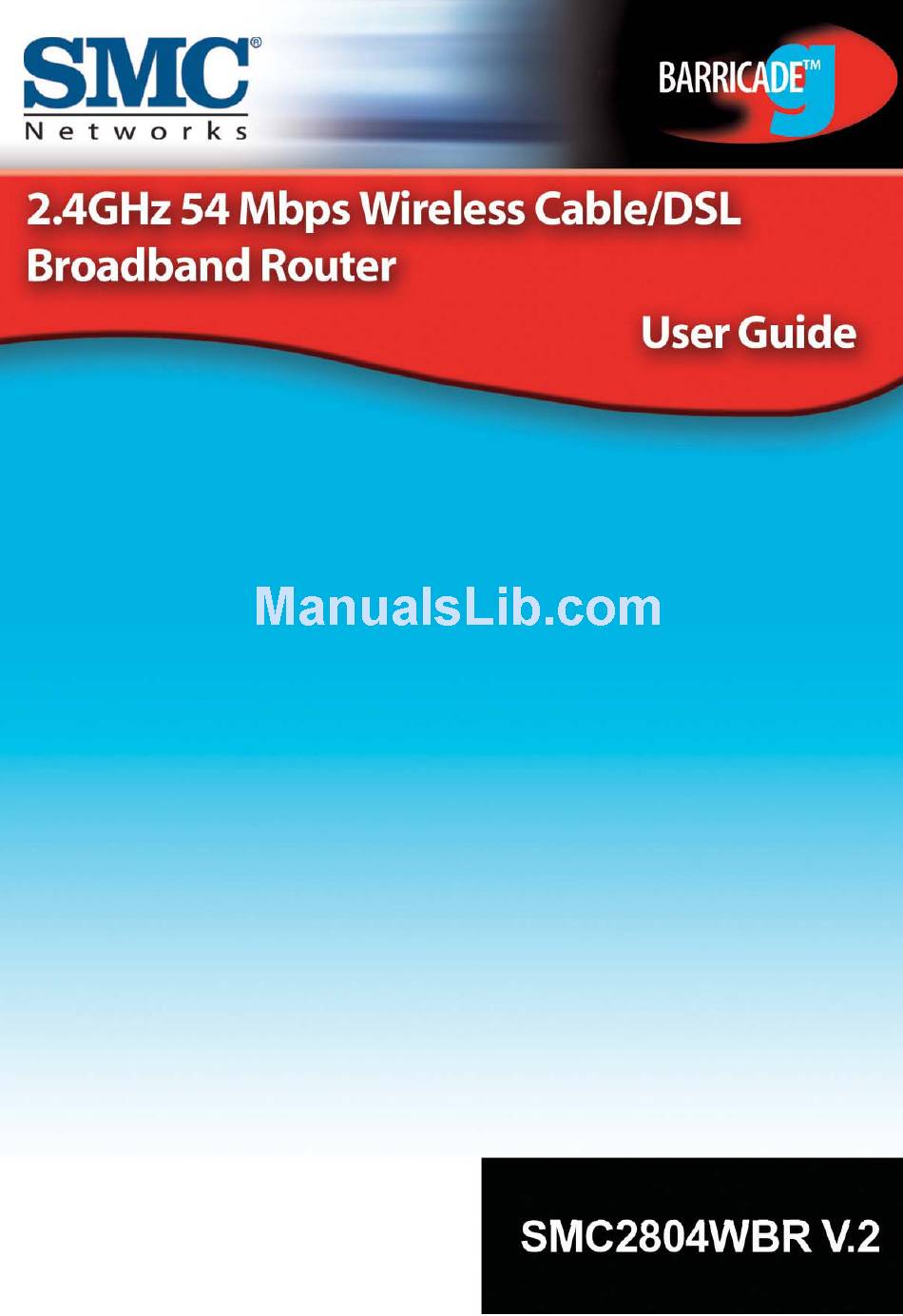

SMC Networks Barricade g SMC2804WBR V.2 User Manual

2.4 ghz 54 mbps wireless cable/dsl broadband router
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for SMC Networks Barricade g SMC2804WBR V.2

Summary of Contents for SMC Networks Barricade g SMC2804WBR V.2

  • Page 2 Barricade g 2.4 GHz 54 Mbps Wireless Cable/DSL Broadband Router From SMC’s Barricade line of Broadband Routers November 2003 Revision Number: V.2 R01...

  • Page 3: Table Of Contents

    ABLE OF About the Wireless Barricade™ g Router ..1 Important information! ....... . 1 LED Indicators .
  • Page 4 Table of Contents WAN ........48 LAN .

  • Page 5: About The Wireless Barricade G Router

    BOUT THE IRELESS ™ ARRICADE OUTER Congratulations on your purchase of the Wireless Barricade™ g Broadband Router. SMC is proud to provide you with a powerful yet simple communication device for connecting your local area network (LAN) to the Internet. Important Information! This information is addressed to the DSL-Users without a flat rate contract**.

  • Page 6: Led Indicators

    About the Wireless Barricade™ g Router In order to counter such incalculable activity and protect yourself from higher than expected on-line costs we therefore recommend again a flat-rate contract for your DSL-connection. The only safe alternative: Pull the plug! That is to disconnect your router from the mains.

  • Page 7: Features And Benefits

    Features and Benefits • Internet connection to DSL or cable modem via a 10/100 Mbps WAN port. • Local network connection via 10/100 Mbps Ethernet ports or 54 Mbps wireless interface (supporting up to 253 mobile users). • 802.11g – interoperable with multiple vendors and 802.11b clients.

  • Page 8: Installing The Wireless Barricade G Router

    NSTALLING THE ARRICADE Before installing the Wireless Barricade™ g Broadband Router, verify that you have all the items listed under "Package Contents." If any of the items are missing or damaged, contact your local SMC distributor. Also be sure that you have all the necessary cabling before installing the Wireless Barricade™.

  • Page 9: Hardware Description

    Installing the Wireless Barricade™ g Router Hardware Description The Wireless Barricade™ can be connected to the Internet or to a remote site using its RJ-45 WAN port. It can be connected directly to your PC or to a local area network using any of the Fast Ethernet LAN ports.
  • Page 10 • One RJ-45 port for connection to a DSL or cable modem (WAN). This port also auto-negotiates operating speed to 10/100 Mbps, the mode to half/full duplex, and the pin signals to MDI/MDI-X. The following figure shows the components of the Wireless Barricade™: Figure 1.

  • Page 11: System Requirements

    Installing the Wireless Barricade™ g Router System Requirements You must have an ISP that meets the following minimum requirements: • Internet access from your local telephone company or Internet Service Provider (ISP) using a DSL modem or cable modem. • A PC using a fixed IP address or dynamic IP address assigned via DHCP, as well as a Gateway server address and DNS server address from your service provider.

  • Page 12: Basic Installation Procedure

    Basic Installation Procedure 1. Connect the LAN: Connect the Wireless Barricade™ to your PC, or to a hub or switch. Run Ethernet cable from one of the LAN ports on the rear of the Wireless Barricade™ to your computer’s network adapter or to another network device. You may also connect the Wireless Barricade™...
  • Page 13 Installing the Wireless Barricade™ g Router Attach to Your Network Using Ethernet Cabling The four LAN ports on the Wireless Barricade™ auto-negotiate the connection speed to 10 Mbps Ethernet or 100 Mbps Fast Ethernet, and the transmission mode to half duplex or full duplex. Use twisted-pair cable to connect any of the four LAN ports on the Wireless Barricade™...
  • Page 14 Connect the System Attach to Your Network Using Radio Signals Install a wireless network adapter in each computer that will be connected to the Internet or your local network via radio signals. SMC currently offers several wireless network cards, including the SMC2802W and SMC2835W wireless cards.
  • Page 15 Installing the Wireless Barricade™ g Router A wireless infrastructure can be used for access to a central database, or for connection between mobile workers, as shown in the following figure: Internet PC with Wireless PCI Adapter Figure 4. Making the WLAN Connections Attach the Wireless Barricade™...
  • Page 16 Note: When connecting to the WAN port, use 100-ohm Category 3, 4, or 5 shielded or unshielded twisted- pair cable with RJ-45 connectors at both ends for all connections. Connecting the Power Adapter Plug the power adapter into the power socket on the Wireless Barricade™, and the other end into a power outlet.

  • Page 17: Configuring Client Tcp/Ip

    If you have not previously installed the TCP/IP protocols on your client PCs, refer to the following section. If you need information on how to configure a TCP/IP address on a PC, refer to "Setting Up TCP/IP" on page 18. Installing TCP/IP Windows 95/98/Me 1.

  • Page 18: Windows 2000

    Configuring Client TCP/IP 5. Select Microsoft in the manufacturers list. Select TCP/IP in the Network Protocols list. Click the OK button to return to the Network window. 6. The TCP/IP protocol will be listed in the Network window. Click OK. The operating system may prompt you to restart your system.
  • Page 19 4. Double-click Protocol. 5. Choose Internet Protocol (TCP/IP). Click the OK button to return to the Network window. 6. The TCP/IP protocol will be listed in the Network window. Click OK to complete the installation procedure. Installing TCP/IP...

  • Page 20: Setting Up Tcp/Ip

    Configuring Client TCP/IP Setting Up TCP/IP To access the Internet through the Wireless Barricade™, you must configure the network settings of the computers on your LAN to use the same IP subnet as the Wireless Barricade™. The default network settings for the Wireless Barricade™ are: Gateway IP Address: 192.168.2.1 Subnet Mask: 255.255.255.0 Note: These settings may be changed to suit your network...
  • Page 21 3. On the Network window Configuration tab, double-click the TCP/IP entry for your network card. 4. Click the IP Address tab. 5. Click the "Obtain an IP address" option. 6. Next click on the Gateway tab and verify the Gateway field is blank.
  • Page 22 Configuring Client TCP/IP 8. On the Network Properties Window, click the OK button to save these new settings. Note: Windows may ask you for the original Windows installation disk or additional files. Check for the files at c:\windows\options\cabs, or insert your Windows CD-ROM into your CDROM drive and check the correct file location, e.g., D:\win98, D:\win9x.

  • Page 23: Configuring Your Computer In Windows Nt 4.0

    Configuring Your Computer in Windows NT 4.0 1. From the Windows desktop click Start/Settings/Control Panel. 2. Double-click the Network icon. 3. Click on the Protocols tab. 4. Double-click TCP/IP Protocol. 5. Click on the IP Address tab. 6. In the Adapter drop-down list, be sure your Ethernet adapter is selected.
  • Page 24 Configuring Client TCP/IP 7. Click on "Obtain an IP address from a DHCP server." 8. Click OK to close the window. 9. Windows may copy files and will then prompt you to restart your system. Click Yes and your computer will shut down and restart.

  • Page 25: Configuring Your Computer In Windows 2000

    3. Type IPCONFIG /RENEW and press the <ENTER> key. Verify that your IP Address is now 192.168.2.xxx, your Subnet Mask is 255.255.255.0 and your Default Gateway is 192.168.2.1. These values confirm that the Wireless Barricade™ is functioning. 4. Type EXIT and press <ENTER> to close the Command Prompt window.

  • Page 26: Configuring Your Computer In Windows Xp

    Configuring Client TCP/IP 3. Locate and double-click the Local Area Connection icon for the Ethernet adapter that is connected to the Wireless Barricade™. When the Status dialog box window opens, click the Properties button. 4. In the Local Area Connection Properties box, verify the box next to Internet Protocol (TCP/IP) is checked.

  • Page 27: Configuring A Macintosh Computer

    2. Locate and double-click the Local Area Connection icon for the Ethernet adapter that is connected to the Wireless Barricade™. Next, click the Properties button. 3. In the Local Area Connection Properties box, verify the box next to Internet Protocol (TCP/IP) is checked. Then highlight the Internet Protocol (TCP/IP), and click the Properties button.

  • Page 28: Manual Ip Configuration (For All Windows Os)

    Configuring Client TCP/IP 2. Make sure that Built-in Ethernet is selected in the Show field. 3. On the TCP/IP tab, select Using DHCP in the Configure field. 4. Close the TCP/IP dialog box. Manual IP Configuration (for all Windows OS) 1.
  • Page 29 2. In the Gateway tab, add the IP address of the Wireless Barricade™ (default: 192.168.2.1) in the New gateway field and click Add. 3. On the DNS Configuration tab, add the IP address for the Wireless Barricade™ and click Add. This automatically relays DNS requests to the DNS server(s) provided by your...

  • Page 30: Verifying Your Tcp/Ip Connection

    Configuring Client TCP/IP Verifying Your TCP/IP Connection After installing the TCP/IP communication protocols and configuring an IP address in the same network as the Wireless Barricade™, use the Ping command to check if your computer has successfully connected to the Wireless Barricade™. The following example shows how the Ping procedure can be executed in an MS-DOS window.
  • Page 31 ONFIGURING THE ARRICADE The Wireless Barricade™ g Router can be configured by Internet Explorer 5.0 or above. Using the web management interface, you can configure the Wireless Barricade™ and view statistics to monitor network activity. Note: Before you attempt to configure your router, if you have access to the Internet please visit www.smc-europe.com update to ensure your Wireless Barricade™...

  • Page 32: Configuring The Wireless Barricade™ G Router

    Configuring the Wireless Barricade™ g Router Disable Proxy Connection You will also need to verify that the HTTP Proxy feature of your web browser is disabled. This is so that your web browser will be able to view the Wireless Barricade™ configuration pages. The following steps are for Internet Explorer.

  • Page 33: Navigating The Web Browser Interface

    Navigating the Web Browser Interface To access the Wireless Barricade™’s management interface, enter the Wireless Barricade™ IP address in your web browser http:// 192.168.2.1 Then enter the password and click LOGIN. (Default: smcadmin.) Note: Passwords can contain from 3–12 alphanumeric characters and are case sensitive.

  • Page 34: Making Configuration Changes

    Configuring the Wireless Barricade™ g Router The Wireless Barricade™’s management interface features a Setup Wizard and an Advanced Setup section. Use the Setup Wizard if you want to quickly set up the Wireless Barricade™ for use with a cable modem or DSL modem. Advanced setup supports more advanced functions like hacker attack detection, IP and MAC address filtering, intrusion detection, virtual server setup, virtual DMZ hosts, and other advanced...

  • Page 35: Setup Wizard

    Setup Wizard Time Zone Click on the Setup Wizard picture. The first item in the Setup Wizard is Time Zone setup. For accurate timing of client filtering and log events, you need to set the time zone. Select your time zone from the drop-down list, and click NEXT.

  • Page 36: Broadband Type

    Configuring the Wireless Barricade™ g Router Broadband Type Select the type of broadband connection you have. For a cable modem connection see the following page. For a Fixed-IP xDSL connection see "Fixed-IP xDSL" on page 35, for a PPPoE xDSL connection, see "PPPoE xDSL" on page 36, for a PPTP connection, see "Point-to-Point Tunneling Protocol (PPTP)"...
  • Page 37 Setup Wizard Cable Modem Your Internet Service Provider may have given you a host name. If so, enter it into the field. Click Finish to complete the setup. The Status page will open to allow you to view the connection status, as well as other information.
  • Page 38 Configuring the Wireless Barricade™ g Router PPPoE xDSL Enter the PPPoE User Name and Password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers. Leave the Maximum Transmission Unit (MTU) at the default value (1454) unless you have a particular reason to change it.
  • Page 39 Point-to-Point Tunneling Protocol (PPTP) Point-to-Point Tunneling Protocol is a common connection method used for xDSL connections in Europe. It can be used to join different physical networks using the Internet as an intermediary. If you have been provided with the information as shown on the screen, enter the PPTP Account name and password, Host Name, Service IP Address, the assigned IP address, and subnet mask.

  • Page 40: Advanced Setup

    Configuring the Wireless Barricade™ g Router BigPond If you use the BigPond Internet Service which is available in Australia, enter the the user name, password and service name for BigPond authentication. Click FINISH to complete the setup. Advanced Setup Use the web management interface to define system parameters, manage and control the Wireless Barricade™...
  • Page 41 Menu Description Wireless Configures the radio frequency, SSID, WPA/WEP encryption, and 802.1x for wireless communications. Firewall Configures a variety of security and specialized functions, including: Access Control, Hacker Prevention, and DMZ. DDNS Dynamic DNS provides users on the Internet with a method to tie their domain name to a computer or server.

  • Page 42: System

    Configuring the Wireless Barricade™ g Router System Time Zone Set the time zone and time server for the Wireless Barricade™. This information is used for log entries and client access control. • Set your local time zone settings Select your time zone from the drop-down list, and set the start and end dates if your area requires daylight savings.
  • Page 43 • Set date and time using PC's date and time Click on the radio button for synchronizing the Wireless Barricade™’s internal clock with the host PC. • Set date and time manually For manually setting the date and time, configure the date by selecting the options from the drop-down list, and enter the digits for the time.
  • Page 44 Configuring the Wireless Barricade™ g Router Enter a maximum Idle Time Out (in minutes) to define a maximum period of time for which the login session is maintained during inactivity. If the connection is inactive for longer than the maximum idle time, it will perform system logout, and you have to log into the web management system again.
  • Page 45 ® ZoneAlarm Pro with Web Filtering Setup Every PC connected to the Internet is a potential target. Even a novice hacker can easily initiate tens of thousands of pings and port scans per hour, scanning far and wide for unprotected systems.
  • Page 46 Configuring the Wireless Barricade™ g Router • Privacy protection to keep your identity and web-surfing habits confidential with features such as cookie control, 3rd-party spy protection and cache cleaner to protect your privacy while you surf and ad-blocking and parental control keep your surfing safe and distraction-free.
  • Page 47 • License Key The License Key field is optional. To input your ZAP License Number, type in or paste the license number you received at the time of purchase. Note: Only Licenses for ZoneAlarm Pro with Web Filtering 4.x and higher, purchased through http://smc.zonelabs.com, can be inserted directly into this field.
  • Page 48 Configuring the Wireless Barricade™ g Router • ZoneAlarm Pro Security Level The overhead for communication between the router and Zone Alarm Pro with Web Filtering on your PCs is very minimal. The communication packets are small and infrequent. However, if you do feel it is causing a delay on your network, you have some control over the frequency the packets are sent to and from ZoneAlarm Pro and the Wireless Barricade™.
  • Page 49 • To IP Address Input the last three digits of the last IP Address from the range of IP addresses that you would like to exempt from this policy enforcement. Note: You also need to make sure that Exempt LAN Client Option is set to Enable.

  • Page 50: Wan

    Configuring the Wireless Barricade™ g Router Specify the WAN connection type provided by your Internet Service Provider, then click More Configuration to enter detailed configuration parameters for the selected connection type. Dynamic IP The Host Name is optional, but may be required by some ISPs. The default MAC address is set to the WAN’s physical interface on the Wireless Barricade™.
  • Page 51 Point-to-Point Over Ethernet (PPPoE) Enter the PPPoE User Name and Password assigned by your Service Provider. The Service Name is normally optional, but may be required by some service providers. The MTU (Maximum Transmission Unit) governs the maximum size of the data packets. Leave this on the default value (1454) unless you have a particular reason to change it.
  • Page 52 Configuring the Wireless Barricade™ g Router Point-to-Point Tunneling Protocol (PPTP) Point-to-Point Tunneling Protocol (PPTP) can be used to join different physical networks using the Internet as an intermediary. Using the above screen allows client PCs to establish a normal PPTP session and provides hassle-free configuration of the PPTP client on each client PC.
  • Page 53 Advanced Setup Static IP Address If your Internet Service Provider has assigned a fixed IP address, enter the assigned address and subnet mask for the Wireless Barricade™, then enter the gateway address of your ISP. You may need a fixed address if you want to provide Internet services, such as a web server or FTP server.
  • Page 54 Configuring the Wireless Barricade™ g Router BigPond BigPond is a service provider in Australia that uses a heartbeat system to maintain the Internet connection. Configure the built-in client with your user name, password and service name to get online.
  • Page 55 Advanced Setup Domain Name Servers map numerical IP addresses to the equivalent domain name (e.g., www.smc.com www.smc-europe.com). Your ISP should provide the IP address of one or more domain name servers. Enter those addresses in this screen.

  • Page 56: Lan

    Configuring the Wireless Barricade™ g Router • LAN IP – Use the LAN menu to configure the LAN IP address for the Wireless Barricade™ and to enable the DHCP server for dynamic client address allocation. • Set a period for the lease time if required. For home networks this may be set to Forever, which means there is no time limit on the IP address lease.

  • Page 57: Wireless

    Wireless To configure the Wireless Barricade™ as a wireless access point for wireless clients (either stationary or roaming), all you need to do is define the radio channel, the Service Set identifier (SSID), and encryption options. Channel and SSID You must specify a common radio channel and SSID (Service Set ID) to be used by the Wireless Barricade™...
  • Page 58 Configuring the Wireless Barricade™ g Router Wireless Mode: Set the communication mode for the Wireless Barricade™. Default: Long Range Mixed (11b+11g). g Nitro: In a crowded 2.4 MHz frequency, the connection speed is much lower than the promised 54 Mbps. The g Nitro implemented by Intersil’s Prism Nitro technology dramatically enhances your wireless network speeds.
  • Page 59 Advanced Setup Security If you are transmitting sensitive data across wireless channels, you should enable Wi-Fi Protected Access (WPA) or Wired Equivalent Privacy (WEP) encryption. Encryption security requires you to use the same set of protocol (WPA or WEP) and encryption/decryption keys for the Wireless Barricade™ and all of your wireless clients.
  • Page 60 Configuring the Wireless Barricade™ g Router WPA Encryption Type WPA is a stronger wireless security solution than WEP. It uses a combination of 802.1x authentication and open system. • Pre-Shared Key/Passphrase If there is no authentication server on your SOHO network, you can issue the Pre-Shared Key to the clients that connect to the Wireless Barricade™.
  • Page 61 WEP Encryption Type You can choose between standard 40-bit/64-bit or the more robust 128-bit encryption. You may manually enter the keys or automatically generate encryption keys. To manually configure the keys, enter five hexadecimal pairs for each 40/64-bit key, or enter 13 pairs for the single 128-bit key.
  • Page 62 Configuring the Wireless Barricade™ g Router If you use encryption, configure the same keys used for the Wireless Barricade™ on each of your wireless clients. Note that Wired Equivalent Privacy (WEP) protects data transmitted between wireless nodes, but does not protect any transmissions over your wired network or over the Internet.

  • Page 63: Nat - Network Address Translation

    Advanced Setup NAT - Network Address Translation From this section you can configure the Address Mapping, Virtual Server, and Special Application features that provide control over the TCP/UDP port openings in the router’s firewall. This section can be used to support several Internet based applications such as web, E-mail, FTP, and Telnet.
  • Page 64 Configuring the Wireless Barricade™ g Router Virtual Server If you configure the Wireless Barricade™ as a virtual server, remote users accessing services such as web or FTP at your local site via public IP addresses can be automatically redirected to local servers configured with private IP addresses. In other words, depending on the requested service (TCP/UDP port number), the Wireless Barricade™...
  • Page 65 Advanced Setup Special Applications Some applications, such as Internet gaming, videoconferencing, Internet telephony and others, require multiple connections. These applications cannot work with Network Address Translation (NAT) enabled. If you need to run applications that require multiple connections, use the following screen to specify the additional public ports to be opened for each application.
  • Page 66 Configuring the Wireless Barricade™ g Router Popular applications requiring multiple ports are listed in the Popular Applications field. From the drop-down list, choose the application and then choose a row number to copy this data into. Note: Choosing a row that already contains data will overwrite the current settings.

  • Page 67: Firewall

    Firewall The Wireless Barricade™ firewall can provide access control of connected client PCs, block common hacker attacks, including IP Spoofing, Land Attack, Ping of Death, IP with zero length, Smurf Attack, UDP port loopback, Snork Attack, TCP null scan, and TCP SYN flooding. The firewall does not significantly affect system performance, so we advise leaving it enabled to protect your network users.
  • Page 68 Configuring the Wireless Barricade™ g Router MAC Filtering Table...
  • Page 69 Advanced Setup The MAC Filtering feature of the Wireless Barricade™ allows you to control access to your network for up to 32 clients based on the MAC (Media Access Control) Address of the client machine. This ID is unique to each network adapter. If the MAC address is listed in the table, that client machine will have access to the network.
  • Page 70 Configuring the Wireless Barricade™ g Router Schedule Rule The Schedule Rule feature allows you to configure specific rules based on Time and Date. These rules can then be used to configure more specific Access Control.
  • Page 71 Enables Schedule-based Internet access control. 1. Click Add Schedule Rule. 2. Define the settings for the schedule rule (as shown on the following screen). 3. Click OK and then click the APPLY button to save your settings. Advanced Setup...
  • Page 72 Configuring the Wireless Barricade™ g Router Intrusion Detection • SPI and Anti-DoS (Denial-of-Service) firewall protection (Default: Enable) The Intrusion Detection Feature limits access for incoming traffic at the WAN port. When the SPI (Stateful Packet Inspection) feature is turned on, all incoming packets will be blocked except for those types marked with a check in the Stateful Packet Inspection section.
  • Page 73 Advanced Setup DMZ (Demilitarized Zone) If you have a client PC that cannot run an Internet application properly from behind the firewall, then you can open the client up to unrestricted two-way Internet access. Enter the IP address of a DMZ host to this screen. Adding a client to the DMZ may expose your local network to a variety of security risks, so only use this option as a last resort.

  • Page 74: Ddns (Dynamic Dns) Settings

    Configuring the Wireless Barricade™ g Router DDNS (Dynamic DNS) Settings...
  • Page 75 Dynamic DNS (DDNS) provides users on the Internet with a method to tie their domain name to the router or server. DDNS allows your domain name to follow your IP address automatically by having your DNS records changed when your IP address changes.

  • Page 76: Upnp (Universal Plug And Play) Setting

    Configuring the Wireless Barricade™ g Router UPnP (Universal Plug and Play) Setting Enable UPnP by checking ON in the screen above. UPnP allows the device to automatically: • Dynamically join a network. • Obtain an IP address. • Convey its capabilities and learn about the presence and capabilities of other devices.

  • Page 77: Tools

    Tools Use the Tools menu to back up the current configuration, restore a previously saved configuration, restore factory settings, update firmware, and reset the Wireless Barricade™. Tools – Configuration Tools • Backup Router Settings – Saves the Wireless Barricade™’s configuration to a file. •...
  • Page 78 Configuring the Wireless Barricade™ g Router Tools – Firmware Upgrade Use this screen to update the firmware or user interface to the latest versions. Download the upgrade file from the SMC web site (www.smc.com hard drive. In the Firmware File field, click Browse to look for the previously downloaded file.
  • Page 79 Tools – Reset Click APPLY to reset the Wireless Barricade™. The reset will be complete when the power LED stops blinking. Note: If you use the Reset button on the rear panel, the Wireless Barricade™ performs a power reset. If the button is held depressed for over five seconds, all the LEDs will illuminate and the factory settings will be restored.

  • Page 80: Status

    Configuring the Wireless Barricade™ g Router Status The Status screen displays WAN/LAN connection status, firmware, and hardware version numbers, illegal attempts to access your network, as well as information on DHCP clients connected to your network. The following items are included on this screen: Section INTERNET GATEWAY...

  • Page 81: Troubleshooting

    The information outlined in this section describes some useful steps for getting your computer and the Wireless Barricade™ online. A. Verify your connection to the Wireless Barricade™ If you are unable to access the Wireless Barricade™’s web-based administration pages then you may not be properly connected or configured.

  • Page 82: Troubleshooting

    Troubleshooting If you have an IP address that starts with 169.254.XXX.XXX then see the next section. If you have another IP address configured, then see section C. B. I am getting an IP Address that starts with 169.254.XXX.XXX If you are getting this IP Address, then you need to check that you are properly connected to the Wireless Barricade™.
  • Page 83 2. Type ipconfig/release. 3. Then type ipconfig/renew. D. The 10/100 LED does not light after a connection is made 1. Check that the host computer and the Wireless Barricade™ are both powered on. 2. Be sure the network cable is connected to both devices. 3.

  • Page 84: Specifications

    PECIFICATIONS Below is an outline of the technical specifications for the SMC2804WBR. Standards IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.11b IEEE 802.11g WAN Interface 10BASE-T/100BASE-TX LAN Interfaces 10BASE-T/100BASE-TX 4 RJ-45 ports: LAN data transfer rate is up to 10/20 Mbps (10BASE-T half/full duplex) or 100/200 Mbps (100BASE-TX half/full duplex) Antenna...
  • Page 85 Specifications Indicator Panel Power, WLAN, WAN (Link, Activity), LAN (Link/Activity, Speed - 10/100 Mbps) Dimensions 130 x 85 x 32 mm Weight 370 g Input Power 9 V, 1 A Maximum Current 0.04 A max. @ 110 V/240 V Power Consumption 5 Watts max.
  • Page 86 Compliances CE Mark Emissions FCC Class B VCCI Class B Industry Canada Class B EN55022 (CISPR 22) Class B C-Tick - AS/NZS 3548 (1995) Class B Immunity EN 61000-3-2/3 EN 61000-4-2/3/4/5/6/8/11 Safety CSA/NRTL (UL1950, CSA 22.2.950) GS (EN60950) CB (IEC60950) Specifications...

  • Page 87: Compliances
