INSTALLATION
Your PRO2 is now mounted securely into the bracket and you are ready to
connect cables to the back of the unit.
Note for Belkin PRO Series owners (F1D104-OSD, F1D108-OSD,
F1D116-OSD): Installation for the PRO has changed. Please follow this
installation manual completely to assure proper installation. Failure to do
so may result in keyboard or mouse errors, and/or faulty operation.

Single PRO2 Installation

This section provides complete instructions for the hardware setup of a single
PRO2. (F1DA104T, F1DA108T, and F1DA116T)
PS/2 Installation:
Keyboard, Video, and Mouse Connections

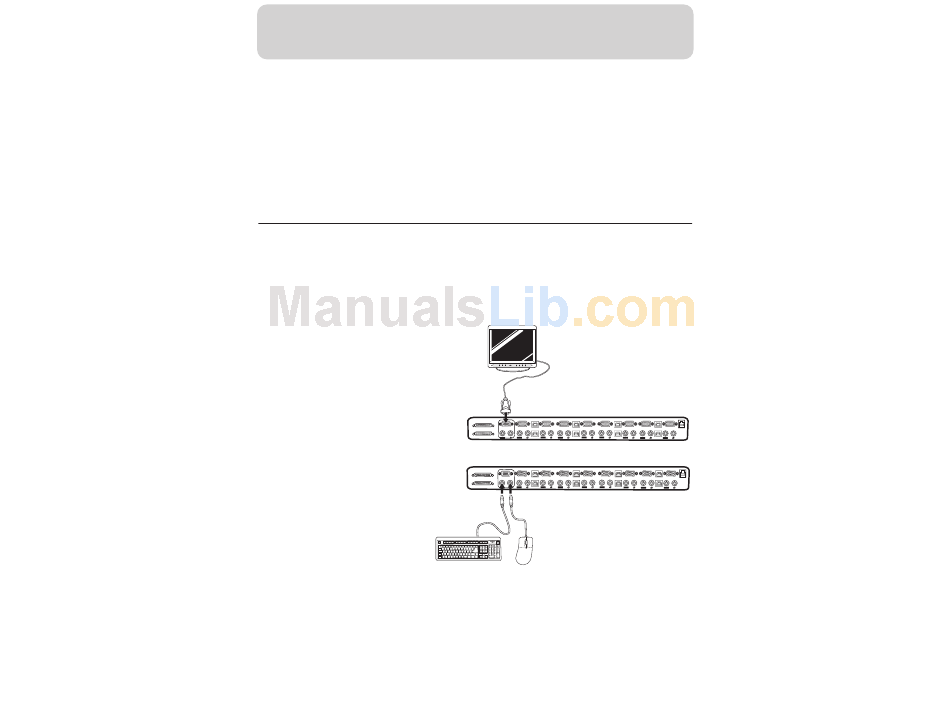

Connect the Console:
1. Connect the monitor to the
PRO2. Attach your monitor
cable to the HDDB15 female
port on the back of the PRO2
labeled "Console VGA".
2. Connect the PS/2 keyboard
cable to the keyboard port
on the back of the PRO2
in the "Console" section.
3. Connect the PS/2 mouse
cable to the mouse port on
the back of the PRO2 in
the "Console" section.
Attach the power supply to the DC power jack labeled "DC 12V, 1A" located
on the rear of the PRO2. Once the power is connected to a power source, the
LED for port 01 will begin flashing. Sequentially push the direct-access port
selectors for ports 01 through 08 (04 for F1DA104T and 16 for F1DA116T).
The corresponding LED should flash as each button is pressed, indicating that
the port is ready for connecting your servers (computer connection).
