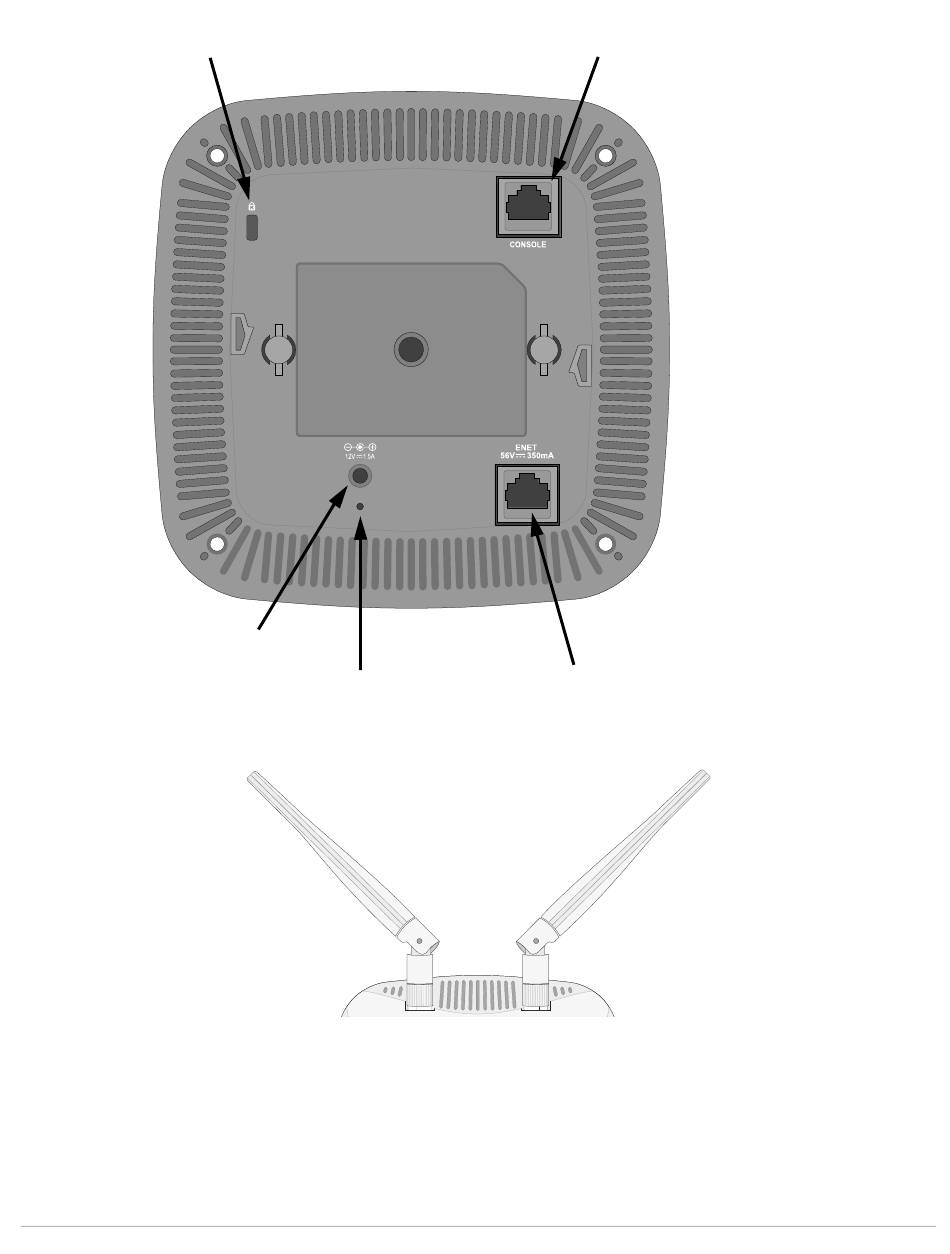

Figure 3 AP-200 Series Rear View
Kensington Lock
Console Port
DC Power Sockets
Ethernet Ports
Reset Button
For optimal performance when using articulating direct-mount antennas, professional installers must orient the antennas as
pictured in
Figure
4, below.
AP-204 Antenna Orientation
Figure 4
Console Port
The serial console port allows you to connect the AP to a serial terminal or a laptop for direct local management. This port is an RJ-
45 female connector with the pinouts described in
Figure
5. Connect it directly to a terminal or terminal server using an Ethernet
cable.
4Aruba 200 Series Access Points | Installation Guide
