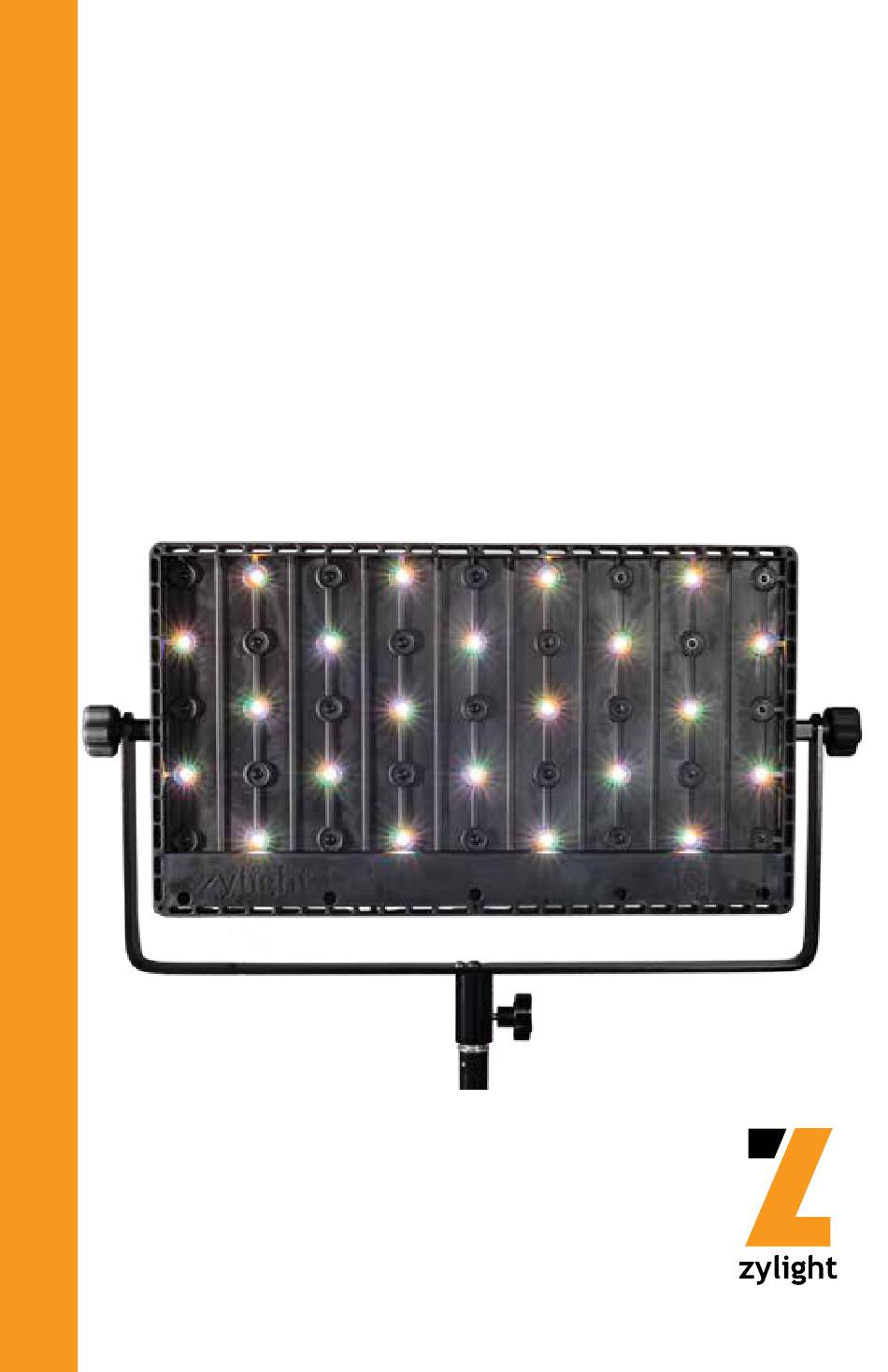

- Page 1 IS3/c Zylight IS3 & IS3c User Instructions IS3/c Manual v1.04...
- Page 2 Thank you for choosing Zylight and the IS3 LED instrument. This xture represents the state-of-the-art in LED lighting and will provide you with years of creativity. The exibility of the IS3 is unmatched and this xture will be a contributing partner to your productions everyday. The IS3 offers the ability to color tune your talent or set.
- Page 3 DMX and ZyLink ™ wireless control, and rugged construction for years of reliable service. Every IS3 has been thoroughly tested and has been shipped in optimal operating condition. Carefully check the shipping carton for damage that may have occurred during shipping. If the carton appears to be damaged, carefully inspect your xture for any damage and be sure all accessories necessary to operate the unit have arrived intact.
- Page 4 IS3/c Worldwide AC Adapter - Europe Includes AC Power Adapter and EU Power Cord 19-02042 Worldwide AC Adapter Bag Mesh bag to hold IS3/c power adapter off of a light stand 19-02045 IS3/c Travel Case Soft sided travel case to protect the IS3/c and...
-
Page 5: General Instructions
Please keep this manual with the unit, for future reference. Warranty Registration The IS3 carries a two year limited warranty. Please go to www.zylight.com/product-registration and register your product and validate your purchase. All returned service items, whether under... -
Page 6: Safety Precautions
Safety Precautions • To reduce the risk of electrical shock or re, do not submerge this xture in water. • Do not spill large amounts of water or other liquids into or onto your xture. • Do not attempt to operate this unit if the power cord has been frayed or broken. - Page 7 There are several nylon washers that will be used to correctly space the metal parts from one another. This will also allow the IS3 to be adjusted and tightened with locking points on the left and right side of the yoke. Proper installation of the washers on the pivot points and the lock points are essential to maintain the correct operation of the xture.
- Page 8 Kelvin temperature will be seen on the display. The Kelvin range is adjustable in 50K steps. In White mode, the IS3 has built in +/- Green color correction to tailor the light’s output to its surroundings. By turning the second dial (to the right of the color temperature adjustment knob) you will see the + or - Green adjustment change on the display.
-
Page 9: Color Mode
Dimming The IS3 has a built-in dimmer that will dim the light from 0% - 100% with a minimal color shift. Turn the Dimmer dial to the right to increase brightness and to the left to decrease brightness. Color Mode When the power switch is turned to Color mode (down position), the IS3 will output many vibrant colors. -
Page 10: About Dmx
ZyLink Wireless Control The IS3 has built-in wireless control for adjustment up to 50’ (15m) away using the ZyLink Bridge or other Zylight instrument (available separately). ZyLink Operation: To enable ZyLink, push the Wireless button for one second until “Radio On” is displayed. Local control is still available while the ZyLink wireless Radio is set to “On”. -
Page 11: Dmx Control
DMX Control To enable DMX mode on the IS3, plug in a standard 5-pin DMX cable into the XLR jack located under the IS3. The middle display will change showing a DMX start address. This address can be changed with the dial below the display. -
Page 12: Dmx Channel Assignments
DMX Channel Assignments Channel Function Values OFF = 0-33%; COLOR = 34-66%; Mode WHITE = 67-100% Brightness 0 - 100% 0% = 2500K; 100% = 10000K Color Temperature (White Mode) (Each 1% ≈ 75K) 0% = -10.0 (max. Magenta); 50% = 0.0 ±... - Page 13 Cleaning frequency depends on the environment in which the xture operates (i.e. smoke, fog residue, dust, dew). IS3 Intelligent LED Light Specifications Size 10.7" x 18.5" x 1.8" [272 mm x 470 mm x 46 mm] Weight 11 lbs.
-
Page 14: Warranty
(c) use of power supply equipment, power adapters, or cables not supplied by Zylight LLC for speci c use with the equipment for which it was speci ed; (d) any unauthorized disassembly, repair, or modi cation; (e) cosmetic damage;... - Page 15 Warranty Cont. Zylight reserves the right to make changes in design and/or improvements upon its products without any obligation to include these changes in any products previously manufactured. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above.
- Page 16 Zylight LLC World Headquarters: 10718 McCune Avenue Los Angeles, CA 90034 978-244-0011 info@zylight.com...
