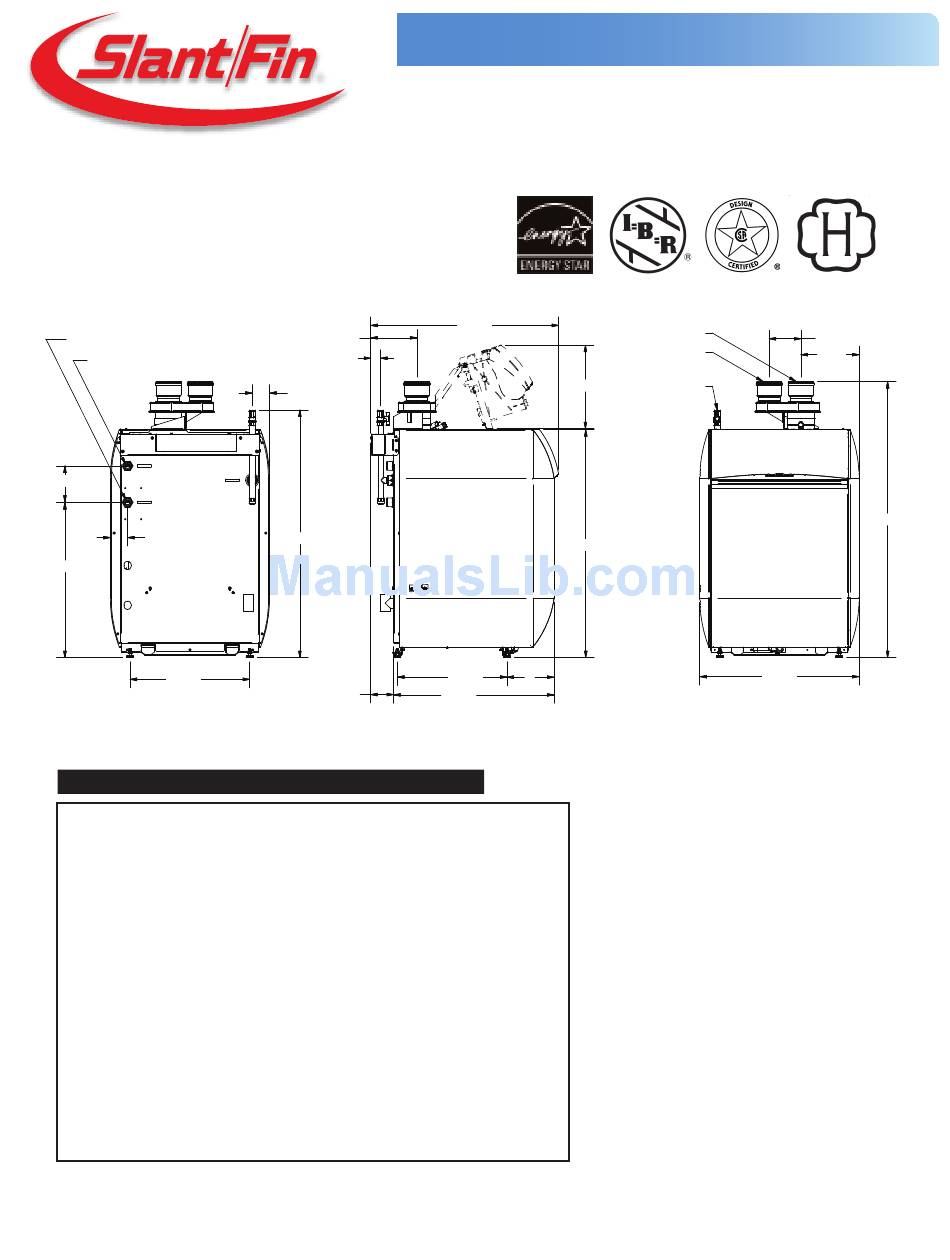

Slant/Fin Lynx Specifications

WATER INLET (RETURN) - 1" NPT (MALE)
WATER OUTLET (SUPPLY) - 1" NPT (MALE)
5 3/8
2 1/2
23
17 3/4
REAR VIEW

SPECIFICATIONS FOR LX-85 BOILER

Fuel Rate Input:
Boiler Water Volume:
Water Piping Connections:
Gas Piping Connection:
Vent Connection:
Air Intake Connection:
Weight of Boiler (uncrated):
Gas orifice size:
*Note: No orifice changes are required for high altitude installations.
**See page 43 for conversion procedure to propane.
SLANT/FIN CORPORATION, Greenvale, NY 11548 • Phone: (516) 484-2600
FAX: (516) 484-5921 • In Canada: Slant/Fin LTD/LTEE, Mississauga, Ontario
www.slantfin.com
DIMENSIONS – GAS BOILERS
®
Modulating Condensing - High Efficiency
6 7/8
1 1/2
2 5/8
36 3/4
3 3/8 23 3/4
SIDE VIEW
85,000 BTUH maximum
25,000 BTUH minimum
.75 gallon (6.25 lbs)
1" NPT (male)
1/2" NPT (female)
3" nominal I.D. pipe (PVC, CPVC or stainless steel)
3" nominal I.D. pipe (PVC, CPVC or stainless steel)
105 lbs.
Natural Gas - No orifice used *
Propane - 0.190" diameter **
27 7/8
VENT CONNECTION
12 3/8
GAS SHUTOFF
VALVE
1/2" NPT
(FEMALE)
33 7/8
16 1/4 7
AIR INTAKE
CONNECTION
23 5/8
FRONT VIEW
LYNX
4 3/4
8 5/8
41
©Slant/Fin Corp. 2007
