SkyLink 318TRS User Manual

Skylink ® Lighting & Garage
Door Remote

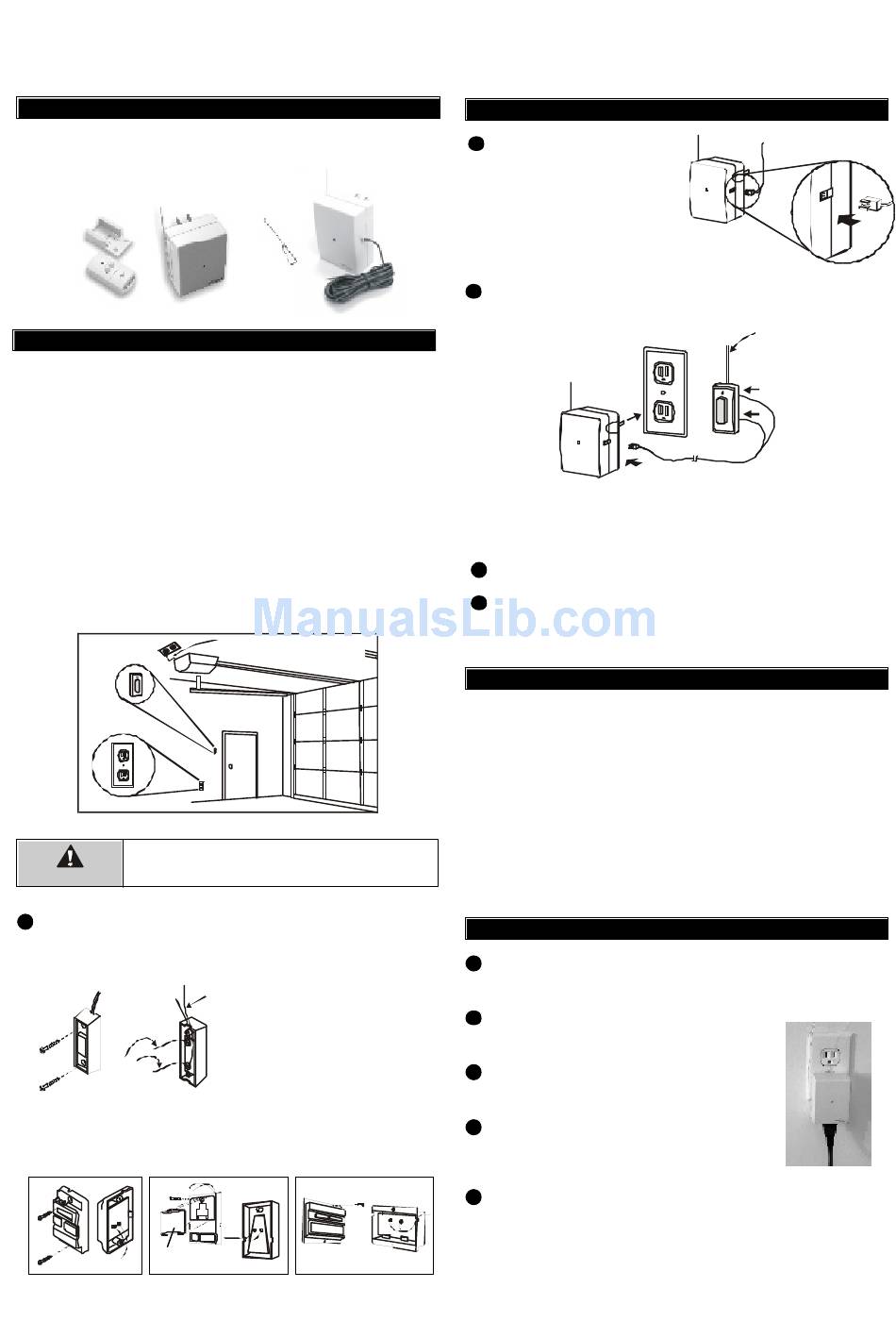

1. INTRODUCTION

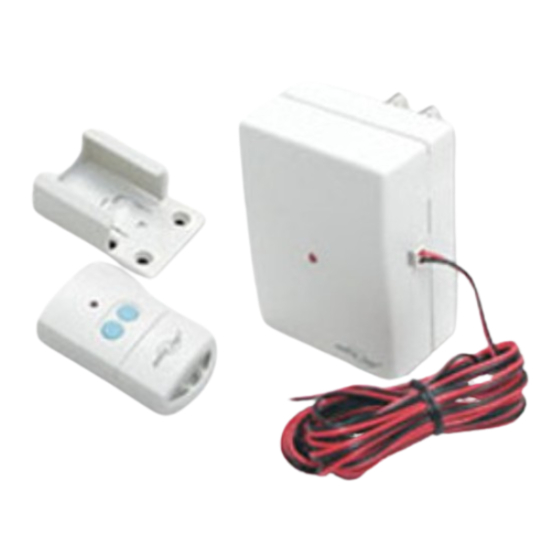

In this package, you will find a keychain transmitter with 12V al k aline battery,
a wireless switch receiver, a garage door receiver, a red / black wire, a
mounting bracket and a clip.
Wireless Switch
Receiver
Mounting
Bracket
Keychain
Transmitter
(Battery inside)

2. INSTALLATION OF GARAGE DOOR RECEIVER

The following instructions will show you how to install the receiver. After
installing, the keychain transmitter (already programmed to the receiver)
can be used to operate your garage door opener.
You need to locate 2 things inside your garage to install the receiver:
1) the wall-mounted door control;
2) an electrical outlet, select an electrical outlet different from the one
already connected to the power cord of the garage door opener to
reduce the chance of interference. The further distance between
the receiver and the garage door opener, the less interference
between 2 devices.
Note: The length of the red/black wire is 20ft, so the receiver must be
plugged into an electrical outlet that is within 20ft of the wall mounted
door control. If there is no electrical outlet within 20ft of the wall
mounted door control, an extension cord can be used for temporary
installation.
Wall Mounted
Door Control
Electrical
Outlet
Unplug the power cord of your garage door opener before
installation to ensure power is not connected.
WARNING
Remove the wall-mounted door control from the wall by removing
1
the screws. Connect the stripped ends of the Red/Black wire to the
2 terminals (2 screws) on the back of the wall mounted door
control. (Polarity does not matter.)
Red /
Black wire
Note: If you see no screws mounting the wall mounted door control,
the screws are probably under-neath the front cover. Remove the
front cover by pressing onto the tabs on top of the cover.
Remove front
cover first
Different wall-mounted door controls
Model 318TRS
Clip
Red/Black Wire
Remove power cord of garage
door opener before installation.
Existing
wires
Note: There should be another
pair of wires connected to the 2
terminals already. Do not remove/
disconnect these existing wires.
2. INSTALLATION OF GARAGE DOOR RECEIVER (CONT)
2
Plug in the connector end of
the Red/Black wire to the
318R receiver. Note the
orientation of the male &
female connector.
Garage Door
Receiver
3 Plug the receiver into an electrical outlet inside the garage.
The red light on the receiver should be on after being plugged into an
electrical outlet.
RECEIVER
Note: Alternative wiring options are available, the receiver can be
connected directly to the opener's motor. Please contact customer
service for further information regarding alternative wiring options.
4
Re-connect the power cord of the Garage Door Opener.
The Left button on the transmitter has been programmed to operate
5
the garage door receiver. Activate this button will trigger the
receiver therefore opens the garage door.
Q: Door opener does not react after pressing the button on the transmitter ?
A: - Ensure when the button on the transmitter is pressed, the red light on the
transmitter comes on. Otherwise, check if the battery is inserted properly.
- The left button on the transmitter should be pressed, not the right button
- If the red light on the receiver flashes when you press the left button on
the transmitter, but the door opener does not respond, please ensure the
red/black wire is successfully connected from the receiver to the wall
mounted door control.
- Ensure the wires that are previously connected to the wall mounted
door control are not loose.
- Ensure the code setting on the transmitter is the same as the receiver.
Refer to section 5 to check the code setting.

4. INSTALLATION OF WIRELESS SWITCH RECEIVER

1 Plug the receiver into a powered, 120VAC electrical outlet i nside
your house. (Note: This receiver is designed to be used indoor
only. Do not use this receiver in an outdoor environment.)
2
Once the receiver is plugged into an electrical
outlet, the red LED on the front of the unit will
be "on" indicating the unit is in standby mode.
3
Plug in the light fixture or small appliance
that you would like to control into the
receiver, as shown.
4
If there is a power switch on the plugged
in light fixture or small appliance, please
turn it on. The receiver is ready to be
activated.
5
The right button on the transmitter has been programmed to
operate the wireless switch receiver, pressing the right button
will turn on the plugged in device and the red LED on the front
will flash. (Caution: When the red LED on the unit is flashing,
that means output outlet is powered. Do not disconnect / con-
nect devices from / to the receiver's outlet when the red LED is
flashing.)
Existing wires connected
to garage door opener.
(Do not remove)
RED/BLACK WIRE
3. TROUBLE SHOOTING
