Summary of Contents for Stelpro ALUX306052

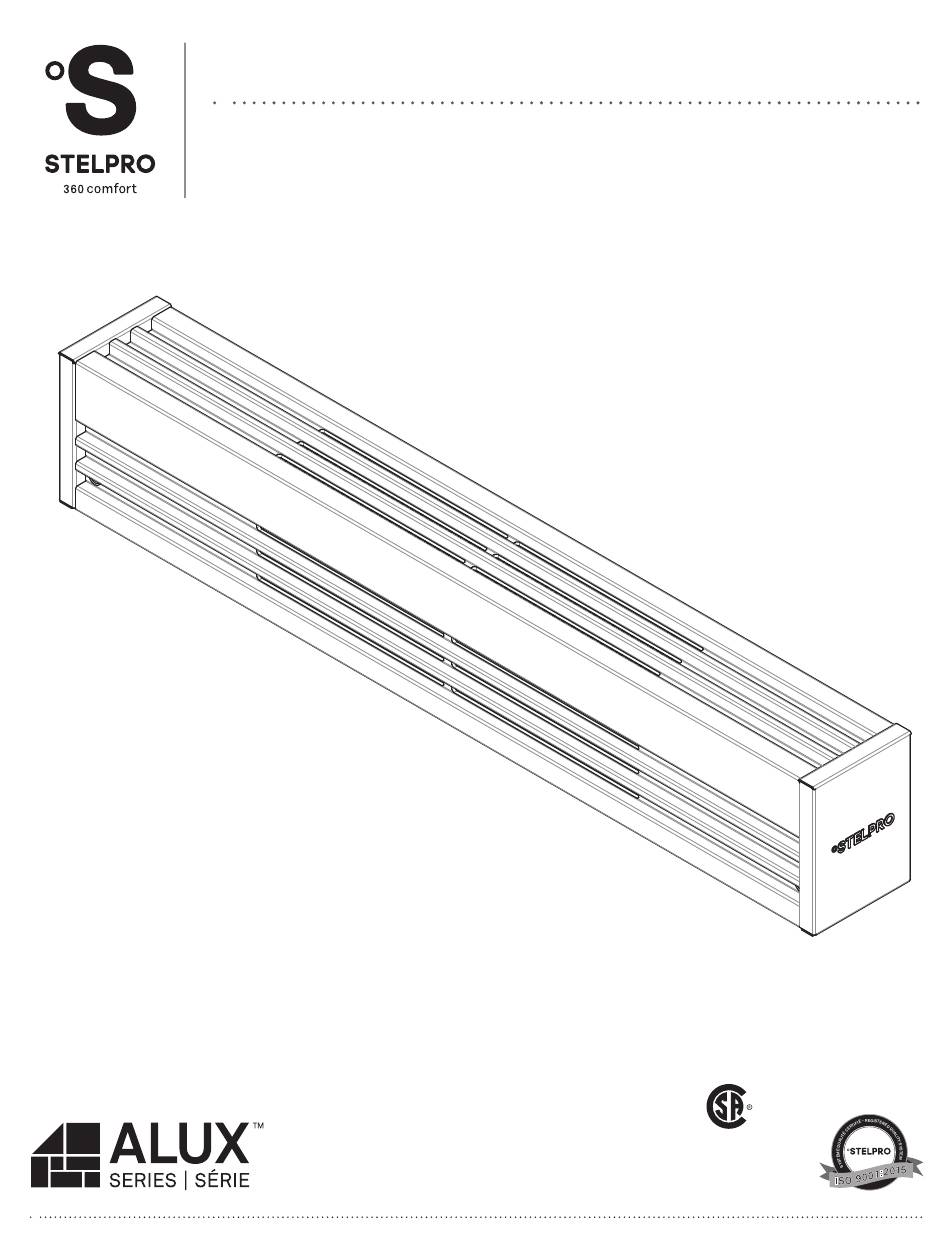

- Page 1 USER’S GUIDE ALUX3 SERIES ALUMINUM ARCHITECTURAL BASEBOARD REPLACEMENT COMPONENT LIST INCLUDED This unit complies with the CSA standards For further information or to consult this guide online, please visit our website at www.stelpro.com INSALUX30119...
-
Page 2: Important Instructions
If needed, refer to a specialist who will be able to calculate these heat losses and optimize the required capacity, or consult the “Online heating calculation” section of the Stelpro Design Web site (residential buildings). To heat a large room and to increase your comfort, it is recommended to install several units instead of one. - Page 3 2 (240 V) 3 (347 V) 5 (480 V) 6 (600 V) 7 (277 V) 8 (208 V) For a complete model list, consult our online product catalog at stelpro.com TECHNICAL DRAWINGS 3 5/16" 84.1mm 1 1/2" 7/8" 1 1/2"...
-
Page 4: Electrical Connection
INSTALLATION, OPERATION & MAINTENANCE INSTALLATION CAUTION – HIGH TEMPERATURE, KEEP Keep drapes at a distance of at least 6 inches (15 cm) from unit. ELECTRICAL CORDS, DRAPES, Do not to install unit against combustible low-density cellulose fiberboard surfaces or below an electrical convenience receptacle. OTHER FURNISHINGS AWAY... - Page 5 REPLACEMENT COMPONENT LIST REPLACEMENT COMPONENT LIST REF. PART REF. PART DESCRIPTION DESCRIPTION LINEAR THERMAL PROTECTION (AUTO.) ELEMENT 1400 W (2100 mm) PROT-YYY EA1400-21-*** EA0500-06-*** ELEMENT 500 W (600 mm) EA1050-21-*** ELEMENT 1050 W (2100 mm) ELEMENT 400 W (600 mm) ELEMENT 2000 W (2400 mm) EA0400-06-*** EA2000-24-***...
-
Page 6: Limited Warranty
Moreover, it does not cover the cost of disconnection, transport, and installation. The warranty is limited to the repair or the replacement of the unit or the refund of its purchase price, at the discretion of Stelpro. Any parts replaced or repaired within the warranty period with the written authorization of Stelpro will be warranted for the remainder of the original warranty period.
