IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR
USING YOUR SHARD TV UNIT.
PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.
HEALTH & SAFETY:
DO NOT use this item if any parts are missing, damaged or worn.
DO NOT use this item unless all fixings are secured.
Please keep small parts out of reach of children
Always use on a level, even surface.
CARE & MAINTENANCE:
Assemble in the room of use
Assembly should be carried out with this item laying flat, not standing upright.
Assemble on a soft, clean surface to prevent damages.
To remove the printed numbers on the pieces, use the eraser provided
Periodically check all screws & fixings to ensure they are secure.
DO NOT push the item as this will damage the base.
Always lift the item with two people to reposition.
Keep any sharp objects away from the item.

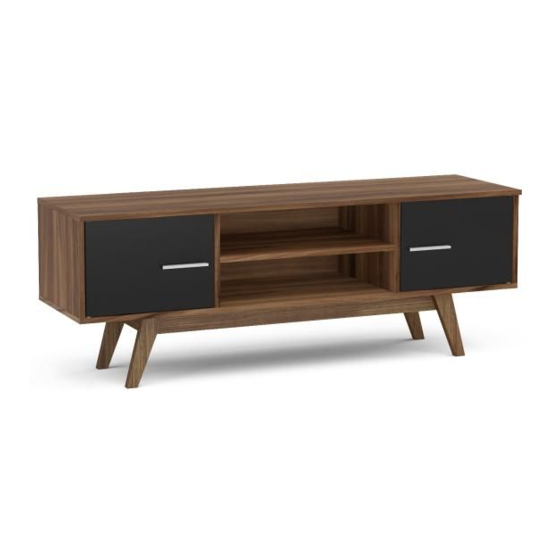

ASSEMBLY INSTRUCTIONS
SHARD TV UNIT
www.birlea.com
Vendor: S000139
Page 1 of 6

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHARD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Birlea SHARD

Summary of Contents for Birlea SHARD

  • Page 1 ASSEMBLY INSTRUCTIONS SHARD TV UNIT IMPORTANT: READ THESE INSTRUCTIONS CAREFULLY BEFORE ASSEMBLING OR USING YOUR SHARD TV UNIT. PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. HEALTH & SAFETY: DO NOT use this item if any parts are missing, damaged or worn.
  • Page 2 Vendor: S000139 Parts List Hardware List Part Descripion Part Descripion Top Base 8 x 30 mm Wooden Dowel Shelf 3,5 x 14 mm Screw Bottom Base 3,5 x 25 mm Screw Left Side Left Division 4,5 x 45 mm Screw Right Division Simple Minifix Screw Right Side...
  • Page 3 Vendor: S000139 Step 1: Insert hardware parts A and L using small mallet (not provided), then insert the hardware part I to the side foot trai using hardware U and a small mallet (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 2: Attach hardware part E to the top base (1) using a screwdriver (not provided), then attach hardware part O using the hardware part B and a screwdriver (not provided).
  • Page 4 Vendor: S000139 Attach the left side (4), left division (5), right division (6) and right side (7) to the top base (1) Step 4: using the hardware part F and a screwdriver (not provided) DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 5: Attach the side foot frames (9) to the front foot frame (8) using hardware part D and a screwdriver (not provided).
  • Page 5 Vendor: S000139 Step 7: Attach the bottom base (3) to the hardware V using hardware part G and a screwdriver (not provided). DO NOT use any power tools as this may damage the frame and will invalidate any claim. Step 8: Conect the left door (10) anb the right door (11) than attach the bottom base (3) using a hardware part D and a screwdriver (not provided).

  • Page 6: Additional Information

    If you have any issues with your item please contact the retailer directly you purchased it from who will be able to resolve any issues with Birlea. Why don't you send us photos of your assembled furniture to info@birlea.com to be shared in our #birleahome feature on Instagram.
