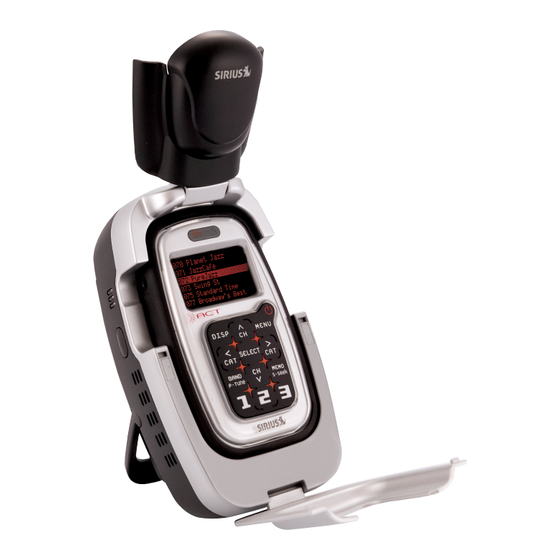

Stream | jockey Power Pod
Instruction
Manual
Model
XS028
To activate your Satellite Radio Receiver or for latest news and questions regarding
SIRIUS
®
Satellite Radio service visit
For accessory & product information visit us at www.getxact.com.
sirius.com
or call 1-888-539-SIRIUS (7474).
TM
Must Be Used with
STREAM | jockey
Satellite Radio Receiver-
(sold separately.)
Advertisement
Table of Contents
Related Manuals for Sirius Satellite Radio Xact XS028
Summary of Contents for Sirius Satellite Radio Xact XS028
- Page 1 Stream | jockey Power Pod Instruction Manual Model XS028 To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit For accessory & product information visit us at www.getxact.com. sirius.com or call 1-888-539-SIRIUS (7474).
- Page 2 KEEPONLISTENING...
- Page 3 ® © 2004 SIRIUS Satellite Radio Inc. "SIRIUS" and the SIRIUS Satellite Radio Inc. To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474).
-
Page 4: Cautions And Warnings
SAFETY Cautions and Warnings Follow these warnings and safety considerations, serious accidents and/or personal injury can be avoided: 1. Installation must be performed according to this user guide. 2. Do not install the Stream | jockey Power Pod entertainment component, such as Television, or stereo system indicators and displays. 3. - Page 5 SAFETY Caution on the Battery Pack and Stream | jockey Power Pod 1. To prevent accident from a short circuit, do not allow metal objects to come into contact with the battery contacts. 2. Keep the battery away from fire. 3.
-
Page 6: Product Overview
Xact Sound System Portable Boom Box: • Xact Sound System Deluxe Portable Boom Box: The easiest way to activate your Satellite Radio Receiver is to log on to sirius.com. You may also call 1-888-539-SIRIUS (7474). ® Radio. Best performance will be obtained with the unit stationary with... - Page 7 COMPONENTS Stream | jockey Power Pod Satellite Antenna: A built-in rotating Satellite antenna. Battery Power Test Button: Press this button to check the remaining charge capacity of the rechargeable battery pack. Battery Power Indicator: The 3 color LED showing Red, Yellow, and Green. Red = around 25% Capacity Left, Yellow = around 50% Capacity Left and Green = around 100% Capacity.
- Page 8 POWER POD To set up your Xact Stream | jockey Power Pod Place the Stream | jockey Satellite Receiver in the cradle as shown so that the guides are lined up with the Power Pod cradle. Then rotate the receiver forward to engage the connectors. The receiver will lock in place. Turn on the power by pressing the power button on the Stream | jockey Receiver.
- Page 9 Installing the Xact Stream | jockey Power Pod Battery Your Stream | jockey Power Pod is powered by a Lithium-Ion Battery (included). A fully charged Battery provides approximately 3 hours of listening time. To install and/or replace the Battery: Install the Lithium-Ion Battery provided in the Battery cavity located at the rear of the unit (see below). Be certain to follow the correct orientation in the compartment.
-
Page 10: To Charge The Battery
Charging the Xact Stream | jockey Power Pod Your Stream | jockey Power Pod To charge the Battery: 1. Connect the 9V AC/DC Power Adapter into an A/C wall outlet. 2. Insert the 9V AC/DC Power Adapter plug into the power jack located on the right side of the unit. The Red LED will come on indicating that the Battery is being charged and will turn Green when the battery is fully charged. -
Page 11: Battery Power Indicators
Battery Power Indicators The Stream | jockey Power Pod LED's indicate the level at which the Battery is charged. Press the Battery Power Test Button that is next to the LCD's to show the level at which the Battery is charged. around 100% Capacity When the Stream | jockey Power Pod de-activate the Receiver. - Page 12 Xact Stream | jockey Earphones Your Power Pod comes with a pair of complementary earphones. To use the earphones: Plug them in to the Headphones jack found on the Stream | jockey receiver, then place the earbuds in your ears as shown. Warning : Listening to music at high volume over extended periods of time can damage your hearing.
-
Page 13: Lock Options
Antenna Aiming feature found on the Stream | jockey receiver. To access the Antenna Aiming Feature: Press the button on the Stream | jockey receiver’s key pad . Press the Antenna Aiming selection and press Upon entering this option, two 10-segment horizontal bar graphs are displayed with a (-) sign to the left and a (+) sign to the right. -
Page 14: Signal Reception Guidelines
Signal Reception Guidelines To get the best performance, the unit should be stationary with a clear view of the sky. When it is being carried or used in a moving vehicle, satellite reception will vary depending on antenna orientation and local surroundings. -
Page 15: Display Settings
FM Transmitter feature is found on the Stream | jockey receiver. To access the FM Transmitter Feature: Press the button on the Stream | jockey receiver’s key pad. Press the Transmitter selection and press The following adjustments can be made: •... -
Page 16: Specifications
SPECIFICATIONS Stream | jockey Power Pod Charger DC Input Max DC Input: DC Adapter Current Output: Charging Current: Charging Time*: (Fully Discharged Battery) *Battery operation and charging time may vary depending on the condition and environment which the equipment is used under. Charging Indicator: Operating Temperature: 9V DC... -
Page 17: Problem Solving Section
Check that the Receiver is correctly in place. Check the Power Cable or Battery. Make sure you have disconnected the DC Power Adapter if you wish to use the battery. Make sure you have contacted SIRIUS activate your Satellite Radio subscription 1-888-539-SIRIUS (7474). When using the battery the system works intermittently Check the battery pack is securely in place and recharge if necessary. -
Page 18: Warranty
WARRANTY W W a a r r r r a a n n t t y y I I n n f f o o r r m m a a t t i i o o n n X X a a c c t t C C o o m m m m u u n n i i c c a a t t i i o o n n One-Year Limited Warranty This limited warranty sets forth all Xact Communication responsibilities regarding your product. - Page 19 WARRANTY W W h h a a t t T T o o D D o o f f o o r r W W a a r r r r a a n n t t y y S S e e r r v v i i c c e e During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at the retailer from whom it was purchased.
- Page 20 To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474). Call Toll Free 1-866-466-XACT (9228) or Visit our Website: www.getxact.com...
