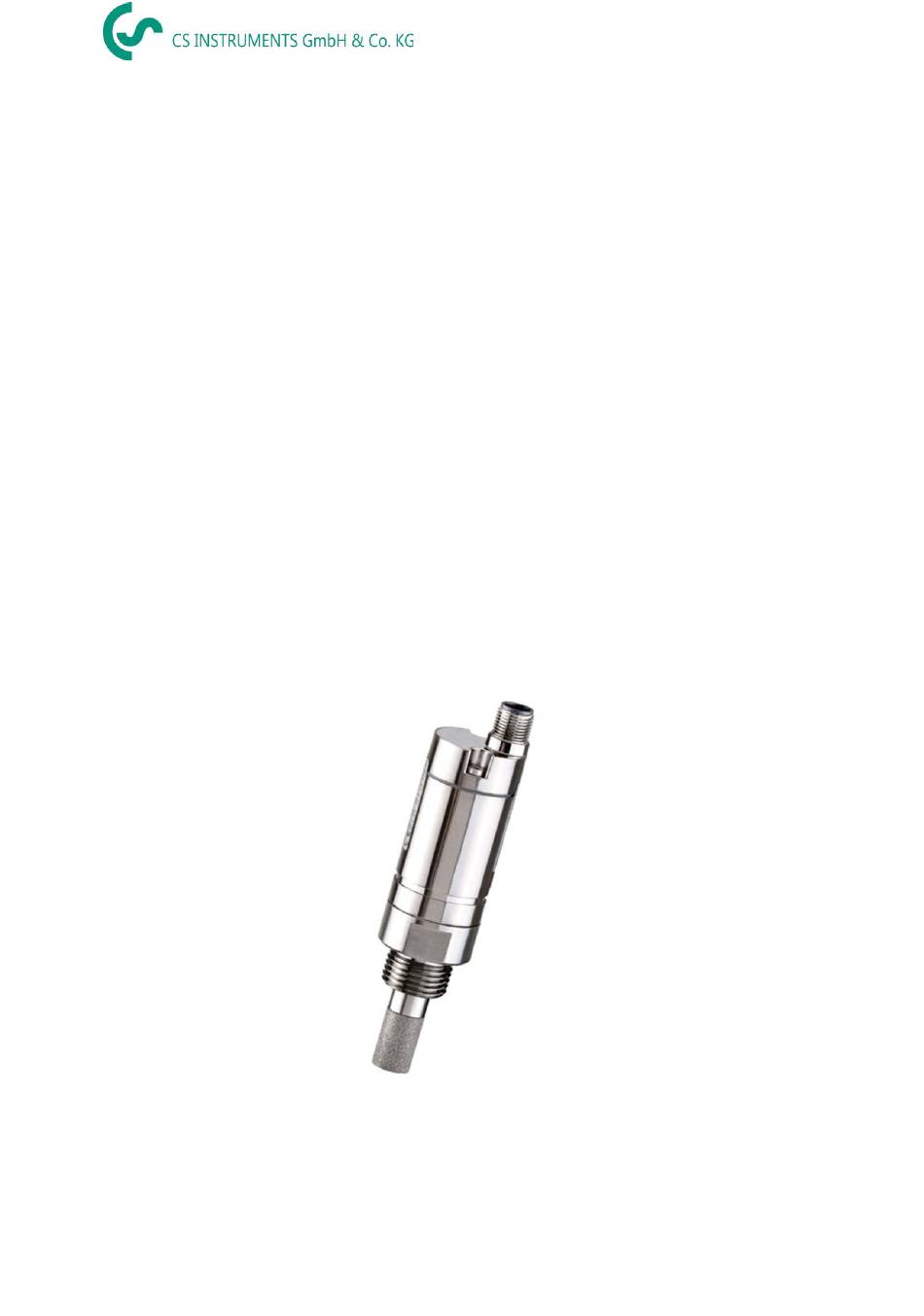

INSTRUCTION MANUAL
F
A
5
1
0
F
A
5
1
0

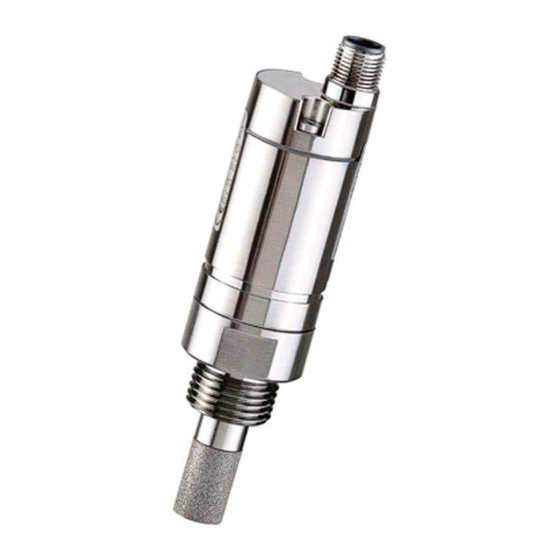

CS dew point sensor FA 510
The
with 3-wire technology 4...20 mA and RS
485 Modbus output enables a reliable and long-term stable monitoring of the dew
point in industrial applications such as in
- compressed air plants (refrigerating/adsorption dryers)
- granulate dryers
- medical gases
- non-corrosive gases, e. g. nitrogen
10
FA510 V1.06
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CS FA 510
Summary of Contents for CS FA 510
- Page 1 INSTRUCTION MANUAL CS dew point sensor FA 510 with 3-wire technology 4…20 mA and RS 485 Modbus output enables a reliable and long-term stable monitoring of the dew point in industrial applications such as in - compressed air plants (refrigerating/adsorption dryers)
-
Page 2: Intended Use
FA 510. Please read these installation and operating instructions carefully before installation and commissioning and follow our instructions. The proper functioning of the FA 510 and safe operation can only be ensured if the regulations and instructions described are strictly observed. -
Page 3: Notes On Safety
Standing air leads to long measuring times DESCRIPTION The FA 510 dew point sensor enables a reliable and long-term stable monitoring of the dew point in industrial applications. The FA 510 features improved stability. When mounting FA 510 into compressed air systems the pressure dew point (dew point under pressure) up to 50 bar (in the special version up to 350 bar) is measured directly. -
Page 4: Technical Data
-80…50 °Ctd pressure dew point resp. dew point in °Ctd 0…100 % RH -20…70 °C -80…20 °Ctd ≙ 4…20 mA Type 0699.0510, FA 510 -20…50 °Ctd ≙ 4…20 mA Type 0699.0512, FA 510 Other scales on request, for example, -60 ... 30 ° Ctd 4 ... - Page 5 Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Connector plug RS485 A RS485 B Current output FA 510 Connection cable 0554.0104 (5 m) brown white blue black grey 0554.0105 (10 m) Positive supply voltage 24VDC (10...30 VDC) smoothed...
-
Page 6: Installation
It is not permitted to use a sealing ring with a NPT 1/2“ thread. Appropriate PTFE sealing tape or sealant should be used instead Please note: CS recommends the indirect installation with measuring chamber Advantage: Easy mounting and dismounting of the probe without interruption of the line. - Page 7 Modbus ID, Baudrate, Parity und Stop bit must be set in order to ensure the communication with the Modbus master. The adjustment can be done either with the CS Instruments PC service software, DS 400, DS 500 and the hand-held instrument PI 500 done.
-
Page 8: Modbus Settings (2001
13 = Atmospheric DewPoint [°F] 2009 2008 float 4mA Scale Low 2011 2010 float 20mA Scale High Modbus installation, Modbus settings and further information refer to the manual CS Instruments "Modbus Installation and Operating Instructions FA 5xx sensors" FA510 V1.06... -
Page 9: From The Manufacturer
The calibration cycles should fit your internal scheme. In the course of the DIN ISO certification, we recommend for FA 510 a calibration cycle of one year. If requested we can carry out the calibration on your premises. -
Page 10: Elektromagnetische Verträglichkeit
Declare under our sole responsibility that the product Feuchtesensoren FA 510 FA 515 Dew point sensors FA 510 / FA 515 den Anforderungen folgender Richtlinien entsprechen: We hereby declare that above mentioned components comply with requirements of the following EU directives: Elektromagnetische Verträglichkeit... -
Page 11: Kontakt / Contact
Kontakt / CONTACT CS INSTRUMENTS GmbH & Co.KG Geschäftsstelle Süd / Sales Office South / Zindelsteiner Str. 15 D-78052 VS-Tannheim Tel.: +49 (0) 7705 978 99 0 Fax: +49 (0) 7705 978 99 20 Mail: info@cs-instruments.com Web: http://www.cs-instruments.com Geschäftsstelle Nord / Sales Office North...
