SIRIUS/DBS SIGNAL
COMBINER/SPLITTER
Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR-100C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sirius Satellite Radio SR-100C

  • Page 1 SIRIUS/DBS SIGNAL COMBINER/SPLITTER Installation Guide...
  • Page 2 For the latest information about this and other SIRIUS products, please visit http://www.sirius.com ® SIRIUS and the SIRIUS Dog Logo are registered trademarks of SIRIUS Satellite Radio, Inc. ® DISH Network, and the Dish Pro and Dish Pro Plus logos are registered trademarks of EchoStar Satellite L.L.C.
  • Page 3: Box Contents

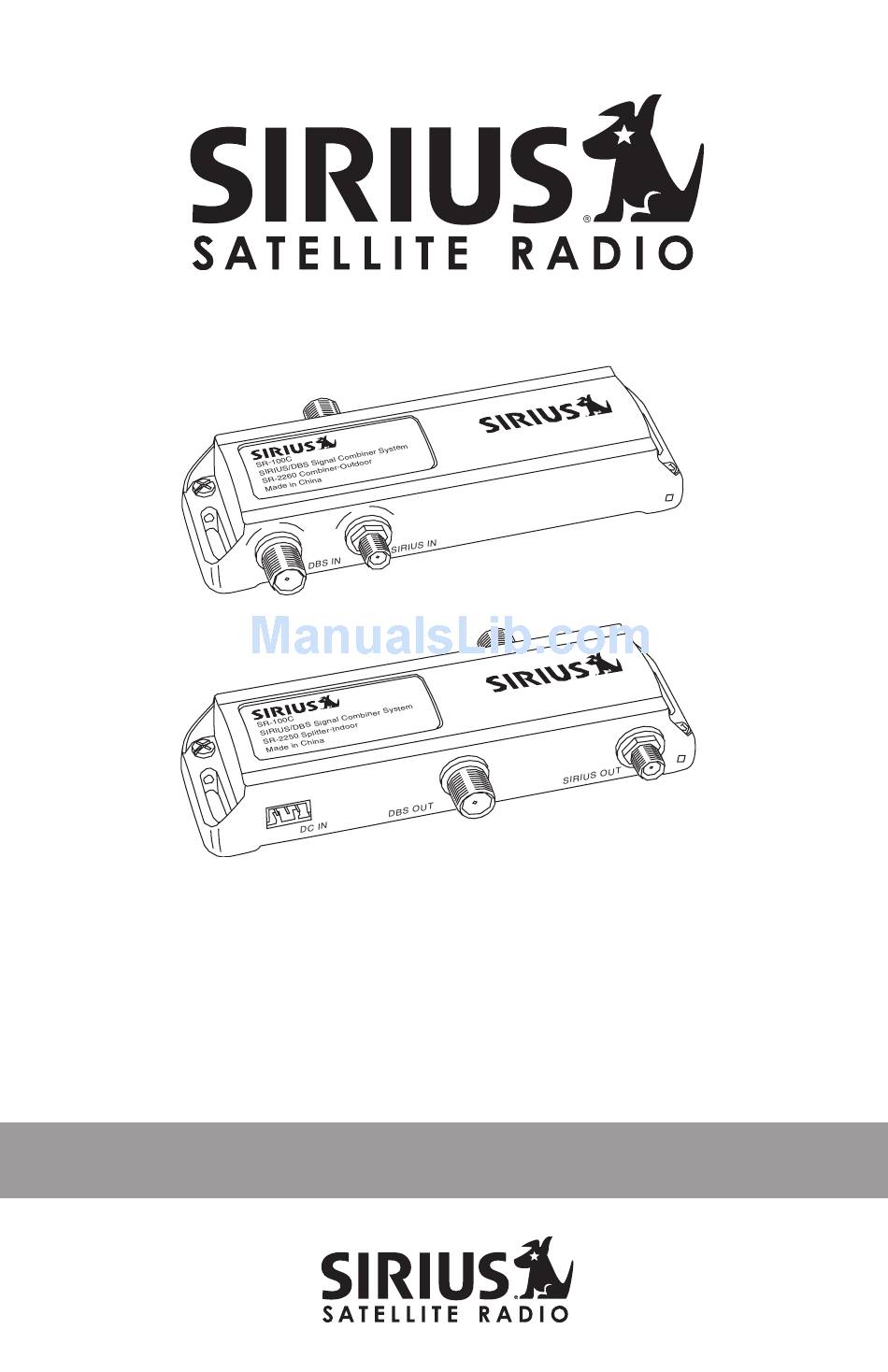

    Box Contents Unpack your SIRIUS/DBS Signal Combiner/Splitter and be sure that everything shown below is present. If anything is missing or damaged, or if your SIRIUS/ DBS Signal Combiner/Splitter fails to operate properly, notify the dealer or retailer where you purchased the product immediately. It is recommended that you retain the original receipt, carton, and packing materials in case you need to return or ship your SIRIUS/DBS Signal Combiner/Splitter in the future.
  • Page 4: Important Pre-Installation Notes

    Important Pre-Installation Notes The notes in this section are important and vital to the successful installation of the SIRIUS/DBS Signal Combiner/Splitter. Read this entire section carefully before proceeding with the installation of the SIRIUS/DBS Signal Combiner/ Splitter. Compatibility While the SIRIUS/DBS Signal Combiner/Splitter is compatible with most DISH Network and DIRECTV systems, there are several instances in which a particular configuration may not be compatible with the SIRIUS/DBS Signal Combiner/ Splitter.
  • Page 5 DISH Network Legacy Model LNBF There are three models of LNBFs which are found in DISH Network systems: • Dish Pro LNBF • Dish Pro Plus LNBF • Legacy LNBF Of these three models, the Legacy LNBF is not compatible with the SIRIUS/DBS Signal Combiner/Splitter.
  • Page 6 DIRECTV Systems ORBITAL ORBITAL LOCATION LOCATIONS RECVR/TUNER The incompatibilities for DIRECTV systems are limited to two categories, namely, configurations using three LNBFs with a multiswitch which is not powered externally, and configurations using three LNBFs with a multiswitch co-located with the LNBFs at the satellite dish. The following compatibility chart shows compatible configurations, and the sections following discuss in detail certain incompatibilities.
  • Page 7 DIRECTV with Three LNBFs with External Multiswitch If your configuration uses three LNBFs, and has a multiswitch, the multiswitch must be externally powered to be compatible with the SIRIUS/DBS Signal Combiner/Splitter. Externally powered means that the multiswitch is connected to an AC outlet. Examine your multiswitch to determine if it is connected to an AC outlet.
  • Page 8: Configuration Considerations

    Configuration Considerations There are differing configurations which may be found in satellite TV systems. You should determine your overall configuration, and where you will be installing the SIRIUS/DBS Signal Combiner/Splitter in your configuration before proceeding with the installation. Generally, you’ll want to install it nearest to the receiver/tuner where you will be using your SIRIUS receiver.
  • Page 9: Installation Procedure

    COMBINER SPLITTER RECVR/TUNER SIRIUS RECEIVER Installation Procedure Once you have determined where in your system you will be mounting the SIRIUS/DBS Signal Combiner/Splitter, you can proceed with the installation. If you have not yet mounted your SIRIUS outdoor antenna, do that first, carefully following the installation instructions included with the outdoor antenna.
  • Page 10 3. Connect one end of the 3 ft. RG-6 cable (shown as F on page 3) to the device from which the cable in Step 2 was disconnected (i.e., the satellite dish LNBF, or the multiswitch, or the signal splitter, etc.). 4.
  • Page 11: Troubleshooting

    7. Connect the Power Supply (shown as C on page 3) to the Signal Splitter, and plug the Power Supply in a working AC outlet. This completes the installation of the SIRIUS/DBS Signal Combiner/Splitter. Power on your SIRIUS receiver and satellite TV system to verify that they are working correctly and that the installation was successful.
  • Page 12: Specifications

    Operating Temperature ... -40C to +85C, -40F to 185F Operating Humidity ... 5% to 95% RH (Rain Resistant) SIRIUS Satellite Radio 1221 Avenue of the Americas New York, NY 10020 (888) 539-7474 www.sirius.com © SIRIUS/DBS-Signal-Combiner/Splitter-Install-Manual (v012605) 2005 SIRIUS Satellite Radio Inc.
