Summary of Contents for Sirius Satellite Radio Jensen Shuttle JHK1

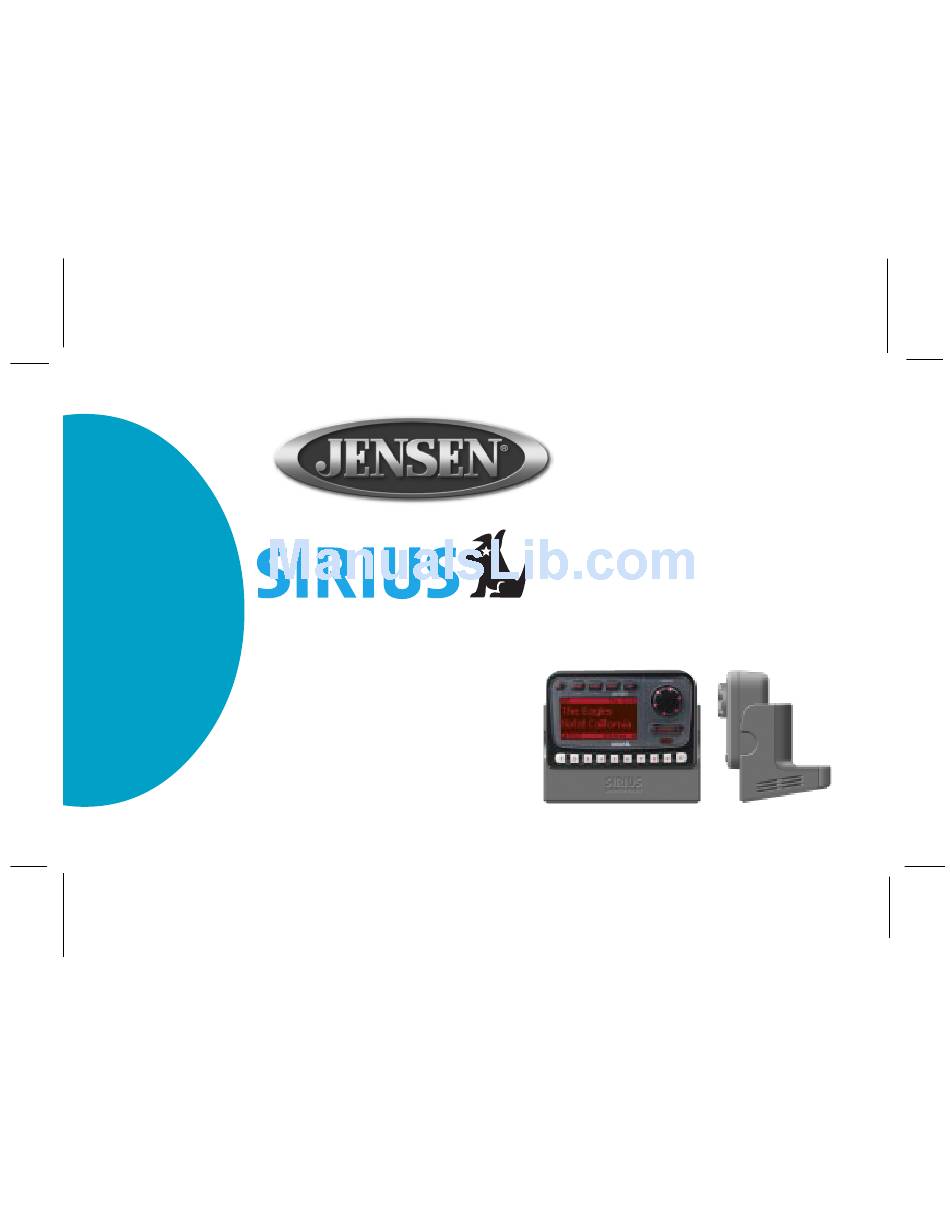

- Page 1 SHUTTLE Home Installation Guide JHK1 128-7129 Released 4-28-2004. 1 of 10...
- Page 2 Congratulations You are one step closer to experiencing Sirius Satellite Radio. Sirius will revolutionize your in-home or vehicle entertainment with: · 100 streams of original programming, including – 60 streams of completely commercial-free music – guaranteed. 40 streams of news, sports and entertainment ·...
-
Page 3: Cautions And Warnings
Cautions and Warnings 1. Do not install the Shuttle in a position that obstructs viewing of any home entertainment component, such as Television, or stereo system indicators and dis- plays. 2. This unit complies with the interference limits relative to a Class B digital device, applicable under Part 15 of the FCC Rules regarding installation in a residential environment. -
Page 4: Installation/Wiring Precautions
Contents JHK1 Install Manual Audio Cable (P/N 112B3293) P/N 1287129 1 pc. 1 pc. Antenna (P/N 118C1129) Cradle JHK1 (P/N 136-3734) 1 pc. DC Power Adapter (P/N 136-3735) 1 pc. 1 pc. Installation/Wiring Precautions 1. Make sure the adapter cable is not connected to an AC wall outlet until all interconnections have been made and verified. -
Page 5: Setting Up And Installing Your Kit
1. Cabling Interconnections You can begin to enjoy Sirius® Satellite Radio as soon as the Shuttle and home Kit installation are complete. Set up your Jensen Shuttle using the following installation instructions, or enlist the help of a professional installer. - Page 6 b. You can also place the antenna outside (on the roof structure), provided it is clear of any overhead obstructions. NOTE: Because of the orbiting characteristics of the Sirius Satellites, the strength of the received signal may change over time. In most cases however, the signal should be available continuously.
- Page 7 b. If roof placement is not possible, BETTER reception can be achieved by placing the antenna outside a window, or by mounting it to the side of the house. In either case, try to achieve the best possible clear sky conditions as shown.
- Page 8 If the antenna is mounted outside, route the cable from the antenna position to the interior of the home, working the cable through the basement,under a window sill, etc.; make adjustments and take up slack whenever necessary. Plug the antenna cable into the ANT connector on the back of the Shuttle.
- Page 9 c. Apply power to the Shuttle system as outlined in the associated User Guide and obtain an audio output. If no audio is heard, move the antenna to different positions on the surface until an audio output is heard. This is the desired antenna position and should be marked with masking tape or by another non- scratch method.
-
Page 10: 12 Month Limited Warranty
AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
