Summary of Contents for Sirius Satellite Radio SiriusCONNECT SIR-CL3

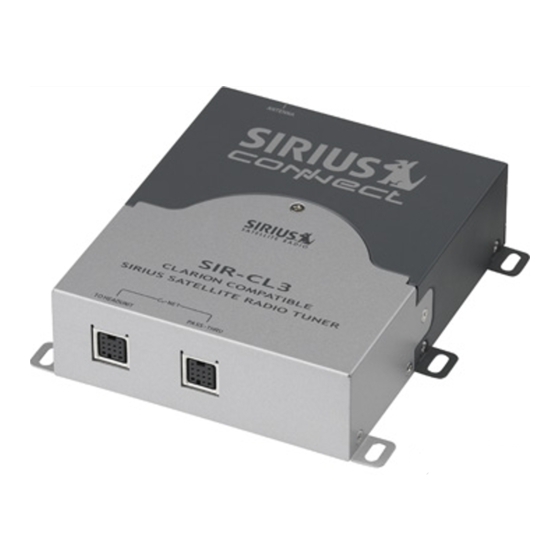

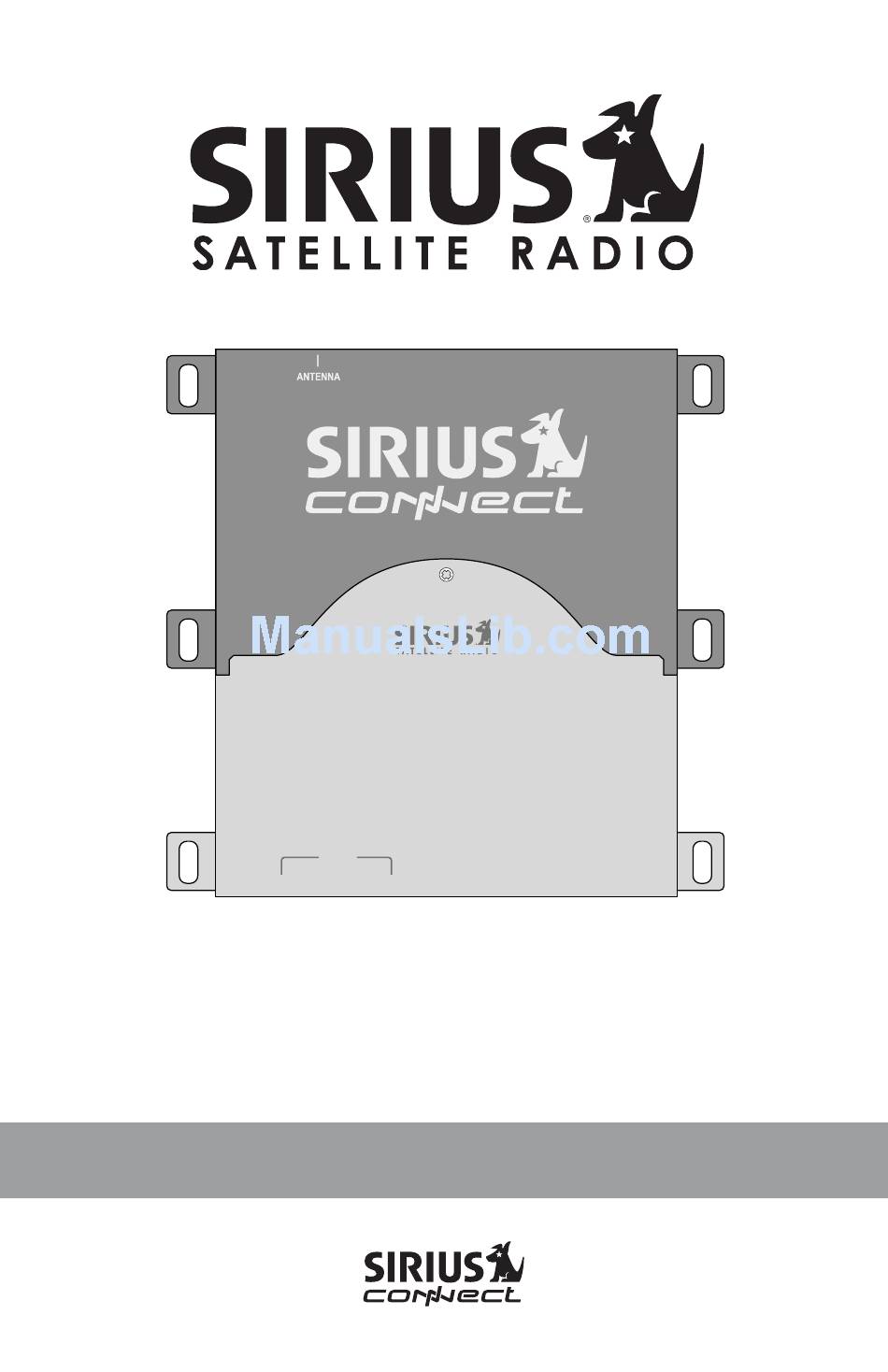

- Page 1 SIR-CL3 SIR-CL3 CLARION COMPATIBLE SIRIUS SATELLITE RADIO TUNER Ce-NET TO HEADUNIT PASS-THRU SIR-CL3 SIR-CL3 CLARION COMPATIBLE SIRIUS SATELLITE RADIO TUNER Installation Guide...
- Page 2 Congratulations on your purchase of the SIR-CL3 Clarion- Compatible SIRIUS Satellite Radio Tuner! Your new SIRIUS Tuner is designed to work designated to be “SIRIUS-READY”. Contact Clarion or SIRIUS for model compatibility. What is SIRIUS Satellite Radio? Over 120 channels of the best...
-
Page 3: Table Of Contents
Table of Contents Package Contents ... 3 Warnings and Cautions ... 4 Installation ... 6 Mounting the Tuner ... 6 Installing the Antenna ... 6 Optimum Antenna Mounting Locations ... 7 Wiring and Cable Connections ... 8 System Connection Examples ... 10 Activating Your SIRIUS Subscription ... -
Page 4: Warnings And Cautions
WARNING This symbol means important instructions. Failure to heed them can result in serious injury or death. DO NOT OPERATE ANY FUNCTION THAT TAKES YOUR ATTENTION AWAY FROM SAFELY DRIVING YOUR VEHICLE. Any function that requires your prolonged attention should only be performed after coming to a complete stop. - Page 5 CAUTION This symbol means important instructions. Failure to heed them can result in injury or material property damage. HALT USE IMMEDIATELY IF A PROBLEM APPEARS. Failure to do so may cause personal injury or damage to the product. Return the unit to your authorized retailer or nearest service center for repairing.
-
Page 6: Installation
Installation It is recommended that prior to starting the installation, you thoroughly read this manual and follow the guidelines listed below: Consider the mounting location carefully. You should make sure that you avoid the following: • Any location where the tuner is exposed to moisture. -
Page 7: Optimum Antenna Mounting Locations
3) Remove the remaining protective tape from the adhesive, carefully position the antenna with cover/tail and apply pressure to secure to the vehicle. Cable Cover/ Tail Optimum Antenna Mounting Locations The optimum location to mount the included antenna is on the roof of the vehicle. -
Page 8: Wiring And Cable Connections
Wiring and Cable Connections ANTENNA SIR-CL3 SIR-CL3 CLARION COMP ATIBLE SIRIUS SA TELLITE RADIO TUNER CeNET TO HEADUNIT PASS-THRU A Antenna Input (SMB) B CeNET Headunit Connector C CeNET Pass-Thru Connector Antenna Input Connect the right-angle SMB connector from the antenna. Push firmly to attach. - Page 9 Right-angle SMB Connector SIR-CL3 SIR-CL3 CLARION COMP ATIBLE SIRIUS SA TELLITE RADIO TUNER CeNET PASS-THRU Right-angle CeNET Connector SIR-CL3 Operation and Installation Guide SIR-CL3 Installation Guide Antenna (21’ cable) - Mount on Roof of Vehicle 2.5-meter CeNET Cable (Connect to Clarion SIRIUS-Ready Headunit)
-
Page 10: System Connection Examples
System Connection Examples System 1: Clarion Headunit and SIR-CL3 Clarion SIRIUS-Ready Headunit ANTENNA SIR-CL3 SIR-CL3 CLARION COMP ATIBLE SIRIUS SA TELLITE RADIO TUNER CeNET TO HEADUNIT PASS-THRU SIR-CL3 Installation Guide... - Page 11 System 2: Clarion Headunit, CD/DVD Player and SIR-CL3 Clarion SIRIUS-Ready Headunit Clarion Ce-NET Compatible CD changer or other audio device SIR-CL3 Operation and Installation Guide SIR-CL3 Installation Guide ANTENNA SIR-CL3 SIR-CL3 CLARION COMP ATIBLE SIRIUS SA TELLITE RADIO TUNER CeNET TO HEADUNIT PASS-THRU...
-
Page 12: Activating Your Sirius Subscription
SIR- CL3 and on the packaging that the unit was packed in. Basic Operation The SIR-CL3 SIRIUS Satellite Radio Tuner is compatible with any Clarion headunit that is “SIRIUS-Ready”. Consult Clarion or SIRIUS Customer Support Departments for more information about compatibility. -
Page 13: Specifications
Specifications Operational Frequencies Satellite ... 2322.293/2330.207 MHz Terrestrial ... 2326.250MHz Chassis Size ... 126.75mm x 125.75mm x 34.75mm (WxHxD) Antenna Type ... Mini-Magnetic Antenna Cable Length ... 21’ (single micro-cable) Connector Type ... SMB (Right-angle) Audio Interface ... 2 Ce-NET Bus Connectors (Headunit/Pass-Thru) Audio Output ... - Page 14 SIRIUS Satellite Radio 1221 Avenue of the Americas New York, NY 10020 (888) 539-7474 www.sirius.com © 2005 SIRIUS Satellite Radio Inc. “SIRIUS” and the SIRIUS dog logo Clarion-SIR-CL3-Install-Manual-(v060605a) are registered trademarks of SIRIUS Satellite Radio Inc.
