SIRIUS Outdoor
Satellite Radio Antenna
Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 128-8662 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sirius Satellite Radio 128-8662

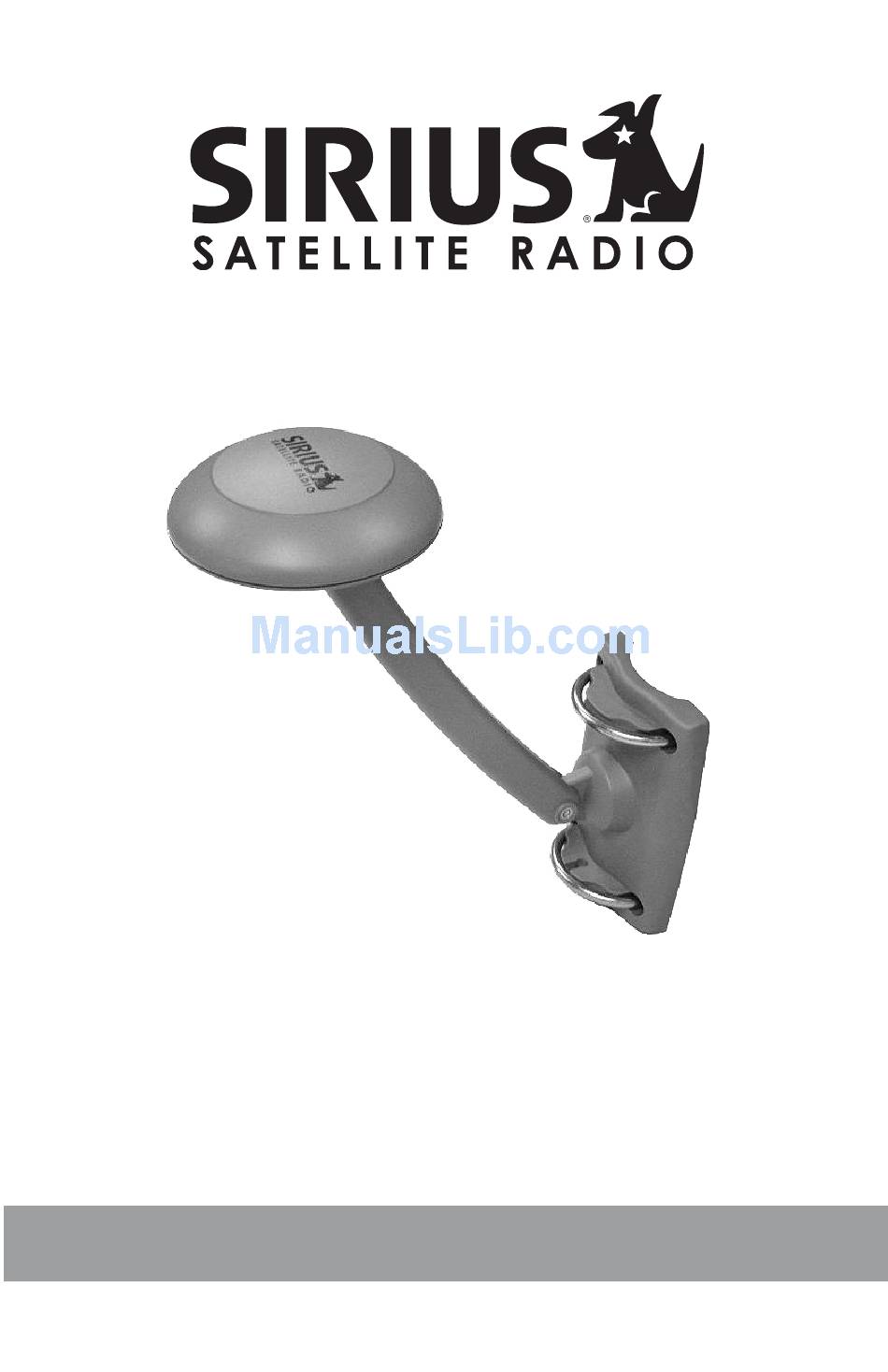

  • Page 1 SIRIUS Outdoor Satellite Radio Antenna Installation Manual...
  • Page 2: Box Contents

    SIRIUS satellites and terrestrial (ground) transmitters when mounted outdoors on a home or other building. This antenna has been approved by Sirius Satellite Radio to receive the SIRIUS signal under a variety of conditions within the SIRIUS North American coverage area.
  • Page 3: Caution And Warnings

    Caution and Warnings WARNING: Be sure not to cut, damage, or puncture the external jacket of the antenna cable during the installation procedure. Damage to the antenna cable can cause the SIRIUS signal to be degraded or unavailable, and can also cause water to intrude into the antenna cable causing the cable to fail.
  • Page 4: Antenna Installation

    Once you have determined a possible mounting location, it is recommended that you hold the antenna in place temporarily and connect the antenna cable to your SIRIUS receiver. Using the Antenna Aiming or Signal Indicator feature of your receiver, verify that your antenna is receiving a good SIRIUS signal. (Consult the User Guide of the receiver for specific instructions.) Once you have found a suitable mounting location for the antenna, you can proceed with the actual installation.
  • Page 5: Roof Mount

    Once you have determined the mounting location, use the mounting bracket as a template and mark the wall with the location of the four screw holes in the bracket. Then, using a 3/32 in. drill bit, drill pilot holes in the wall for the screws and screw the bracket to the wall.
  • Page 6: Antenna Adjustment

    the two mounting brackets, and the four hex nuts. Keep in mind that the antenna cable is routed under the lower U-bolt, in the slot provided in the antenna base as shown. Slide one of the U-bolts through the holes at the top of the mounting bracket. Then slide one of the mounting brackets over the two legs of the U-bolt.
  • Page 7: Antenna Cable Installation

    Slightly loosen the adjustment screws and adjust the antenna so that the top of the antenna pod is level, with the top of the pod horizontal to the sky. When the antenna is adjusted properly, tighten the screws being careful not to overtighten them.
  • Page 8: Specifications

    Antenna Connector ... SMA Cable Connectors ... SMA & SMB Weight (including cable) ... 1.75 lbs Temperature Range ... -40°F to +185°F © 2006 Sirius Satellite Radio Inc. SIRIUS Satellite Radio 1221 Avenue of the Americas New York, NY 10020 (888) 539-7474 www.sirius.com...
  • Page 9: 90-Day Limited Warranty

    This Warranty gives you specific legal rights and you may also have other rights which vary from state to state. Audiovox Electronics Corporation, 150 Marcus Blvd., Hauppauge, New York 11788 SHA1 ANY ACTION FOR 1-800-645-4994  128-8662...
