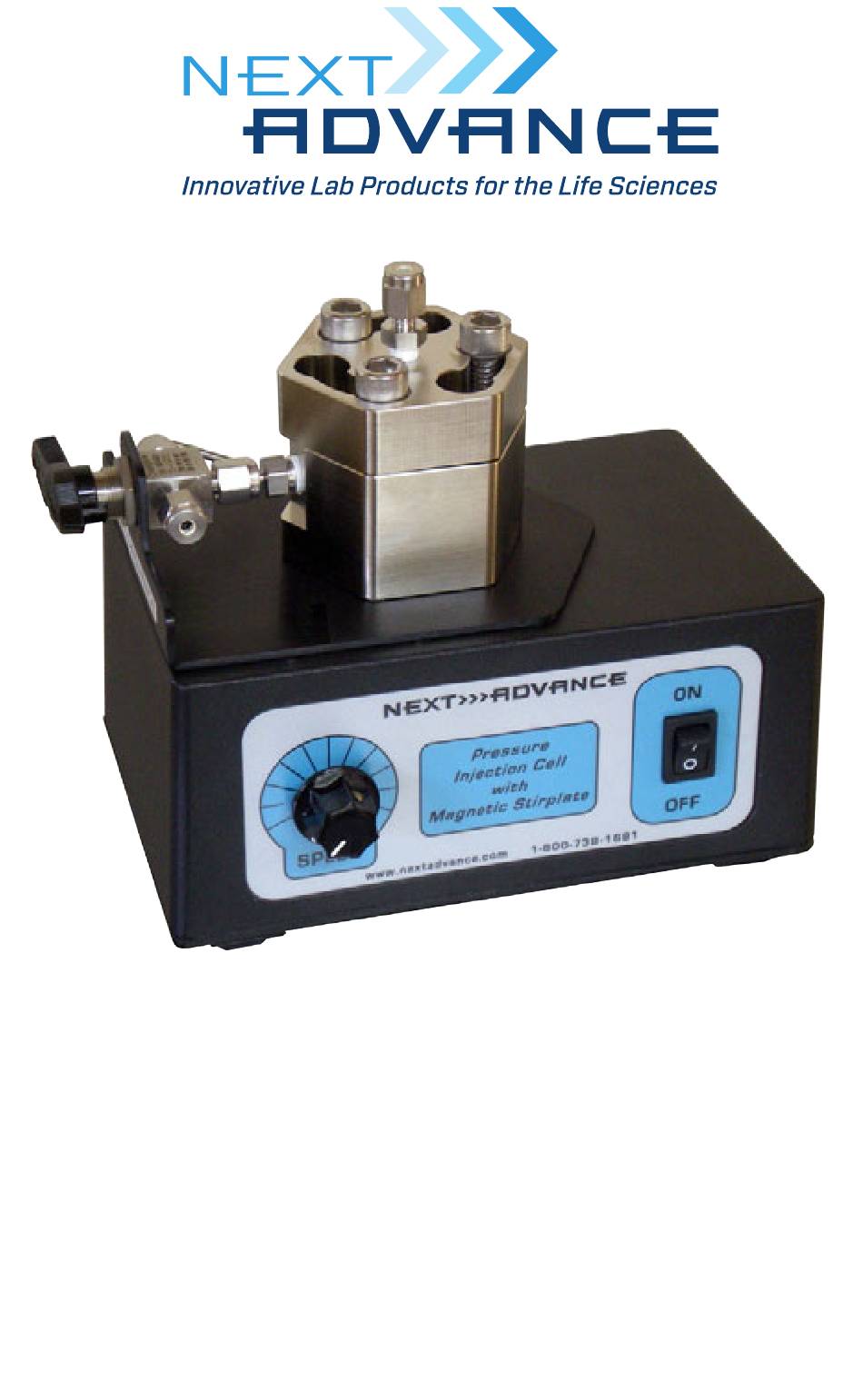

- Page 1 Pressure Injection Cell Operator’s Manual...
- Page 2 CONGRATULATIONS! CONTENTS Congratulations on your purchase of a Parts of the Pressure Injection Cell..... 2 Next Advance Pressure Injection Cell. Setting Up Your Pressure Injection Cell..3 Using Your Pressure Injection Cell .... 3 Please read this operator’s manual which Stirplate Operation........4...
- Page 3 3-Way Valve Inlet Magnetic Stirplate SYMBOLS USED ON THE PC77 - MAG MODEL WITH STIRPLATE ON position of the Power Switch. OFF position of the Power Switch Caution: Follow the Instructions in the Operator’s Manual This product complies with the European Low Voltage and EMC Directives.
- Page 4 Setting up the Pressure Injection Cell consists of attaching it to 1/8 inch (outside diameter) thick walled stainless steel tubing (not supplied with the PC77 Pressure Injection Cell). First, slide the tubing through the inlet nut until it hits a stop. Finger tighten...
- Page 5 1 ml sample tube, as shown in the figure below. STIRPLATE OPERATION (PC77-MAG model only) Operation of the stirplate is straightforward. The power supply should be plugged in to the jack at the rear. The speed control knob is on the left.
- Page 6 Product. desired pressure (typically on the order of Within these time periods, Next Advance will several hundred psi) and that the 3-way valve replace or repair, without charge to the original knob is pointing toward the pressurized gas purchaser, any part which is defective.
- Page 7 CHANTABILITY OF THE PRODUCTS OR THEIR SUITABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE OR USE. Next Advance shall not be liable for, indirect, special, incidental or consequential damages of any nature. Any recovery for any claim shall be limited to the original purchase price for the product.
