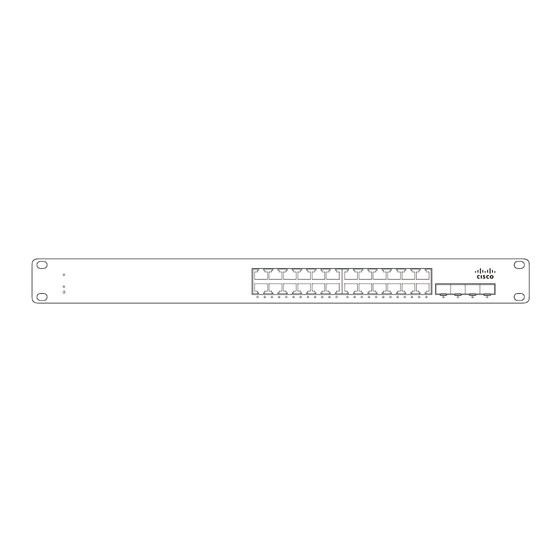

MS250 Series Installation Guide
Model number
MS250-24
MS250-24P
MS250-48
MS250-48LP
MS250-48FP
Package contents
In addition to the MS switch, the following are provided:
Stackable Layer-3 24-port gigabit Ethernet switch with 4 SFP+ interfaces, hot-swappable
power supplies
Stackable Layer-3 24-port gigabit Ethernet 370W PoE switch with 4 SFP+ interfaces, hot-
swappable power supplies
Stackable Layer-3 48-port gigabit Ethernet switch with 4 SFP+ interfaces, hot-swappable
power supplies
Stackable Layer-3 48-port gigabit Ethernet 370W PoE switch with 4 SFP+ interfaces, hot-
swappable power supplies
Stackable Layer-3 48-port gigabit Ethernet 740W PoE switch with 4 SFP+ interfaces, hot-
swappable power supplies
Description
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cisco MERAKI MS250 Series
Summary of Contents for Cisco MERAKI MS250 Series
-
Page 1: Package Contents
MS250 Series Installation Guide Model number Description Stackable Layer-3 24-port gigabit Ethernet switch with 4 SFP+ interfaces, hot-swappable MS250-24 power supplies Stackable Layer-3 24-port gigabit Ethernet 370W PoE switch with 4 SFP+ interfaces, hot- MS250-24P swappable power supplies Stackable Layer-3 48-port gigabit Ethernet switch with 4 SFP+ interfaces, hot-swappable... - Page 2 Rack Mount Kit includes: • US 12-24 mounting screws and cage nuts, 5 of each • INTL M5 mounting screws and cage nuts, 5 of each • INTL M6 mounting screws and cage nuts, 5 of each • Mounting washers Note: MS250 does not include stacking cables.
- Page 3 Insert a paperclip if a restore is required. • A brief, momentary press: To delete a downloaded configuration and reboot. • Press and hold for more than 10 sec: To force the unit into a full factory restore. MS250 Series back panel Item Function...
-
Page 4: Mounting Hardware
No link is detected on this port Redundant Power Active and functional Green Supplies power supplies Power input Power cords may be ordered separately. Equipment is to be used only in a restricted access location and installed/operated only by trained service personnel. Bringing your Stack Online MS250 switches can be connected in a physical stack using dedicated stacking ports and cables.
