COD. 1247030-GB / 1.3
Hands free activator.
TECHNICAL CHARACTERISTICS
Operating frequency
Electricity
Consumption
Radiated power
Wiring
Op. temperature
Airtightness
Size
Enabling area (hands-free mode)

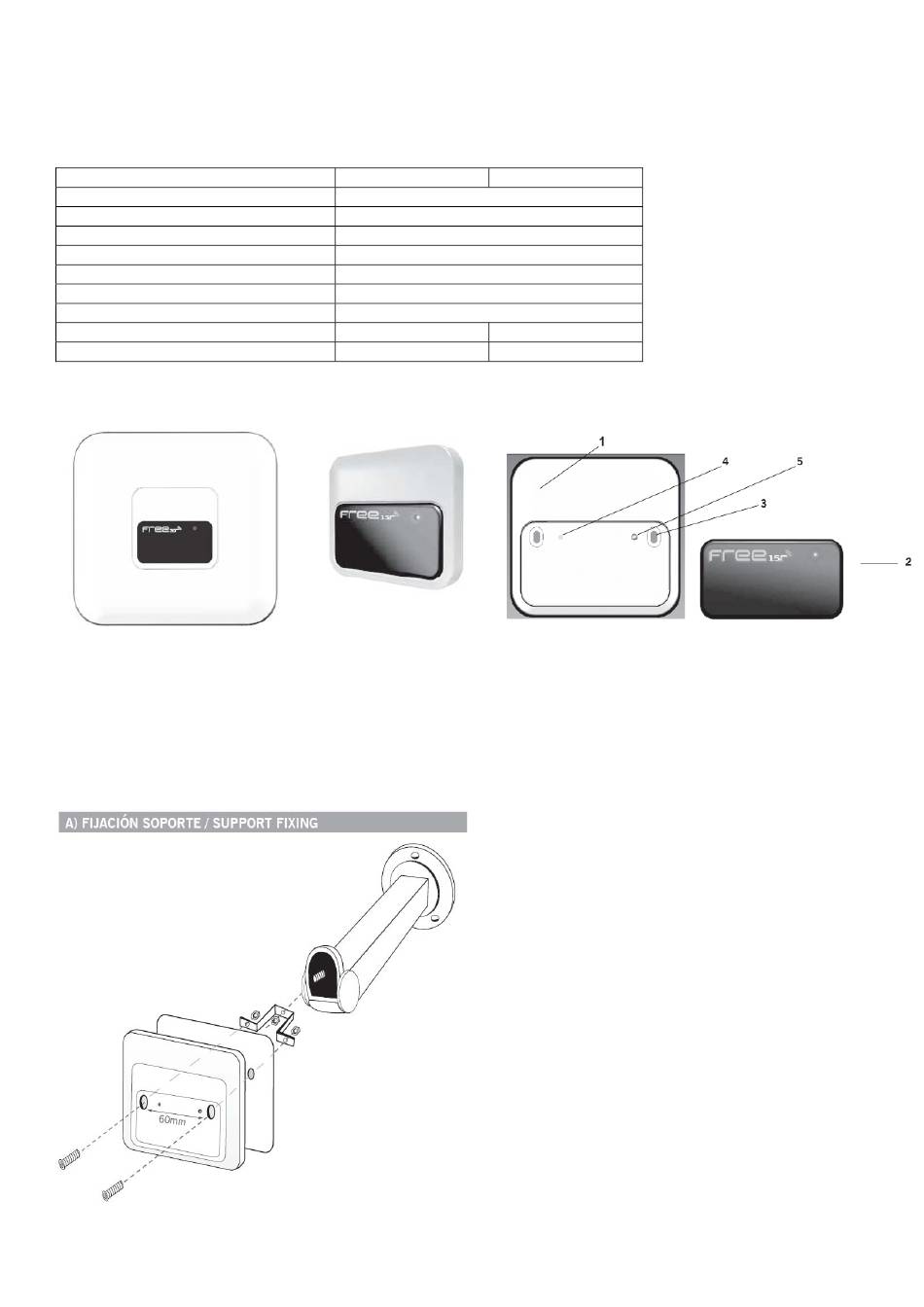

INSTALLATION (figure A)
The activator is formed by two parts: a compact box (1) with a plastic front part and the wiring outlet at the back and an
adhesive trim (2). It is designed to be fitted directly to or built into the wall. It is secured by two screws (3), separated by
60mm (ideal separation if it is built-into a standard plug or socket box). The adhesive is fitted over Position 2 in the Figure,
ensuring that the led (5) is visible through the adhesive window. Before fitting the adhesive, screw in and configure the
activator.
N.B.: The activator should not be installed on metal surfaces, as this may reduce the enabling area.
FREE 15 R / FREE 30 R
FREE 15 R
12/24V(ac)/(dc) +/- 10%
87 x 78 x 15,5 mm
1.5m
FREE 30 R
125kHz
50mA
<25mW
4 wires
-20ºC - +55ºC
IP66
205 x 183 x 14 mm
3m
1
