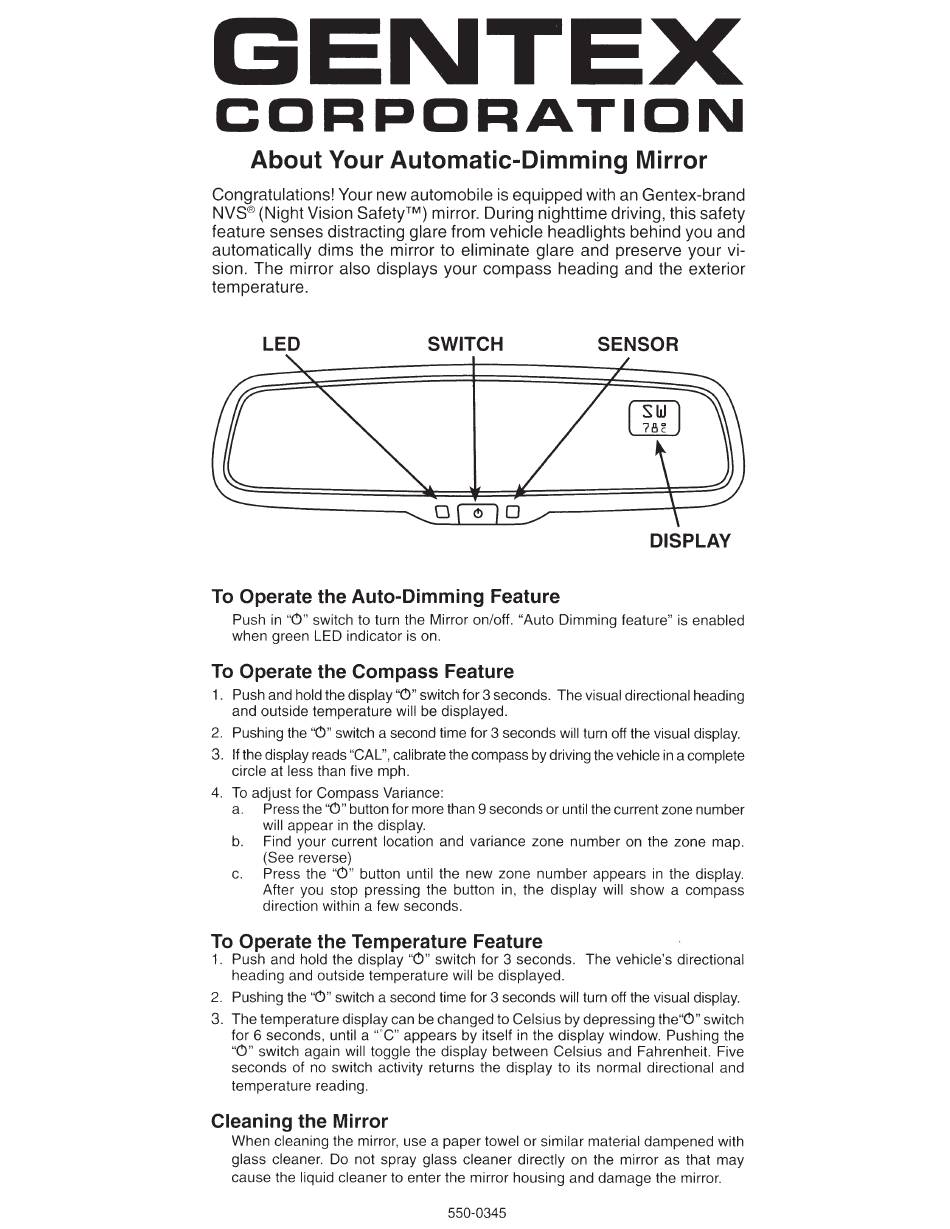

Gentex NVS Manual

GENTEX
CORPORATION

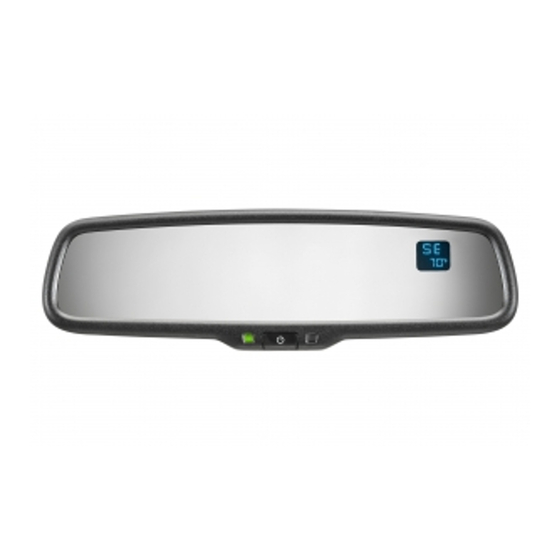

About Your Automatic-Dimming Mirror
Congratulations! Your new automobile is equipped with an Gentex-brand
NVS® (Night Vision Safety™) mirror. During nighttime driving, this safety
feature senses distracting glare from vehicle headlights behind you and
automatically dims the mirror to eliminate glare and preserve your vi-
sion. The mirror also displays your compass heading and the exterior
temperature.
LED SWITCH
SENSOR
DISPLAY
To Operate the Auto-Dimming Feature
Push in "C)" switch to turn the Mirror on/off. "Auto Dimming feature" is enabled
when green LED indicator is on.
To Operate the Compass Feature
1. Push and hold the display "C)" switch for 3 seconds. The visual directional heading
and outside temperature will be displayed.
2. Pushing the "C)" switch a second time for 3 seconds will turn off the visual display.
3. If the display reads "CAL", calibrate the compass by driving the vehicle in a complete
circle at less than five mph.
4. To adjust for Compass Variance:
a. Press the "C)" button for more than 9 seconds or until the current zone number
will appear in the display.
b. Find your current location and variance zone number on the zone map.
(See reverse)
c. Press the "C)" button until the new zone number appears in the display.
After you stop pressing the button in, the display will show a compass
direction within a few seconds.
To Operate the Temperature Feature
1. Push and hold the display "C)" switch for 3 seconds. The vehicle's directional
heading and outside temperature will be displayed.
2. Pushing the "C)" switch a second time for 3 seconds will turn off the visual display.
3. The temperature display can be changed to Celsius by depressing the"C)" switch
for 6 seconds, until a "OC" appears by itself in the display window. Pushing the
"C)" switch again will toggle the display between Celsius and Fahrenheit. Five
seconds of no switch activity returns the display to its normal directional and
temperature reading.
Cleaning the Mirror
When cleaning the mirror, use a paper towel or similar material dampened with
glass cleaner. Do not spray glass cleaner directly on the mirror as that may
cause the liquid cleaner to enter the mirror housing and damage the mirror.
550-0345
