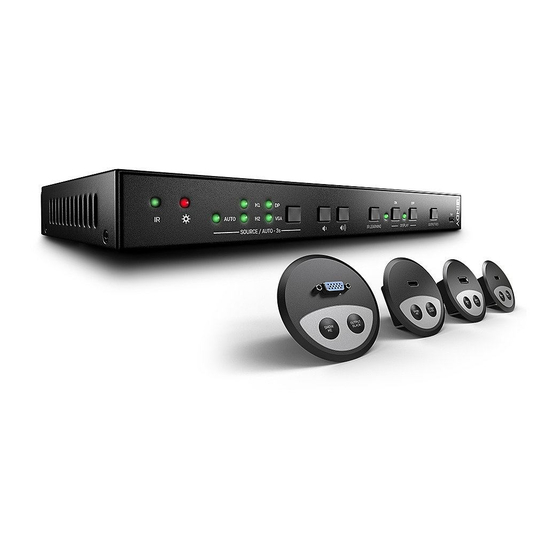

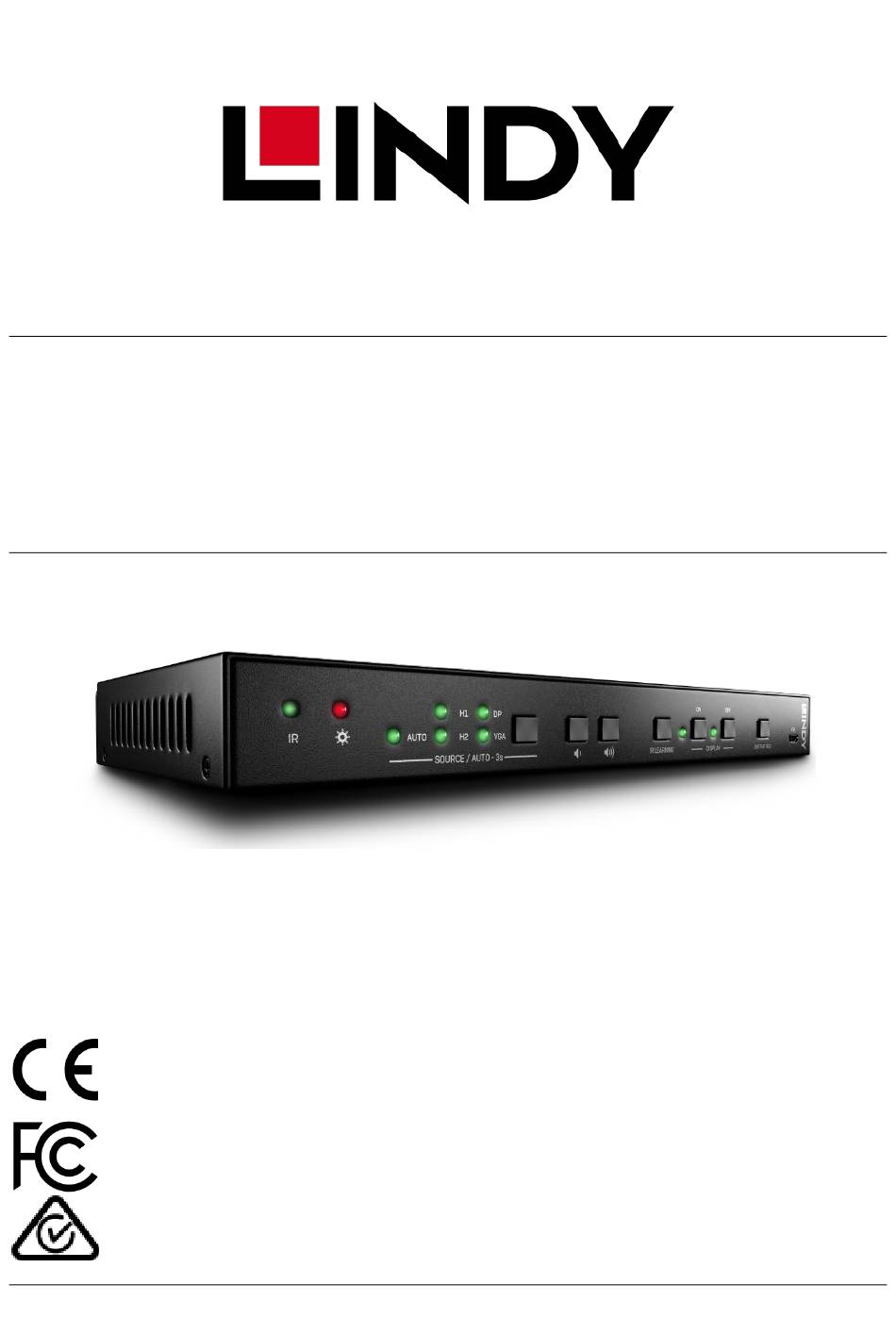

- Page 1 Switching Presentation Scaler with Table Grommet Kit User Manual Eng lis h No. 38282 lindy.com Tested to comply with FCC Standards For Home and Office Use! © LINDY Group - SECOND EDITION (March 2019)
- Page 3 Thank you for purchasing the Lindy Switching Presentation Scaler with Table Grommet Kit. This product has been designed to provide trouble free, reliable operation. It benefits from both a LINDY 2 year warranty and free lifetime technical support. To ensure correct use, please read this manual carefully and retain it for future reference.
- Page 4 User Manual English Specification ▪ Input: 2 x HDMI Type A (Female), DisplayPort (Female), VGA (Female), 3.5mm (Female) ▪ Output: HDMI Type A (Female) ▪ Control Ports: 3.5mm (Female), RS232 (3-pin), Table Grommet Kit (2 x HDMI Type A, 1 x DisplayPort, 1 x VGA) ▪...
- Page 5 User Manual English Unit Operation Name Description In-built IR Receiver Receive the IR signal from an IR Remote (not included) Power LED Turns red when powered on Signal LEDs Auto: Auto Sensing is active H1&H2: Input HDMI 1 and/or 2 is active DP: Input DisplayPort is active VGA: Input VGA is active Auto Sensing Switch...
- Page 6 User Manual English Name Description HDMI Out HDMI Output Port, Connect to display HDMI In and HDMI In HDMI Input Port, Connect to HDMI source devices DP In DisplayPort Input Port, Connect to DP source device VGA In VGA Input Port, Connect to VGA source device Audio In VGA 3.5mm Audio input IR Out...
-
Page 7: Output Resolution Selection
User Manual English Unit Push Button Control Switching the video signal Manual Switching Press the SOURCE/AUTO-3s button to select the HDMI, DisplayPort or VGA source device Auto switching Hold the SOURCE/AUTO-3s button for at least 3 seconds. This will activate the auto sense switching mode to automatically switch to the active source device. -
Page 8: Display Control
User Manual English Display Control The On and OFF buttons of the unit can be used turn the display on or off, however can also be customized by sending RS232 commands or applying the IR learning function. IR Learning Press the IR Learning button to activate IR Learning mode, the On and Off LEDs will illuminate. Using the unit’s display On/OFF button, press any button and the LED will begin to flash. -
Page 9: User Manual
User Manual English RS232 Command List Communication protocol: RS232 Communication Protocol Baud rate: 9600 Data bit: 8 Stop bit: 1 Parity bit: none System Configuration Command Function Feedback SFUD<CR><LF> Software upgrading Software Update GET VER<CR><LF> Check the software version Version Vx.x.x FRST<CR><LF>... - Page 10 User Manual English EDID Management Command Function Feedback EDID DF<CR><LF> EDID default EDID: Initial EDID MN<CR><LF> Get the EDID data from display EDID: Manage EDID US<CR><LF> Prompts for user-defined EDID file (.bin) EDID: User Baud Rate Setting Command Function Feedback BAUD 115200<CR><LF>...
- Page 11 User Manual English Table Grommet Operation HDMI Table Grommet Name Description Press to select HDMI source device Show Me Press to output a black screen on display Output Black HDMI Input Connect to HDMI source device Connect to GR1 or GR2 port of the unit Control Connect to HDMI input port of unit HDMI Output...
- Page 12 User Manual English VGA Table Grommet Name Description Show Me Press to select VGA source device Output Black Press to output a black screen on display VGA Input Connect to VGA source device Control Connect to the GR4 port of the unit VGA Output Connect to VGA input port of unit...
- Page 13 LINDY Herstellergarantie – Hinweis für Kunden in Deutschland LINDY gewährt für dieses Produkt über die gesetzliche Regelung in Deutschland hinaus eine zweijährige Hersteller- garantie ab Kaufdatum. Die detaillierten Bedingungen dieser Garantie finden Sie auf der LINDY Website aufgelistet bei den AGBs.
-
Page 14: Recycling Information
Geräte müssen den Sammel- und Rückgabesystemen zugeführt werden! Dort werden sie kostenlos entgegen genommen. Die Kosten für den weiteren Recyclingprozess übernehmen die Gerätehersteller. LINDY bietet deutschen Endverbrauchern ein kostenloses Rücknahmesystem an, beachten Sie bitte, dass Batterien und Akkus den Produkten vor der Rückgabe an das Rücknahmesystem entnommen werden müssen und über die Sammel- und Rückgabesysteme für Batterien separat entsorgt werden müssen.
