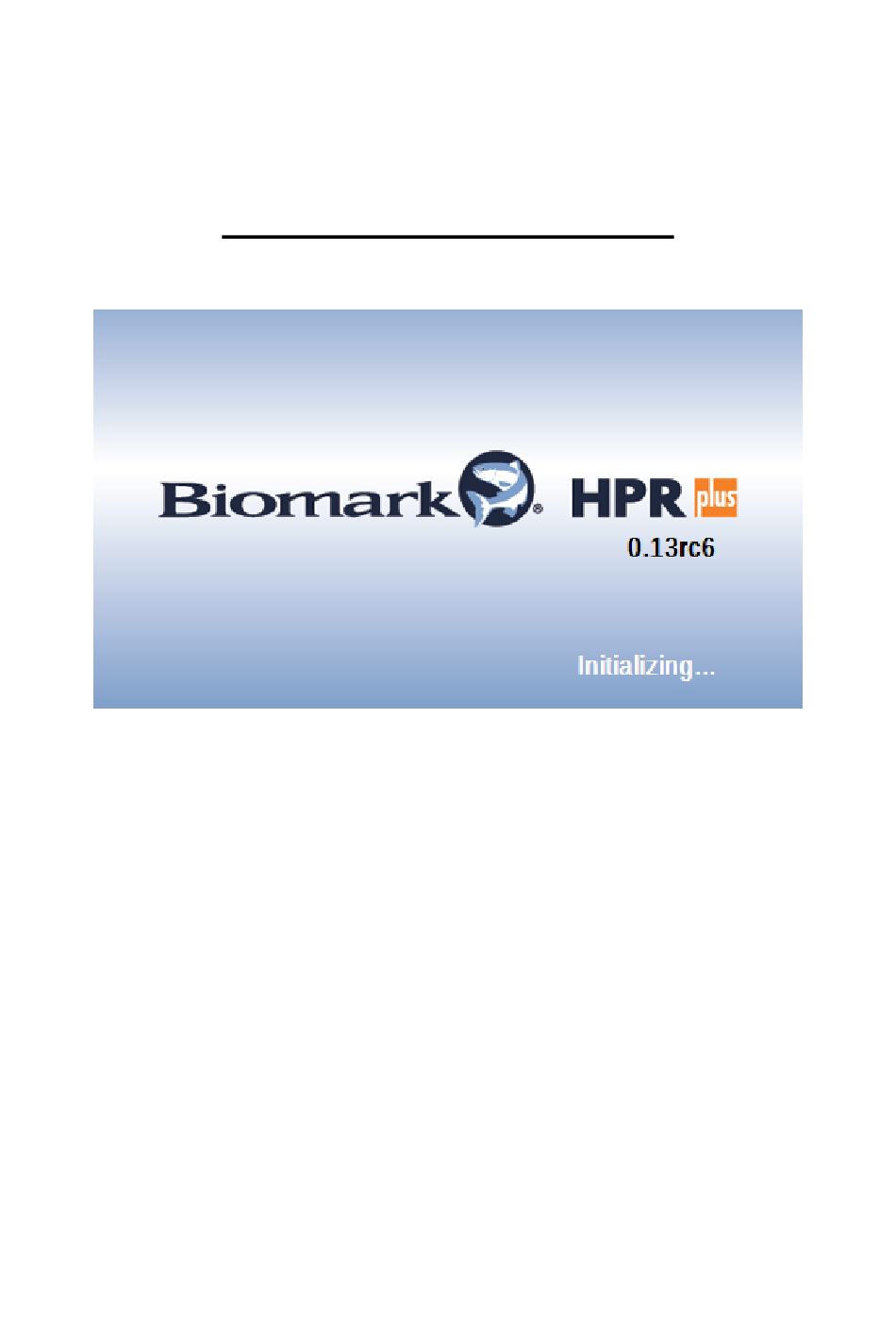

- Page 1 HPR Series Usage Instructions Page 1 of 11...
- Page 2 Warning: Any changes or modifications not expressively approved by Aleis could void the user's authority to operate this equipment. The following antennas are approved to be used with this device: Biomark Handheld 7" Loop Antenna, Model number HPR-ANT Canada This Class B digital apparatus complies with Canadian ICES-003.
-
Page 3: Table Of Contents
Contents The Reader ..............Page 4 Equipment Supplied ..........Page 6 Charging the Reader ..........Page 6 Connecting the Accessories ........Page 6 Switching the Reader On/Off ........Page 6 Reading RFID Tags ..........Page 7 Testing the Unit ............Page 7 Customizing the Reader ..........Page 8 Viewing Tag Numbers ..........Page 10 Deleting Tags ............Page 11 Coping Tag Numbers ..........Page 11... -
Page 4: The Reader
The Reader Read Button Power Button Battery Charging Tag Read Indicator Indicator Reader Page 4 of 11... - Page 5 Antenna Cable Connector USB Connector Battery Charger Plug Reader End Antenna Desk Stand Attached Page 5 of 11...
-
Page 6: Equipment Supplied
Equipment Supplied 1. Biomark HPR Unit, (the Reader) 2. Biomark HPR Loop Antenna 3. Fish-Shaped FDX RFID Test Tag 4. AC to DC Adapter (Elpac Power Systems) 5. 2m Antenna Cable 6. 2m USB Cable 7. USB Stick with PC Application 8. -
Page 7: Reading Rfid Tags
Reading RFID tags with the Reader The reading is automatically started when the unit is powered up and stopped by pushing the "Stop" button on the device. The text at the top of the display will toggle between "Reading" and "Standby" when the " Stop/Read" button is pressed. -
Page 8: Customizing The Reader
To Customize Your Reader • Press Stop Key if Reader is in “Reading” mode. • Press Menu key. • Press Up Arrow for Settings. Page 8 of 11... - Page 9 • Press Up Arrow for Device. Areas which can be customized are: • Reader ID • Time zone • Backlight Brightness • Beep Volume • Auto Sleep Time • Auto Shutdown Time • Timestamp Format • Tag Format • Bluetooth Enable •...
-
Page 10: Viewing Tag Numbers
To View Tag Numbers • Goto Menu. • Files. • Use Up/Down Arrows to Select File. • Press Actions. • Pop Box will appear. Using arrow keys select View Tags All Tags in this file will be displayed. Page 10 of 11... -
Page 11: Deleting Tags
To Delete Tags Use down arrow “Delete”. A message “Are you sure you want to delete Tag File ##?” will appear. This will delete ALL tag numbers in this file. To Copy Tag Numbers to USB Plug USB into cable then plug cable into Reader. Use right arrow to select “Copy to USB”.
