Summary of Contents for Gonet Systems GoBeam 5100

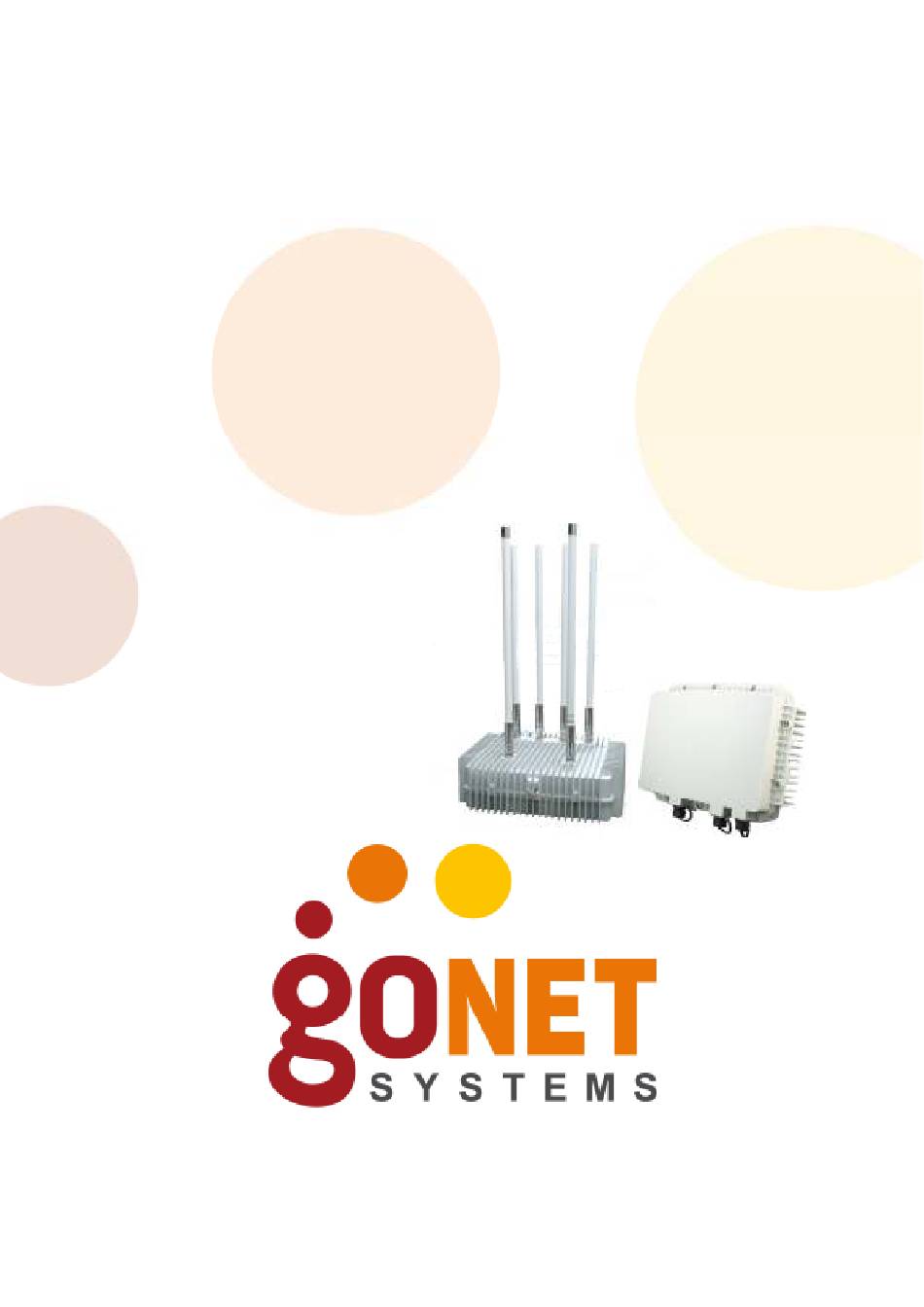

- Page 1 GoBeam 5100/6100 Installation Guide...
- Page 2 This page is intentionally left blank.
- Page 3 GoNet Systems Ltd. This includes, but is not limited to, transcription into any form of computer system for audio, text, print, or visual retrieval.
- Page 4 Any changes or modifications not expressly approved by GoNet Systems could void the user's authority to operate the equipment. The antennas used for this transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. GoBeam 5100/6100 Installation Guide...
- Page 5 Do not touch hot surfaces of the system. Touching a hot surface may result in serious personal injury, including burning of skin or flesh. The GoBeam 5100/6100 is intended to be • grounded. Ensure that the GoBeam 5100/6100 is connected to earth ground during normal use.
-
Page 6: Table Of Contents
Hardware and Connectors Installation Tools ......11 Mounting Adapters ............. 11 Mounting Brackets .............. 13 Mounting the GoBeam 5100/6100 on a horizontal pole ... 15 Mounting the GoBeam 6100 on a vertical pole ....... 15 Installing the Safety Cable ..........16 Assembling the Optional Mesh Antennas .......... - Page 7 Mounting Kit Part List ............9 Table 5. Mounting Tools and Equipment ........11 Table 6. GoBeam 5100 Mesh Antenna Kit Part List ......18 Table 7. GoBeam 6100 Mesh Antenna Kit Part List ......18 Table 8. Antenna Mounting Tools ..........19 Table 9.
- Page 8 This page is intentionally left blank. GoBeam 5100/6100 Installation Guide...
-
Page 9: Introduction
Interference mitigation that includes patented 3G & Wi-Fi channel filter enables the GoBeam 5100/6100 access points to be co- located with 3G BTS without performance degradation for the AP or the 3G BST. GoBeam access points deliver a winning business value by enabling cellular operators to leverage their existing network assets and reduce CAPEX and OPEX. -
Page 10: Gobeam 5100
GoBeam 5100 The GoBeam 5100 delivers street-level coverage and provides capacity enhancements in dense metro areas over an 802.11b/g/n channel, while meshing traffic over an 802.11a/n radio. The GoBeam 5100 delivers Omni-directional (360 ) coverage while retaining full xRF smart antenna engine functionality for enhanced capacity and range. -
Page 11: Gobeam 6100
Connectors Kit Optional 802.11a/n 5Ghz 10dBi Omni Mesh Antenna P/N: MBW- ANT-5810 (5.8Ghz) or P/N: MBW-ANT-5410 (5.4Ghz) 802.11a/n 4.9Ghz 8.5dBi Omni Mesh Antenna P/N: MBW- ANT-4910 (For model GoBeam 6100J (4.9) only) Power Injector with power cable GoBeam 5100/6100 Installation Guide... -
Page 12: Gobeam 5100/6100 Safety Information
The purpose of the lightning protection is to protect people and equipment located indoors from lightning that might strike the GoBeam 5100/6100 or its outdoor cables. Therefore, the lightning protector device should be installed indoors, as close as possible to the point where the cables enter the building. -
Page 13: Information De Sécurité Pour Gobeam 5100/6100
Le paratonnerre peut aussi être installé en extérieur à la condition que les câbles a l’intérieur du bâtiment soient protégés des éclairs entre le point d‘accès et l’entrée du bâtiment Vérifier que la prise de terre est partagée. GoNet Systems met a disposition à la vente un paratonnerre. Codes d'installation Ce dispositif doit être installé... -
Page 14: Installation
Conclude the site survey with a detailed plan of the GoBeam system deployment. The system deployment plan should include GoBeam 5100/6100 mounting points and the routes for the power and backhaul cables. GoBeam 5100/6100... -
Page 15: Assembling The Gobeam 5100 Antennas
Assembling the GoBeam 5100 Antennas The GoBeam 5100 supports either four or six antennas. Four Wi-Fi antennas used for user access, which operate on • the 2.4 GHz band, marked A1 to A4 (MBW-ANT-2407S). Two optional antennas are used for the mesh networking •... -
Page 16: Gobeam 5100 Mesh Antennas
The GoBeam 5100/6100 mounting consists of the following stages and should be performed in the following order: 1. Connect the GoBeam 5100/6100 unit to the brackets using the ‘L’ adaptor. 2. Secure the mounting brackets to a streetlight arm, wall, or pole. -
Page 17: Table 4. Mounting Kit Part List
Table 4 lists the universal mount parts. Differences between the GoBeam 5100/6100 are indicated. Table 4. Mounting Kit Part List Item No. Description Picture Wall/Pole Bracket Clamping Bracket ‘L’ Adapter Wall/Pole Mount ‘T’ Adapter Wall/Pole Mount Hex Bolt M8x70 Hex Bolt M8x40... - Page 18 Item No. Description Picture Safety Cable Antenna Support Plate GoBeam 5100/6100 Installation Guide...
-
Page 19: Hardware And Connectors Installation Tools
Installation to a horizontal pole requires using the ‘L’ adapter. Installation to a vertical pole requires using the ‘T’ adapter. To assemble the ‘L’ adaptor [C] to the GoBeam 5100/6100 unit: Attach the ‘L’ adapter to the GoBeam 5100/6100 using an •... -
Page 20: Figure 4. Mount 'T' Assembly
Attach the ‘T’ adapter to the GoBeam 6100 using an M8x25 • hex bolt [G], a spring washer [I], and a flat washer [H], as illustrated in Figure 4. Flat Washer Spring Washer Hex Bolt “T” Adapter Figure 4. Mount ‘T’ Assembly GoBeam 5100/6100 Installation Guide... -
Page 21: Mounting Brackets
(11 kg) and the wind load at a wind velocity of 165 mph (264 km/h) is 66.1 lbs (30 kg). Lorsque vous montez la GoBeam 5100/6100, le poteau ou le montage mural doit supporter d'un minimum de 61.6 lbs (28 kg). En outre, le montage sur le poteau ou sur le mur doit appuyer les surcharges dues au vent de la GoBeam 5100/6100 (par exemple, 24.2 lbs (11 kg) pour la vitesse du vent de... - Page 22 2. Place the wall/pole bracket [A] at the appropriate location where you wish to place the unit. Using the four holes at the corners of the bracket, mark the location where the fasteners need to be installed. 3. Install the four fasteners in the wall. GoBeam 5100/6100 Installation Guide...
-
Page 23: Mounting The Gobeam 5100/6100 On A Horizontal Pole
Installation on a horizontal pole requires using the ‘L’ adapter. To mount the GoBeam 5100/6100 unit to a horizontal pole: 1. After assembling the brackets, mount the GoBeam 5100/6100 unit on to the bracket as shown in Figure 6. -
Page 24: Installing The Safety Cable
120 inch-lbs of torque. Installing the Safety Cable Once the GoBeam 5100/6100 unit is mounted, install the safety cable. 1. Wrap the safety cable around the pole and insert the mounting plate through the cable loop. -
Page 25: Assembling The Optional Mesh Antennas
Safety Cable Bolts Figure 8. GoBeam 5100 Safety Cable Installation Safety Cable Bolts Figure 9. GoBeam 6100 Safety Cable Installation Assembling the Optional Mesh Antennas GoBeam 5100/6100 Installation Guide... -
Page 26: Table 6. Gobeam 5100 Mesh Antenna Kit Part List
The Mesh Antennas are optional. For the GoBeam 5100, assemble Mesh the mesh antennas at the same time as the other antennas. For Antennas the GoBeam 6100, assembly of the antennas will usually be done after the L-bracket is mounted on the pole. -
Page 27: Installation Tools
Insert the connector through the hole in the bracket. c) Reassemble the lock washer and nut to the connector. d) Tighten the nut to 45 inch-lbs of torque. Figure 10. Attaching Antenna Cables to L-Bracket GoBeam 5100/6100 Installation Guide... -
Page 28: Mounting The L-Bracket To The Chassis
1. Screw the antenna into place by hand by rotating the antenna at its metallic base. The antenna should rotate easily. 2. Tighten the antenna by hand only. Do not apply excessive force by using any tool, as this may damage the antenna and connector. GoBeam 5100/6100 Installation Guide... -
Page 29: Cable Connections
• functions. Power over Ethernet (PoE) Cable – Supplies 48 VDC power • to the GoBeam 5100/6100 unit and a 10/100 Ethernet connection to a wired network. RS-232/RJ45 Console Cable – Provides a connection from • the GoBeam 5100/6100 unit to a console (laptop computer) for configuration. -
Page 30: Cable Installation Tools
Table 9 lists the GoBeam 5100/6100 Connectors Kit parts: Table 9. Connectors Kit Part List Item Description Picture Ring Terminal Ground Screw Lock Washer Waterproof RJ45 connector Cable Installation Tools The following special tools are required to install and connect cables related to the GoBeam 5100/6100. -
Page 31: Grounding Cable
Grounding Cable Connect a grounding wire to the grounding screw at the side of the GoBeam 5100/6100 unit, near the grounding icon. A 10 AWG grounding cable is required to ground the GoBeam 5100/6100 unit. GoBeam 5100 GoBeam 6100 Figure 13. Grounding Connection To ground the GoBeam 5100/6100 unit: 1. -
Page 32: Power Over Ethernet (Poe) Connection
100 meters. The following diagram illustrates how the PoE cable should be assembled prior to connecting it to the GoBeam 5100/6100 unit: Figure 14. Ethernet Cable Connector Table 11. PoE 10/100 Ethernet Cable Connector and Pinout... -
Page 33: Figure 15. Ethernet 10/100 Mbps Connection
For 1G, use the Eth 1000 port as shown in Figure 16. 5. Connect the AC power to the power injector. The following diagrams illustrate the wiring from the power injector to the GoBeam 5100/6100 unit. 120/220 Ethernet Port Sealed RJ45... -
Page 34: Serial Connection
Serial Connection Figure 17 illustrates the CLI cable connections used to connect the GoBeam 5100/6100 to a notebook computer. This connection is typically used for the initial configuration. For more information regarding the configuration, see the GoBeam CLI Configuration Guide. -
Page 35: Power Up And Software Configuration
To verify communications when installing the GoBeam 5100/6100 unit, the Mesh-Gateways must be installed and powered up first. The LEDs on the GoBeam 5100/6100 unit indicate the status of communications between the GoBeam 5100/6100 unit and the network. See Table 14 for more information on the LED indicators. -
Page 36: Terminology
The operational status of the GoBeam – 5100/6100 unit is normal. Red – The GoBeam 5100/6100 unit is in a failure state. Unlit – There is no power to the unit. Green When the LED is on, there is a communication –... -
Page 37: Wiring Specifications
Table 16. Console Port Signaling & Cabling with DB-9 Adapter Console Port RJ45 - RJ45 RJ-45 to DB-9 Console (DTE) Straight Cable Terminal Adapter Device Signal RJ45 Pin RJ45 Pin RJ45 DB-9 Signal connection connection connection connection connection GoBeam 5100/6100 Installation Guide...
