Thomas Regout BalanceBox 400 Mounting Instruction

Mounting to a brick wall
Hide thumbs Also See for BalanceBox 400:

Advertisement

Quick Links

Download this manual
Mounting a BalanceBox®400 to a brick wall

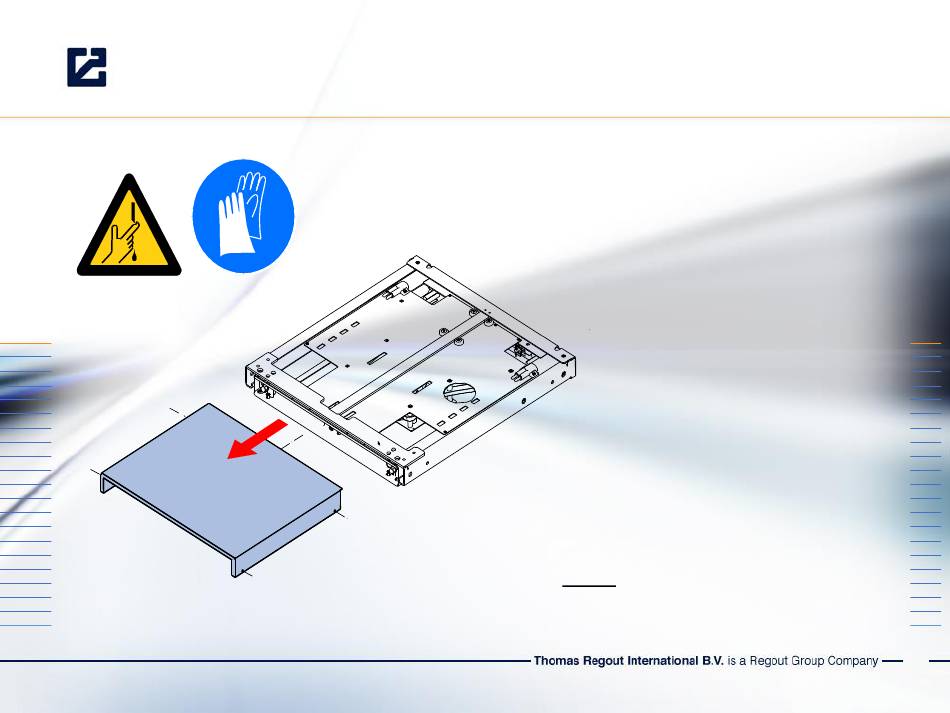

Unpack the BalanceBox®400
and remove the Wall frame
cover and its bag of screws.
Slide the cover out at the top.
NOTE: the cover is NOT included
with the BalanceBox®400H

Advertisement

loading
Need help?

Need help?

Do you have a question about the BalanceBox 400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thomas Regout BalanceBox 400

Summary of Contents for Thomas Regout BalanceBox 400

  • Page 1 Mounting a BalanceBox®400 to a brick wall Unpack the BalanceBox®400 and remove the Wall frame cover and its bag of screws. Slide the cover out at the top. NOTE: the cover is NOT included with the BalanceBox®400H...
  • Page 2 Mounting a BalanceBox®400 to a brick wall MOBILE STAND MOUNTING LOCK SCREW HOLE 11.8" 16" Unpack the BalanceBox®400 Take the wall bracket out of the box Note the slotted/slanted holes for level wall mounting. Round holes for locking and mobile stand / floor support mounting.
  • Page 3 Mounting a BalanceBox®400 to a brick wall Hole for mobile stand Use the indicated hole for mounting on the Mobile stand...
  • Page 4 Mounting a BalanceBox®400 to a brick wall Measure the mounting height 1700 to 1800 mm from the floor. from the floor And mark it...
  • Page 5 Mounting a BalanceBox®400 to a brick wall Using a level, mark the horizontal position of the other hole level to the first hole. (distance 406mm / 16”)
  • Page 6 Mounting a BalanceBox®400 to a brick wall Mark the position of both holes at a distance of 406mm /16”...
  • Page 7 Mounting a BalanceBox®400 to a brick wall 406mm/ 16” Mark the position of both holes at a distance of 406mm /16”...
  • Page 8 Mounting a BalanceBox®400 to a brick wall Drill the holes in the brick wall, use a 10 mm drill for plastic plugs and 8mm diameter screws, or appropriate drill for other type wall anchors.
  • Page 9 Mounting a BalanceBox®400 to a brick wall Drill the holes in the brick wall, use a 10 mm drill for plastic plugs and 8mm diameter screws, or appropriate drill for other type wall anchors.
  • Page 10 Mounting a BalanceBox®400 to a brick wall Insert the plug or wall anchor. Mounting hardware used depends on the type of wall. Hardware is not included.
  • Page 11 Mounting a BalanceBox®400 to a brick wall Now mount the BalanceBox® wall bracket using the diagonal slotted holes. Do not tighten fully...
  • Page 12 Mounting a BalanceBox®400 to a brick wall Now mount the BalanceBox® wall bracket using the diagonal slotted holes. Do not tighten fully...
  • Page 13 Mounting a BalanceBox®400 to a brick wall Level the wall bracket And tighten both screws...
  • Page 14 Mounting a BalanceBox®400 to a brick wall Level the wall bracket And tighten both screws...
  • Page 15 Mounting a BalanceBox®400 to a brick wall Level the wall bracket And tighten both screws...
  • Page 16 Mounting a BalanceBox®400 to a brick wall Lift the BalanceBox® onto the hooks of the wall bracket...
  • Page 17 Mounting a BalanceBox®400 to a brick wall Lift the BalanceBox® onto the hooks of the wall bracket...
  • Page 18 Mounting a BalanceBox®400 to a brick wall Lift the BalanceBox® onto the hooks of the wall bracket...
  • Page 19 Mounting a BalanceBox®400 to a brick wall Tighten the lock screw on both sides, make sure it moves into the wall bracket and the BalanceBox® can NOT be lifted off the hooks and is secure on the wall.
  • Page 20 Mounting a BalanceBox®400 to a brick wall Tighten the lock screw on both sides, make sure it moves into the wall bracket and the BalanceBox® can NOT be lifted off the hooks and is secure on the wall.
  • Page 21 Mounting a BalanceBox®400 to a brick wall Tighten the lock screw on both sides, make sure it moves into the wall bracket and the BalanceBox® can NOT be lifted off the hooks and is secure on the wall.
  • Page 22 Mounting a BalanceBox®400 to a brick wall Always align the BalanceBox vertically! Avoid it crashing into the wall during use and noise from misalignment.
  • Page 23 Mounting a BalanceBox®400 to a brick wall Adjust the two screws at the bottom inside to level the BalanceBox® to the wall...
  • Page 24 Mounting a BalanceBox®400 to the Mobile stand Floor support NOTE: When mounting the BalanceBox® to the Mobile stand or floor support, or when using the Tilt feature always use the bottom mounting positions in addition to the wall bracket! Mobile stand...
  • Page 25 Mounting a BalanceBox®400 to a brick wall Mount the wall frame cover by sliding it in at the top between the wall frame and the application frame. Tighten the screws NOTE: the cover is NOT included with the BalanceBox®400H...
  • Page 26 Mounting the Vesa bracket to the BalanceBox®400 200-800 7.75"-31.5" 1.18" 33.85" Vesa bracket is specific for mounting flatscreens to the BalanceBox® - Metric hardware 4, 6 and 8 mm is included - Various holes for anti theft steel cable provided...
  • Page 27 Mounting the Vesa bracket to the BalanceBox®400 Mount both horizontal plates to the BalanceBox® together with the BalanceBox® side covers. Use 8 mm (12mm/½” length max!) hex. buttonhead screws and a 5mm alan key M8 screws longer than 12mm/ ½” will cause BalanceBox®...
  • Page 28 Mounting the Vesa bracket to the BalanceBox®400 Mount both vertical profiles to the Flatscreen vesa connection Use the metric 4, 6 or 8 mm screws provided (length 12mm/ ½”) or fasteners /length as specified by screen manufacturer. NOTE: round holes are the top of the profiles...
  • Page 29 Mounting the Vesa bracket to the BalanceBox®400 Lift the screen, with the vertical profiles mounted, on to the horizontal plates mounted earlier on the BalanceBox® Make sure hooks on the top should be engaged fully on both sides. A two-man job! NOTE: shift the screen left/right to center it on the BalanceBox®...
  • Page 30 Mounting the Vesa bracket to the BalanceBox®400 Tighten the 6 mm buttonhead screws from the bottom to secure the screen on the BalanceBox® Use a 4 mm alan key, preferably a screwdriver style tool as shown.
  • Page 31 Setting the springs on a BalanceBox®400 Balancing: Springs are always fully tightened for safety. Use a drill driver and 13 mm socket, rotate counter clockwise (loosen) Do 3 seconds left and 3 seconds right until the application starts to lower. Now tighten until balanced...
