Thomas Regout BalanceBox 650 Mounting Instruction

Mounting to a brick wall
Hide thumbs Also See for BalanceBox 650:

Advertisement

Quick Links

Download this manual
Mounting a BalanceBox®650 to a brick wall
Unpack the BalanceBox®650
Remove the application frame
cover (optional)

Advertisement

loading
Need help?

Need help?

Do you have a question about the BalanceBox 650 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thomas Regout BalanceBox 650

Summary of Contents for Thomas Regout BalanceBox 650

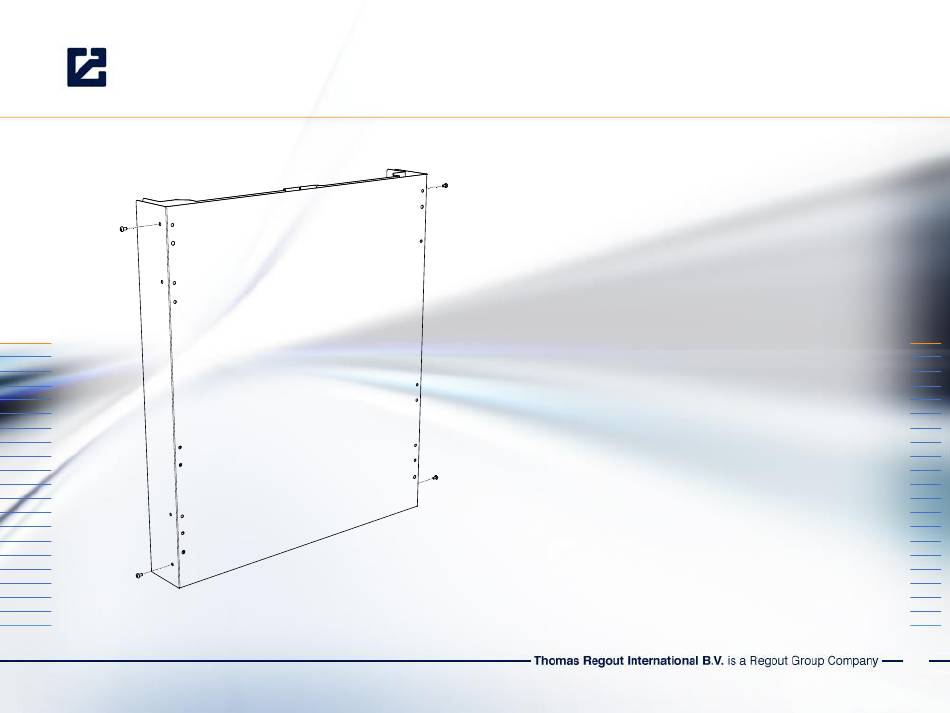

  • Page 1 Mounting a BalanceBox®650 to a brick wall Unpack the BalanceBox®650 Remove the application frame cover (optional)
  • Page 2 Mounting a BalanceBox®650 to a brick wall Remove the wall frame covers: Undo the screws front (1) and side (2) and slide out to the top (3).
  • Page 3 Mounting a BalanceBox®650 to a brick wall Remove the wall bracket (4): Undo the screws left and right and remove the bracket.
  • Page 4 Mounting a BalanceBox®650 to a brick wall = 260 = = 360 = = 700 = Calculate the mounting height of the BalanceBox®650 wall = 700 = bracket at the bottom. = 600 =...
  • Page 5 Mounting a BalanceBox®650 to a brick wall Measure the mounting height 1000 to 1500 mm from the floor. from the floor And mark it...
  • Page 6 Mounting a BalanceBox®650 to a brick wall Using a level, mark the horizontal position of the other holes level to the first hole. (distance 750 mm)
  • Page 7 Mounting a BalanceBox®650 to a brick wall Mark the position of the first hole...
  • Page 8 Mounting a BalanceBox®650 to a brick wall 50 mm Mark the position the second hole at 50 mm (2”)
  • Page 9 Mounting a BalanceBox®650 to a brick wall 600 mm Mark the position of the third hole at 600 mm (23,6”)
  • Page 10 Mounting a BalanceBox®650 to a brick wall 50 mm Mark the position of the fourth hole at 50 mm (2”)
  • Page 11 Mounting a BalanceBox®650 to a brick wall 700 mm 27.5” 50 mm 600 mm 50 mm 24” Mark the position of the fourth hole at 50 mm (2”)
  • Page 12 Mounting a BalanceBox®650 to a brick wall Drill the holes in the brick wall, use a 14 mm drill for plastic plugs and 10 mm diameter screws, or appropriate drill for other type wall anchors.
  • Page 13 Mounting a BalanceBox®650 to a brick wall Drill the holes in the brick wall, use a 14 mm drill for plastic plugs and 10 mm diameter screws, or appropriate drill for other type wall anchors.
  • Page 14 Mounting a BalanceBox®650 to a brick wall Insert the plug or wall anchor. Mounting hardware used depends on the type of wall. Hardware is not included.
  • Page 15 Mounting a BalanceBox®650 to a brick wall Mount the wall bracket to the wall. Use 10mm wall anchors or screws.
  • Page 16 Mounting a BalanceBox®650 to a brick wall Lift the BalanceBox® in place (warning: 46 kg, 2 people!) Hold it there...
  • Page 17 Mounting a BalanceBox®650 to a brick wall Mark the mounting holes at the top of the BalanceBox® Take the BalanceBox® down and put it aside, drill the holes...
  • Page 18 Mounting a BalanceBox®650 to a brick wall Lift the BalanceBox®650 in place again (warning: 46 kg, 2 people!) And tighten the screws at the top.
  • Page 19 Mounting a BalanceBox®650 to a brick wall Put the security screws back securing the wall bracket to the BalanceBox®. Do not tighten the screws yet...
  • Page 20 Mounting a BalanceBox®650 to a brick wall Always level the BalanceBox® vertically! Avoid it crashing into the wall during use and noise from misalignment.
  • Page 21 Mounting a BalanceBox®650 to a brick wall Level the BalanceBox at the bottom Tighten the security screws (1) on both sides.
  • Page 22 Mounting a BalanceBox®650 to a brick wall Mount the wall frame covers (3): Slide them in from the top, make sure the tabs at the bottom (5) slide in to the slots. Tighten the screws front (1) and side (2)
  • Page 23 Mounting a BalanceBox®650 to a brick wall Mount the application frame cover (optional), tighten the 2 screws on either side at the indicated positions.
  • Page 24 Mounting the vesa bracket to a BalanceBox®650 200 - 800 7.75"- 31.5" 1.22" 36.2" 481A21...
  • Page 25 Mounting the vesa bracket to a BalanceBox®650 Mount the horizontal profiles to the BalanceBox® 650. NOTE: top and bottom profiles are different 200 - 800 7.75"- 31.5" Top: short tab Bottom: longer tab M6 x 12mm (8x) 1.22" 36.2"...
  • Page 26 Mounting the vesa bracket to a BalanceBox®650 Mount the vertical profiles to the touchpanel. Metric hardware 6, 8 and 10 mm included NOTE: holes at the top...
  • Page 27 Mounting the vesa bracket to a BalanceBox®650 Lift the panel on to the BalanceBox® NOTE: Flat against the brackets, then lower it HEAVY: NOT A ONE MAN JOB...
  • Page 28 Mounting the vesa bracket to a BalanceBox®650 Center the touchpanel on the BalanceBox® Now secure the assembly by inserting the security screws from the bottom and tightening them. Use a 4 mm alan key.
  • Page 29 Balancing a BalanceBox®650 Balance the weight on the BalanceBox® 650 by loosening (rotate counter clockwise) the 4 outermost bolts. Use a drill driver and a 13 mm socket. Undo each bolt 5 seconds in turn until the panel is balancing. Fine-tune the balance...
