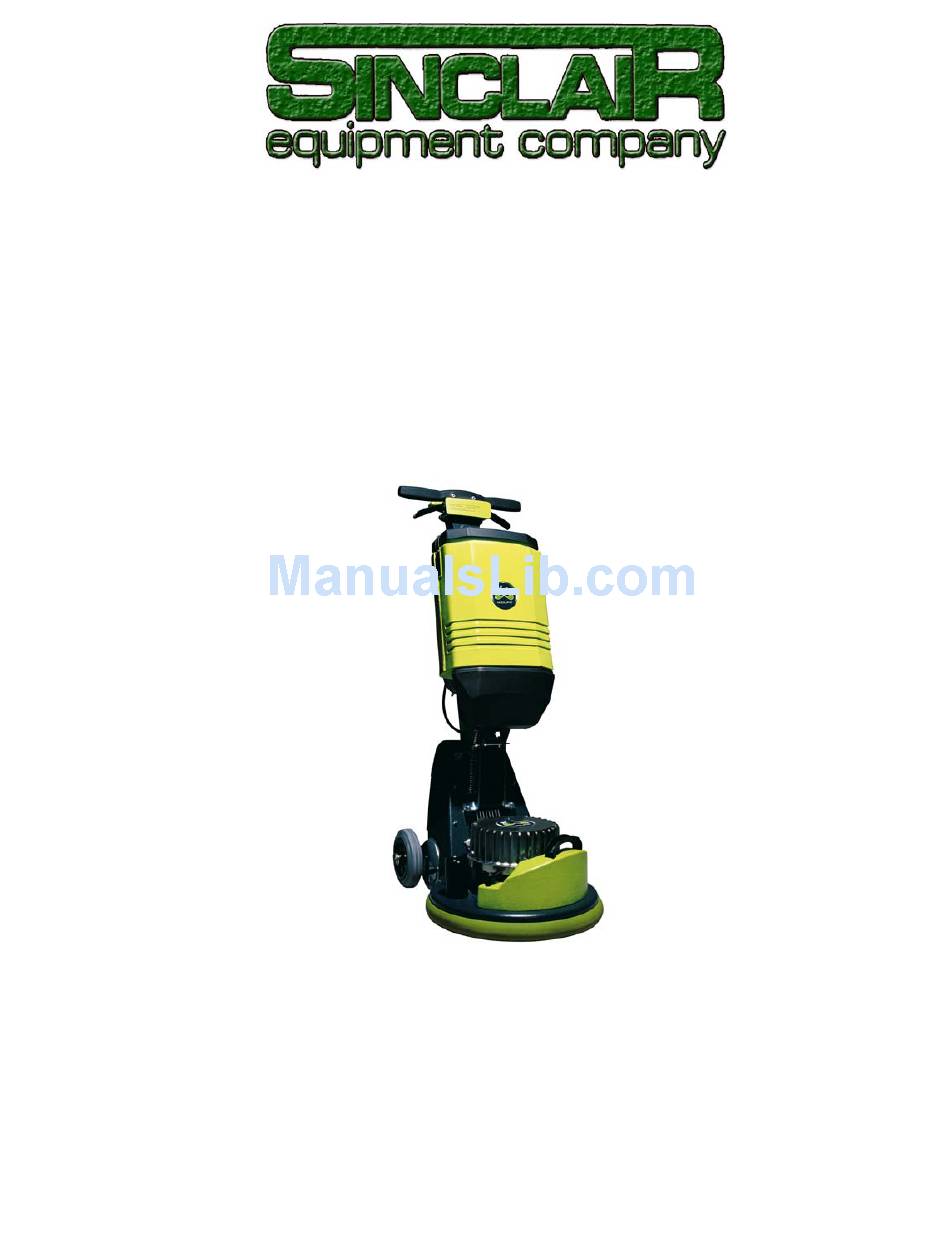

- Page 1 Mambo Surface Prep Operating Manual Read before use and keep safe (800) 624-2408 (530) 626-9386 Fax (530) 626-5144 6686 Merchandise Way Diamond Springs, Ca 95619 www.sineqco.com...
-
Page 2: Table Of Contents
Technical Data Safety Safety Instructions Maintenance Vacuum Unit Trouble Shooting Spare Parts/Schematics Table of Contents Page 3 Page 3 Page 3 Page 5 Page 7 Page 7 Page 8 Page 9... -
Page 3: Technical Data
Hand/Arm-Vibration Weight Comes with: 2.0 Safety The Sinclair Mambo Surface Prep is state of the art designed and meets all standard safety requirements. 3.0 Safety Instructions Disconnect the power supply before any maintenance is carried out. Use only recommended mounting discs and brushes. The mounting discs must have a plain surface. Use only genuine Sinclair discs and brushes. - Page 4 Please ensure that any user of the machine is familiar with these instructions before work begins. 3.2 Danger while working with the machine The Mambo Surface Prep is designed to the highest technical standards. Incorrect use can be dangerous! Use this machine only: - As instructed in this operating manual.
-
Page 5: Maintenance
3.4 Genuine Spare Parts Spare parts and accessories are manufactured uniquely for the Mambo Surface Prep. It must be emphasized that parts obtained from unauthorized sources must not be used. Sinclair Equipment Company cannot be held responsible for the performance of or any damage arising from the use of machines in which genuine spare parts have not been used. - Page 6 Use: - Mount discs or brushes as described above. - Put the handle in working position with the big lever (1) at the back. - We recommend to position the hand grip to the height of the users hip. - Lift the handle slightly, to make sure the machine stands horizontally.
-
Page 7: Vacuum Unit
For transportation, fold the handle forwards. For carrying the machine, use the grips at the front and at the back. 6.0 Vacuum Unit for the Mambo Surface Prep Mounting the Vacuum Micropac Assemble the vacuum unit from the front of the Handle of the machine. -
Page 8: Troubleshooting
Mounting or changing the paper bags of the Vacuum Micropac Unit Paper bags are used for the vacuum unit Micropac. Replacement paper bags, 20 piece, Item # M13498. Release the 2 snap fasteners (B) and remove lid (C). Ensure inner cloth filter is clean. Ensure rubber molding (D) is firmly fitted around top rim of container. -
Page 9: Spare Parts/Schematics
Back panel Support chain wheel Handle support Additional weight Cylindrical screw M10 x 70 Wheel hub Square nut Counter Sink Screw M8 x 14 Cylindrical screw M4 x 12 Lever (handle adjustment) Handle mounting Chain wheel Recessed grip Oval head screw M4 x 10 Split pin Thumb nut Power socket... - Page 10 Screw 5/16" Plate Cylindrical screw M4 x 20 Connection Handle Clamping lever Intermediate flange Upper flange Lower flange Cache Coupling flange Distance washer Counter sunk screw M8 x 12 Counter sunk screw M8 x 18 Knob Two-hand switch Lever Base support Switch housing Press plate Foam grip...
- Page 13 MA MB O HA ND L E...
- Page 16 Not responsible for lost job or down time. In no event shall SINCLAIR be liable for any indirect, incidental, or consequential damages from the sale or use of the product. This disclaimer applies both during and after the term of this warranty.
