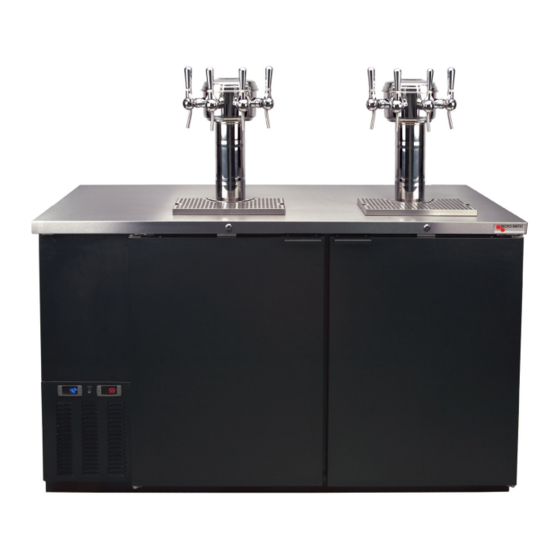

Summary of Contents for Micro Matic MDD23W Series
- Page 1 MDD23W Series MDD58W Series Pro-Line Wine Dual-Temperature Wine Keg Storage & Dispensing PLEASE READ BEFORE USE Before getting started please read this user manual and at all times follow the important safety instructions. Installation, Use & Maintenance Guide...
- Page 2 Pro-Line Wine Wine On Tap Keg wine is the smart choice. Fine varietal wines are now in kegs. Serve wine at the optimal temperature the vintner intended it to be enjoyed. Pro-Line Wine units feature dedicated dual-temperature zones: one for whites (45°F) and one for reds (55°F).
-
Page 3: Table Of Contents
Pro-Line Wine Table Of Contents Receiving & Inspecting .................Page 3 Location ......................Page 4 Installation ....................Page 4 • Install Wine Font • Install Keg Tapping Kit Specifi cations & Dimensions ..............Page 5 Keg Temperature Storage & Serving ..........Page 7 Thermostat Adjustment ...............Page 9 Data Plate ....................Page 13 Electrical Connections ...............Page 13 Troubleshooting ...................Page 14... -
Page 4: Receiving & Inspecting
Pro-Line Wine Receiving & Inspecting Upon receiving your new Micro Matic Pro-Line Wine dispenser, check the package and the unit for any damages that may have occurred during transportation. Visually inspect the exterior of the package. If damaged, open and inspect the contents with the carrier. -
Page 5: Location
Pro-Line Wine Location • Be sure the location chosen has a fl oor strong enough to support the total weight of the unit and contents. • Recommended to use a professional installation company. • For the most effi cient operation, be sure to provide good air circulation around the unit. •... -
Page 6: Specifications & Dimensions
Pro-Line Wine Specifications & Dimensions MDD58W Series Running Amps Capacity of 20 Liter Kegs 8 (4 per zone) Cubic Feet Per Side Condenser HP Hole for Wine Font Voltage 115/60/1 Hole Diameter 3" Plug Type NEMA-5-15P Color-coded Digital Thermostats 2 (Blue LED-Whites & Red LED-Reds) Cord Length Temperature Range–Whites 42–48°F (5.5–8.8C) - Page 7 Pro-Line Wine Specifications & Dimensions MDD23W Series Running Amps Capacity of 20 Liter Kegs 4 (2 per zone) Cubic Feet Per Side Condenser HP Hole for Wine Font Voltage 115/60/1 Hole Diameter 3" Plug Type NEMA-5-15R Color-coded Digital Thermostats 2 (Blue LED-Whites & Red LED-Reds) Cord Length Temperature Range–Whites...
-
Page 8: Keg Temperature Storage & Serving
Pro-Line Wine Keg Temperature: Storage & Serving Storage It is important to understand that when the keg of wine is delivered it must be properly stored. • White wine must be stored inside the cooler as soon as possible, as it may take as many as 24 hours for the temperature to be reduced to the desirable range. - Page 9 Pro-Line Wine MDD23W Air & Wine Temperatures This chart shows that air temperature cycles, but keg (liquid) temperature remains consistent. www.micromatic.com • 1 ( 866 ) 327-4159 Installation, Use & Maintenance...
-
Page 10: Thermostat Adjustment
Pro-Line Wine Adjusting the Thermostat The Pro-Line Wine dispenser is designed to maintain your wine keg temperature within the most desirable range of 45° to 55°F (depending on the varietal). You can expect the Pro-Line unit to maintain temperature with the proper temperature control setting and in a normal environment. If a diff erent setting is desired, follow these instructions to adjust the thermostat. - Page 11 Pro-Line Wine How To See The Set Point 1. Push and immediately release the key, the set point will be displayed. 2. Push and immediately release the key or wait about five (5) seconds to return to normal display. How To Change The Set Point 1.
- Page 12 Pro-Line Wine Parameters for MDD23W Thermostat For Blue For Red Parameter Description Display Display Set point Differential Minimum set point Maximum set point Thermostat probe calibration Evaporator probe presence Evaporator probe calibration Outputs activation delay at start up Anti-short cycle delay Compressor ON time with faulty probe Compressor OFF time with faulty probe Temperature measurement units...
- Page 13 Pro-Line Wine Parameters for MDD58W Thermostat For Blue For Red Parameter Description Display Display Set point Differential Minimum set point Maximum set point Thermostat probe calibration Evaporator probe presence Evaporator probe calibration Outputs activation delay at start up Anti-short cycle delay Compressor ON time with faulty probe Compressor OFF time with faulty probe Temperature measurement units...
-
Page 14: Data Plate
Pro-Line Wine Data Plate The data plate is located inside the unit, near the top front left corner. Under no circumstances should the data plate be removed from the unit. The data plate is essential to identify the particular features of the unit and is of great benefit to installers, operators and maintenance personnel. -
Page 15: Troubleshooting
Pro-Line Wine Troubleshooting Sometimes, working failures are due to simple causes which can be solved by the user. Before asking for the help of a qualified technician, you have to do some verifications. These fail- ures are not covered by the warranty: 1. -
Page 16: Maintenance
Pro-Line Wine Maintenance Cleaning the Cabinet • Proper cleaning of stainless steel requires a soft cloth, never use steel pads, wire brushes or scrapers. • Cleaning solutions need to be alkaline or non-chloride cleaners. Any cleaner containing chlorides will damage the protective film of the stainless steel. Chlorides are also commonly found in hard water, salts, household and industrial cleaners. -
Page 17: Cleaning Condensor Coil
Pro-Line Wine Cleaning Condenser Coil • Clean the condenser coil every three months. A dirty condenser will reduce the performance of the cooling system. • Do not block airflow to the perforated panel and do not operate the Pro-Line Wine unit in environments above 100˚F. -
Page 18: Wiring Diagrams
Pro-Line Wine Wiring Diagram – MDD23W Series Standard Color Green Dark Blue Brown Light Blue Brown Dark Blue Yellow Black White White Black Black Striped Black White www.micromatic.com • 1 ( 866 ) 327-4159 Installation, Use & Maintenance... - Page 19 Pro-Line Wine Wiring Diagram – MDD58W Series Standard Color Green Dark Blue Brown Light Blue Brown Dark Blue Yellow Black White White Black Black Striped Black White www.micromatic.com • 1 ( 866 ) 327-4159 Installation, Use & Maintenance...
-
Page 20: Parts Listing
Pro-Line Wine Parts Listing Item Part # Description MDD23W MDD58W Castors & Legs 603313M0013 Castor w/o B D.3” 603313M0014 Castor with B D.3” Compressors 602121M0073 Compressor EM55HNX 602101M0082 Start Kit Compressor EM55HNX 604701M0002 Filter 25gr. 602101M0020 Compressor NE6187Z 602101M0035 Start Kit Compressor NE6187Z 604701M0001 Filter 40gr. - Page 21 Pro-Line Wine Parts Listing Item Part # Description MDD23W MDD58W Controllers 602135M032 Thermometer Digital 602135M0033 Thermometer Digital 602125M0034 Inner Side Panel Heater 602135M026 Probe Panels M10917M0549 Bottom Panel M10917M0621 Inner Side Panel M10917M0567 Side Panel M10917M0133 Back Panel M10917M0164 Back Panel M10913M0500 Top Panel 603305M0022...
- Page 22 Pro-Line Wine Notes: www.micromatic.com • 1 ( 866 ) 327-4159 Installation, Use & Maintenance...
-
Page 23: Warranty
Warranty Claims Procedure: If there is a defect in material or factory workmanship covered by this by the User to Micro Matic within thirty (30) days after the date the Warranty reported to Micro Matic during the period the applicable User discovered, or should have discovered, the claim. - Page 24 • 1 ( 866 ) 327-4159 01270-D1212 ©2012 Micro Matic USA, Inc.
