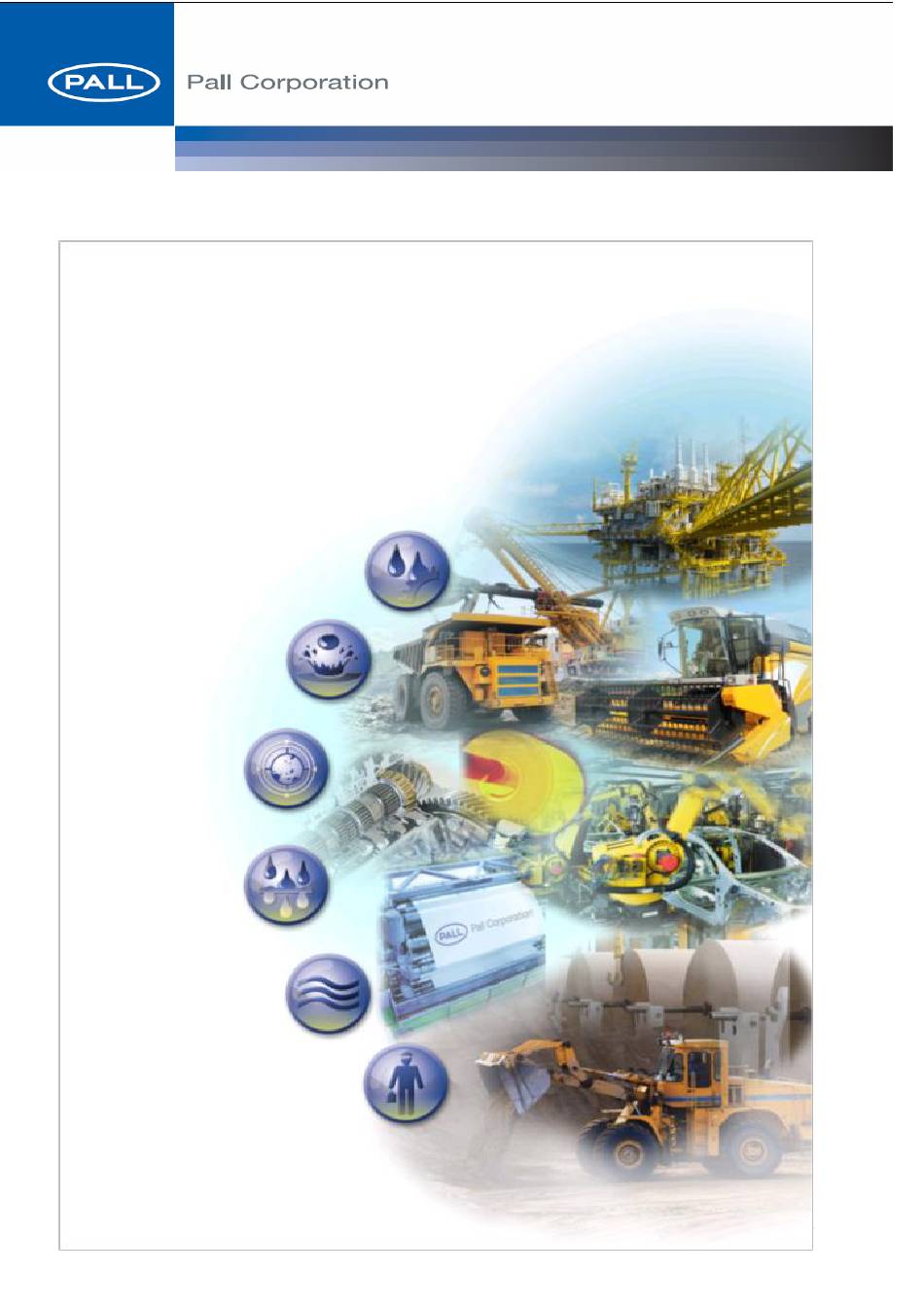

- Page 1 ® Athalon CM & Crixus™ User Manual...
-
Page 2: Table Of Contents
® Athalon CM & Crixus™ User Manual Table of Contents Introduction 1.1. Safety Information 1.2. System Components 1.2.1. WiFi Gateway 1.2.2. Fluid Interface 1.2.3. Sensor Manifold 1.2.4. Filter Node Installation & Setup 2.1. Filter Node Installation 2.2. Providing a WiFi Access Point ®... -
Page 3: Introduction
® Athalon CM & Crixus™ User Manual Introduction ® The Athalon CM Platform Modular Filter Network is comprised of five main components (SKU’s) and a portfolio of process sensors. The modular design allows the ® end user maximum flexibility to efficiently integrate Athalon CM into their equipment arrangement without the expense of redundant components. -
Page 4: Safety Information
1.2. Pall System Components Pall Corporation is supplying a system comprised of WiFi Gateways, Filter Nodes, and Fluid Interfaces to monitor the health of the hydraulic fluid within the system. Filter Nodes and Fluid Interfaces monitor the state of the fluid directly through attached sensors, and report wirelessly to the Wi-Fi Gateway. -
Page 5: Wifi Gateway
The Wi-Fi Gateway does not contain any user-serviceable parts. Changes or modifications not expressly approved by Pall Corporation could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. - Page 6 To ensure the safe operation of the equipment the WiFi Gateway must be powered from an NEC Class 2 power supply that is certified as a Limited Power Source (LPS). Pall Corporation requires that certified electricians complete all wiring connections from the Wi- Fi Gateway to the external power supply, and from the external power supply to the AC power mains.
-
Page 7: Fluid Interface
(2) his device must accept any interference received, including interference that may cause undesired operation. The Fluid Interface does not contain any user-serviceable parts. Changes or modifications not expressly approved by Pall Corporation could void the user's authority to operate the equipment. - Page 8 To ensure the safe operation of the equipment, Fluid Interfaces must be powered from an NEC Class 2 power supply that is certified as a Limited Power Source (LPS). Pall Corporation requires that certified electricians complete all wiring connections from Fluid Interfaces to the external power supply, and from the external power supply to the AC power mains.
- Page 9 ® Athalon CM & Crixus™ User Manual The DC supply must meet the following requirements for proper operation of the Sensor Node: 1. DC Output Voltage Range: 24 VDC +/-10% 2. DC Output Current: 1.0 A Minimum 3. Supply must be an NEC Class II power supply that is certified as a Limited Power Source (LPS) The cabling used to connect the external DC supply to the Sensor Node DC power connector must comply with the following requirements:...
- Page 10 ® Athalon CM & Crixus™ User Manual 1.2.2.7. Fluid Properties Sensor The Fluid Property Sensor (FPS) is used to measure the viscosity, density, dielectric constant and temperature of the hydraulic fluid. This sensor connects to the ‘Fluid Sensor’ port where indicated on the port label using the M8 to automotive style connector cable.
-
Page 11: Sensor Manifold
IP 68 to IEC 60529 when assembled Physical Dimensions 30 Hex x 73(H)mm Power Requirement 24V DC Technical Specifications refer to data sheet for Pall Water Sensor (WS12/WS13 Series). 1.2.3. Sensor Manifold 1.2.3.1. Description The sensor manifold is an optional fitting that can be plumbed into a hydraulic... -
Page 12: Filter Node
® Athalon CM & Crixus™ User Manual 1.2.3.2. Specifications Functional Description Specification/Range Manifold (9004D497) 2” O-Ring Boss Per SAE J1926. Port Options 2” BSP (G) to ISO228 Maximum Working Pressure 20 bar (290 psi) Rated Fatigue Pressure 20 bar (290 psi) Seal Material Fluorocarbon Manifold Material... - Page 13 The Filter Node does not contain any user-serviceable parts. Changes or modifications not expressly approved by Pall Corporation could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
- Page 14 To ensure the safe operation of the equipment, Filter Nodes must be powered from an NEC Class 2 power supply that is certified as a Limited Power Source (LPS). Pall Corporation requires that certified electricians complete all wiring connections from Filter Nodes to the external power supply, and from the external power supply to the AC power mains.
- Page 15 Compatibility Petroleum oils and synthetic hydraulic and lubrication fluids. Ingress Rating Electronics IP 65 to IEC 60529 when assembled Technical Specifications refer to data sheet for Pall Part No. RCA222. 1.2.4.7. Athalon Housing Specifications 1.2.4.7.1. Athalon H210 or H310 Filter Housings...
- Page 16 ® Athalon CM & Crixus™ User Manual Split Flange To ISO6162 (Metric) 1” or 1 ¼” 1 ¼” Only Side Manifold Mount. Top Manifold Mount. 1 ¼” Only O-Ring Boss Per SAE J1926. 1 ¼”, 1 ½” or 2” Port Options H310 BSP Thread To ISO228.
-
Page 17: Installation & Setup
The customer site must provide a WiFi access point (2.4 GHz Wi-Fi 802.11 a/b/g/n) that is in range of the gateway. If a WiFi access point is not available, but a wired/Ethernet connection is available at the customer’s site, Pall recommends one of Cisco’s Meraki wireless LANs, such as the MR18 (https://meraki.cisco.com/products/wireless/mr18) indoor access point. -
Page 18: Configuring The Athalon ® Cm Gateway
® Athalon CM & Crixus™ User Manual If a WiFi access point is not available and a wired/ethernet internet connection is not available, Pall recommends CradlePoint’s wireless routers, such as the MBR1200B wireless router with 3G/4G wireless connectivity (https://cradlepoint.com/products/mbr1200b). Wireless routers connect with the internet via mobile broadband service available from carriers in the customer’s region. -
Page 19: Mobile App Troubleshooting
® Athalon CM & Crixus™ User Manual Mobile App Troubleshooting...
