Double seal valve
DELTA SD4-ATEX
Instruction Manual: UK - rev. 0
9. Technical Data

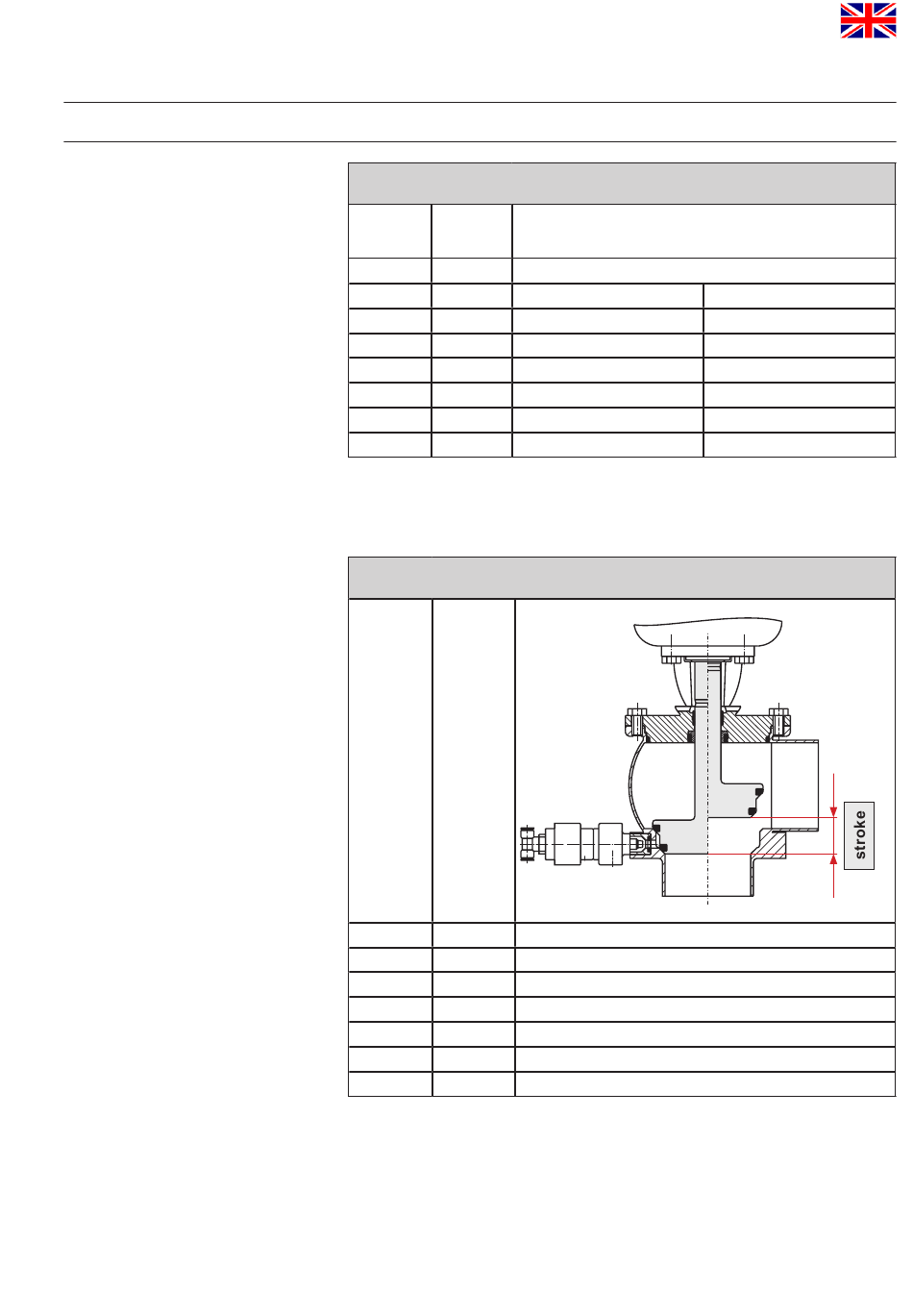

9.3. SD4 Closing times
DN Inch
25 1"
40 1,5"
50 2"
65 2,5"
80 3"
100 4"
Times mentioned are only approximate values from sample measurements.
9.4. SD4 Valve stroke
DN Inch
25 1"
40 1,5"
50 2"
65 2,5"
80 3"
100 4"
Closing times in sec
Pneumatic air pressure 6bar
Hose length 1 m
1 m
1 sec.
1 sec.
1 sec.
1 sec.
1 sec.
1,2 sec.
Stroke
12
25
28
28
28
28
UK
10 m
1,5 sec.
1,5 sec.
1,5 sec.
2,5 sec.
3,0 sec.
3,5 sec.
