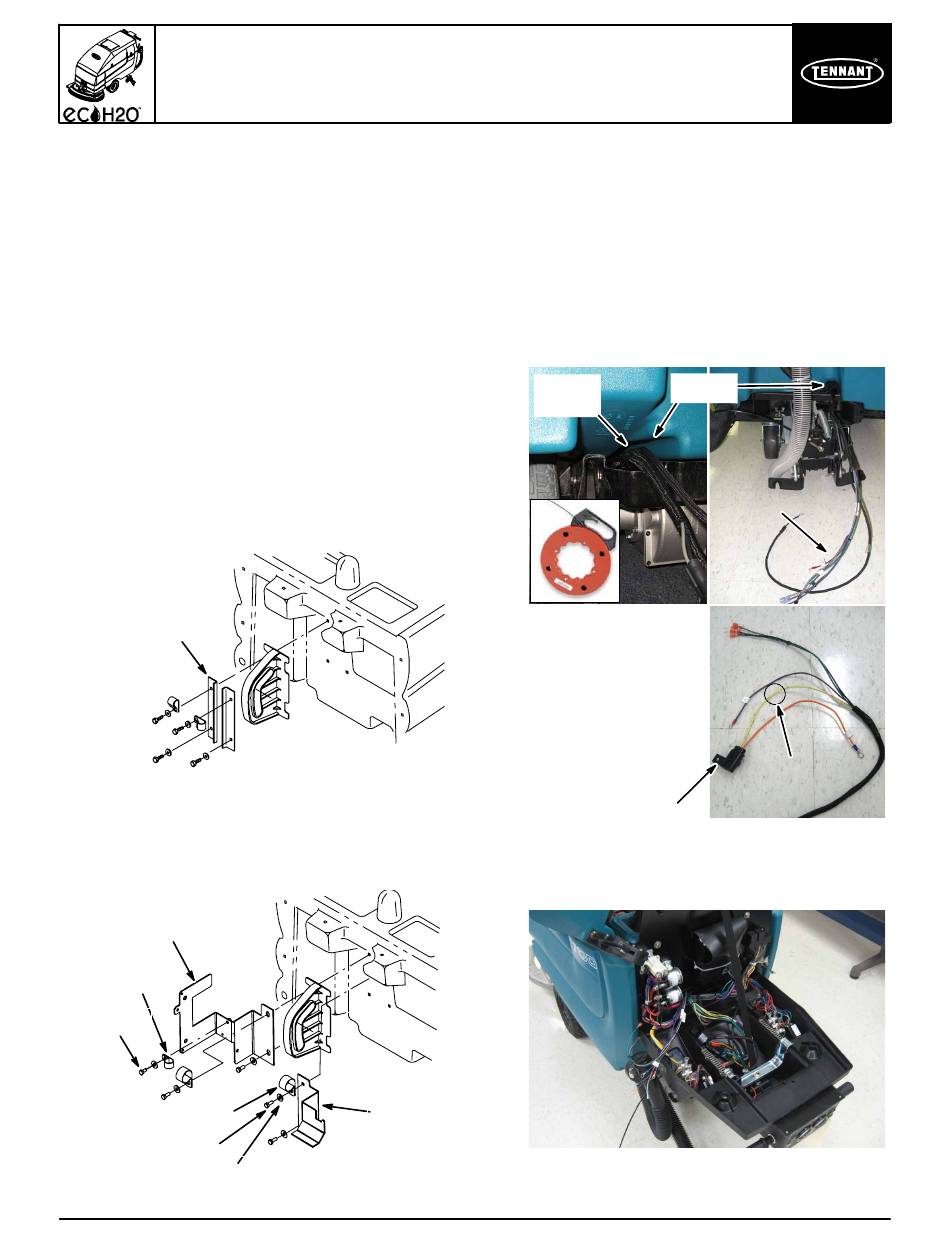

Tennant ec- H2O 5680 Installation Instructions Manual

KIT NO. 9006309--5680, 9006310--5700/5700XP
This kit includes the necessary parts to convert a standard model into an ec- H2Ot model.
INSTALLATION INSTRUCTIONS:
Installation Time: 5 Hours
Special Tools Required: Fish- -Tape to route ec- H2O
harness.

PREPARE MACHINE FOR KIT INSTALL:

1. Drain the solution tank and recovery tank.
2. Park the machine on a level surface. Lower the
scrub head and remove the key.
FOR SAFETY: Before installing kit, disconnect
battery cables.
3. Remove the front shroud.
4. Disconnect the actuator at the scrub head.
5. Remove the actuator roller guide brackets and
discard (Figure 1).
Remove the
two Actuator
Roller Guide
Brackets
6. Install the ec- -H2O module bracket, pump bracket
and clamps as shown (Figure 2).
NOTE: Do not tighten the top screws w/ clamps at
this time. You will need to open the clamps later to
route ec- -H2O wire harness through clamps.
ec- -H2O Module
Bracket [1044803]
Clamp [69234]
M8x1.25x16
Screw [15675]
Clamp (2) [53466]
M8x1.25x20
Screw (4) [12273]
Flat Washer (5) [01685]
9005074 Rev. 01 (07--09)
5680/5700/5700XP
ec- H2O Kit
Fig. 1
ec- -H2O
Pump
Bracket
[1002603]
Fig. 2
Tennant Company
t
INSTALL ec- H2O WIRE HARNESS:
1. Using a Fish--Tape, route the ec- -H2O wire
harness through the harness channel along side
the machine's main wire harness (Figure 3). Pull
the harness from the front of the machine to the
back (Figure 3).
p/n 1044831 -- 5680 ec- -H2O Wire Harness
p/n 1044833 or 1055478 -- 5700 ec- -H2O Wire
Harness
Insert
harness
end here
Fish- -Tape
NOTE: If installing
the 5700 ec- -H2O kit,
cut off the fuse
connector to allow
clearance to route
harness. After
completing step 3
(Fig 5a), reconnect
wire with an
insulated16G
butt--splice
Fuse
connector.
Connector
2. Open the control console to access the internal
wiring (Figure 4). Two screws secure console.
Customer Service: (800) 553--8033 or (763) 513--2850
Page 1 of 7
Harness
Channel
Route this
end of
harness
(5680
harness
shown)
Cut Here
(5700 harness)
Fig. 3
Fig. 4
