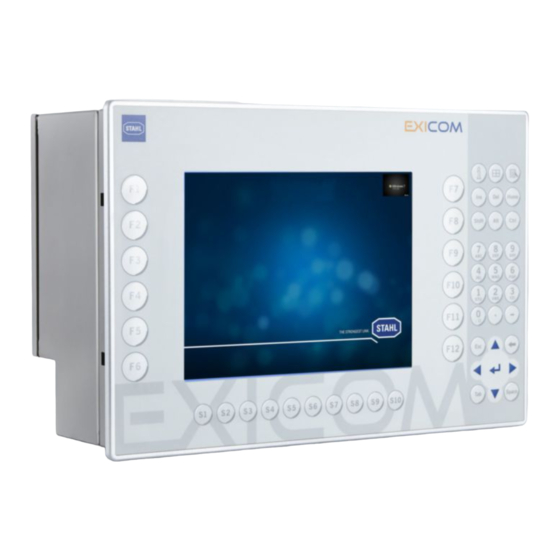

Operating Instructions
Device platform EAGLE
SERIES 300 Operator Interfaces
(valid for HW Revision 3., 2. supplement)
R. STAHL HMI Systems GmbH
HW-Rev. ET-xx6-A-FX:
HW-Rev. ET-xx6-A-TX:
HW-Rev. ET-xx6-A-FX-BT:
HW-Rev. ET-xx6-A-TX-BT:
HW-Rev. ET-3x6-A-FX-BS:
HW-Rev. ET-3x6-A-TX-BS:
Operating Instructions Version:
ET-xx6-A-*
SERIES 400 Panel PC
SERIES 500 Thin Clients
Adolf-Grimme-Allee 8
03.02.12
03.02.22
03.02.16
03.02.26
03.02.17
03.02.27
03.02.14
Issue date:
14.01.2019
D 50829 Köln
Advertisement
Table of Contents
Related Manuals for Stahl ET-xx6-A Series
Summary of Contents for Stahl ET-xx6-A Series
- Page 1 Operating Instructions Device platform EAGLE ET-xx6-A-* SERIES 300 Operator Interfaces SERIES 400 Panel PC SERIES 500 Thin Clients (valid for HW Revision 3., 2. supplement) R. STAHL HMI Systems GmbH Adolf-Grimme-Allee 8 D 50829 Köln HW-Rev. ET-xx6-A-FX: 03.02.12 HW-Rev. ET-xx6-A-TX: 03.02.22 HW-Rev.
-
Page 2: Disclaimer
The terms and names used in this document are registered trademarks and / or products of the companies in question. Copyright © 2019 R. STAHL HMI Systems GmbH. Subject to alterations. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019... -
Page 3: Specific Markings
(e.g. magnifying glasses, telescopes and microscopes) from a distance of less than 100 mm may damage eyesight. (beam output at the emitting diode (TD-A, TD-B) or the fibre optic end). © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 3 of 56... -
Page 4: Table Of Contents
Power supply HMI devices 7.1.1 HMI device terminals 7.1.1.1 Tightening torque Permitted maximum values External, non-intrinsically safe circuits External inherently safe optical interface External intrinsically safe circuits R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 4 of 56... - Page 5 Type RSi1 connection version 1 13.3.1.1 Type RSi1 connection version 2 Maintenance, service 14.1 Damaged sealing 14.2 Servicing 14.3 Saving data with ET-3x6-A-* 14.4 Time function Troubleshooting © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 5 of 56...
- Page 6 17.2.5 Back-up 17.2.6 Switching off / closing down 17.2.7 Data loss 17.3 Defective pixels 17.3.1 Terminology 17.3.2 Display specification Declaration of EC conformity 18.1 Release notes R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 6 of 56...
-
Page 7: Preface
Starting in 2016, a new Intel® Atom™ processor type of the Bay Trail (BT / BS) platform will gradually replace all previous processor types in the HMI devices. This new processor type processes data four times as fast as the previous processors. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 7 of 56... -
Page 8: Activation Pressure Touchscreen
Thin Client via the IP address. The Thin Client system supports both modern technologies such as DVI and USB and older technologies such as VGA and PS/2. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 8 of 56... -
Page 9: Technical Data
21.6 - 28.8 V data memory Current consumption DC 1.2 A Connections via screw terminals, 2.5 mm² (AWG14) green (Ex e) (connection X1) Max. operating voltage U 30 VDC © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 9 of 56... - Page 10 Not used cabel glands must be closed by certified screw plugs or stopping plugs ! Breathing gland The breathing gland is part of the enclosure and is included in the device certification. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 10 of 56...
- Page 11 13.00 / [28.66] 12.60 / [27.78] 17.30 / [38.14] 23.50 / [51.81] Fixing frame 0.6 / [1.32] 0.6 / [1.32] 0.7 / [1.54] 0.9 / [1.98] © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 11 of 56...
-
Page 12: Additionally For Et-3X6-A-* (Operator Interfaces)
Via Windows operating system 3.2.3 All devices starting from hardware revision 03.02.x6 Type of data memory Flash memory M.2 (Solid State Drive - SSD) (internal via SATA) R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 12 of 56... -
Page 13: Additionally For Et-5X6-A-* (Thin Clients)
Intrinsic safety "i" EN 60079-18 : 2015 Encapsulation "m" EN 60079-28 : 2015 Optical radiation "op is" EN 60079-31 : 2014 Protected by enclosures "t" (dust) © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 13 of 56... -
Page 14: Certificates
The IECEx certificate is listed under the following certification number: Certificate number: IECEx TUR 11.0006X You can access all IECEx certificates on the official DOCUMENTATION website of the IEC under their certificate number. http://iecex.iec.ch/iecex/iecexweb.nsf/welcome?openform. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 14 of 56... -
Page 15: Eac (Tr)
The ABS (American Bureau of Shipping) certification is listed under the following certificate number: Certificate number: 15-HG1418766-1-PDA The LR certification is listed under the following certificate number: Certificate number: 11/20035 (E1) © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 15 of 56... -
Page 16: Marking
Ex ia tb [ia ib] IIIC T80°C Db IP66 ET-xx6-A-FX Ex d e ia ib mb [ia ib op is] IIC T4 Gb Ex ia tb [ia ib op is] IIIC T80°C Db IP66 R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 16 of 56... -
Page 17: Power Supply
0,5 Nm bis 0,6 Nm is valid. The stipulated tightening torques of the connection terminals must be NOTICE observed and applied. Again, they must be checked and possibly adjusted before commissioning ! © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 17 of 56... -
Page 18: Permitted Maximum Values
Rated voltage 5 VDC Rated power 100 mW Max. operating voltage U 30 VDC Audio (X3): Rated voltage 5 VDC Max. operating voltage U 253 VAC R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 18 of 56... -
Page 19: External Inherently Safe Optical Interface
The maximum values for group IIB are: 2.69 6.02 F F H and L pairs directly above/underneath each other may be used. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 19 of 56... - Page 20 Reader RSi1 and RSi2 (signal input / output, X8.5-8): The maximum values for group IIC are: 5.36 F F H The maximum values for group IIB are: 5.36 F F R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 20 of 56...
- Page 21 Reader WCR1 and WCR2 (signal input / output, X8.5-8): The maximum values for group IIC are: 5.88 F F H The maximum values for group IIB are: 5.88 F F H © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 21 of 56...
-
Page 22: Type Code
Size code (display) 10.4" display 10.4" display 15" display 19" display Type code Eagle Open HMI (Panel PC) Remote HMI (Thin Client) Device for Zones 1 and 21 R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 22 of 56... -
Page 23: Order Variant
Plug-in module for reader with RS-232 interface *, power supply via HMI device Either the optional second serial interface or a plug-in module for NOTICE readers can be used / ordered. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 23 of 56... -
Page 24: Et-3X6-A-*-Bs (Operator Interfaces)
HMI device ET-3x6-A-aa-BS-bb-Rx-dd-ee-PES Polyester front plate Either the optional second serial interface or a plug-in module for NOTICE readers can be used / ordered. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 24 of 56... -
Page 25: Et-4X6-A (Panel Pc)
Stainless steel front plate (436 and 456 only), NOT SR type Either the optional second serial interface or a plug-in module for NOTICE readers can be used / ordered. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 25 of 56... -
Page 26: Et-4X6-A-*-Bt (Panel Pc)
Stainless steel front plate (436 and 456 only), NOT SR type Either the optional second serial interface or a plug-in module for NOTICE readers can be used / ordered. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 26 of 56... -
Page 27: Et-5X6-A (Thin Client)
ET-5x6-A-aa-bb-cc-VA Stainless steel front plate, NOT SR type Either the optional second serial interface or a plug-in module for NOTICE readers can be used / ordered. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 27 of 56... -
Page 28: Et-5X6-A-*-Bt (Thin Client)
ET-5x6-A-aa-BT-Rx-bb-cc-dd-VA Stainless steel front plate, NOT SR type Either the optional second serial interface or a plug-in module for NOTICE readers can be used / ordered. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 28 of 56... -
Page 29: 10 Safety Advice
The HMI device and any connected equipment must be incorporated into the same potential equalization system (see installation example in the Hardware Manual). An alternative would be to connect only devices that are safely isolated from earth potential. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 29 of 56... -
Page 30: Cautionary Notes
Special conditions The fronts of the HMI devices with a sunlight readable display (type CAUTION code includes “SR”) may be cleaned with a damp cloth only. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 30 of 56... -
Page 31: 11 Installation
The clearance of HMI device terminals to other bare conducting parts (excepting ground) inside the Ex e housing shall be at least 50 mm [0.16 ft]. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 31 of 56... -
Page 32: Cable Glands
Installation 11.2.2 Cable glands The enclosures of HMI devices are fitted with type STAHL 8161/* and type HSK-MZ-Ex cable glands. These are certified for installation in zone 1 and 21 and correspond to the temperature range of the device. -
Page 33: Usage Of The Usb-Interfaces
HMI Systems GmbH, protective elements may become damaged, thus compromising the intrinsic safety of the interfaces. In this case R. STAHL HMI Systems can no longer guarantee the intrinsic safety of the device ! 11.3.2 Usage of external USB devices... -
Page 34: Usb Interfaces
If intrinsically safe devices are connected to the Ex e USB interfaces of the ET-xx6-A-* HMI devices, R. STAHL Systems GmbH cannot ATTENTION guarantee that the intrinsic safety of these devices will continue to apply ! ... -
Page 35: Connection Terminal With Protection Type "E" (Iec/En 60079-7)
The USB device is connected to the mains via other interfaces (e.g. USB / serial converter). Type 2 connection diagram (e.g. hard disk, CD / DVD with power supply) © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 35 of 56... -
Page 36: 12 Assembly And Disassembly
522.5 ± 0.5 mm 412.5 ± 0.5 mm up to 8 mm ET-x56-A-* 165 mm [0.54 ft] [1.71 ± 0.0016 ft] [1.35 ± 0.0016 ft] [0.0087 ft] R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 36 of 56... -
Page 37: 13 Operation
RS-232 CTS/ (optional) Line Out right Audio Ex e Line Out left USB interface, connection type A USB0 I.S. USB1 Ex e USB - USB + © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 37 of 56... - Page 38 DIN VDE 0298. Factors that might require a larger cross section, such as current, increased temperatures, cable bundling, etc. must also be taken into account ! R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 38 of 56...
-
Page 39: Dip Switch Settings S3 And S4
Keying enabled by SW Driver in idle mode Automatic keying Status not permitted !!! COM2 RS-485 Keying enabled by SW Driver in idle mode S4-4 Not assigned © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 39 of 56... -
Page 40: View Connection Compartment
Ethernet link established, LED always on Activity on Ethernet link, LED flashing LD15 green Access to system disk (Solid State, HDD), LED flashing (only for ET-4x6-A-* devices) R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 40 of 56... - Page 41 Operating Instructions ET-xx6-A Operation Back view of ET-xx6-A-* device (without COM2 - for clarity's sake): LED section at ET-xx6-A-* device: © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 41 of 56...
-
Page 42: Connection Of Readers
Type RSi1 connection version 2 In version 2, a maximum of 10.4 V and 220 mA are available for the reader (e.g. the RFIDi-RDR-2-xxx chipcard reader). R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 42 of 56... -
Page 43: 14 Maintenance, Service
All online data is stored on the internal flash card and are therefore also available after the device has been switched off for a long time. According to the current state-of-the-art the flash cards retain stored data for about 10 years. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 43 of 56... -
Page 44: Time Function
The part of all toxic or hazardous substance contained in the homogeneous materials of the HMI devices is below the limit requirements in SJ/T11363-2006. R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 44 of 56... -
Page 45: 17 General Information
Windows operating systems contained in DOCUMENTATION the "TechNote Windows Operating Systems" file located on the CD / DVD / USB stick, which is part of the delivery. © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 45 of 56... -
Page 46: Note On Windows Embedded Operating Systems
For further information regarding this Write Protection (EWF), please refer to the OpenHMI_help_en.chm help file DOCUMENTATION in the "STAHL" folder on the device or on the CD / DVD / USB stick that is included in the delivery. 17.2.2 Windows® 10 IoT Enterprise 2016 LTSB operating system The operating system is based on Windows 10 for PC platforms with 64 bit x86 processors. -
Page 47: Initial Start-Up
After the data has been stored, Windows informs the user that the HMI device can now be switched off. ATTENTION Only switch off the HMI device once you have received this message ! © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 47 of 56... -
Page 48: Data Loss
The endurance of an SSD depends on the number of write cycles (TBW / terabytes written). ATTENTION Writing to the SSD with a simultaneous drop in voltage is most likely going to result in data loss ! R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 48 of 56... -
Page 49: Defective Pixels
R G B R G B R G B R G B R G B R G B R G B R G B R G B R G B R G B R G B © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 49 of 56... -
Page 50: Display Specification
≥ 15 mm ≥ 15 mm between 2 dark dots between 1 bright and ≤ 15 mm ≥ 15 mm ≥ 15 mm 1 dark dot R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 50 of 56... -
Page 51: 18 Declaration Of Ec Conformity
Operating Instructions ET-xx6-A Declaration of EC conformity 18 Declaration of EC conformity © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 51 of 56... -
Page 52: Rcm
Operating Instructions ET-xx6-A Declaration of EC conformity 18.1 R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 52 of 56... - Page 53 Operating Instructions ET-xx6-A Declaration of EC conformity © R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 53 of 56...
-
Page 54: 19 Release Notes
Addition of "textbox caution" in section "Maintenance, overhaul" with information according to "decommission the device" Addition of RCM declaration of conformity Formal changes Version 03.02.14 Addition of CNEX certification Formal changes R. STAHL HMI Systems GmbH / OI_ET_xx6_A_RS2_en_V_03_02_14.docx / 14.01.2019 Page 54 of 56... - Page 56 R. STAHL HMI Systems GmbH Adolf-Grimme-Allee 8 D 50829 Köln Phone: (switchboard) +49 (0) 221 76 806 - 1000 (Hotline) - 5000 Fax: - 4100 E-mail: (switchboard) office@stahl-hmi.de (hotline) support@stahl-hmi.de www.r-stahl.com www.stahl-hmi.de...
