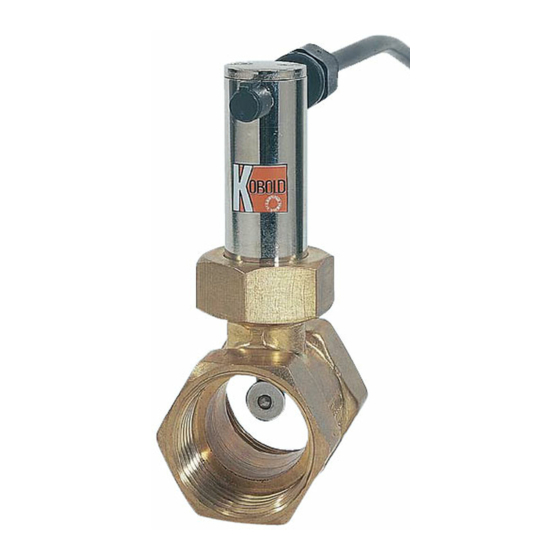

Paddle flow monitor
Hide thumbs Also See for PSR series:
Table of Contents

Advertisement

Quick Links

Download this manual
Operating Instructions
for
Paddle Flow Monitor
Model: PSR-..., PSE-...

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSR series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kobold PSR series

Summary of Contents for Kobold PSR series

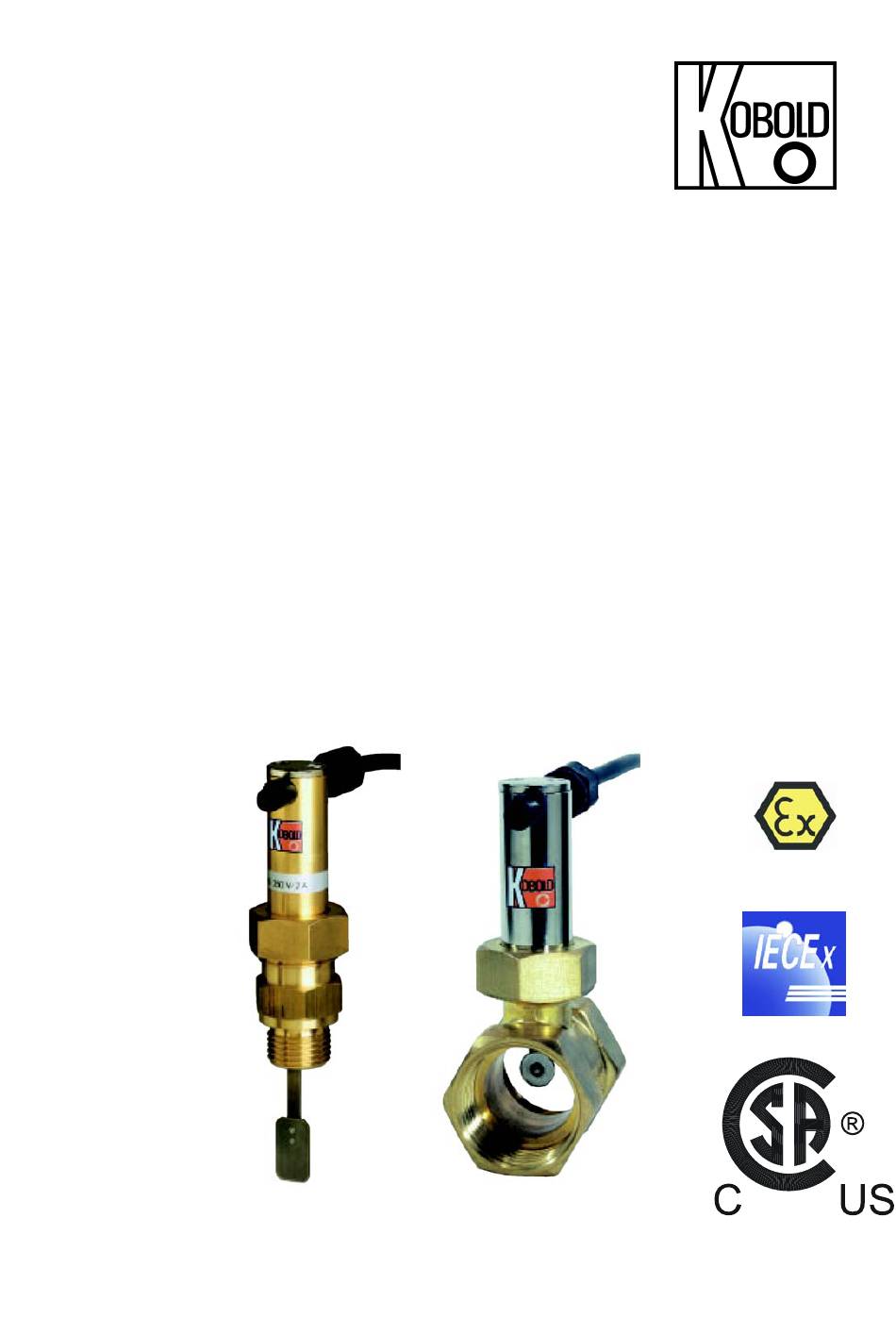

  • Page 1 Operating Instructions Paddle Flow Monitor Model: PSR-..., PSE-...

  • Page 2: Table Of Contents

    EU Declaration of Conformance ..............18     Examination Certificate ................20     IECEx Certificate ..................22     Manufactured and sold by: Kobold Messring GmbH Nordring 22-24 DE-65719 Hofheim Tel.: +49(0)6192-2990 Fax: +49(0)6192-23398 E-Mail: info.de@kobold.com Internet: www.kobold.com page 2 PSR/PSE K17/0618...

  • Page 3: Note

    PSR/PSE 2. Note Please read these operating instructions before unpacking and putting the unit into operation. Follow the instructions precisely as described herein. The devices are only to be used, maintained and serviced by persons familiar with these operating instructions and in accordance with local regulations applying to Health &...

  • Page 4: Instrument Inspection

    PSR/PSE 3. Instrument Inspection Instruments are inspected before shipping and sent out in perfect condition. Should the damage to a device be visible, we recommend a thorough inspection of the delivery packing. In case of damage, please inform your parcel service/ forwarding agent immediately, since they are responsible for damages during transit.

  • Page 5: Operating Principle

    PSR/PSE 5. Operating Principle The KOBOLD flow monitors of series PSE and PSR are used where economical, reliable flow monitors are indicated. Depending on the flow velocity respectively flow rate, the baffle plate is deflected and moves the permanent magnet via the balance arm into the switching range of the reed contact mounted outside of the flow media.

  • Page 6: Notes

    PSR/PSE The medium temperature limit area is fixed as follows: Medium Temperature Model NBR-seal FPM-seal PSR-2132**; -20..+70 °C -20...+110 °C 25 bar PSR-2140 all other -20...+70 °C -20...+110 °C 100 bar 6.2. Notes The following points must be observed when using in hazardous area: •...

  • Page 7: Electro-Static

    PSR/PSE 6.5. Electro-Static The devices are to be protected against electrostatic unloading. The case of the device is to be earthed electro-statically (for example with metal pipes). Besides, the local potential balance is to be established according to local regulations. The wires must be protected in the installation in the hazardous area “0”...

  • Page 8: Mechanical Connection

    PSR/PSE 7. Mechanical Connection Before installation  Please check that the actual flow matches with the switching range of the instrument.  Ensure that the allowable maximum operating pressure and operating temperature of the instruments will not be exceeded.  Remove all transport packing and be sure that no packing material is left in the instrument.

  • Page 9: Electrical Connection

    PSR/PSE 8. Electrical Connection  Ensure that the electrical supply lines are powerless.  Connect the connection cable with your supply cable.  The contact housing is made of glass-fibre reinforced plastic. It is insulated in accordance with VDI 0720 Class II; separate insulation measures are not necessary.
  • Page 10 PSR/PSE Switch Point Adjustment When adjusting the switch point, the clamp plate in the top of the upper housing must be loosened, enabling the switching unit to be repositioned. For ease of adjustment, the switching unit is marked with a white and a red arrow. The front edge of the clamp plate serves as the adjustment marker.

  • Page 11: Maintenance

    PSR/PSE Contact protection The reed contact may be damaged if the switch ratings are exceeded, especially while switching inductive or capacitive loads. This can cause unsafe conditions. By using a contact protection/isolation relay (e.g.: Model MSR 10), this problem can be overcome and the lifespan and switch rating of the reed contact can be extensively increased.

  • Page 12: Technical Information

    PSR/PSE 11. Technical Information 11.1. General Tolerance of switching points: ±15 % Medium temperature: -20…+70 °C (NBR – seal) -10…+110 °C (FPM – seal), option Ambient temperature: -20 °C to 50 °C Max. pressure: 25 bar (PSR-1132.., PSR-1140..) 100 bar (all others) Protection: IP 65 Preferred mounting position:...

  • Page 13: Model Label For Iecex- And Atex-Version

    Contact tube polyamide, glass-fibre-reinforced Cable PVC (standard 1.5 m) 11.2. Model Label for IECEx- and ATEX-Version KOBOLD Messring GmbH, Nordring 22-24, 65719 Hofheim, Deutschland Model: PS*-** *** *** ** CE 0158 Year of Production F-Nr. **** BVS 09 ATEX C *** IEC EX BVS 09.****...

  • Page 14: Order Codes

    PSR/PSE 12. Order Codes Standard switching Model ranges Qmax. Falling Nominal Rising flow flow L/min. Material Connection Contact Cable version size Material water rate L/min. rate stainless brass water L/min. steel water R08= G 1/4 PSR-1108 PSR-1208 PVC-cable 2.3 – 4.7 1.6 –...
  • Page 15 PSR/PSE Standard switching ranges Model for pipes Qmax Falling with Cable Rising flow flow m³/h Material Connection Contact diameter Material version rate L/min. rate water stainless (mm) brass water L/min. steel water 68 - 90 61 - 83 PVC-cable 183 - 250 170 - 233 R15= G 1/2 1 = 1.5m...
  • Page 16 PSR/PSE Special switch ranges Model Qmax. Nominal Cable Rising Falling L/min. Connection Contact size Material Material version flow rate flow rate water Brass st. steel L/min. L/min. Wasser Wasser PVC-cable 4.7 – 6.5 3.4 – 6.1 DN 8 PSR-2108 2.. PSR-2208 2..

  • Page 17: Recommended Spare Parts

    PSR/PSE 13. Recommended Spare Parts Paddle (only PSR-…) 2.1) Spare Normally open contact 2.2) Spare Changeover contact 2.3) Conversion kit: N/O for Changeover contact (only PSR-11...) consisting of top (sleeve) brass + 1 Changeover contact 2.4) Conversion kit: N/O for Changeover contact (only PSR-12...) consisting of top (sleeve) stainless steel + 1 Changeover contact 3.1) FPM O-Rings...

  • Page 18: Eu Declaration Of Conformance

    PSR/PSE 15. EU Declaration of Conformance We, Kobold-Messring GmbH, Hofheim-Ts, Germany, declare under our sole responsibility that the product: Paddle Flow Switch Model: PSR-x / PSE-x to which this declaration relates is in conformity with the standards noted below: EN 61010-1:2010 Safety requirements for electrical equipment for measurement, control and laboratory use.
  • Page 19 One or more of the standards and technical provisions references in the certificate have been replaced by new editions. KOBOLD declares in their sole responsibility and testing, that the changed requirements are either not applicable...

  • Page 20: Examination Certificate

    PSR/PSE 16. Examination Certificate page 20 PSR/PSE K17/0618...
  • Page 21 PSR/PSE PSR/PSE K17/0618 page 21...

  • Page 22: Iecex Certificate

    PSR/PSE 17. IECEx Certificate page 22 PSR/PSE K17/0618...
  • Page 23 PSR/PSE PSR/PSE K17/0618 page 23...
  • Page 24 PSR/PSE page 24 PSR/PSE K17/0618...
