Simplicity 1694769 Parts Manual

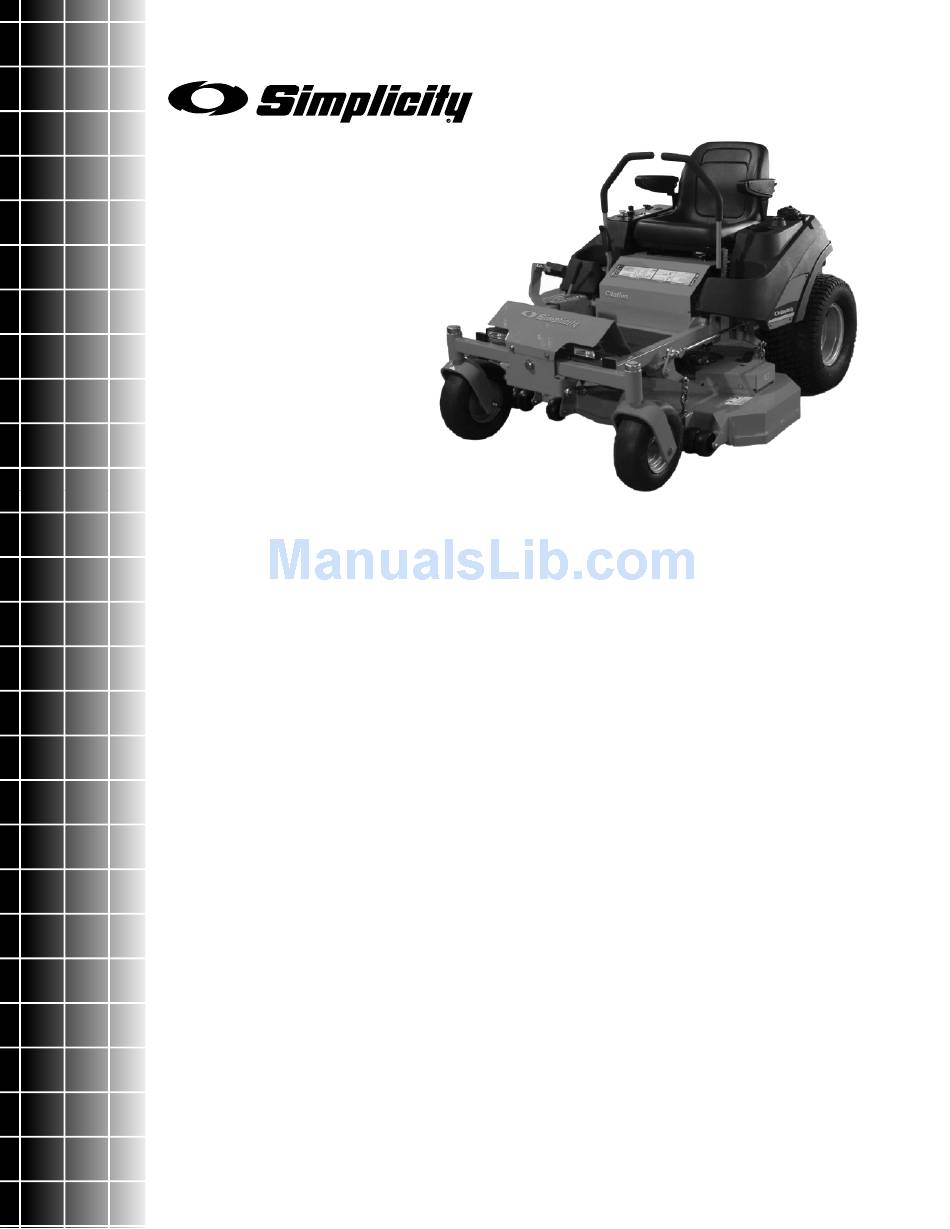

Citation series zero turn riders & mower decks parts manual
Hide thumbs Also See for 1694769:
Table of Contents

Advertisement

Quick Links

Series Zero Turn Riders & Mower Decks
21HP Product
Mfg. No.
Description
1694768
Citation, 21HP Zero Turn Rider
23HP Product
Mfg. No.
Description
1694769
Citation, 23HP Zero Turn Rider
Mower Decks
Mfg. No.
Description
1694770
48" Mower Deck
1694771
52" Mower Deck
Citation

Parts Manual

TP 400-4197-00-CI-S
03/2005
Rev.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1694769 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Simplicity 1694769

Summary of Contents for Simplicity 1694769

  • Page 1: Parts Manual

    Series Zero Turn Riders & Mower Decks 21HP Product Mfg. No. Description 1694768 Citation, 21HP Zero Turn Rider 23HP Product Mfg. No. Description 1694769 Citation, 23HP Zero Turn Rider Mower Decks Mfg. No. Description 1694770 48" Mower Deck 1694771 52" Mower Deck...

  • Page 3: Table Of Contents

    PRODUCT COMPONENTS Main Frame & Front Caster Group ... Rear Bumper Group ... Engine & PTO Group ... Instrument Panel Group ... 10 Pump Drive Group ... Motion Control Group ... 14 Hydraulic Group ... Hydraulic Tank Mount Group ... Electrical Group - Early Models ...

  • Page 4: Main Frame & Front Caster Group

    Main Frame & Front Caster Group 197frm0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 5 COTTER PIN, 1/4" x 1-1/4" 5020884 BEARING, Tapered Roller 5025160 WASHER, 3/4" SAE Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 6: Rear Bumper Group

    Rear Bumper Group 197bmp0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 7 BOLT, 1/2-20 X 1-1/4" 5025397 NUT, 1/2-20 Hex Nylock Flange 5025158 WASHER, 1/2" SAE Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 8: Engine & Pto Group

    Engine & PTO Group 197engb0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 9 Footnotes * See your local Briggs & Stratton distributor for parts and service. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 10: Instrument Panel Group

    Instrument Panel Group 197ins0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 11 SCREW, Allen Head, 1/4-20 x 1/2 1703799 SWITCH, Headlight 5025035 NUT, 3/8-24 Hex Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 12: Pump Drive Group

    Pump Drive Group 197pdr0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 13 PULLEY, Pump Drive 5022587 BUSHING, Tapered Hub 5045475 SPACER, .45 X 1.88 X .38 Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 14: Motion Control Group

    Motion Control Group 197mcg0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 15 5025354 NUT, M8-1.25 Hex Nylon Lock 5025355 NUT, M8-1.25 Hex Serrated Flange Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...
  • Page 16 Motion Control Group 197mcg0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 17 MOTION CONTROL HANDLE, RH 503847055 MOTION CONTROL HANDLE, LH HYDRAULIC PUMP (See Hydraulic Group) Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 18: Hydraulic Group

    Hydraulic Group 197hyd0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 19 HOSE, Hydraulic, 6" 5025128 NUT, 3/8-16 Hex Serrated Flange 502501310 BOLT, 3/8-16 X 1-1/4" Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 20: Hydraulic Tank Mount Group

    Hydraulic Tank Mount Group 197hyt0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 21 503861747 HYDRAULIC TANK MOUNT 503861746 MOUNT BRACKET HYDRAULIC TANK (See Hydraulic Group) Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 22: Electrical Group - Early Models

    Brake Switches The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. To Engine Starter UNDER SEAT PLATE LH Control Lever Switch (See Motion Control Group...
  • Page 23 BOLT, 1/4-20 x 3/4 5025126 NUT, 1/4-20 Hex Serrated Flange 5044014 CABLE, Ground Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 24: Electrical Group - Later Models

    Brake Switches The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. To Engine Starter UNDER SEAT PLATE LH Control Lever Switch (See Motion Control Group...
  • Page 25 BOLT, 1/4-20 x 3/4 5025126 NUT, 1/4-20 Hex Serrated Flange 5044014 CABLE, Ground Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 26: Seat Mount & Floor Group

    Seat Mount & Floor Group 197stm0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 27 5061754 BLOCK, DECK LIFT SUPPORT 503849976 SUPPORT, SEAT PLATE 503849953 PLATE, FLOOR Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 28: Fuel Tank & Mount Group

    Fuel Tank & Mount Group 197tnk0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 29 TANK MOUNT - RH 5049947 TANK, FUEL - LH 5049948 TANK - RH Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 30: Parking Brake Group

    Parking Brake Group 197pbr0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 31 COTTER PIN, 1/8" X 1-1/4" 5021397 GROMMET, 1-1/4" 503849831 BRAKE SHAFT WHEEL MOTOR (See Hydraulic Group) Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 32: Rear Suspension Group

    Rear Suspension Group 197susr0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 33 MOTOR MOUNT, LH TANK MOUNT (See Fuel Tank & Mount Group) Footnotes (See Hydraulic Group) The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 34: Deck Lift Group

    Deck Lift Group 197dlt0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 35 NUT, 3/8-16 Hex Nylon Lock 5020639 SPRING, Extension 5023355 DECK LIFT SPRING 5025154 WASHER, 1/4" SAE Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...
  • Page 36 Deck Lift Group 197dlt0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 37 REAR DECK LIFT, LH (Shown) 503849837 REAR DECK LIFT, RH (Not Shown) 5061523 DECK ADJUST LINK Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 38: Wheel & Tire Group

    Wheel & Tire Group 197whl0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 39 TIRE, 22 x 11 - 10 50233691 WHEEL ASSEMBLY, 10 X 7 5020601 LUG NUT, 1/2-20 Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 40: Decals - Brand & Model

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. 5, 6 The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. 197dclb TP 400-4197-00-CI-S...
  • Page 41 DECAL, Badge, RH 5061816 DECAL, Badge, LH 5022811 DECAL, 48" 5022812 DECAL, 52" Footnotes The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 42: Decals - Safety & Operation

    Decals - Safety & Operation NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. 197dcls TP 400-4197-00-CI-S...
  • Page 43 DECAL, Fuse Location 1704473 DECAL, Hot DECAL, ID Plate Footnotes * Not a serviceable part. The above parts group applies to the following Mfg. Nos.: 1694768 - Citation 1694769 - Citation © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 44: 48" & 52" Mower Deck - Hanger Chains

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 45 CHAIN, 5/16" GD30, 3 LINKS 5047503 HANGER, Front Deck, 2 Link Footnotes The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 46: 48" & 52" Mower Deck - Housing, Cover, Spindle & Blade

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 47 TORSION SPRING SPACER 5023385 TORSION SPRING 5025164 WASHER, 5/16" Fender 5023489 Footnotes The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 48: 48" & 52" Mower Deck - Pulleys, Belts & Idler Arm

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 49 NUT, 3/4-16 Hex (Included with Complete Spindle Assembly) 5025098 NUT, 1/2-20 Hex Nylon Lock Footnotes The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 50: 48" & 52" Mower Deck - Rollers

    NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 51 NUT, 5/16-18 Hex Large Serrated Flange 5025057 NUT 5/16-18 Hex Nylon Lock 5022845 SPRING, Compression Footnotes The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower 1694771 - 52" Mower © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 52: 48" & 52" Mower Deck - Spindle Service Parts Group

    48" & 52" Mower Deck - Spindle Service Parts Group 197spn0 NOTE: Unless noted otherwise, use the standard hardware torque specification chart. The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower TP 400-4197-00-CI-S © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved.
  • Page 53 RELIEF VALVE 5061097 SPINDLE HOUSING 5061099 SPACER, 1.00 x 1.25 x 1.75 5061098 SPINDLE SHAFT Footnotes The above parts group applies to the following Mfg. Nos.: 1694770 - 48" Mower © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. TP 400-4197-00-CI-S...

  • Page 55: Torque Specification Chart

    Hardware Identification & Torque Specifications Common Hardware Types Hex Head Capscrew Carriage Bolt Standard Hardware Sizing When a washer or nut is identified as 1/2”, this is the Nominal size , meaning the inside diameter is 1/2 inch; if a second number is present it represent the threads per inch When bolt or capscrew is identified as 1/2 - 16 x 2”, this means the Nominal size , or body diameter is 1/2 inch;...
  • Page 56 MANUFACTURING, INC. 500 N. Spring Street / PO Box 997 Port Washington, WI 53074-0997 USA www.simplicitymfg.com © Copyright 2005 Simplicity Manufacturing, Inc. All Rights Reserved. Printed In USA.
