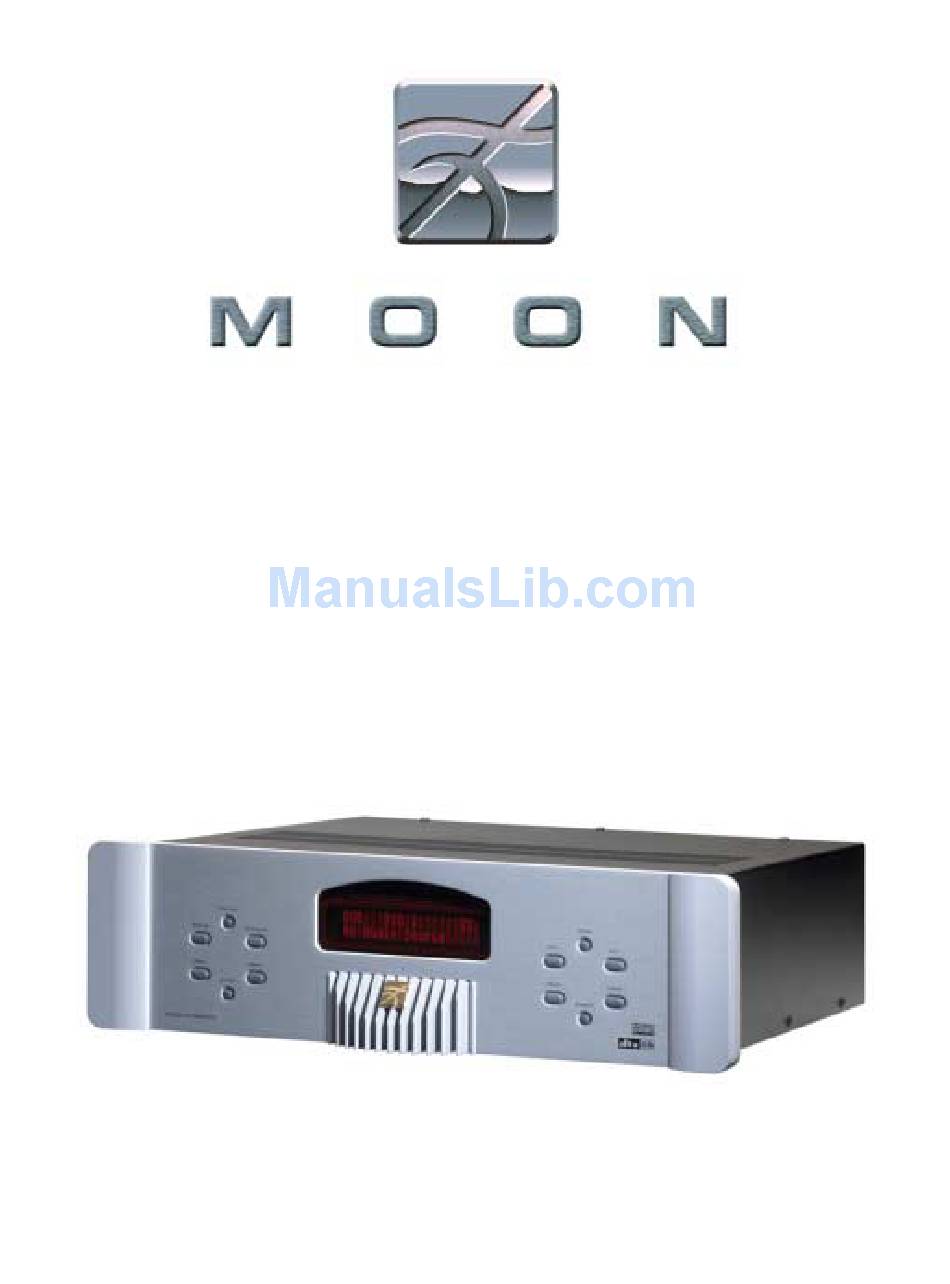

- Page 1 Stargate Surround Sound Processor, Preamplifier and D/A converter ___________________________________________________________________________ Owner’s Manual...
-
Page 2: Table Of Contents
6.1 Speaker Setup & Configuration ... 24 7.1 Speaker Setup & Configuration ... 25 Specifications ... 26 Service and Warranty ... 27 www.simaudio.com IMPORTANT: Please read this entire manual before using this product. Installation and operating instructions inside. ____________________________________________________________________________________ Table of Contents... -
Page 3: Congratulations
This Processor has been designed to offer state-of-the-art high-end performance, retaining all the sonic hallmarks on which Simaudio has made its reputation. We have spared no effort to ensure that it is among the finest Surround Sound Processors available. We have been building high performance audio equipment for over 20 years, and the know-how gained through our cumulative experience is an important reason why MOON Processors are so musically satisfying. -
Page 4: Introduction
MOON Stargate Processor Introduction Your MOON Stargate Surround Processor incorporates many significant design features to achieve its “world class” level of performance. This is an abbreviated list of the more important features: ® ™ ® ® ® Surround modes including Dolby Digital Surround EX , Dolby Digital 5.1, Dolby... -
Page 5: Unpacking And Warnings
MOON Stargate Processor Unpacking and Warning! The MOON Stargate Surround Processor should be removed from its box with care. The following accessories should be included inside the box with your Processor: AC power cable 2 removeable vertically mounted silver aluminum removeable cheeks that cover the faceplate rack-mount holes Full Function remote control with two ‘AAA’... -
Page 6: Installation Tips
MOON Stargate Processor Installation Tips The MOON Stargate Surround Processor / Preamplifier / D/A Converter should be placed on a rigid surface to prevent any accidents such as falling over. It is highly recommended that it sits on its own dedicated shelf. -
Page 7: System Setup
MOON Stargate Processor System Setup The most effective way to setup the Stargate for the first time is to go through each step. It may seem time consuming, but you will be rewarded with very high quality audio reproduction and ease of use after you have completed the entire process. -
Page 8: Input Assignment
MOON Stargate Processor System Setup The Crossover setting (Option 6) will be set to a value of “none” in the event that the Subwoofer (Option 5) is set to “no”. When the Subwoofer is set to “yes”, the Crossover will have a factory default setting of 80Hz. - Page 9 MOON Stargate Processor System Setup Advanced Input Assignment: Analog input name change This setup is optional in the event that you would like to rename one or more analog inputs. Press the number associated with the input you want to rename, then press the “Guide” button. A new menu on the OSD page will appear.
- Page 10 MOON Stargate Processor System Setup 5. Bass Trim You can adjust a different bass level for each input. Press the number according to the input you wish to change, then press “Vol 6. Calibration You will need to calibrate the relative level of each channel to get a proper surround sound presentation.
- Page 11 MOON Stargate Processor System Setup (continued) 7. Compression This feature allows you to compress the dynamic range of the sound, which may be useful for low volume listening late at night. When turned off, you get full dynamic range. When turned on, louder passages are softened and softer passages are increased to maximize intelligibility of speech.
-
Page 12: Front Panel Controls
MOON Stargate Processor Front Panel Controls Figure 8: Front panel of Moon Stargate Processor The front panel look similar to Figure 8 (above). All twelve (12) of these buttons are replicated on the Stargate’s remote control. What follows is a brief explanation of each one’s function. Standby Press to turn the unit on, and press again to put it in “Standby”... - Page 13 MOON Stargate Processor Front Panel Controls (continued) Seek - and Seek + Press to “Seek” up or down the frequency of the AM/FM tuner until you reach the desired radio station. Note that the tuner must be the selected input for these buttons to work. AM / FM Press to toggle between the “AM”...
-
Page 14: Full Function Remote Control Operation
MOON Stargate Processor Full Function Remote Control Operation Figure 9 ____________________________________________________________________________________ Full Function Remote Control Operation The supplied remote control (figure 9) can operate up to eight (8) different components and is programmable via a learning mode. The eight (8) buttons located on the top 2 rows allow you to select the component you wish to operate. -
Page 15: Full Function Remote Control Programming
MOON Stargate Processor Full Function Remote Control Programming This remote control allows you to transfer a command from a button on your source remote control (original equipment remote control) to a button on the Stargate remote control. New commands can be taught to any button in the CD, DVD, AUX, SAT, TV, VCR and CBL device modes, except on the button. - Page 16 MOON Stargate Processor Full Function Remote Control Programming Erasing a Learned Command From a Button Step 1: Press the Device button and SELECT buttons simultaneously and hold until the orange Status LED and the Device button turn on and remain lit. Step 2: On the remote control, press the button that is to be erased.
- Page 17 MOON Stargate Processor Full Function Remote Control Programming Volume Punch Through You can set the audio volume controls ( Device modes. Step 1: Press the Device and MUTE buttons, simultaneously. Step 2: Press the VOL ! button. Step 3: Press the AVC device button to select the type of volume you wish to operate in that mode. Example: If you wish to have the AVC volume operate in the DVD mode, press the DVD Device button in Step 1.
- Page 18 MOON Stargate Processor Full Function Remote Control Programming Example for Programming a Macro Sequence To program the button in the AVC mode to power on the receiver, power on the CD, power on the TV and power on the VCR: Step 1: Press the AVC button and MUTE buttons simultaneously.
-
Page 19: Basic Function Remote Control Operation
MOON Stargate Processor Basic Function Remote Control Operation Figure 10: WRM Remote Control ____________________________________________________________________________________ Basic Function Remote Control Operation The MOON Stargate uses a second remote control, the ‘WRM’ basic function (figure 10). The main purpose of the ‘WRM’ is for everyday remote operation once the Stargate has been properly calibrated. -
Page 20: Rear Panel Connections
MOON Stargate Processor Rear Panel Connections Figure 11: Rear panel of Moon Stargate Surround Processor Audio & Video Signal Connections The rear panel is divided into different sections whereby the connectors are grouped together in a logical manner. The digital audio inputs are grouped together and are labeled “DIG 1” through “DIG 6”. As previously discussed, each of these six (6) digital inputs are assignable to any of the nine (9) labeled source inputs. - Page 21 Crestron system). All information about the “RS-232” codes is available upon request or in PDF file format from our website: www.simaudio.com. This “RS-232” port can also be used to download software revisions for possible future upgrades; When available, all registered buyers will be informed.
-
Page 22: Typical Source Connections
MOON Stargate Processor Typical Source Connections Here is a typical source connection for the Stargate. It is shown only as an example and is by no way mandatory. There are endless possibilities regarding what and how you can connect to the rear panel. DVD-Video DSS Satellite Receiver FM antenna... -
Page 23: Speaker Setup & Configuration
MOON Stargate Processor 5.1 Speaker Setup & Configuration Stargate rear panel Power Amplifier Listening Room ____________________________________________________________________________________ 5.1 Speaker Setup & Configuration... -
Page 24: Speaker Setup & Configuration
MOON Stargate Processor 6.1 Speaker Setup & Configuration Stargate rear panel Power Amplifier Listening Room ____________________________________________________________________________________ 6.1 Speaker Setup & Configuration... -
Page 25: Speaker Setup & Configuration
MOON Stargate Processor 7.1 Speaker Setup & Configuration Stargate rear panel: Listening Room ____________________________________________________________________________________ 7.1 Speaker Setup & Configuration... -
Page 26: Specifications
MOON Stargate Processor Specifications Input Processing: Frequency response ... 10hz-20kHz 0.25dB ... 10hz-20kHz 0.035dB ... 2Hz-96kHz 1.5dB Signal-to-noise ratio ... 120dB ... 120dB ... 112dB Dynamic range ... 120dB ... 120dB ... 114dB THD+N @ 0dB ... <-105dB ... <-100dB ... <-112dB Crosstalk ... -
Page 27: Service And Warranty
MOON dealer to qualify for warranties. These warranties are voided in the case of accident, or if the unit was tampered with, somewhere other than at an authorized Simaudio service center. This warranty is valid only in Canada and USA. In other countries, the warranty conditions are defined and limited only by the local distributor.
