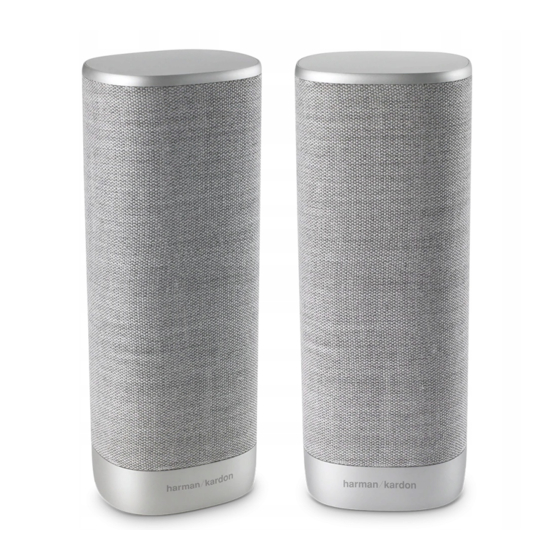

- Page 1 CITATION SURROUND OWNER’S MANUAL...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Verify Line Voltage Before Use The Citation speaker has been designed for use with 100- 240 volt, 50/60 Hz AC current. Connection to a line voltage other than that for which your product is intended can create a safety and fire hazard and may damage the unit. -
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS ..........2 INTRODUCTION ..................4 WHAT’S IN THE BOX ................5 PRODUCT OVERVIEW ................6 INSTALLATION ................... 8 GET STARTED....................10 SPECIFICATIONS ..................13... -
Page 4: Introduction
Design and specifications are subject to change without notice. If you have any questions about these products, their installation or their operation, please contact your Harman Kardon retailer or customer service, or visit us at www.harmankardon.com... -
Page 5: What's In The Box
WHAT’S IN THE BOX Carefully unpack the box and check if the following parts are included. If any part is damaged, do not use it, contact your Harman Kardon retailer or customer service. 1. Main unit 2. Power cord* 3. Wall-mount brackets... -
Page 6: Product Overview
PRODUCT OVERVIEW Back Panel and Bottom 1. RESET • Press and hold for 5 seconds to reset. 2. Power connector... - Page 7 LED Indicator White (Flashing) Pairing Out of range / Lost wireless White (Flashing) connection White (Constant for 10 Wirelessly connected with seconds and light off) CITATION BAR...
-
Page 8: Installation
CITATION SURROUND at approximately the same distance from the seating position. Wall-mount You can also install the CITATION SURROUND speakers on the rear or side walls. 1) Remove the rubber feet from the bottom of the speaker. 2) Mount the wall brackets in the wall by using screws. - Page 9 4) Place the speaker on the wall-mount bracket with the supplied screws on the bottom. 5) Use the nut at bottom of the wall-mount bracket to angle the speaker and tighten.
-
Page 10: Get Started
When you disconnect the power cord, always pull the plug, never the cable. 1) Plug one end of the AC power cord into the power connector on the bottom of the speaker, then plug the other end to an AC (mains) outlet. Æ CITATION SURROUND speakers will automatically power... - Page 11 2) Plug one end of the power cord into the AC IN connector on the back of CITATION BAR (sold separately), then plug the other end into an AC (mains) outlet. Æ The soundbar will take about 30 seconds to load, then enter standby mode and ready for use.
- Page 12 Rear Left (RL) and Rear Right (RR). If no satellite speakers are found, make sure to power them on and keep them in a close range. CITATION BAR CITATION SURROUND CITATION SURROUND 3) Follow the on-screen instructions to test tone. Æ You will hear a pairing chime once successfully connected and “Surround setup successful”...
-
Page 13: Specifications
SPECIFICATIONS • Signal-to-noise ratio: >80dB • Output power: 2x50W RMS • Power supply: 100-240V ~ 50/60Hz • Power consumption in sleep mode: <2.0Watts • 5G WISA transmitter power: <14dBm • 5G WISA modulation: OFDM, BPSK, QPSK, 16QAM • 5G WISA transmitter frequency range (varies by country or region): 5.15 - 5.35GHz, 5.470 - 5.725GHz, 5.725 - 5.825GHz •...
