Moultrie MFA-13102 Instructions

A
MOUNTING THE CABLE WINCH & TREE BRACKET
The winch is mounted to the winch bracket using
two 8mm hex bolts, two flat washers and two flanged
locknuts. Mount the winch to the bracket as shown in
Figure 1. Tighten the hex bolts securely. Attach the tree
bracket using one 8mm hex bolt and flanged locknut as
shown in Figure 2. The flanged locknut should be inside
the tube as shown. Tighten the hex bolt securely.
B

UPPER BOOM AND PULLEY ATTACHMENT

Position the upper boom tube over the base assembly and slide it over the base tube (See Figure 3) until
the bolt holes are aligned. Secure the two pieces to-gether using the 8mm x 65mm hex bolt, nut and
washer. Tighten securely until the upper boom tube walls are compressed tightly against the base tube.
Position the cable around the pulley
as shown in Detail A. Align the pulley
between the pulley brackets and insert
the 8mm Clevis Pin through the bracket
and pulley. Secure the pin using the 2mm
Cotter Pin and flare one side of the pin using pliers.
C

CHAIN ATTACHMENT

Attach one end of the tree chain to the hole in the chain anchor bracket using one 8mm hex
bolt, washer and nylon insert locknut. Be certain the washer is on the chain side as shown in
Figure 4. Tighten the nut securely.
Hanging Feeder Hoist_MFA-13102_Manual_ENGLISH_1-26-16.indd 1

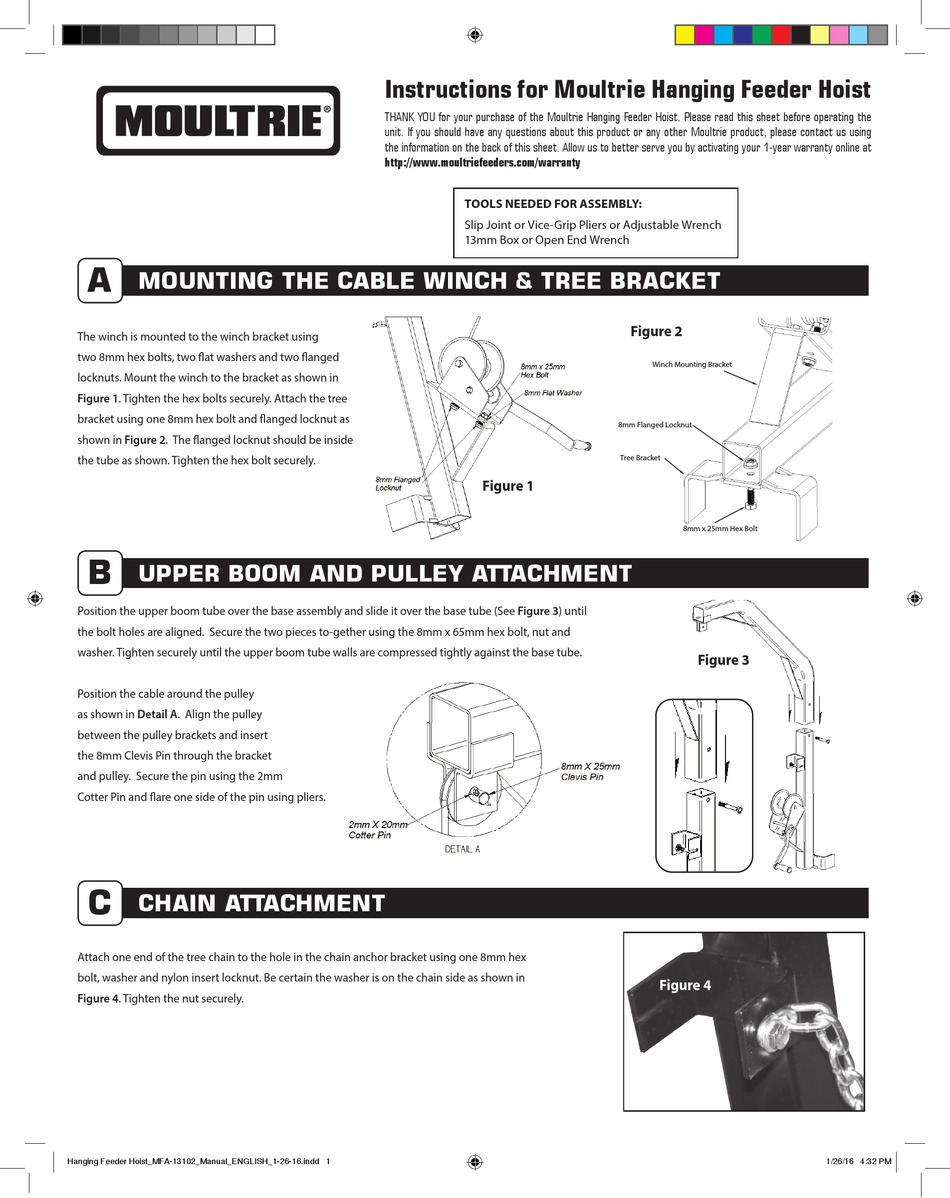

Instructions for Moultrie Hanging Feeder Hoist

THANK YOU for your purchase of the Moultrie Hanging Feeder Hoist. Please read this sheet before operating the
unit. If you should have any questions about this product or any other Moultrie product, please contact us using
the information on the back of this sheet. Allow us to better serve you by activating your 1-year warranty online at
http://www.moultriefeeders.com/warranty

TOOLS NEEDED FOR ASSEMBLY:

Slip Joint or Vice-Grip Pliers or Adjustable Wrench
13mm Box or Open End Wrench
Winch Mounting Bracket
Figure 1
8mm Flanged Locknut
Tree Bracket
8mm x 25mm Hex Bolt
Winch Mounting Bracket
8mm Flanged Locknut
Figure 2
Tree Bracket
Winch Mounting Bracket
Winch Mounting Bracket
8mm x 25mm Hex Bolt
8mm Flanged Locknut
8mm Flanged Locknut
Tree Bracket
Tree Bracket
8mm x 25mm Hex Bolt
8mm x 25mm Hex Bolt
Figure 3
Figure 4
Washer this side
W
