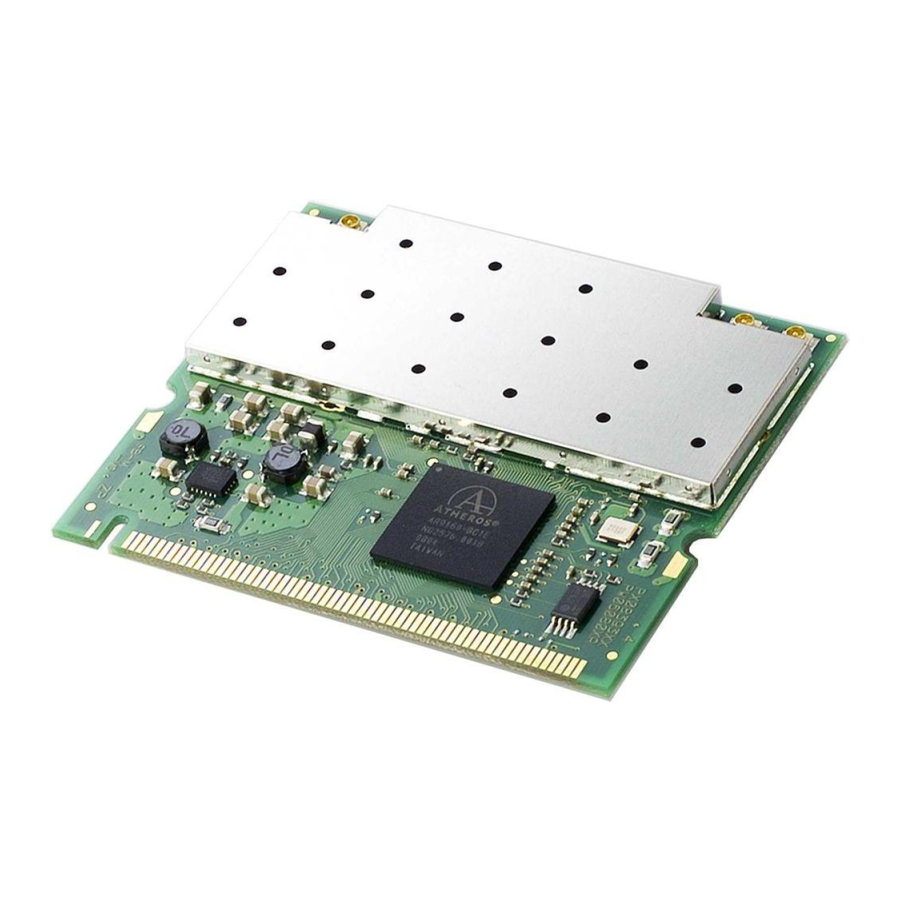

Silex technology Wireless Mini PCI Module SX-10WAN Specifications

SX-10WAN
802.11n/a/b/g Wireless Mini PCI Module
For Reliable High-Speed Embedded Applications
Up To Five Times As Fast As 802.11a/g
Key Features:
•
300Mbps maximum data rate (theoretical, 802.11n mode)
•
Mini PCI Type IIIA interface
•
Atheros Communications AR9160B, 9106A chipset
•
MIMO 3x3 for high-speed stable networking
•
Designed, manufactured, and inspected by Silex to provide
highest quality product for use in severe environments
•
Meets a wide range of global certifications / standards
- ARIB STD-T66
- RCR STD-33
- ARIB STD-T71
- FCC Part 15 Subpart C
- IC RSS210
- EU R&TTE (EN300 328, EN301 893, EN60950)
- EU RoHS
•
Certified for operation in United States, Japan, and Europe (with
specified antenna and cable set)
•
Supports diversity antenna configurations
•
Driver support included in Linux 2.6.27 and later versions
•
Custom drivers available from Silex
Dimensions:
silex embedded technology:
Silex Technology is a 30-year developer of exte rnal and embedded
device-device connectivity products. Silex has become the world's
#1 supplier of print server products over the past 10 years, helping
global OEMs improve the way they move information.
advantages for OEMs include a U.S.-based support team, industry-
leading software solutions like our NSS security suite, and
exceptional Japanese quality manufacturing.
Specifications:
Product Name
SX-10WAN
Chipset
t
A heros A9160B, AR9106A
Antenna Connector
I-PEX 20279-001E-01 x 3
3.3V ± 0.3V
Operating Voltage
11g mode: 16dBm Max
11b mode: 14dBm Max
Radio Output
11a mode: 14dBm Max
11n mode: 12dBm Max
Power Consumption
Transmit: 1A Receive 600mA
Weight
15g
Dimensions
50.95 x 59.6 x 6mm
Storage Temperature
Storage Conditions
Operating Temperature
Operating Conditions
Package Contents
Module, E/A Sticker
Silex
Thickness of PCB
1.0mm
Storage Humidity
-10 to +80°C 5 to 90%RH
Operating Humidity
0 to +70°C 20 to 90%RH
