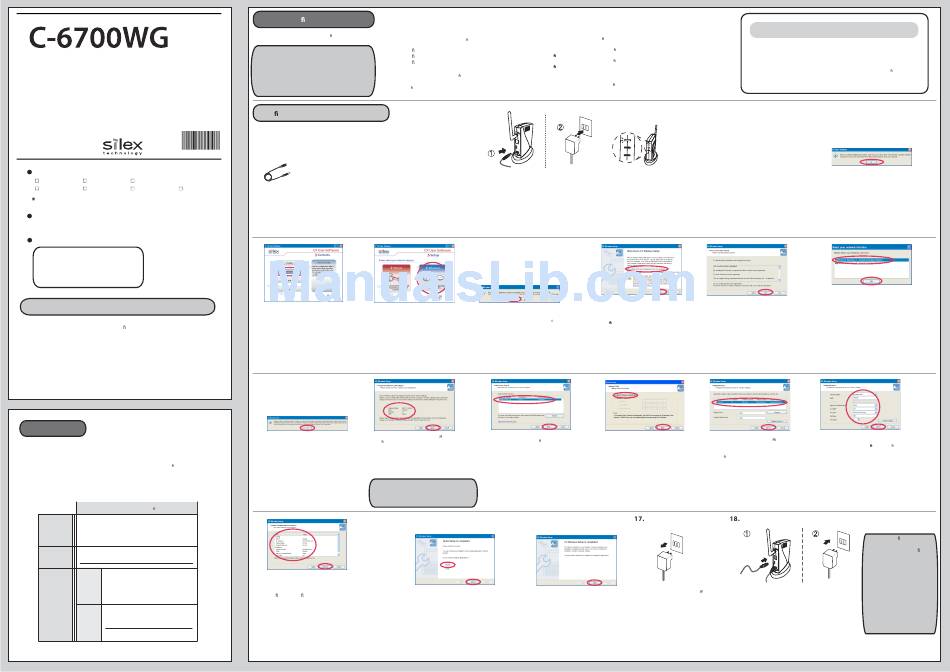

Silex technology Network Adapter C-6700WG Setup Manual

Setup Guide

W A 0 3 7 9 0 X X
Contents
C-6700WG Power Supply Stand
CX User Software Rubber Feet Setup Guide Warranty Booklet
When the product is placed in the horizontal (side) position, please use the rubber feet provided to prevent the unit from sliding.
Place one on each corner.
For User Registration
http://www.silexamerica.com/register/
Customer Support
USA : silex technology america, Inc.
E-mail : support@silexamerica.com
URL : http://www.silexamerica.com/
Phone: 801-748-1199
US Toll Free Phone: 866-765-8761
Note: A more detailed manual including troubleshooting tips can be found on the CD
(Insert the CD, and click on Manual when the Autorun menu appears) of this product.
Safety instructions are noted in the Readme le on the CX User Software . Be sure to read
them before using this product.
- Safety instructions regarding the radio waves
Please note the following instructions:
- Do not use this product near medical devices such as a heart pacemaker. The radio
wave generated by this product may interfere with the operation of these devices and
may threaten one's life.
- Do not use this product near microwave ovens. The radio wave used by microwave
ovens may cause interference to this product.
Introduction
Collect wireless LAN setting information
To use this product over the wireless LAN network, you need to con gure wireless LAN
settings as appropriate for your network. This information needs to be identical to the
communication devices such as an access point.
Please collect the following information before the setup.
Write down your network con guration
Ad hoc (ch. ) / Infrastructure
Wireless mode
SSID
Encryption
WEP / WPA / WPA2
method
(Open / Shared)
Encryption
method
WEP KEY
or
Pre-Shared
Key
Step 1 : Con gure the Network
This Setup Guide explains how to con gure C-6700WG
This product has 3 methods of initial con guration as listed below:
(this product) to be used in a wireless LAN environment.
Important: - Con guration through a wireless LAN
- Con guration through a wired LAN
The print server only needs to be configured on
- Con guration using a USB memory
one computer.
This Setup Guide describes how to con gure this product through a
After setup is complete, go to:
wireless LAN or wired LAN.
'Step 2: Install the Applications' for each computer
For other con guration methods, please refer to the users manual.
that will use the printer.
Con gure Through a Wireless LAN
1.
The following item is required:
Install the printer driver on your PC.
For details, refer to the manual that came with
-USB cable your printer.
(Install the printer driver on your PC and make
Use to connect this product and a printer.
sure you can print with a directly attached USB
There is no need to purchase a new USB cable when a cable was
connection from your computer before using
bundled with the printer to be connected to this product.
this product.)
6. 7.
Click Wireless.
Startup menu is displayed.
Click Print Server Setup.
11.
If the wireless settings on the PC di er from the
If the screen above is displayed, you need to change
con guration information on the screen above, change
the wireless settings on the PC manually.
the PC wireless settings to match those displayed on
Read the message and click OK.
the screen.
Verify the wireless settings on the PC and click Next.
* If you use Windows XP or Vista and the setup utility automatically
changed the wireless settings on the PC, this screen is not displayed. * Please refer to your wireless network adapter documentation for
instructions on how to temporarily change your computer's wireless
settings to match those of the print server.
Important: When you make this temporary change, your computer will
no longer be connected to the wireless network or Internet. After you
have completed the setup for the print server, you will need to change
your computer's wireless settings back to their current settings. Please
make sure you write down the settings for your wireless network before
you make these changes for the print server configuration.
15. 16.
<< If you did not need to change the
wireless settings on the PC manually
in '11', this screen will appear
Select Yes and click Finish.
Con rm the con guration parameters and
click Execute.
* Application install screen will be displayed as
shown in Step 2 - 3.
Perform the factory default con guration according to the connection between this product
and the PC.
- To perform the factory default con guration with a wireless LAN connection, refer to
.
Con gure Through a Wireless LAN
- To perform the factory default con guration with a wired LAN connection, refer to
Con gure Through a Wired LAN.
If this product has been used in another network, reset it to the factory default settings.
For details on the factory default con guration, refer to To reset to the factory default
2. 3.
Verify the Wireless LED(Green) blinks.
Connect the AC adapter to this product and the power
plug to the outlet.
(Do not connect the printer to this product yet. Printer
will be connected in '18')
8.
CX Wireless Setup screen is displayed.
* In a Windows XP (SP2 or higher) or Vista environment, the above message
will be displayed. Select Yes . Check the notes on the screen and select
* The User Account Control screen is displayed when con guration is performed
Con gure print server wirelessly from your
on Windows Vista. Select Continue.
computer and click Next.
12. 13.
Select a product to be con gured and click Next. Select Get IP Address Automatically
and click Next.
* If your product is not displayed on the list, click Refresh.
* If multiple products are displayed in the list, check the
Ethernet Address on the label of this product.
<< If you changed the wireless settings
on the PC manually in '11', this
>>
screen will appear >>
Click Finish. To ensure these settings take e ect,
Change the wireless settings on the PC
unplug the AC adapter from the electrical
(that you have manually changed) back outlet and then plug it back in.
to the previous settings written down in
'11'.
To reset to the factory default settings
1. Remove the AC plug from the electric outlet.
2. Push and hold the button on the print server while re-inserting the AC plug
into the electric outlet. Continue holding.
3. The Status LED(Orange) will light when the factory default con guration
settings have been restored. Release the push switch.
settings.
4. 5.
Insert the CD-ROM (CX User Software) into your Windows PC. Check the message and click OK.
10.
9.
Read the SOFTWARE LICENSE AGREEMENT and click If the screen above is displayed, select the wireless
Yes. network card to be used and click OK.
This screen is displayed only when two or more
*
network cards are installed on your PC.
Select this product and click Next.
14.
Select the SSID for your home or o ce * If the wireless network that you wish to use is not shown in
wireless network. If your network is security
the list, click Detailed Con g and con gure each setting.
enabled, enter the network key or password
and con rm it. Click Next.
The initial con guration of
this product is complete and
you do not need to con gure
the print server any more.
After setup is complete on one
computer, each user that wants
to use the Canon printer:
Connect the printer to be shared over the network along
Step 2: Install the Applications
with this product via a USB cable and insert the power
plug of this product into the outlet.
Note: If you manually changed
the wireless settings at '11'
on your PC, go straight to
'3' in Step 2.
Go to
on the next page
