WARNING: If the information in this manual is not followed exactly, a fire or
explosion may result causing property damage, personal injury, or loss of life.
-
Do not store gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
-
WHAT TO DO IF YOU SMELL GAS
C Do not try to light any appliance.
C Do not touch any electrical switch; do not use any phone
in your building.
C Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
C If you cannot reach your gas supplier, call the fire department.
-
Installation and service must be performed by a qualified installer,
service agency, or the gas supplier.
WARNING: This gas fireplace is approved for outdoor installation only.
DESIGN CERTIFIED TO CSA 4.96 U.S. (2
OUTDOOR GAS FIREPLACE
Save this manual for future reference.
Sierra Products, Inc. 5061 Brooks St., Ste B Montclair, CA 91763

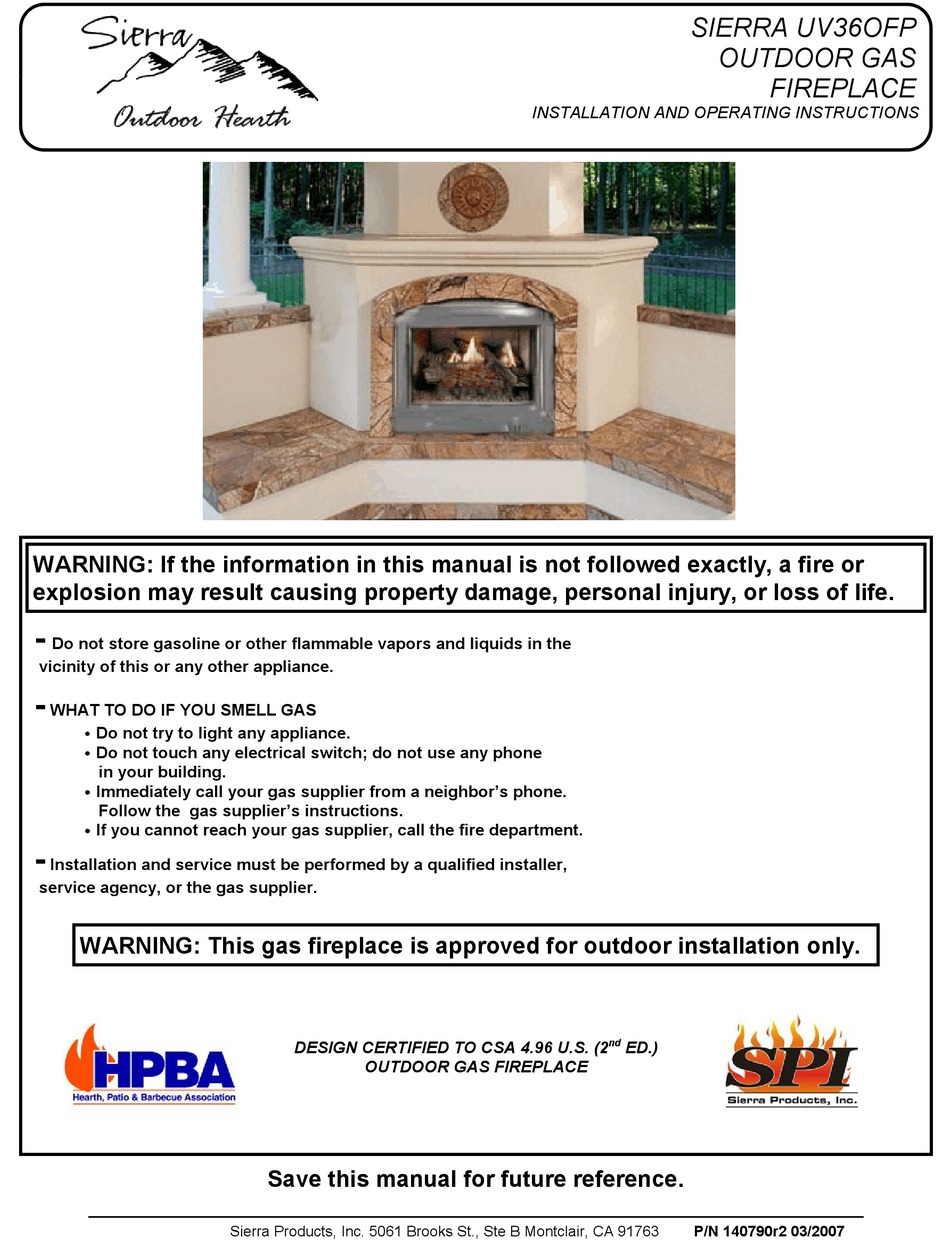

SIERRA UV36OFP
INSTALLATION AND OPERATING INSTRUCTIONS
nd
ED.)
P/N 140790r2 03/2007
OUTDOOR GAS
FIREPLACE
Advertisement
Table of Contents
Summary of Contents for Sierra Products UV360FP
- Page 1 WARNING: This gas fireplace is approved for outdoor installation only. Save this manual for future reference. Sierra Products, Inc. 5061 Brooks St., Ste B Montclair, CA 91763 INSTALLATION AND OPERATING INSTRUCTIONS DESIGN CERTIFIED TO CSA 4.96 U.S. (2...
-
Page 2: Safety Information
Appliance for Use with Propane Gas: Propane gas has no odor. An odor-making agent is added to the gas. The odor aids you in detecting a gas leak. However, the odor added to the gas can fade. Gas may be present even though no odor exists. -
Page 3: Selecting Location
Installation and repair should be done by a qualified service person. The appliance should be inspected before use and at least annually by a professional service person. More frequent cleaning may be required due to excessive lint from carpeting, bedding material, etc. It is imperative that control compartments, burners and circulating air passage- ways of the appliance be kept clean. - Page 4 Figure 3 - Projection Clearance Figure 4 - Side Projection Clearance ATTACHING OPTIONAL TRIM 1. Attach the top SS trim piece onto fireplace cabinet by loosening existing (3) #8 Phillips screws, slide trim into place, then tightening down screws. 2. Attach the (2) side SS trim pieces onto the fireplace in the same manner as the top piece.
- Page 5 BUILT-IN FIREPLACE INSTALLATION Built-in installation of this fireplace involves installing a fireplace into a framed-in enclosure. This makes the front of the fireplace flush with the wall. Best outdoor enclosure construction includes metal stud with tile or concrete board as an overlay. Additions of ceramic tile and acrylic stucco finishes provide good service.
- Page 6 external regulator LP gas only (supplied by installer) piping (check local codes) sealant (resistant to propane gas) manual shutoff valve* test gauge connection* sediment trap tee joint pipe wrench approved flexible gas line with gas connector (if allowed by local codes) (not provided) An CSA design-certified manual shutoff valve with 1/8"...
-
Page 7: Checking Gas Connections
Figure 14 - Accessing burner assembly 3. Remove the gas line cover plate from the fireplace’s outer surround at the location to be used. Remove insulation from inside the gas line conduit sleeve. Run gas line through until the regulator can be reached. 4. -
Page 8: Operating Your New Appliance
REPLACEMENT: Parts and accessories may be purchased from your local dealer or directly from Sierra Products, Inc. Orders will be accepted by mail, or you may call your order in Mon- day through Friday from 1:00 p.m. to 5:00 p.m. (Pacific Standard Time) at: (909) 399-3355. -
Page 9: For Your Safety Read Before Lighting
OPERATING INSTRUCTIONS FOR MANUAL SAFETY VALVE FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: If you do not follow these instructions exactly, a fire or explosion may result causing property damage, personal injury or loss of life. A. This appliance has a pilot which must be lighted by hand. When lighting pilot follow these instructions exactly. - Page 10 Item Description Outer Surround Firebox SS Optional Trim (top piece) SS Optional Trim (left hand) SS Optional (right hand) Refractory Left Side Refractory Right Side Refractory Hearth Refractory Rear SS Burner Large Lava Rocks -3 lbs Log Set - 6 pcs 5061 Brooks St., Ste B Montclair, CA 91763 Item 202181...
- Page 11 SIERRA OUTDOOR GAS FIREPLACE LIMITED THREE & ONE, YEAR LIMITED WARRANTY Sierra Products, Inc. (SPI), warrants to the original consumer this stove will be free of defective materials and workmanship for the following periods: Outer structure - Outer Structure, Interior metal construction - Three Years, All other items - One Year from the date of purchase.
