Daavlin 7 Series Installation Manual

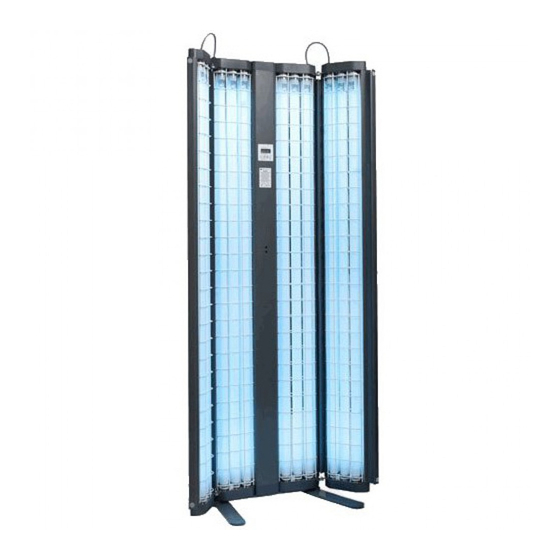

Home phototherapy unit

Hide thumbs Also See for 7 Series:

7 Series Installation Guide

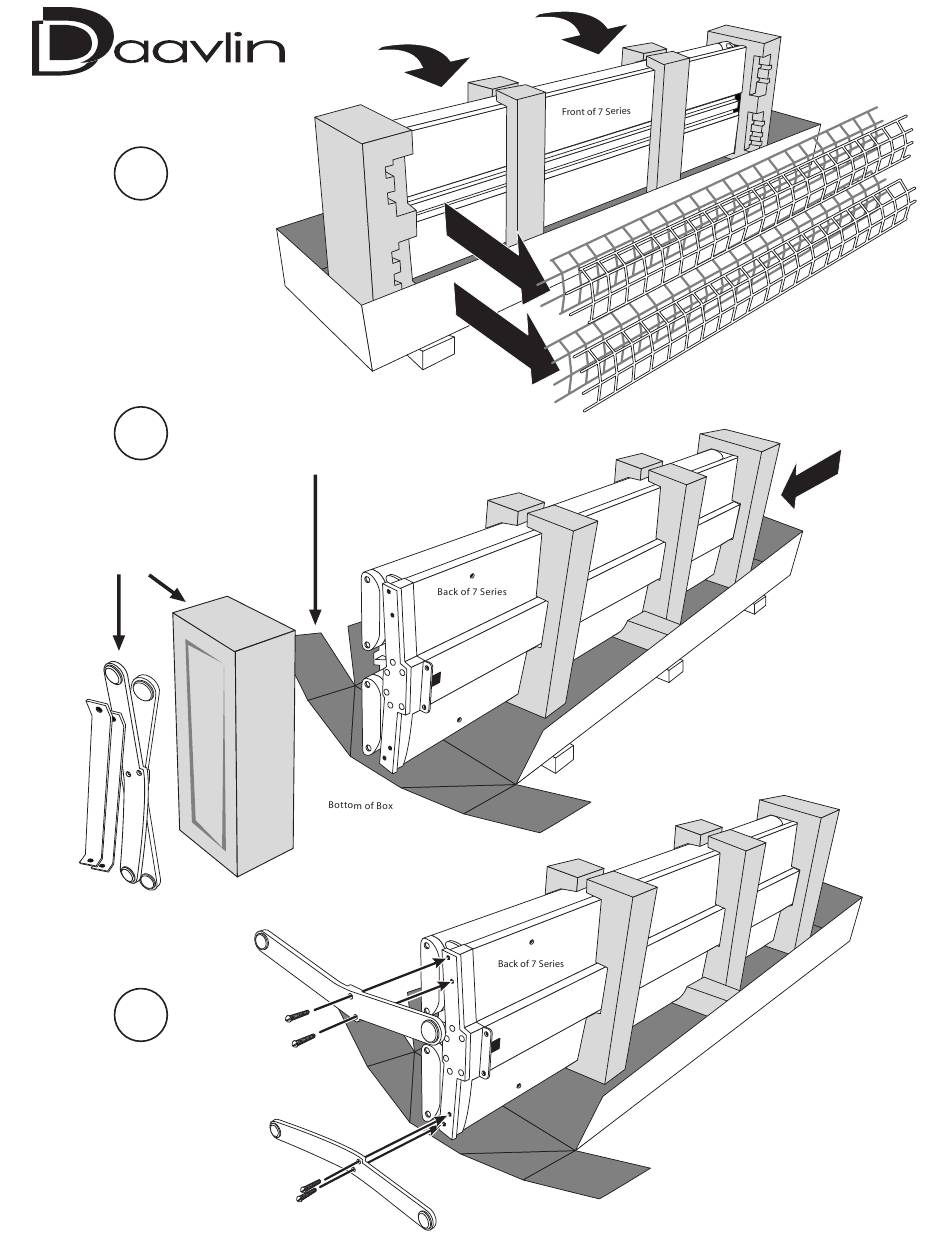

Step

Roll unit onto its side.

Remove grids from foam

padding and place in secure

location until needed.

Step

stabilizer bars and feet are stored)

B: Remove stabilizer bars

and feet and set aside.

Remove foam padding

from bottom of unit.

Step

Attach feet to the

bottom of unit. To ensure

the stability of the unit, be

sure to place feet at the

proper angle as shown.

LIT0112 Rev 0

A: Unfold bottom of box.

(Bottom of box is where the

C: Carefully slide the

unit toward the

bottom of the box far

enough to effectively

attach feet and

stabilizer bars.

Table of Contents

Need help?

Do you have a question about the 7 Series and is the answer not in the manual?

Page 1 7 Series Installation Guide Step Roll unit onto its side. Remove grids from foam padding and place in secure location until needed. C: Carefully slide the unit toward the bottom of the box far enough to effectively Step attach feet and A: Unfold bottom of box.
Page 2 Front of 7 Series Back of 7 Series Step A: Attach all four grids to unit by placing grid tips into the pre-drilled holes. Insert top of Grid Tips grid first, then bottom.
