Siemens 331-2856, 332-2856 AP 331-3 Technical Instructions page 12

Powers controls no. 6 pneumatic damper actuator
Hide thumbs

Advertisement

Technical Instructions
Document No. 155-029P25
December 3, 2004
Dimensions,
Continued

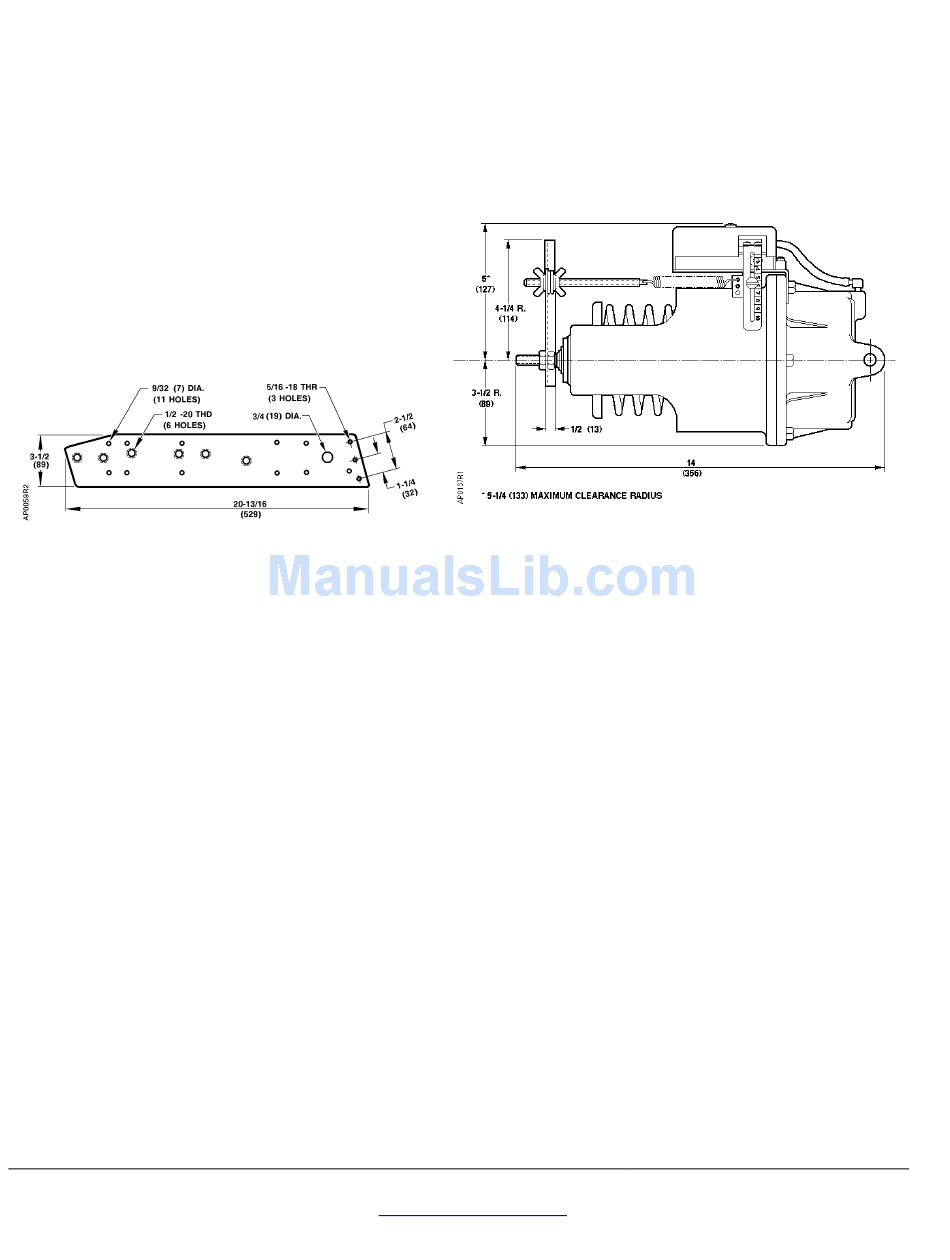

Figure 15. Actuator Mounting Plate 331-623.
Dimensions in Inches (Millimeters).
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as
design improvements are introduced. POWERS is a trademark of Siemens Building Technologies, Inc. Other product or company names
mentioned herein may be the trademarks of their respective owners. © 2004 Siemens Building Technologies, Inc.
Siemens Building Technologies, Inc.
1000 Deerfield Parkway
Buffalo Grove, IL 60089-4513
U.S.A.
Your feedback is important to us. If you have
comments about this document, please send
them to
technical.editor@siemens.com
POWERS™ Controls No. 6 Pneumatic Damper Actuator
Figure 16. No. 6 Actuator with the
RL 147 Positioning Relay Mounting.
Dimensions in Inches (Millimeters).
Document No. 155-029P25
Country or Origin: US
Page 12
