Shure E5C User Manual

Sound Isolating Earphones

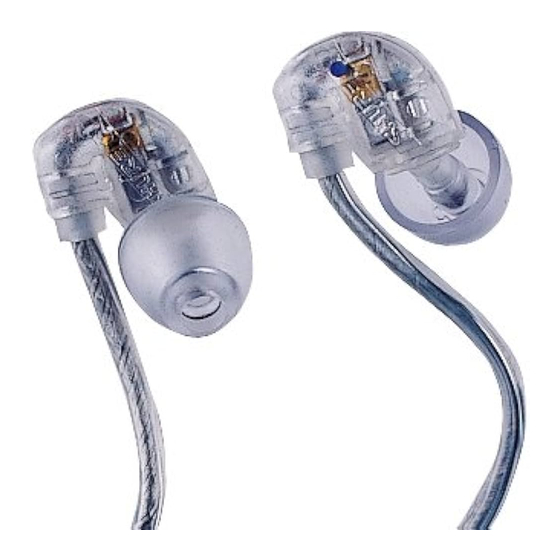

The E5c combines Dual Live
Performance Drivers with an Inline
Crossover to create the same reference-
quality audio developed for
©2005, Shure Incorporated
27EN3202A (Rev. 2)
CHOOSING AN EARPHONE SLEEVE
Your earphones come with a selection of sleeves. Make sure the sleeve you
use is easy to insert into your ear, fits comfortably, and is easy to remove from
your ear.
Flex Sleeves
In small, medium, and large sizes. Made from translucent
PVC.
Soft Flex Sleeves
In small, medium, and large sizes. Made from pliable rubber.
Foam Sleeves
When using the foam sleeves, compress the sleeve between
your fingers before inserting it into the ear canal. Hold the
earphone in place for about ten seconds while the foam
expands and creates a tight seal.
Triple-Flange Sleeves
If desired, the sleeve nozzle may be shortened. Use sharp
scissors to carefully trim the nozzle to the desired length.
E5c
WEARING THE EARPHONES
Two popular methods for wearing the earphones are illustrated below.
professional musicians.
The result of dedicated
speakers for highs
and lows is the faithful
�
reproduction of precision
highs, natural mids, and
full-bodied bass.
Tighten the cable and take up slack by raising the cable sleeve .
Printed in U.S.A.
CLEANING THE EARPHONE NOZZLE
If the nozzle of your earphone is blocked, clean the nozzle using the supplied
wax removal loop.
When cleaning, do not force any object through the earphone nozzle! This will
damage the earphone sound filter.
If necessary, the supplied replacement nozzles may be used. See the back of
this guide for instructions on nozzle replacement.
Over the ear
in back
Over the ear
in front
Wax Removal Loop
Nozzle
INSERTING THE EARPHONES
If the earphone seems to be lacking in low frequency response (bass), check
the tightness of the seal between the earphone and your ear, or try one of the
other sleeve options.
Warning: Do not push the earphone sleeve beyond the ear canal opening.
left ear
Make sure that the sleeve completely
covers the earphone nozzle. If any part
of the nozzle is exposed, the sleeve is
not properly installed.
