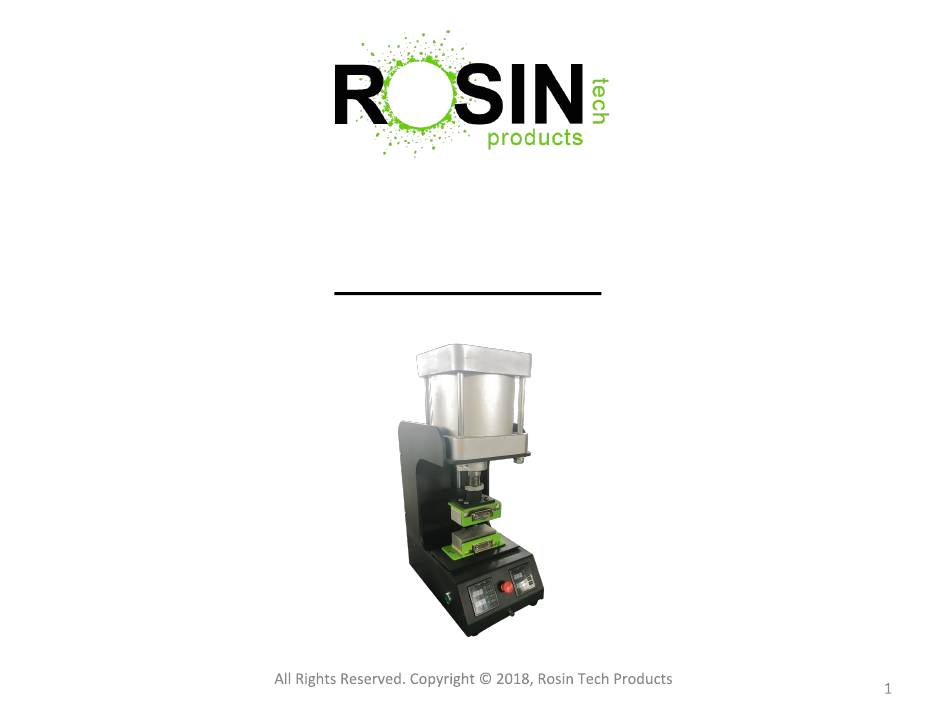

- Page 1 Rosin Tech Squash™ Owner’s Manual...
- Page 2 Getting Started Initial Set Up: 1) Find a home for your press and try to leave it there. The machine is heavy and better kept in one place. 2) We recommend a 3 gallon air compressor, but the machine can operate with larger units.
-
Page 3: Step 1: Plug In / Turn On
STEP 1: PLUG IN / TURN ON Once you’ve plugged in your press, and flipped on the power, both controllers will ● light up and plates will begin heating! TIP #1: Please note the control panel on the left hand side controls the top heating plate as well as the timer for length of pressing. -
Page 4: Step 2: Enter Settings Mode
STEP 2: ENTER SETTINGS MODE Press the “SET” button one time. You are now in the ‘edit settings’ mode. ●... -
Page 5: Step 3: Adjust Temperature
STEP 3: ADJUST TEMPERATURE ● Press the up and down arrows to increase or decrease the temperature of the plates. Once you have found your desired temperature, press the “SET” button to change from ● P-1 to P-2. * TIP #2: Default setting is to Fahrenheit. -
Page 6: Step 4: Adjust Length Of Press
STEP 4: ADJUST LENGTH OF PRESS ● Now the screen shows P-2. Press the up and down arrows to increase or decrease the length of timer for each press. Once you have found your desired time, press the “SET” button which will change P-2 ●... - Page 7 STEP 5: LET PLATES HEAT UP ● From P-2 screen, press Set twice to return to normal screen P-3 changes display from F to C, please refer to end of manual on how to switch ● Now that you’ve set your temperature and length of press, its time to let both heating ●...
-
Page 8: Step 6: Speed / Pressure Control
STEP 6: SPEED / PRESSURE CONTROL ● The pressure control knob is located in the middle of the machine, directly below the disengage button (Fig 1). The pressure control knob when closed and tightened will slow down the plate speed ●... -
Page 9: Step 7: Engage Press
STEP 7: ENGAGE PRESS ● Two Engage buttons are located on left and right side controls and green in color (Fig 1). To begin the press, press both engage buttons at the same time. ● Plates will begin to close at desired speed set by pressure control. ●... - Page 10 SET FAHRENHEIT° TO CELSIUS° ● Press set button, until you see P-3 to change the display from Fahrenheit (F°) to Celsius (C°). Use up and down arrows to switch from Celsius to Fahrenheit ● ● Click set again to leave settings and return to normal mode...
- Page 11 Additional Questions? Shoot an email to support@rosintechproducts.com...
