Shure UA860SWB Installation Instructions

MODEL UA860SWB UHF PASSIVE
OMNIDIRECTIONAL ANTENNA

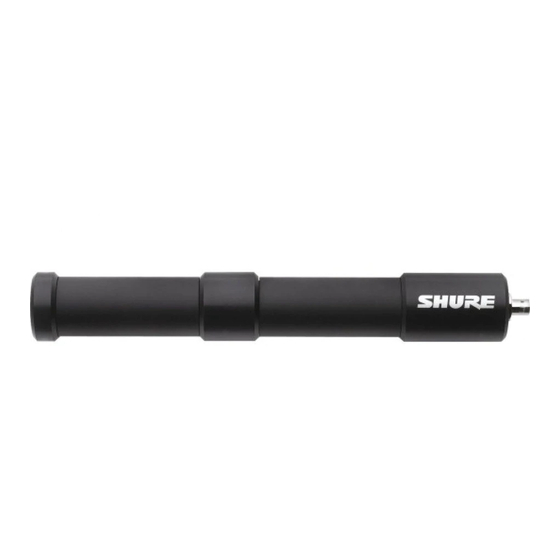

The Shure UA860SWB is a passive wide band UHF omnidirectional
antenna. The UA860SWB is weather resistant and suitable for use
outdoors.
INSTALLATION INSTRUCTIONS
Selecting Cable
Determine the length of cable required to connect the
UA860SWB antenna to a receiver or transmitter. Use only 50 Ω
low-loss cables (RG-8X or equivalent).
Shure recommends the following coaxial cables for mounting
remote antennas:
• UA825 Extension Cable (7.6 m [25 ft])
• UA850 Extension Cable (15.2 m [50 ft])
• UA8100 Extension Cable (30.4 m [100 ft])
NOTE: Shure recommends using the UA830SWB In-Line Amplifier
with gain selector switch, for cable lengths longer than
7.6 m ([25 ft]).
2007, Shure Incorporated
©
27D3186 (Rev. 1)
Model UA860SWB UHF Passive
Omnidirectional Antenna User Guide
IMPORTANT:
Always perform a "walk around" test to verify coverage prior to
actual use. Experiment with antenna placement to find the
optimum location for the UA860SWB.
NOTE: For additional technical assistance, call the Shure
Customer Service Department at 1-800-516-2525. In Europe,
phone 49-7131-72140.
SPECIFICATIONS
RF Frequency Range
470–1100 MHz
Voltage Standing Wave Ratio (VSWR)
<
2:1 referenced to 50Ω
Reception Pattern
Omnidirectional dipole
Connector
Female, BNC-type
Dimensions
284 mm H X 39 mm Dia. (11-3/16 X 1-9/16 in.)
Stand Adapter
Break resistant, with standard (UNS) 5/8 in.–27 thread
Net Weight (without cable)
275 g (9.72 oz.)
FURNISHED ACCESSORIES
UHF Coaxial Antenna Cable, 61 cm (2 ft.) . . . . . . . . . . . UA802
UHF Coaxial Antenna Cable, 7.6 m (25 ft.) . . . . . . . . . . . UA825
Stand Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .WA371
Thread Adapter (Euro) 5/8" to 3/8" . . . . . . . . . . . . . . . 31A1856
